Thermalright TG-650

Tuote

Valmistaja

Thermalright

Tuotenimi

TG-650

Julkaisupäivä

02.11.2023

Valmistajan linkki

https://www.thermalright.com/product/tg-650/

Tuotekoodit

Valmistajan tuotekoodit

• TR-TG 650

GTIN- / EAN-koodit

• 0814256016032

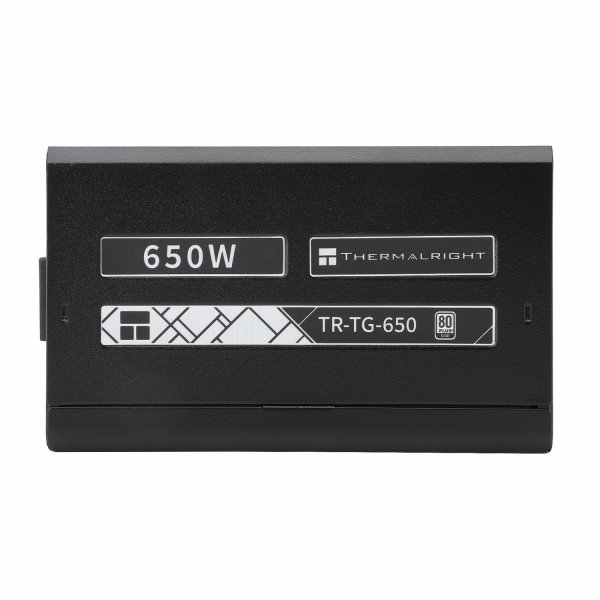

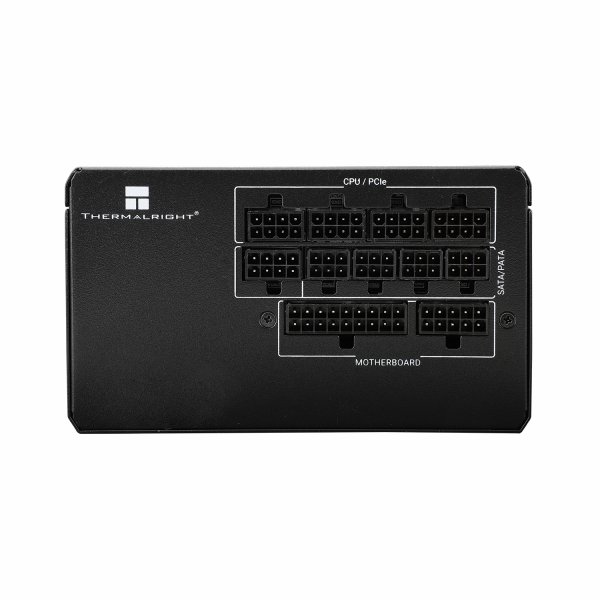

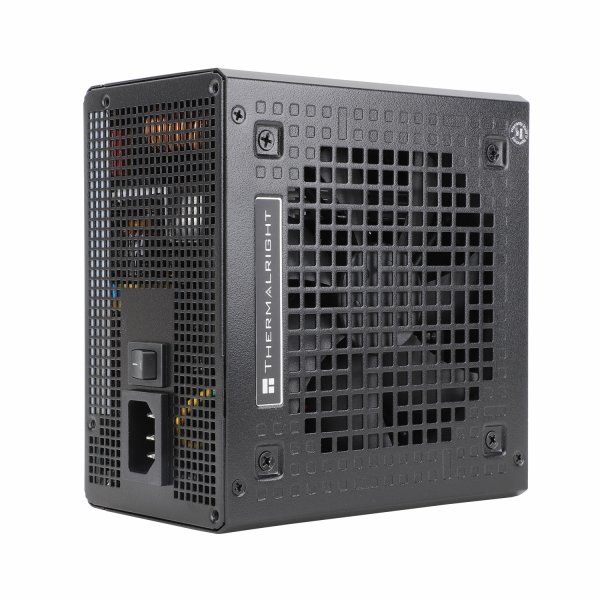

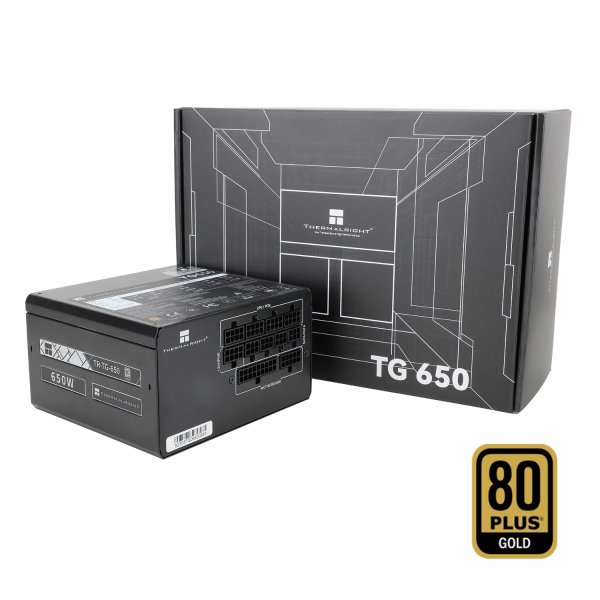

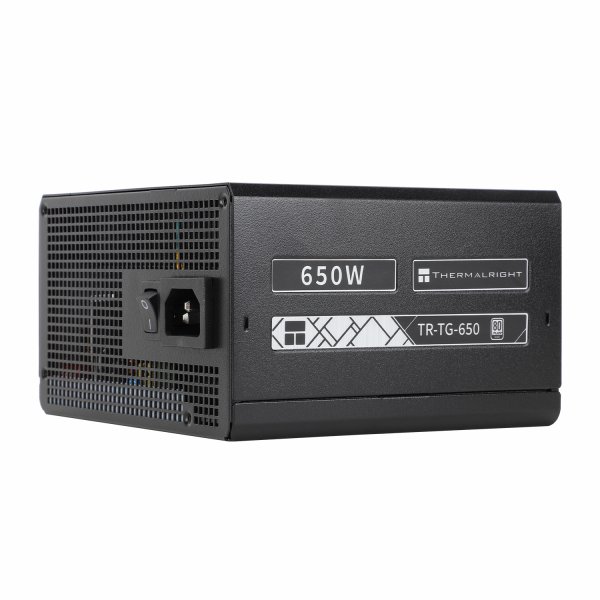

Tuotekuvat

Power

Total power

650 W

AC input voltage

100 - 240 V

AC input frequency

47 - 63 Hz

Input current

10 - 5 A

Combined power (+3.3V)

120 W

Combined power (+12V)

648 W

Combined power (+5V)

120 W

Combined power (-12V)

3.6 W

Combined power (+5Vsb)

12.5 W

Max output current (+3.3V)

20 A

Max output current (+12V)

54 A

Max output current (+5V)

20 A

Max output current (-12V)

0.3 A

Max output current (+5Vsb)

2.5 A

Power protection features

Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector

20+4 pin ATX

Motherboard power cable length

600 mm

Number of SATA power connectors

2

Number of PATA power connectors

1

SATA power cable length

450,600,750,900 mm

PCI Express power connectors (6+2 pin)

2

PCI Express power cable length

800 mm

CPU power connector (4+4 pin)

Kyllä

CPU power cable length

600 mm

PCI Express connector

Kyllä

Cabling type

Fully-Modular

Performance

Purpose

PC

Power supply unit (PSU) form factor

ATX

80 PLUS certification

80 PLUS Gold

ATX version

3.0

Mean time between failures (MTBF)

100000 h

Design

Product colour

Black

Cooling type

Active

Fan diameter

120 mm

Number of fans

1 fan(s)

Built-in display

Ei

On/off switch

Kyllä

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Packaging content

Cables included

CPU, PATA, PCIe, SATA

Weight & dimensions

Width

140 mm

Depth

150 mm

Height

86 mm

Logistics data

Warranty period

5 year(s)
