ASUS Pro WS TRX50-SAGE WIFI

Tuote

Valmistaja

ASUS

Tuotenimi

Pro WS TRX50-SAGE WIFI

Valmistajan linkki

https://www.asus.com/motherboards-components/motherboards/work..

Tuotekoodit

Valmistajan tuotekoodit

• 90MB1FZ0-M0EAY0
• PRO WS TRX50-SAGE WIFI
• PRO-WS-TRX50-SAGE-WIFI
• PROWSTRX50-SAGEWIFI

GTIN- / EAN-koodit

• 4711387402726

Tuotekuvat

Processor

Processor manufacturer

AMD

Processor socket

Socket sTR5

Compatible processor series

AMD Ryzen Threadripper 1000 Series

Memory

Supported memory types

DDR5-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Quad-channel

ECC сompatibility

ECC

Maximum internal memory

1000 GB

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

Number of HDDs supported

4

Number of storage drives supported

7

RAID support

Kyllä

RAID levels

0, 1, 5, 10

Graphics

On-board graphics card

Ei

Internal I/O

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

USB 3.2 Gen 2x2 connectors

1

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of SATA connectors

0

Front panel audio connector

Kyllä

ATX Power connector (24-pin)

Kyllä

CPU fan connector

Kyllä

Number of chassis fan connectors

4

Chassis intrusion connector

Kyllä

EPS power connector (8-pin)

Kyllä

Number of COM connectors

1

TPM connector

Kyllä

12V power connector

Kyllä

Integrated SAS ports

1

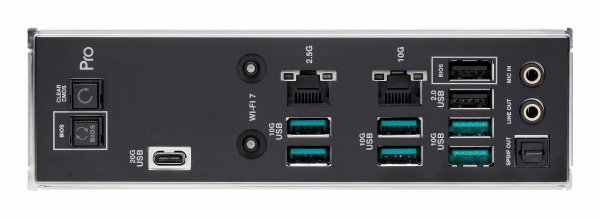

Rear panel I/O ports

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

6

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 3.2 Gen 2x2 Type-C ports quantity

1

Ethernet LAN (RJ-45) ports

2

VGA (D-Sub) ports quantity

0

HDMI ports quantity

0

DVI-D ports quantity

0

Microphone in

Kyllä

S/PDIF out port

Kyllä

WiFi-AP antenna jack

1

USB connector type

USB Type-A, USB Type-C

Network

Ethernet LAN

Kyllä

Ethernet interface type

2.5 Gigabit Ethernet, 10 Gigabit Ethernet

LAN controller

Intel I226-LM

Wi-Fi

Kyllä

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Wi-Fi standards

Wi-Fi 7 (802.11be)

Bluetooth

Kyllä

Bluetooth version

5.4

Features

Component for

Workstation

Motherboard form factor

SSI CEB

Motherboard chipset family

AMD

Motherboard chipset

AMD TRX50

Audio chip

Realtek ALC1220P

Product colour

Black

Windows operating systems supported

Windows 10 x64, Windows 11

Expansion slots

PCI Express x16 (Gen 4.x) slots

2

PCI Express x16 (Gen 5.x) slots

3

Number of M.2 (M) slots

3

BIOS

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS button

Kyllä

Packaging data

Package width

320 mm

Package depth

380 mm

Package height

100 mm

Package weight

4850 g

Weight & dimensions

Width

305 mm

Depth

280 mm

Packaging content

Cables included

PCIe, SATA

Other features

Weight

2530 g
