ASUS TUF GAMING Z790-BTF WIFI

Tuote

Valmistaja

ASUS

Tuotenimi

TUF GAMING Z790-BTF WIFI

Valmistajan linkki

https://www.asus.com/motherboards-components/motherboards/tuf..

Tuotekoodit

Valmistajan tuotekoodit

• 90MB1GU0-M0EAY0
• TUF GAMING Z790-BTF WIFI

GTIN- / EAN-koodit

• 4711387468159

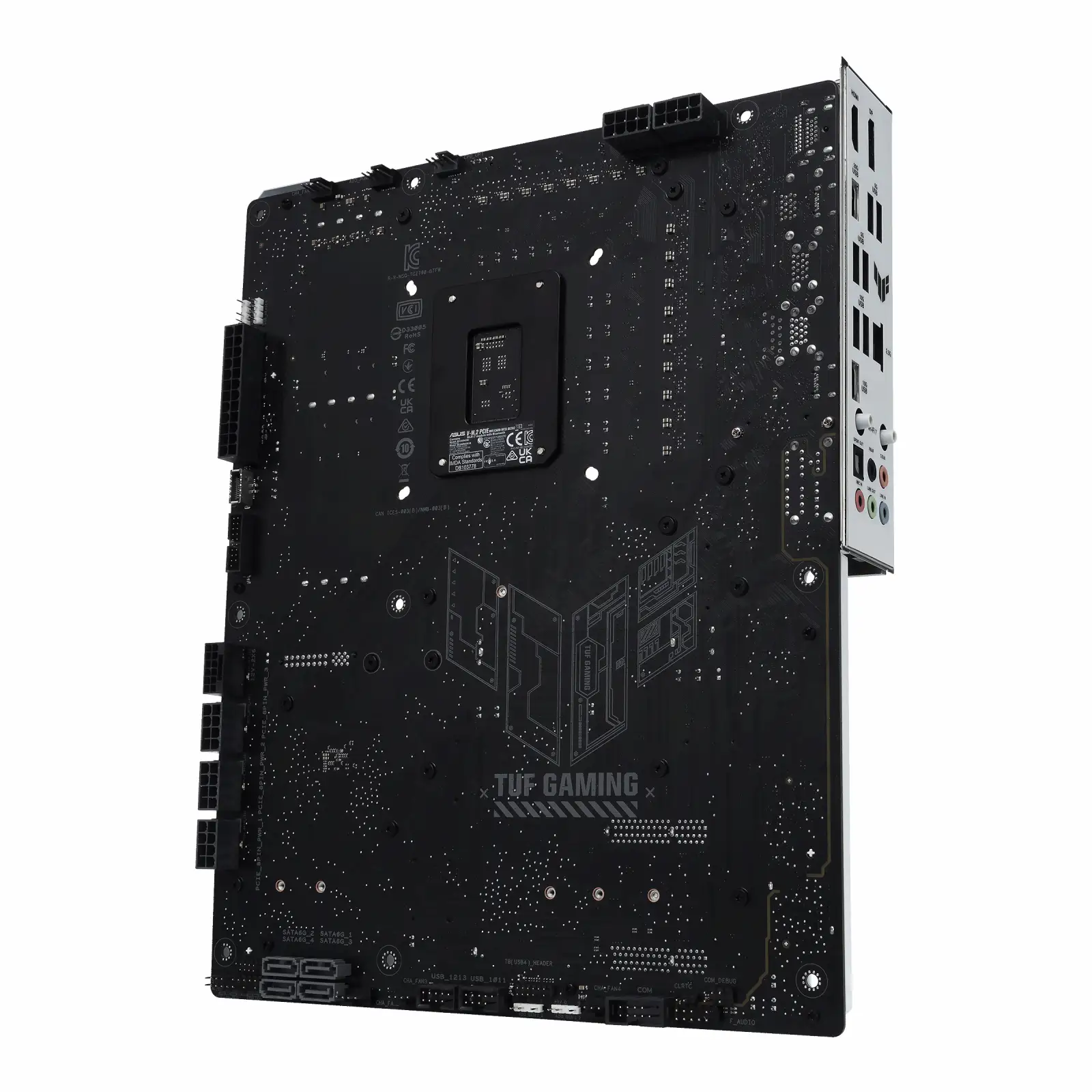

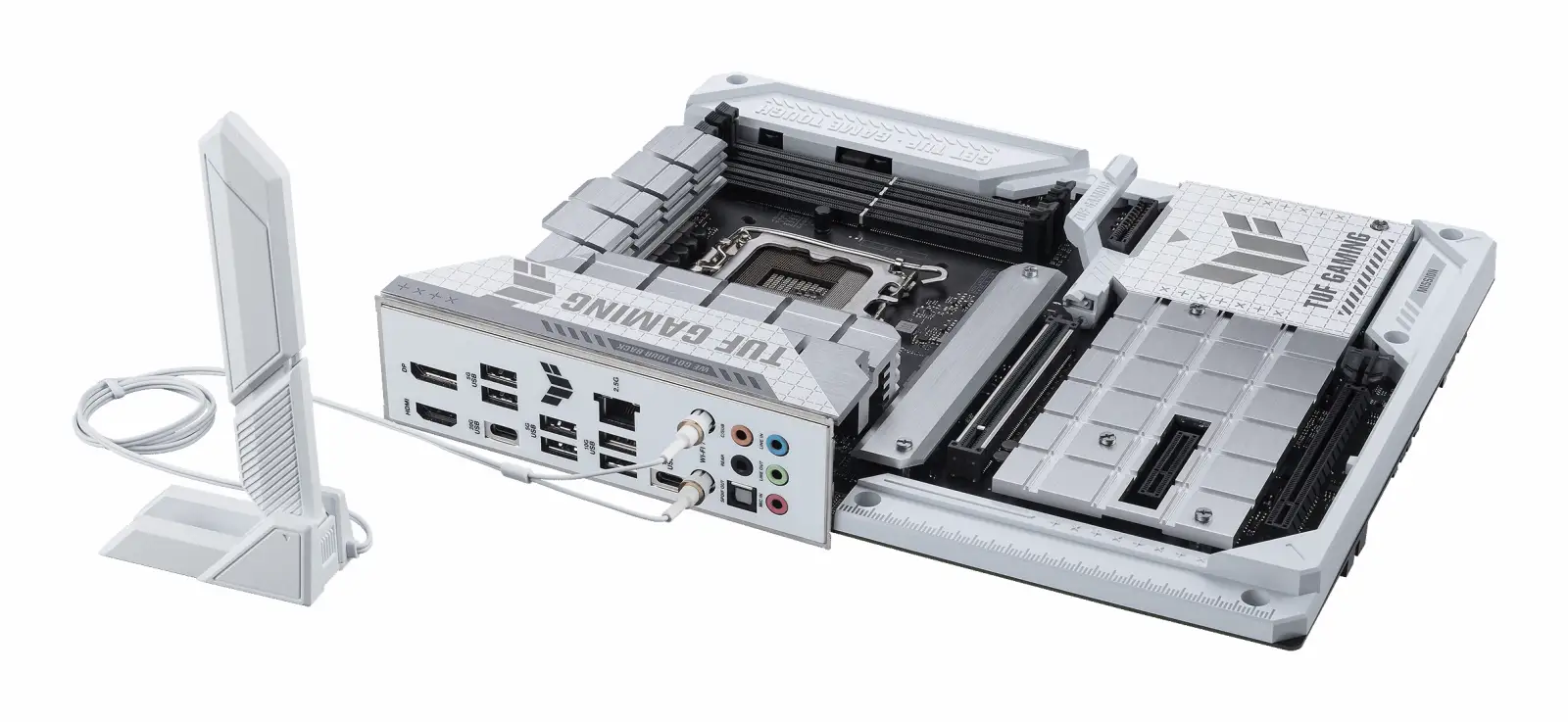

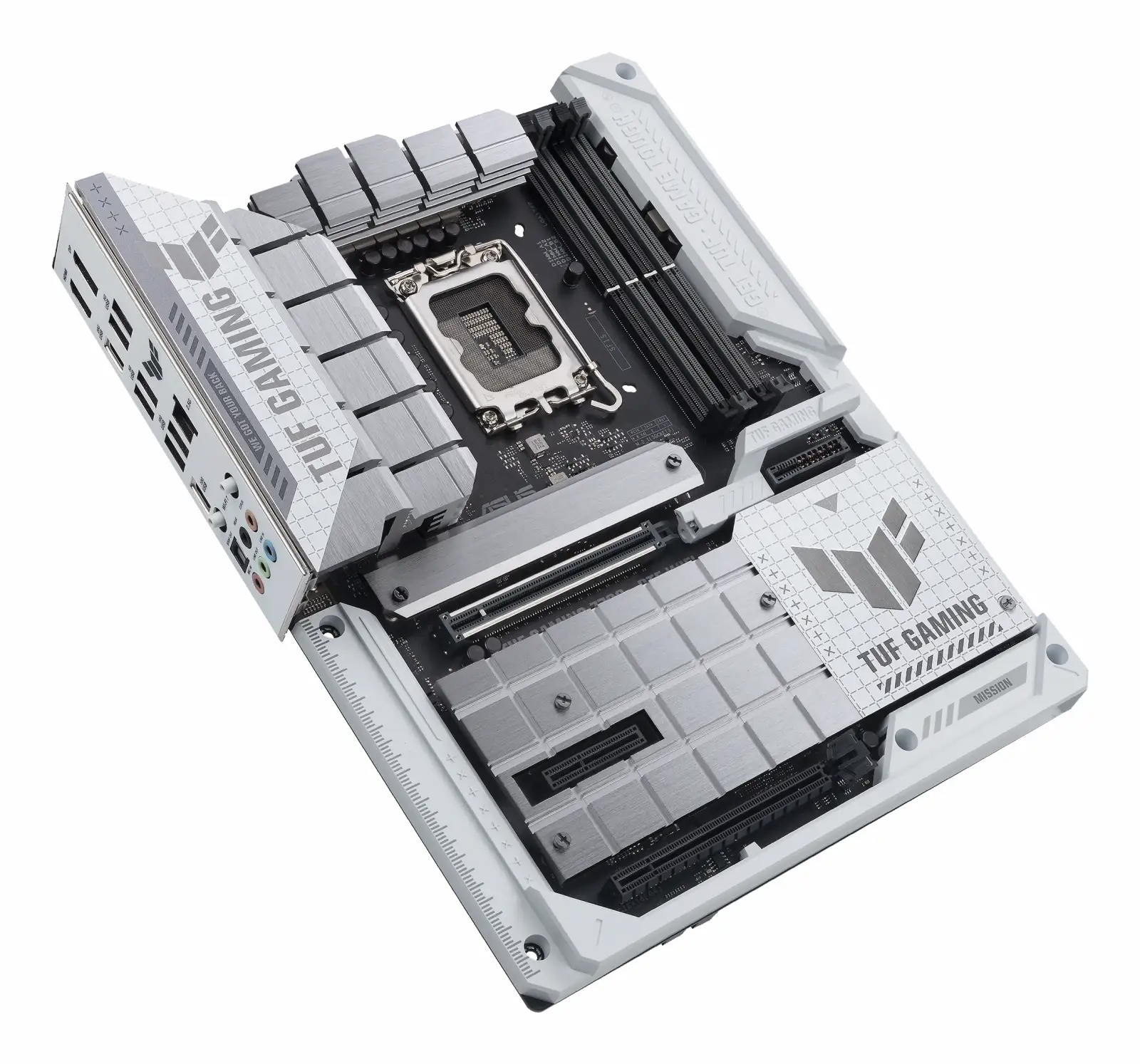

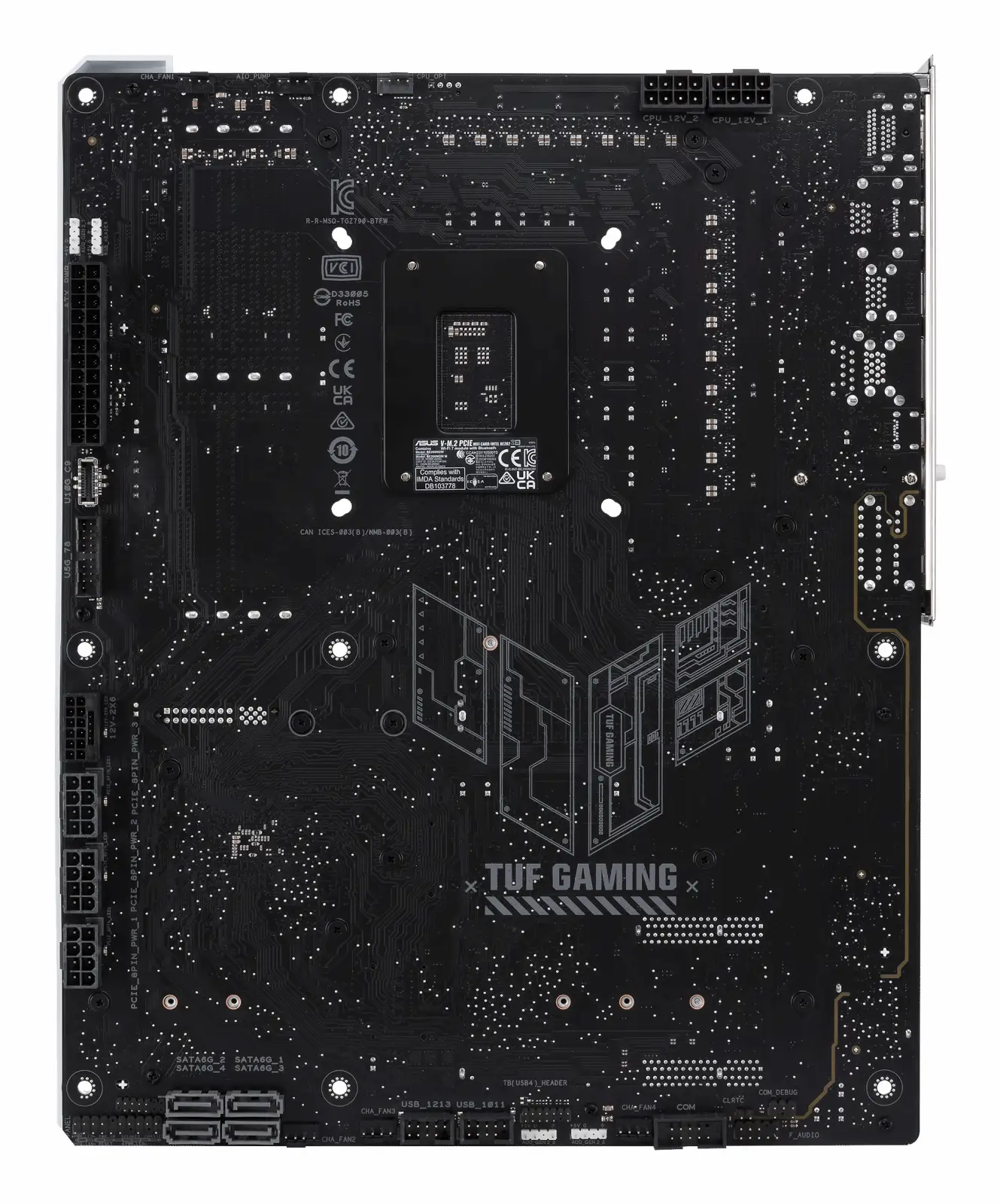

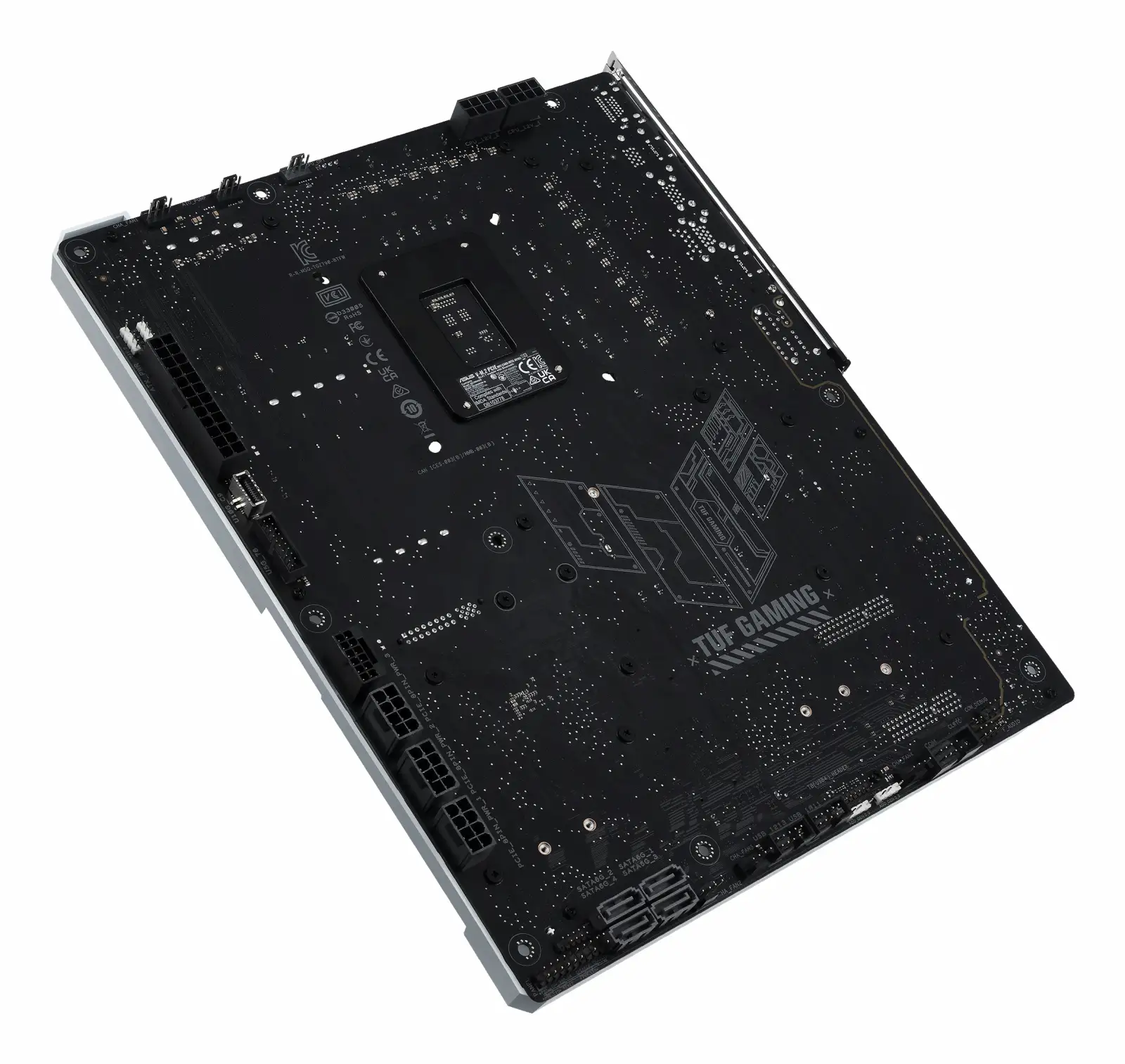

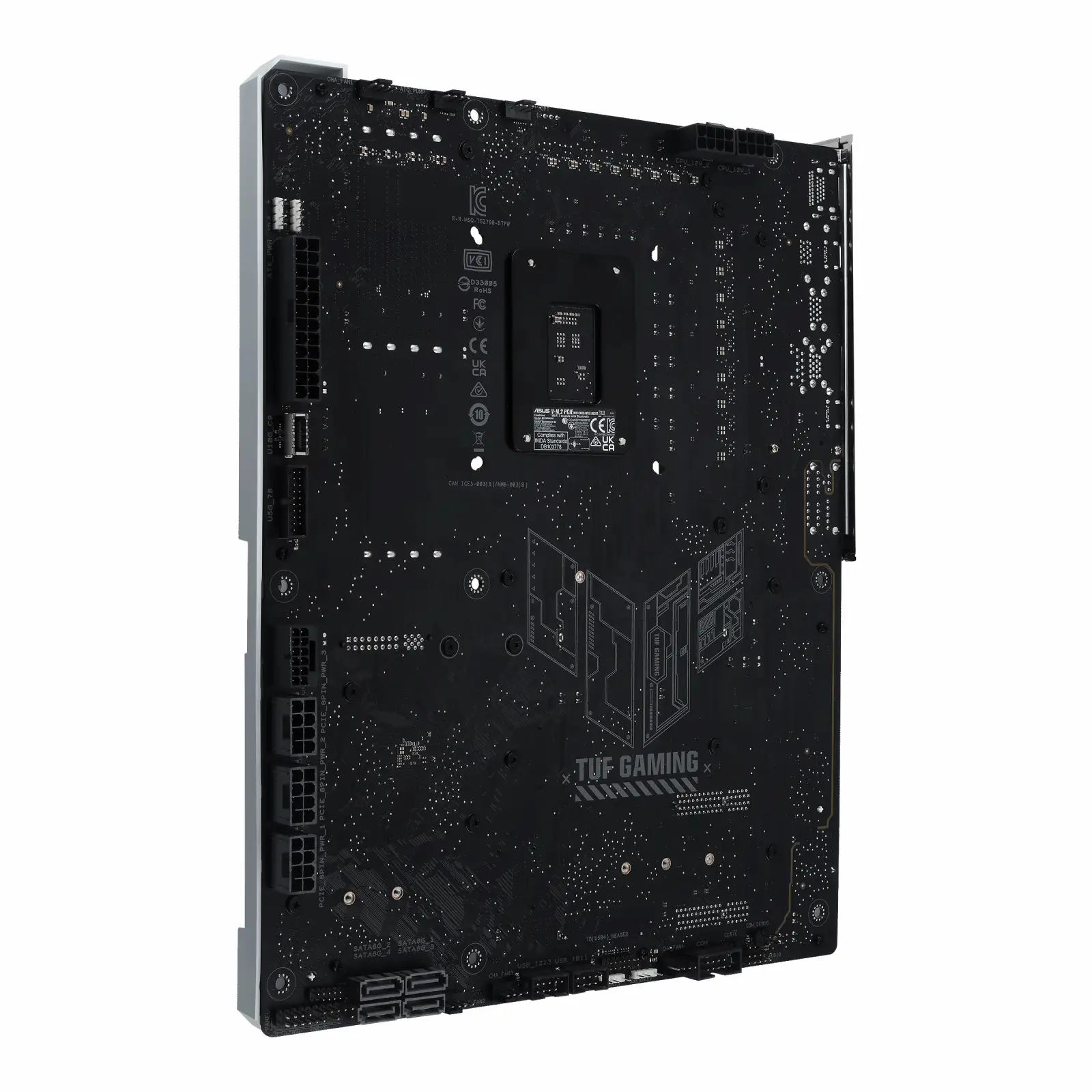

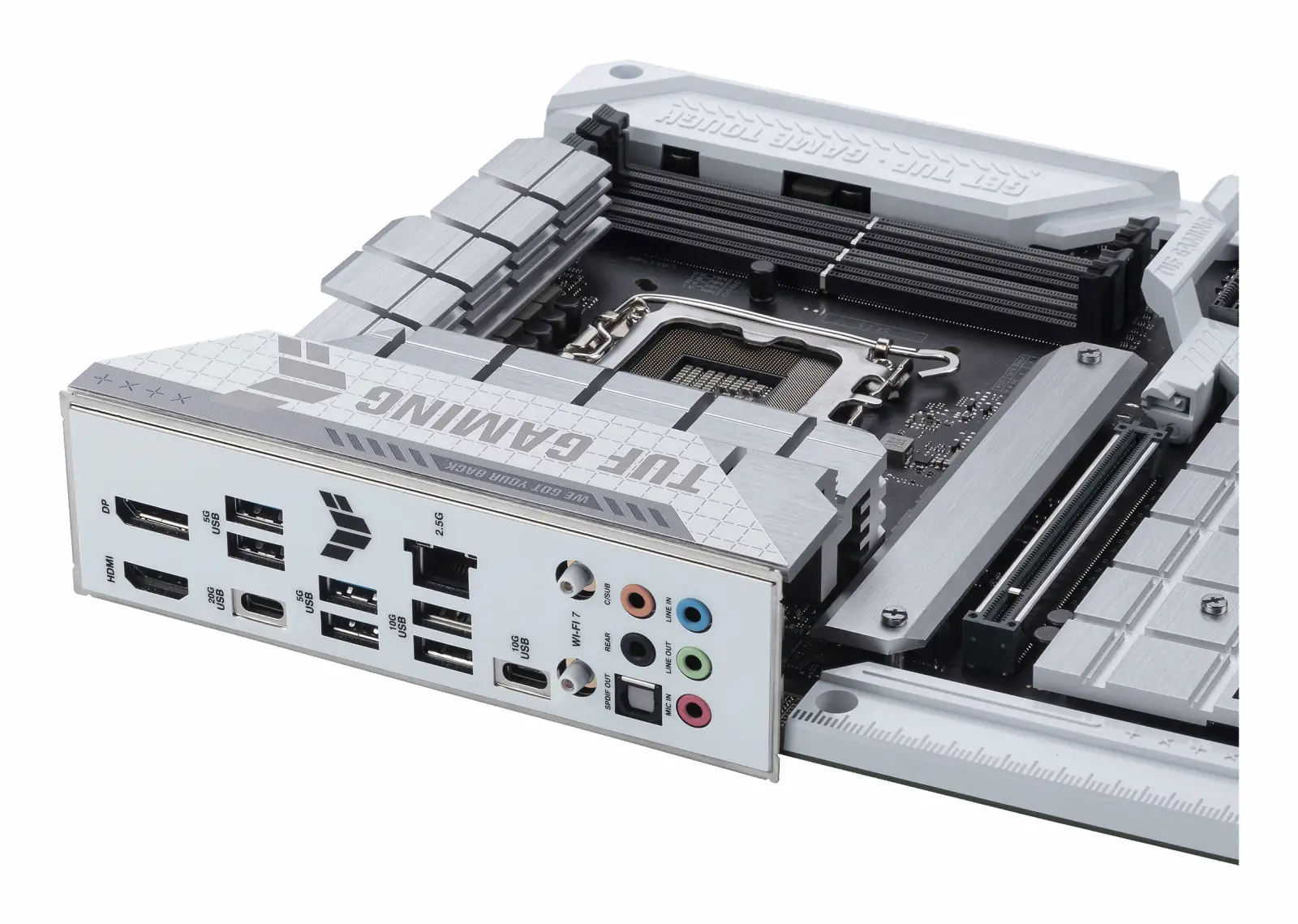

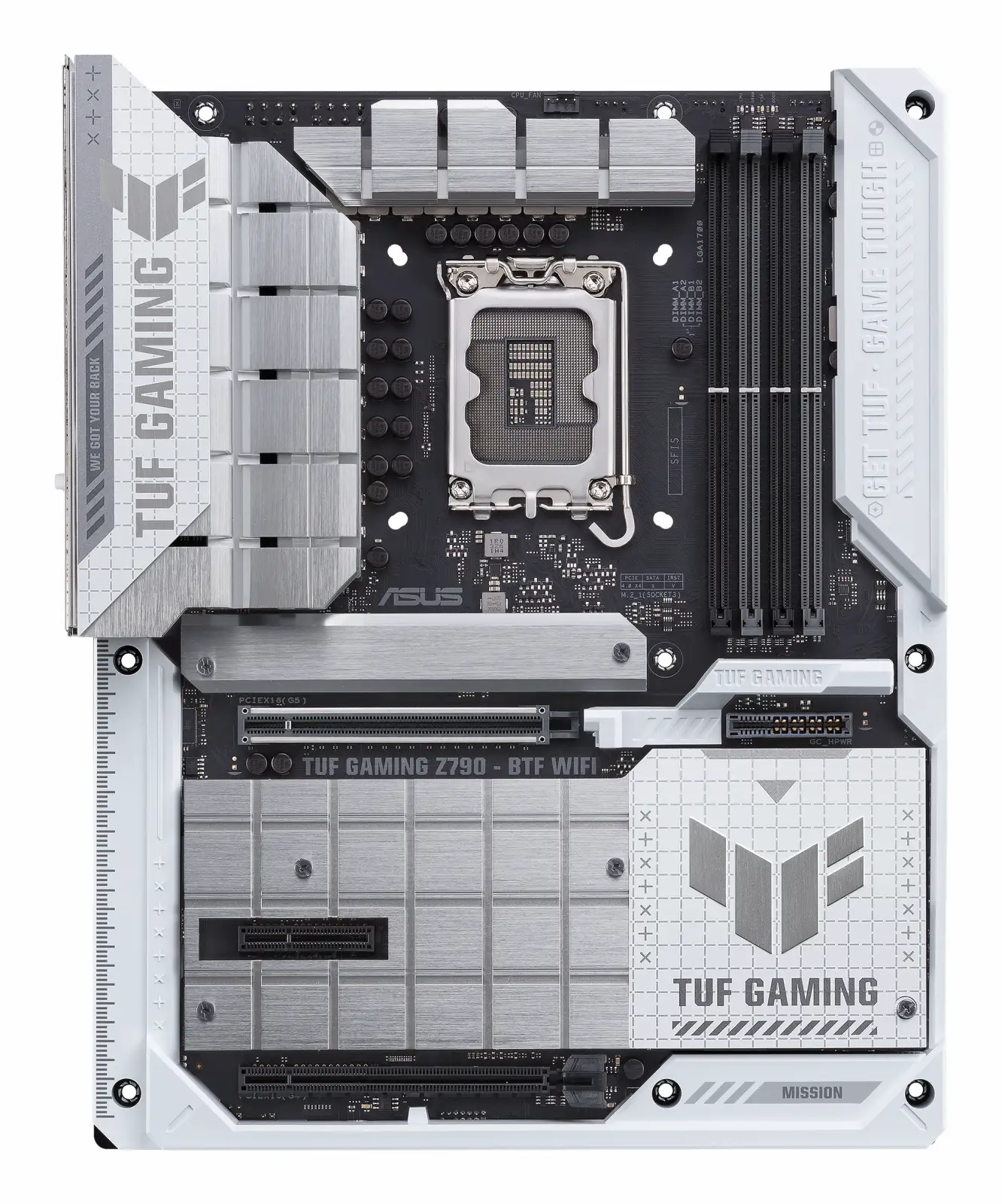

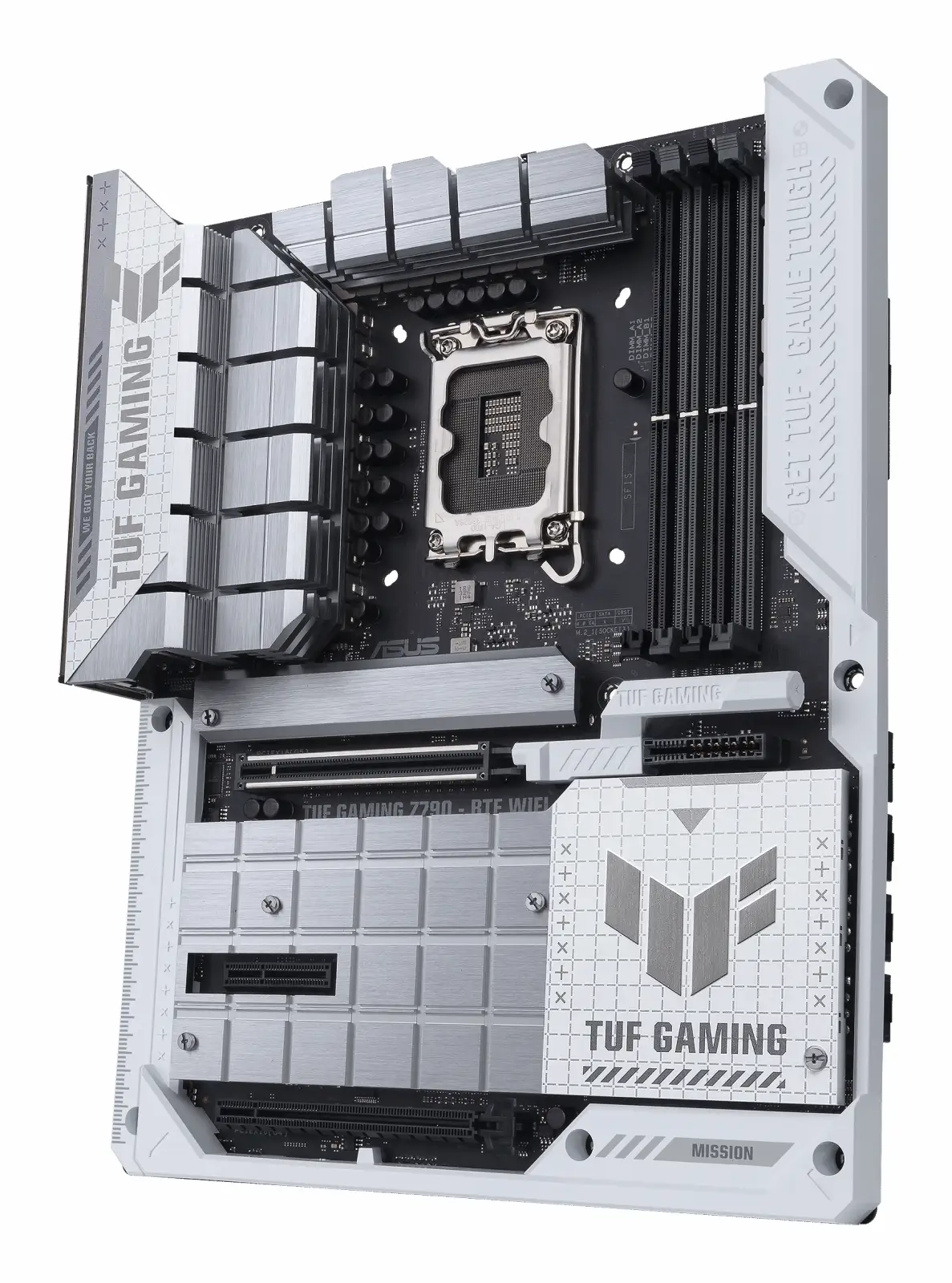

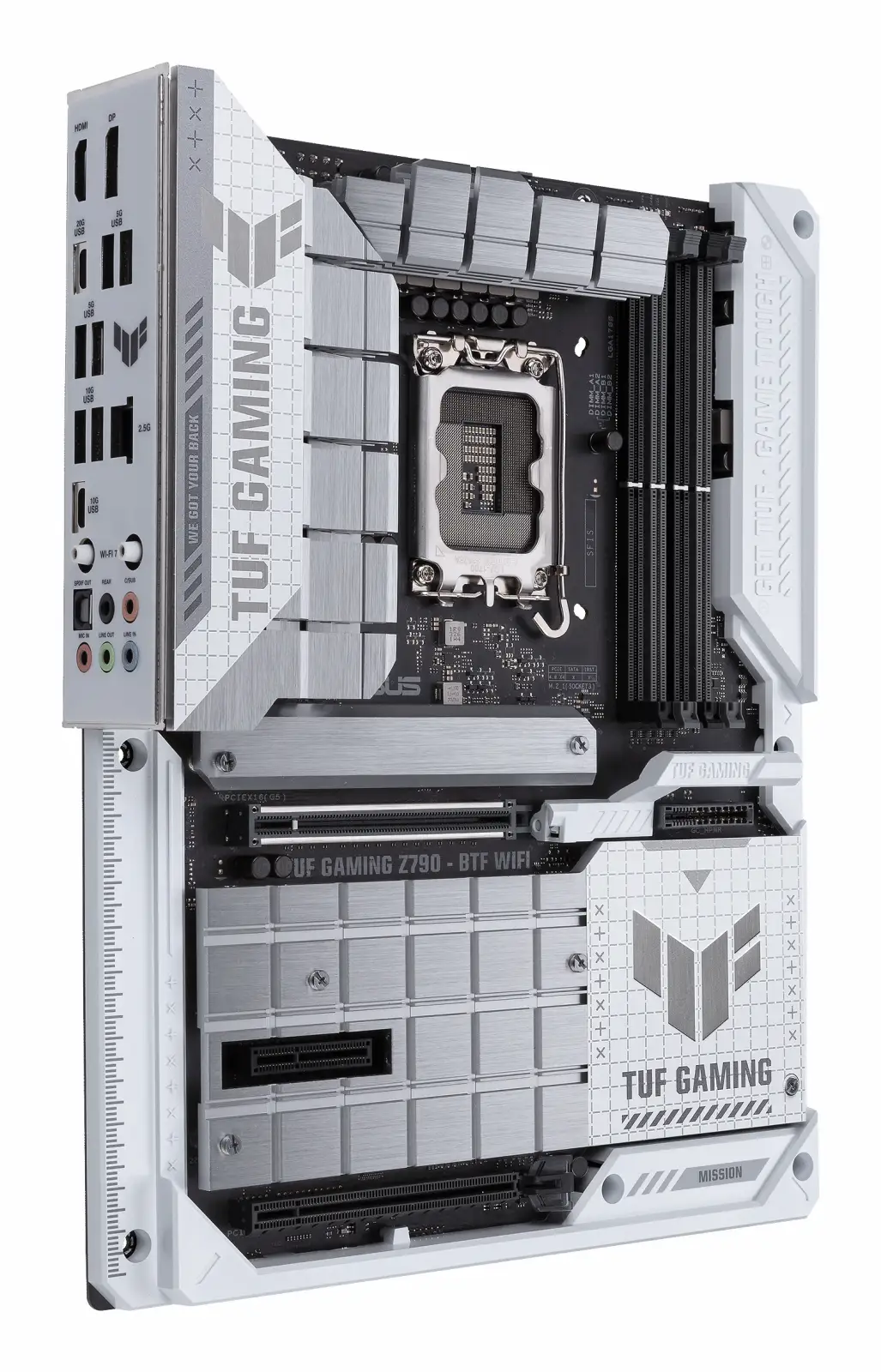

Tuotekuvat

Processor

Processor manufacturer

Intel

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9

Supported processor sockets

LGA 1700

Memory

Supported memory types

DDR5-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

ECC сompatibility

Non-ECC

Supported memory clock speeds

7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz

Supported memory clock speed (max)

7200 MHz

Maximum internal memory

192 GB

Unbuffered memory

Kyllä

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

Number of HDDs supported

4

Number of storage drives supported

8

RAID support

Kyllä

RAID levels

0, 1, 5, 10

Graphics

Parallel processing technology support

Not supported

On-board graphics card

Ei

Internal I/O

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of SATA connectors

0

Front panel audio connector

Kyllä

ATX Power connector (24-pin)

Kyllä

CPU fan connector

Kyllä

Number of chassis fan connectors

4

EPS power connector (8-pin)

Kyllä

Number of COM connectors

1

Thunderbolt headers

1

12V power connector

Kyllä

RGB LED pin header

Kyllä

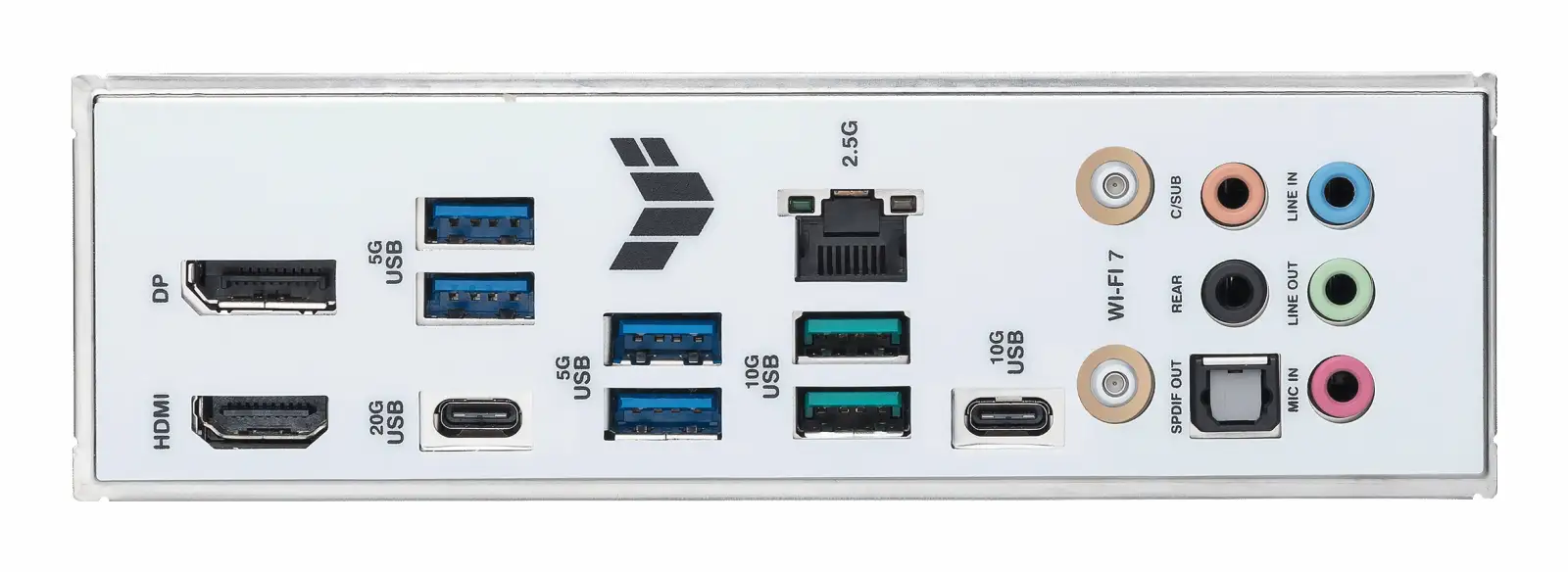

Rear panel I/O ports

USB 2.0 ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 3.2 Gen 2x2 Type-C ports quantity

1

Ethernet LAN (RJ-45) ports

1

VGA (D-Sub) ports quantity

0

HDMI ports quantity

1

DVI-D ports quantity

0

DisplayPorts quantity

1

Microphone in

Kyllä

S/PDIF out port

Kyllä

WiFi-AP antenna jack

1

Network

Ethernet LAN

Kyllä

Ethernet interface type

2.5 Gigabit Ethernet

Wi-Fi

Kyllä

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Wi-Fi standards

Wi-Fi 7 (802.11be)

Bluetooth

Kyllä

Bluetooth version

5.4

Features

Component for

PC

Motherboard form factor

ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel Z790

Audio output channels

7.1 channels

Product colour

Aluminium, Black

Windows operating systems supported

Windows 10 x64, Windows 11

Expansion slots

PCI Express x4 (Gen 4.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

Number of M.2 (M) slots

4

BIOS

BIOS type

UEFI AMI

BIOS memory size

192 Mbit

Packaging data

Package width

370 mm

Package depth

312 mm

Package height

108 mm

Package weight

3953 g

Weight & dimensions

Width

305 mm

Depth

244 mm

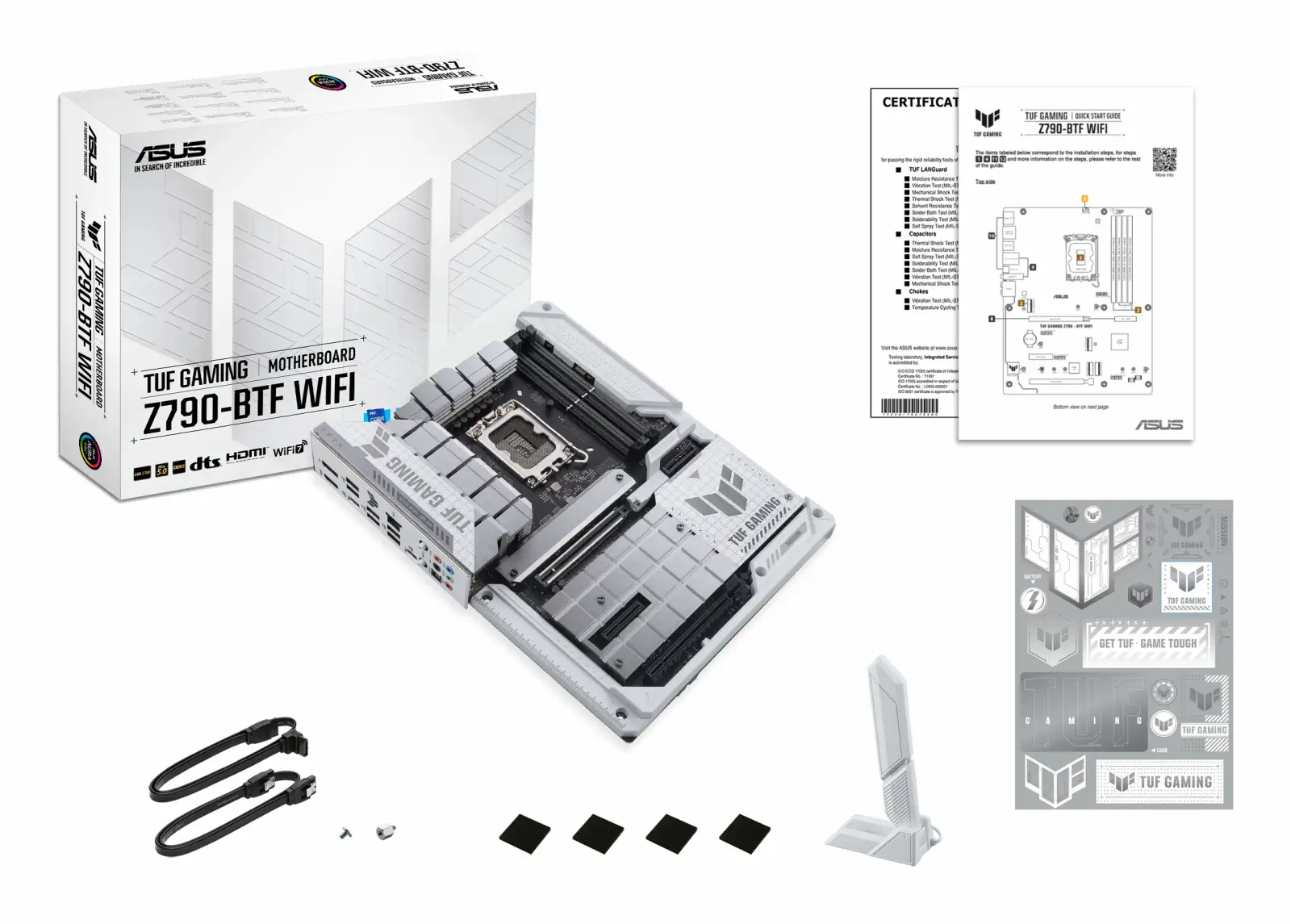

Packaging content

Cables included

SATA

Screws included

Kyllä

Other features

mSATA ports quantity

0
