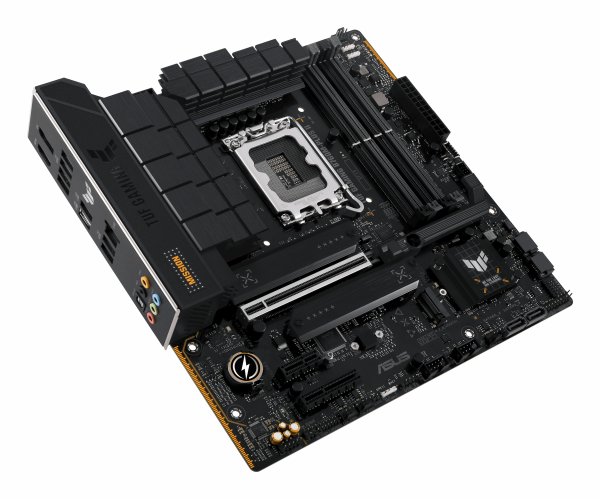

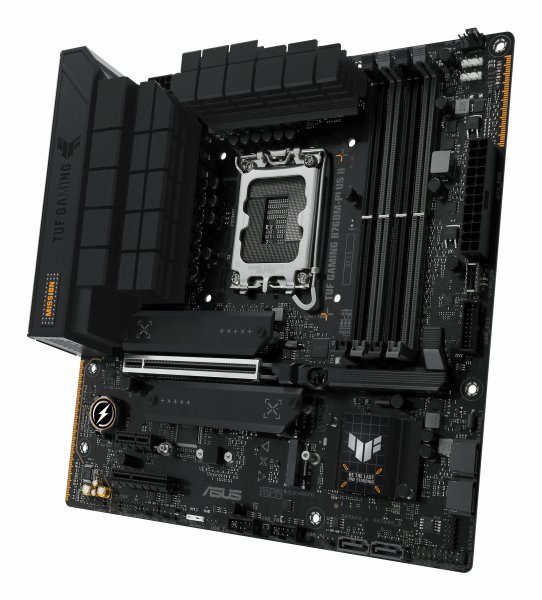

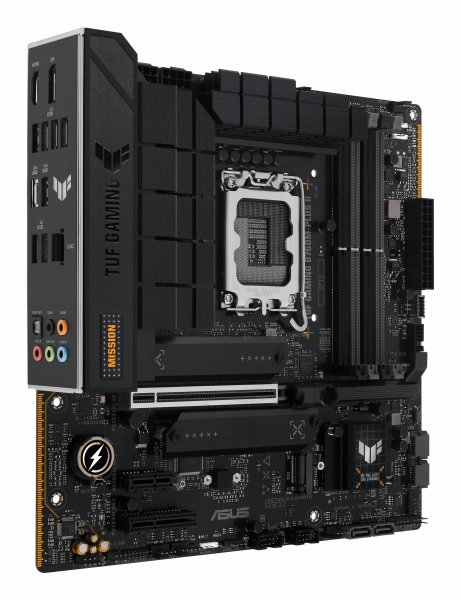

ASUS TUF GAMING B760M-PLUS II

Tuote

Valmistaja

ASUS

Tuotenimi

TUF GAMING B760M-PLUS II

Valmistajan linkki

https://www.asus.com/motherboards-components/motherboards/tuf..

Tuotekoodit

Valmistajan tuotekoodit

• 90MB1HD0-M0EAY0

GTIN- / EAN-koodit

• 4711387469798

Tuotekuvat

Processor

Processor manufacturer

Intel

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9

Supported processor sockets

LGA 1700

Memory

Supported memory types

DDR5-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

ECC сompatibility

Non-ECC

Supported memory clock speeds

7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz

Supported memory clock speed (max)

7800 MHz

Maximum internal memory

192 GB

Unbuffered memory

Kyllä

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

Number of HDDs supported

4

Number of storage drives supported

7

RAID support

Kyllä

RAID levels

0, 1, 5, 10

Graphics

Parallel processing technology support

Not supported

Internal I/O

USB 2.0 connectors

3

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Number of SATA III connectors

4

Front panel audio connector

Kyllä

ATX Power connector (24-pin)

Kyllä

CPU fan connector

Kyllä

Number of chassis fan connectors

3

EPS power connector (8-pin)

Kyllä

Thunderbolt headers

1

12V power connector

Kyllä

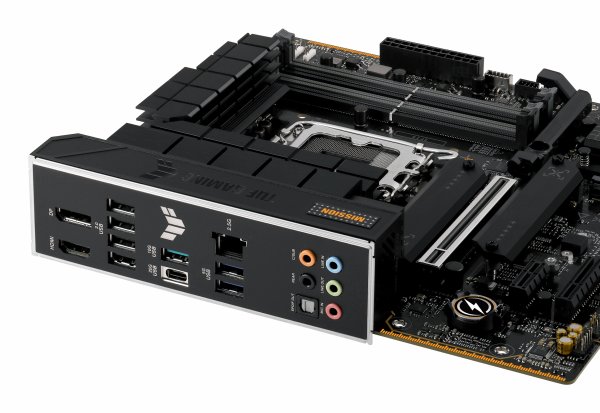

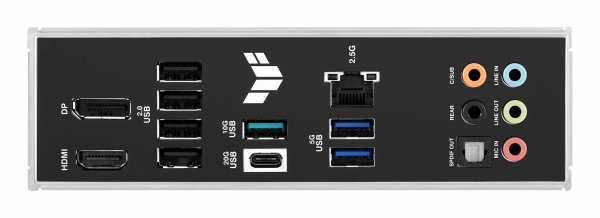

Rear panel I/O ports

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 3.2 Gen 2x2 Type-C ports quantity

1

Ethernet LAN (RJ-45) ports

1

VGA (D-Sub) ports quantity

0

HDMI ports quantity

1

DVI-D ports quantity

0

DisplayPorts quantity

1

Headphone outputs

1

Microphone in

Kyllä

S/PDIF out port

Kyllä

Network

Ethernet LAN

Kyllä

Ethernet interface type

2.5 Gigabit Ethernet

Wi-Fi

Ei

Features

Component for

PC

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel B760

Audio output channels

7.1 channels

Windows operating systems supported

Windows 10 x64, Windows 11

Expansion slots

PCI Express x1 (Gen 3.x) slots

1

PCI Express x4 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

Number of M.2 (M) slots

3

BIOS

BIOS type

UEFI AMI

BIOS memory size

128 Mbit

Packaging data

Package width

280 mm

Package depth

265 mm

Package height

71 mm

Package weight

1652 g

Weight & dimensions

Width

244 mm

Depth

244 mm

Height

50 mm

Packaging content

Cables included

SATA

Screws included

Kyllä

Other features

Weight

982 g
