Gigabyte H610M S2H V3 DDR4

Tuote

Valmistaja

Gigabyte

Tuotenimi

H610M S2H V3 DDR4

Valmistajan linkki

https://www.gigabyte.com/

Tuotekoodit

Valmistajan tuotekoodit

• H610M S2H V3 DDR4

GTIN- / EAN-koodit

• 4719331859732

Tuotekuvat

Processor

Processor manufacturer

Intel

Processor socket

LGA 1700

Compatible processor series

Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7

Supported processor sockets

LGA 1700

Memory

Supported memory types

DDR4-SDRAM

Number of memory slots

2

Memory slots type

DIMM

Memory channels

Dual-channel

ECC сompatibility

ECC & Non-ECC

Supported memory clock speeds

2133,2400,2666,2933,3000,3200 MHz

Supported memory clock speed (max)

3200 MHz

Maximum internal memory

64 GB

Unbuffered memory

Kyllä

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

Number of HDDs supported

4

Number of storage drives supported

5

Graphics

Parallel processing technology support

Not supported

Maximum resolution

4096 x 2304 pixels

HDCP

Kyllä

Internal I/O

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Total number of SATA connectors

4

Front panel audio connector

Kyllä

Front panel connector

Kyllä

ATX Power connector (24-pin)

Kyllä

CPU fan connector

Kyllä

Number of CPU fan connectors

1

Chassis intrusion connector

Kyllä

EPS power connector (8-pin)

Kyllä

Number of EPS power connectors (8-pin)

1

TPM connector

Kyllä

Serial port headers

1

12V power connector

Kyllä

RGB LED pin header

Kyllä

Number of RGB LED pin headers

1

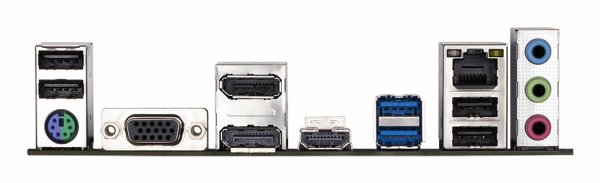

Rear panel I/O ports

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

Ethernet LAN (RJ-45) ports

1

PS/2 ports quantity

1

VGA (D-Sub) ports quantity

1

HDMI ports quantity

1

HDMI version

2.1

DVI-D ports quantity

0

DisplayPorts quantity

2

DisplayPort version

1.2

Line-in

Kyllä

Microphone in

Kyllä

USB connector type

USB Type-A

Network

Ethernet LAN

Kyllä

Ethernet interface type

Gigabit Ethernet

Wi-Fi

Ei

Features

Component for

PC

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel H610 Express

Audio output channels

7.1 channels

Product colour

Black

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Cooling type

Active

Power source type

ATX

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Expansion slots

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

1

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

3.0

BIOS

BIOS type

UEFI AMI

BIOS memory size

128 Mbit

ACPI version

5.0

Clear CMOS jumper

Kyllä

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Logistics data

Country of origin

China

Products per shipping (inner) case

1 pc(s)

Battery

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Packaging data

Package width

265 mm

Package depth

235 mm

Package height

52 mm

Package weight

774 g

Weight & dimensions

Width

223 mm

Depth

193 mm

Height

35 mm

Packaging content

Batteries included

Kyllä

Bundled software

Norton Internet Security (OEM version) LAN bandwidth management software

Technical details

Warranty period

3 year(s)
