Ominaisuudet
- 80 PLUS certification
- 80 PLUS Titanium
Arvostelut
Arvostele tuoteAlin hinta 30 päivän aikana
432,18 €
+14,26 %
Hinta on nyt 61,64 € kalliimpi.
HintahistoriaTuotetiedot
Tuote
- Valmistaja
- Seasonic
- Tuotenimi
- Prime TX-1600 ATX 3.0
- Valmistajan linkki
- https://seasonic.com/atx3-prime-tx#gallery
Tuotekoodit
- Valmistajan tuotekoodit
- SSR-1600TR2

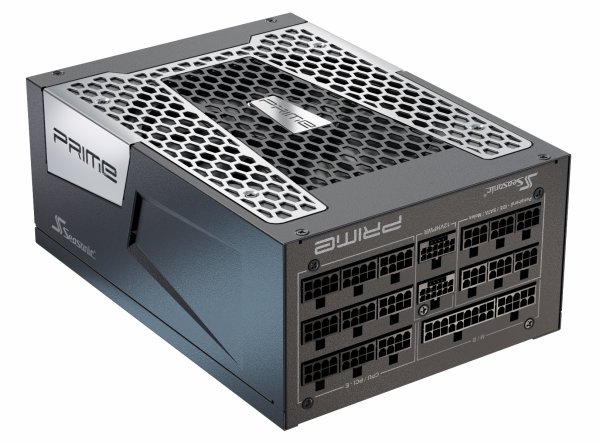

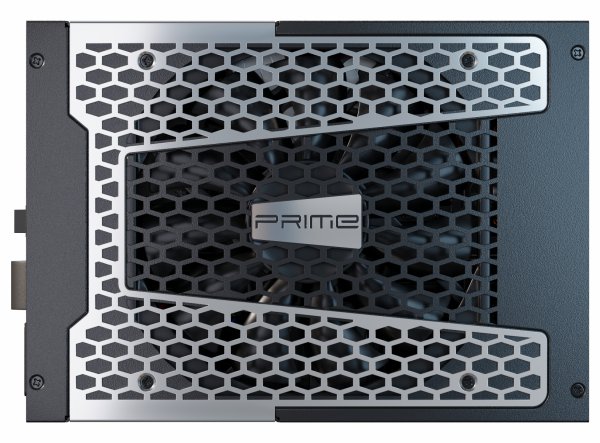

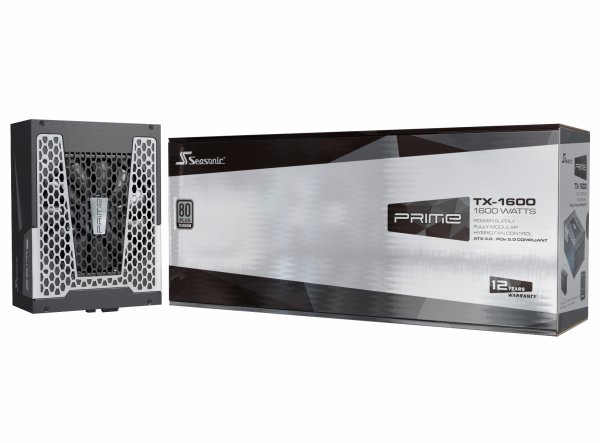

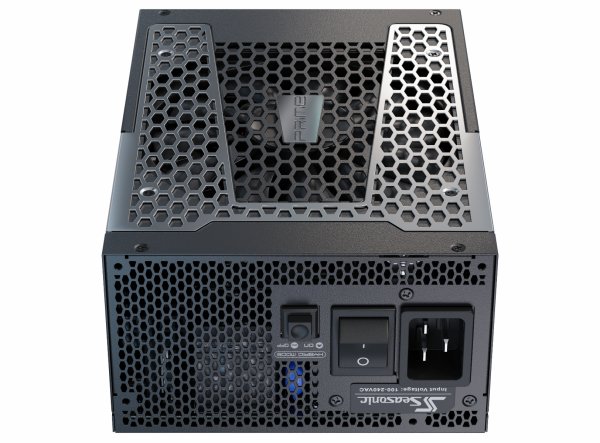

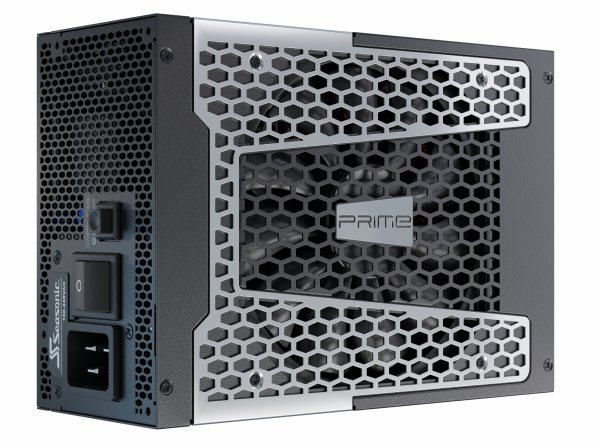

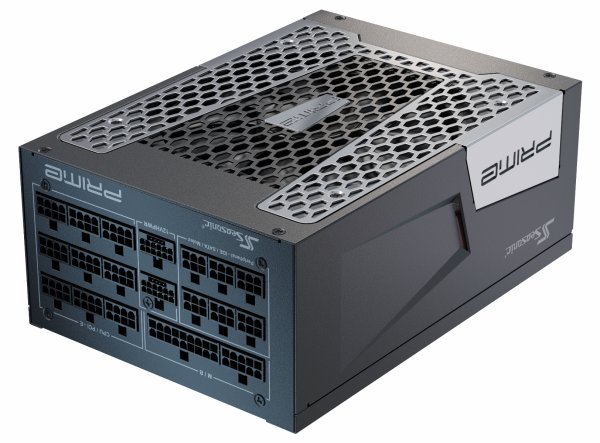

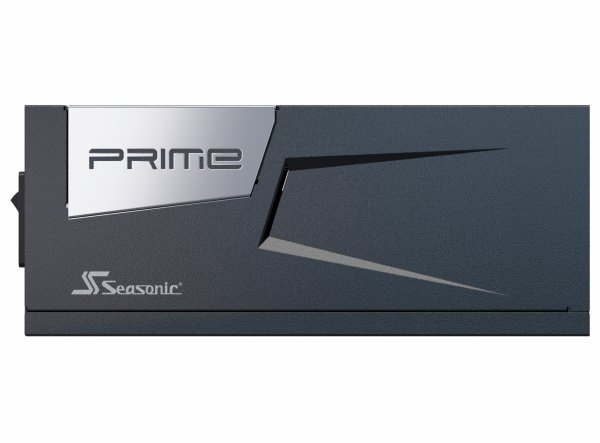

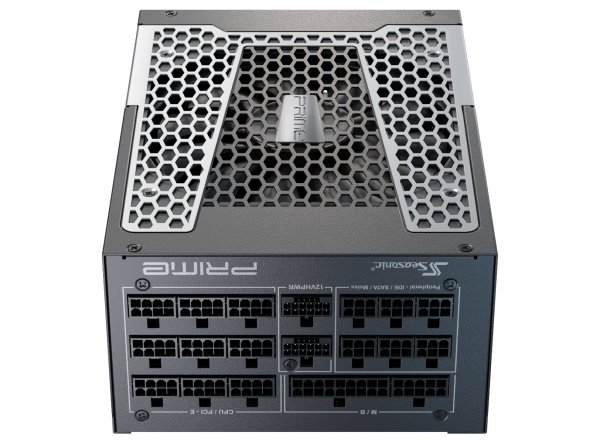

Tuotekuvat
Power
- Total power
- 1600 W
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50/60 Hz
- Input current
- 15 - 10 A
- Combined power (+3.3V)
- 125 W
- Combined power (+12V)
- 1600 W
- Combined power (+5V)
- 125 W
- Combined power (-12V)
- 6 W
- Combined power (+5Vsb)
- 15 W
- Max output current (+3.3V)
- 25 A
- Max output current (+12V)
- 133.3 A
- Max output current (+5V)
- 25 A
- Max output current (-12V)
- 0.5 A
- Max output current (+5Vsb)
- 3 A
- Power protection features
- Over current, Over voltage, Short circuit

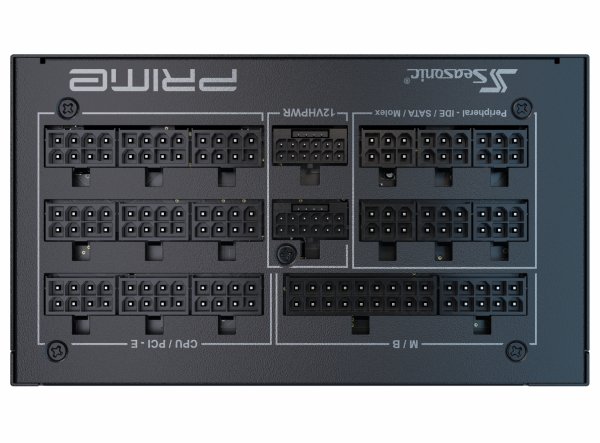

Ports & interfaces
- Motherboard power connector
- 20+4 pin ATX
- Motherboard power cable length
- 610 mm
- Number of SATA power connectors
- 10
- Peripheral (Molex) power connectors (4-pin)
- 3
- Peripheral (Molex) power cable length
- 690 mm
- CPU P4 connector (4-pin)
- 1
- CPU power connector (4+4 pin)
- Kyllä
- CPU power cable length
- 700 mm
- PCI Express connector
- Kyllä
- Cabling type
- Fully-Modular
Performance
- Purpose
- PC
- Power supply unit (PSU) form factor
- ATX
- 80 PLUS certification
- 80 PLUS Titanium
- ATX version
- 3.0
- Bearing technology
- FDB
- Mean time between failures (MTBF)
- 100000 h
- Compatible products
- cTUVus, TUV, CB, CCC, BSMI, EAC, CE, Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Design
- Product colour
- Black
- Cooling type
- Active
- Fan diameter
- 135 mm
- Number of fans
- 1 fan(s)
- On/off switch
- Kyllä
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Operating relative humidity (H-H)
- 15 - 65 %
Packaging content
- Cables included
- AC, CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA
- Cable tie(s) included
- Kyllä
Certificates
- Compliance certificates
- BSMI, CB, CE, China Compulsory Certification (CCC), EAC, REACH, RoHS, cTUVus, WEEE
Safety regulation & standards
- Safety
- OPP, OVP, UVP, OCP, OTP, SCP
Weight & dimensions
- Width
- 150 mm
- Depth
- 210 mm
- Height
- 86 mm
Packaging data
- Package type
- Box
Technical details
- Sustainability certificates
- ENERGY STAR, ErP
