Tuotetiedot
Tuote
- Valmistaja
- Antec
- Tuoteperhe / -sarja
- HIGH CURRENT GAMER
- Tuotenimi
- HCG850 PRO Platinum ATX 3.1
- Valmistajan linkki
- https://www.antec.com/product/power/hcg850-pro-platinum-atx31
Tuotekoodit
- Valmistajan tuotekoodit
- 0-761345-20009-7
- GTIN- / EAN-koodit
- 0761345200097

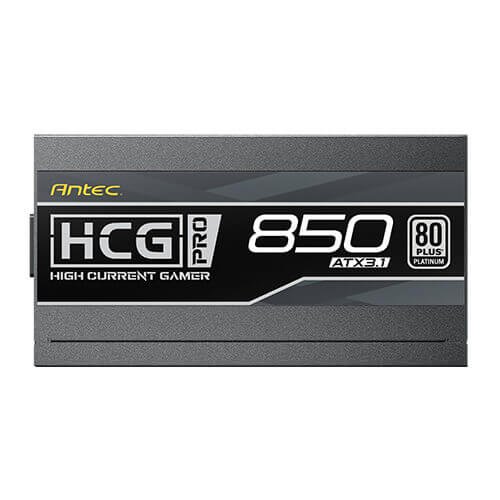

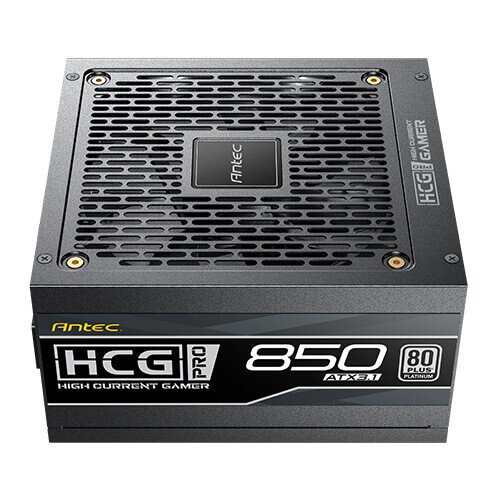

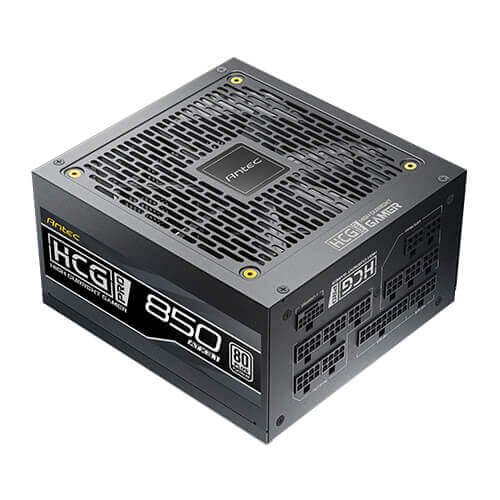

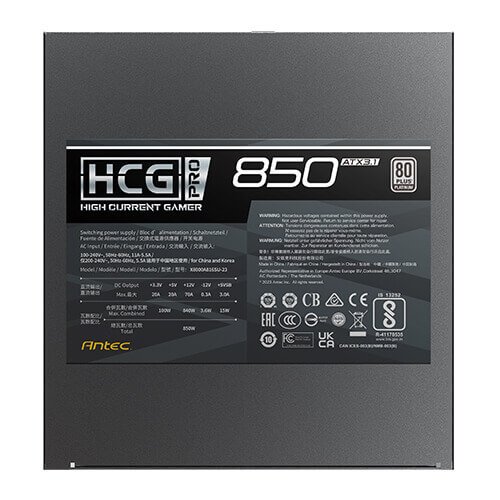

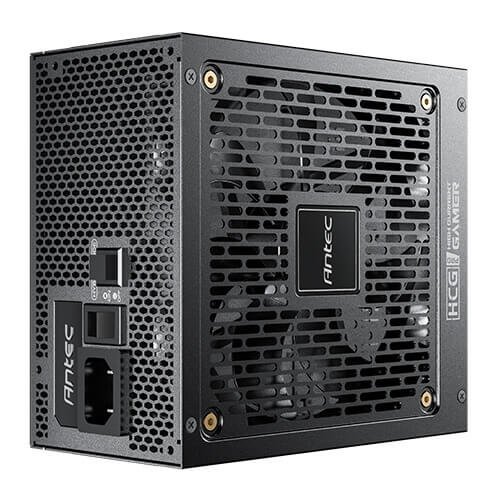

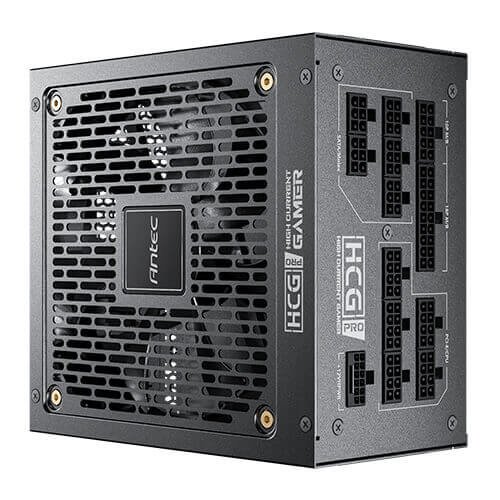

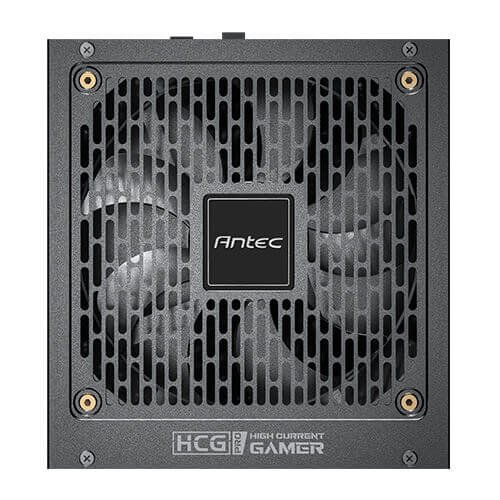

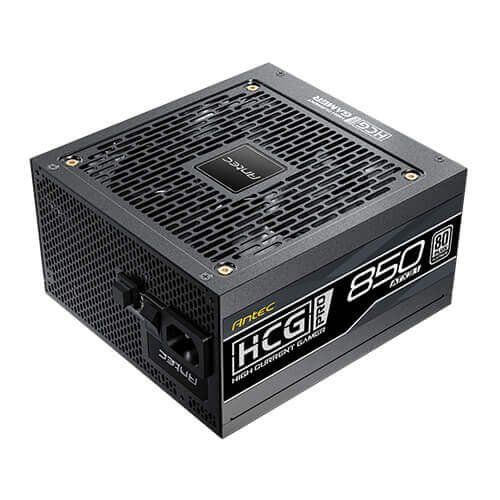

Tuotekuvat
Power
- Total power
- 850 W
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50/60 Hz
- Input current
- 11 - 5.5 A
- Power Factor Correction (PFC) type
- Active
- Combined power (+3.3V)
- 100 W
- Combined power (+12V)
- 840 W
- Combined power (+5V)
- 100 W
- Combined power (-12V)
- 3.6 W
- Combined power (+5Vsb)
- 15 W
- Max output current (+3.3V)
- 20 A
- Max output current (+12V)
- 70 A
- Max output current (+5V)
- 20 A
- Max output current (-12V)
- 0.3 A
- Max output current (+5Vsb)
- 3 A
- Power protection features
- No load operation, Over current, Over power, Over voltage, Short circuit, Surge & inrush protection (SIP), Under voltage

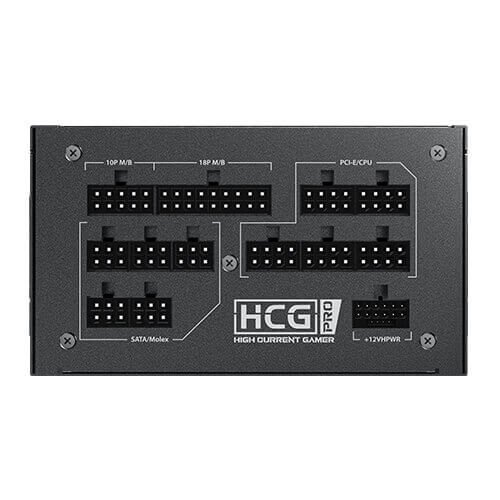

Ports & interfaces
- Motherboard power connector
- 20+4 pin ATX
- Motherboard power cable length
- 610 mm
- Number of SATA power connectors
- 14
- SATA power cable length
- 400,500,550,650,800,950 mm
- Peripheral (Molex) power connectors (4-pin)
- 3
- Peripheral (Molex) power cable length
- 450,550,650 mm
- PCI Express power connectors (6+2 pin)
- 3
- PCI Express power connectors (12+4 pin)
- 1
- PCI Express power connectors (12+4 pin) cable length
- 750 mm
- CPU power connector (4+4 pin)
- Kyllä
- CPU power cable length
- 700 mm
- ATX power connector (20+4 pin)
- Kyllä

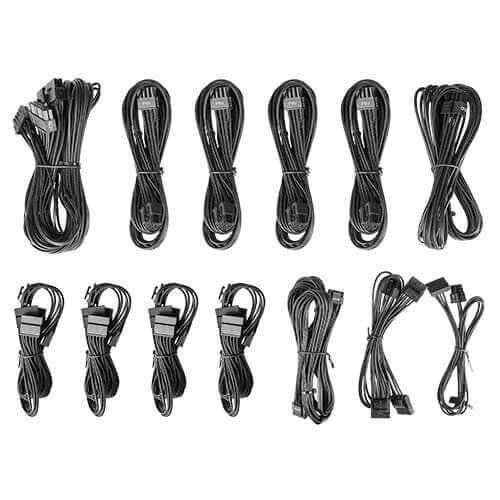

- Cabling type
- Fully-Modular
Performance
- Purpose
- PC
- Power supply unit (PSU) form factor
- ATX
- 80 PLUS certification
- 80 PLUS Platinum
- ATX version
- 3.1
- Silent mode
- Kyllä
Design
- Product colour
- Black
- Cooling type
- Active
- Fan diameter
- 135 mm
- Number of fans
- 1 fan(s)
- Fan location
- Top

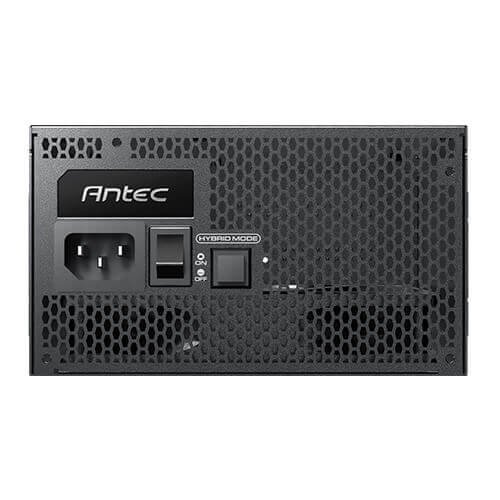

- On/off switch
- Kyllä
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
Certificates
- Certification
- cTUVus/TUV/CB/RCM/CE/FCC/BIS/BSMI/KC/UKCA/ICES/CCC
Weight & dimensions
- Width
- 150 mm
- Depth
- 160 mm
- Height
- 86 mm
- Weight
- 3330 g
Packaging data
- Package width
- 198 mm
- Package depth
- 336 mm
- Package height
- 133 mm
- Package weight
- 3910 g
- Package type
- Box
