Newstar DS70-250SL1

Tuote

Valmistaja

Newstar

Tuotenimi

DS70-250SL1

Valmistajan linkki

https://www.neomounts.com/default.asp?pageid=44&artdetail..

Tuotekoodit

Valmistajan tuotekoodit

• DS70-250SL1

GTIN- / EAN-koodit

• 8717371443047

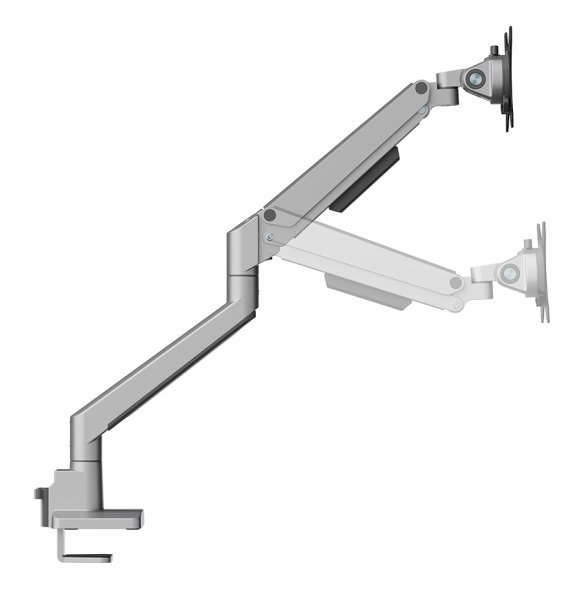

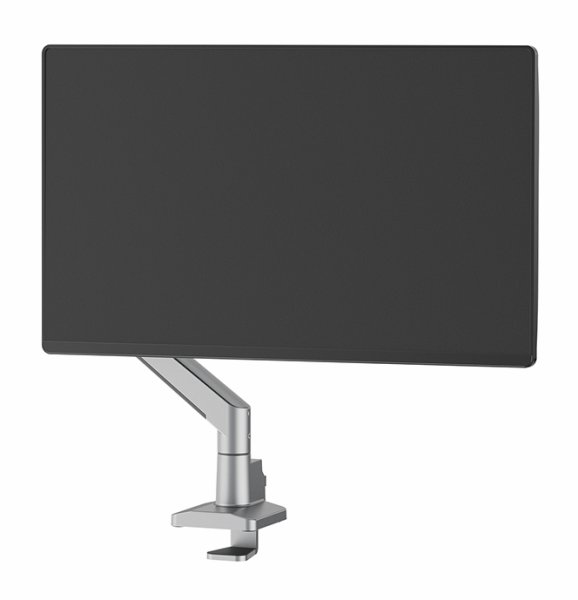

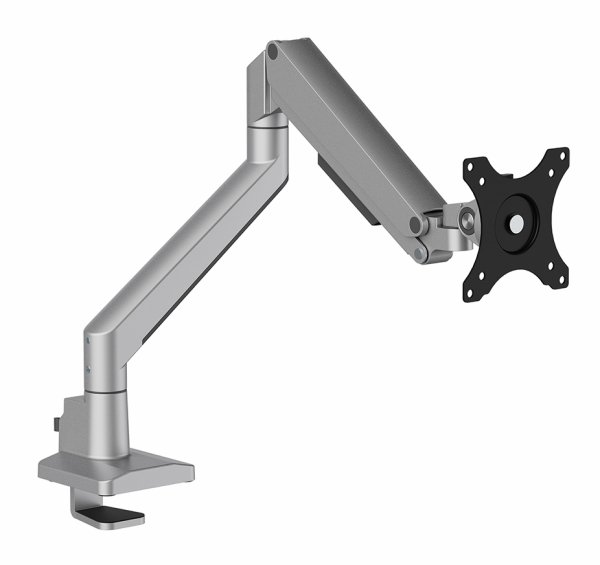

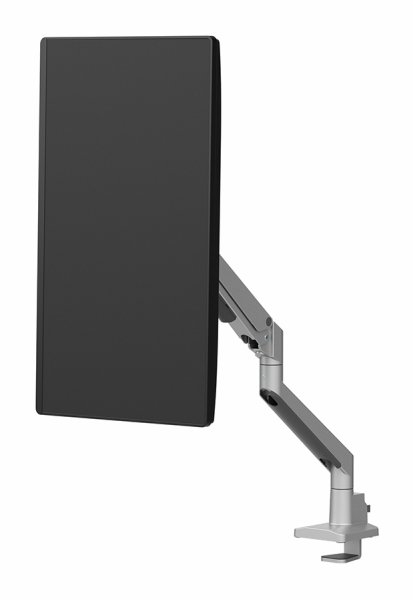

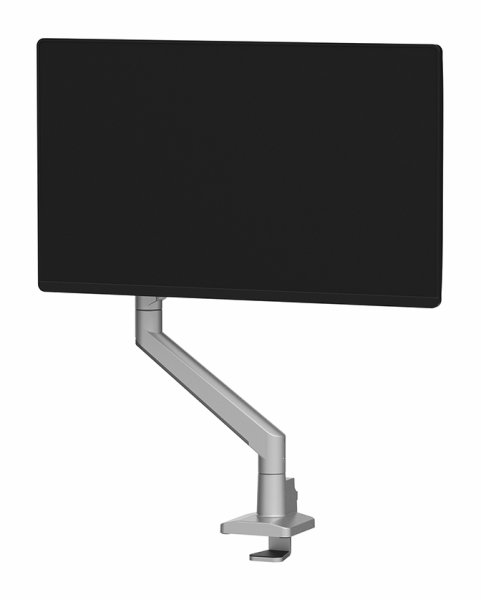

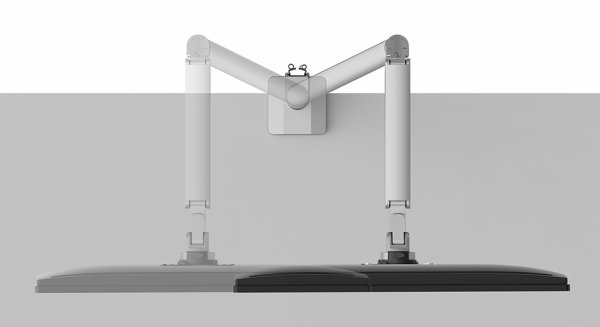

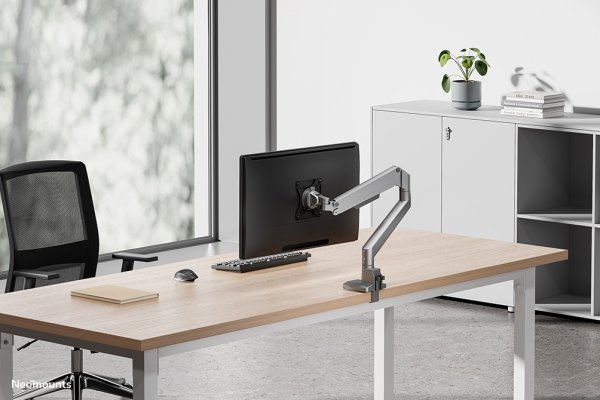

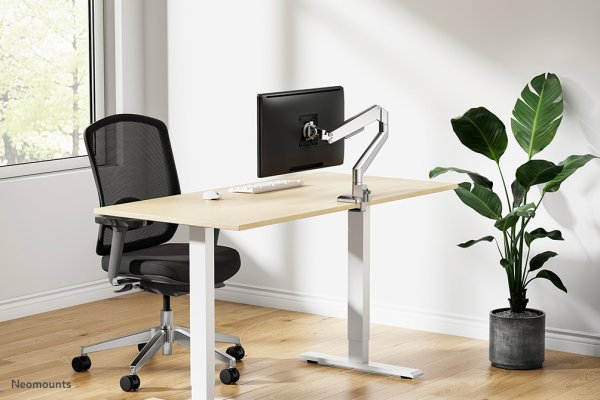

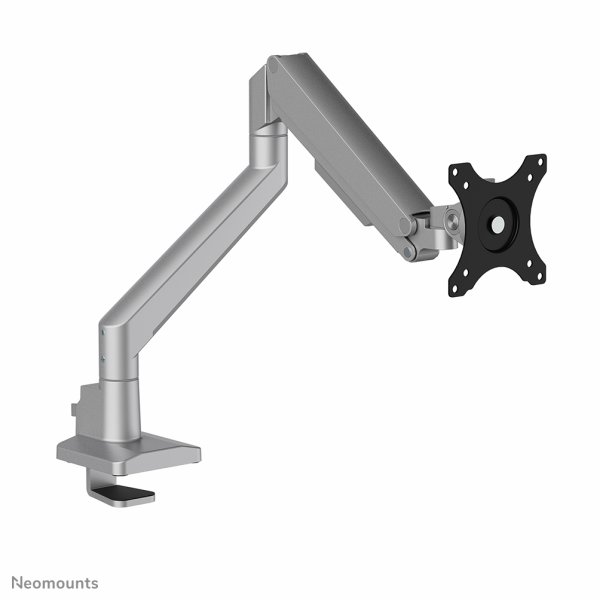

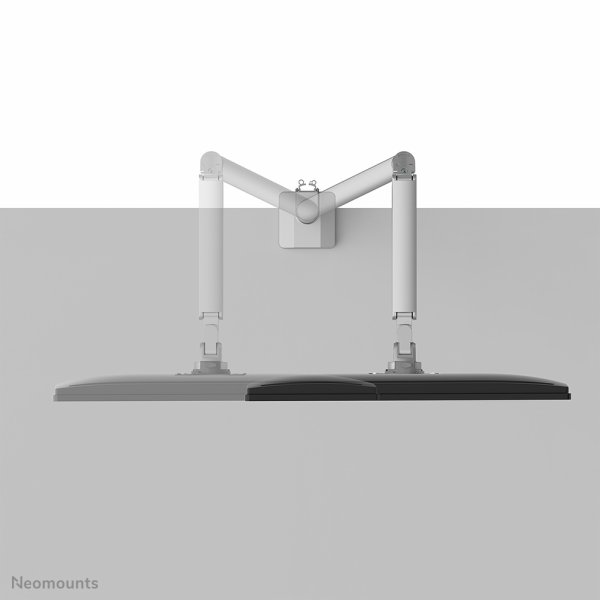

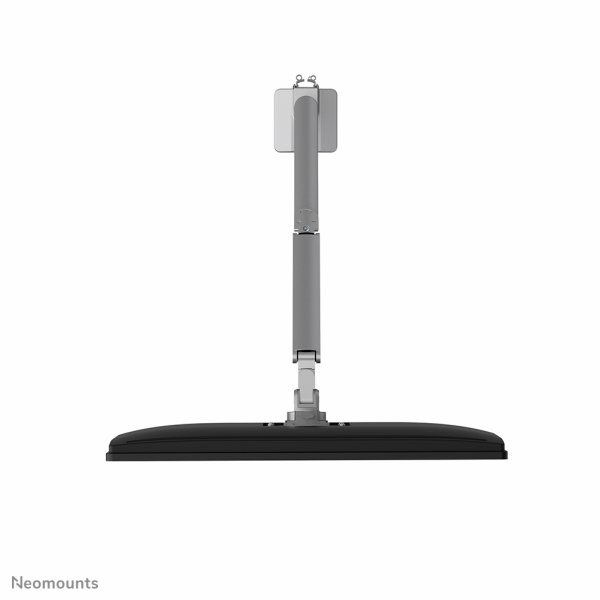

Tuotekuvat

Mounting

Number of displays supported

1

Maximum weight capacity (per display)

9 kg

Maximum weight capacity

9 kg

Minimum screen size

17 "

Maximum screen size

35 "

Mounting type

Desk

Maximum weight capacity (per curved/ultra-wide display)

8 kg

Mounting

Clamp/Grommet

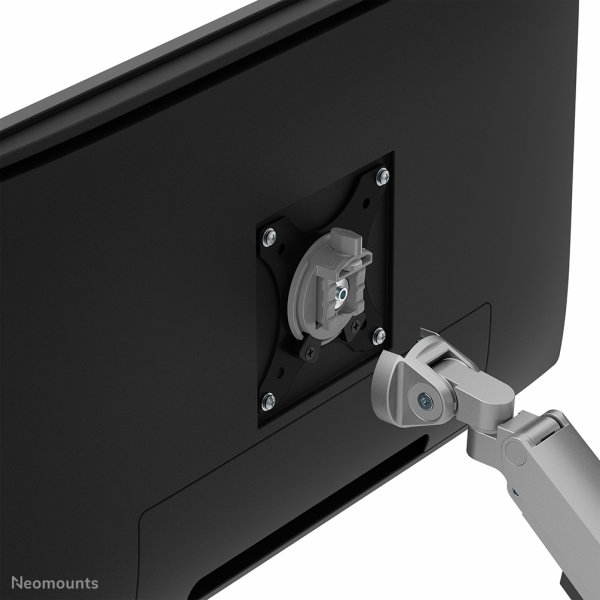

Minimum VESA mount

75 x 75 mm

Maximum VESA mount

100 x 100 mm

Panel mounting interface

100 x 100,75 x 75 mm

Desk thickness (min)

10 mm

Desk thickness (max)

50 mm

Distance to the wall (min)

125 mm

Distance to the wall (max)

580 mm

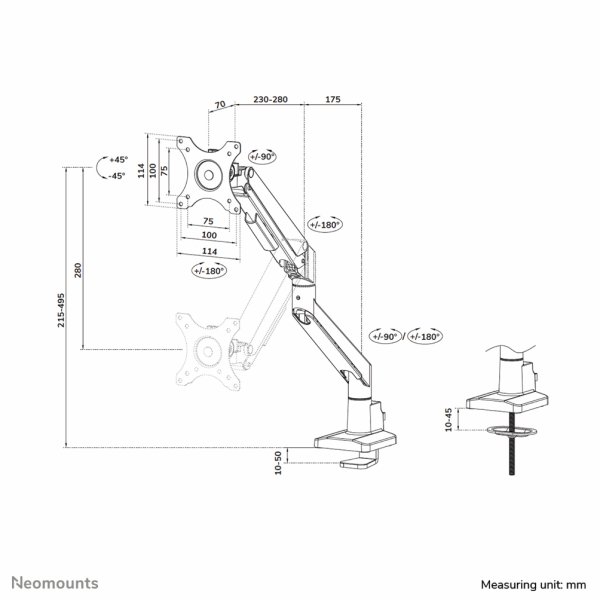

Ergonomics

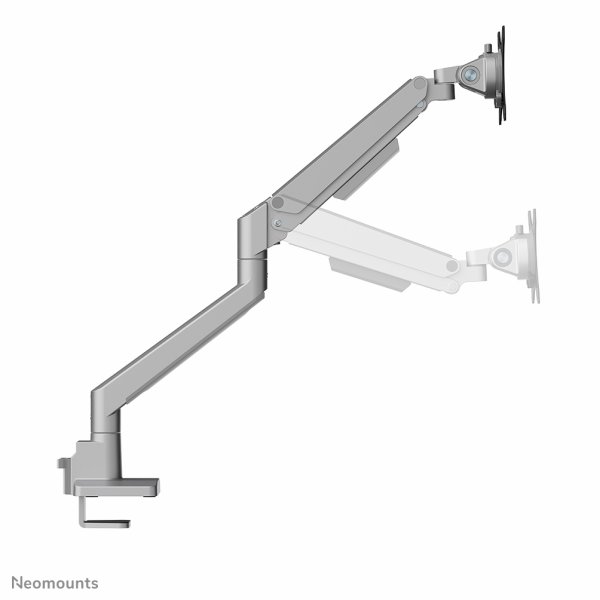

Height adjustment

Kyllä

Height adjustment type

Gas spring

Height adjustment range

215 - 495 mm

Adjustable depth

Kyllä

Depth adjustment range

70 - 525 mm

Width adjustment

910 mm

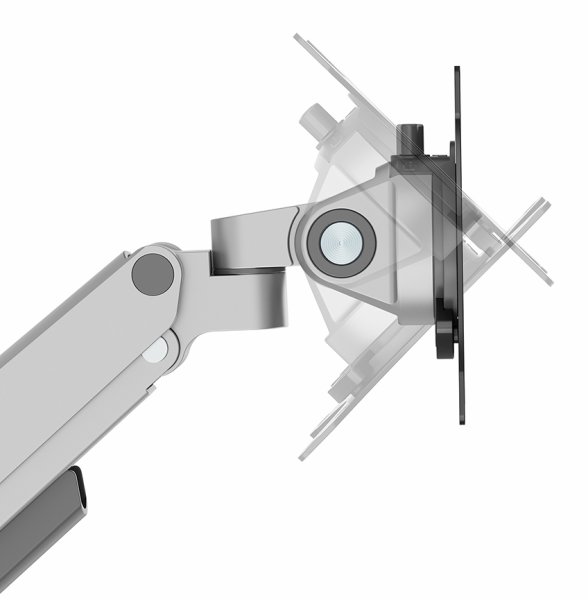

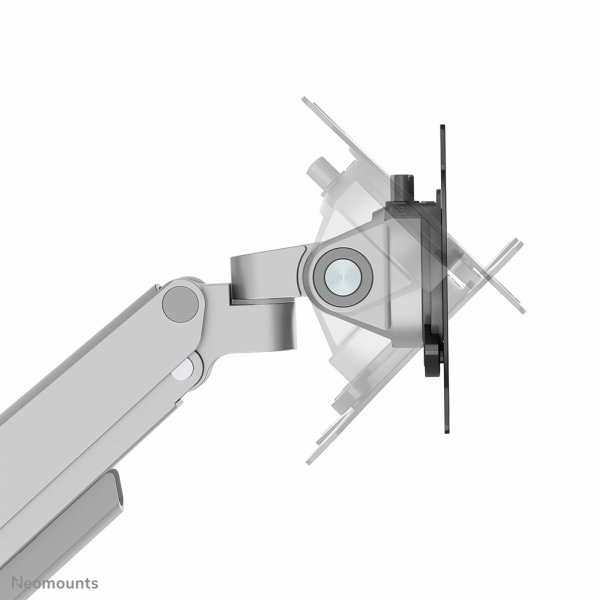

Tilt adjustment

Kyllä

Tilt angle range

-45 - 45 °

Swivelling

Kyllä

Swivel angle range

-90 - 90 °

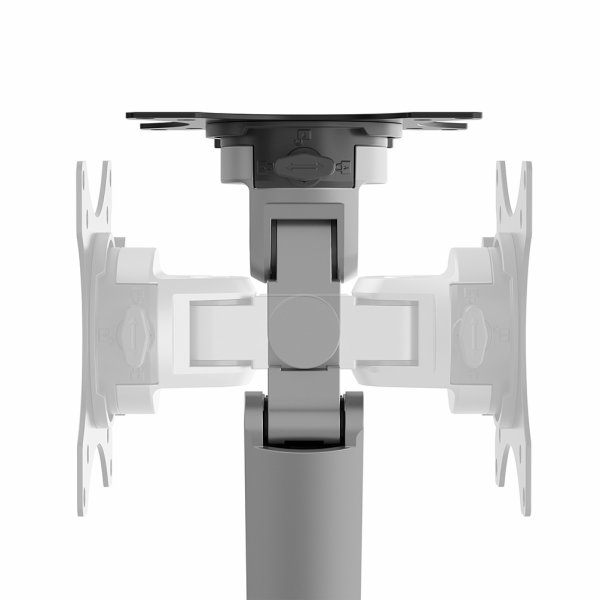

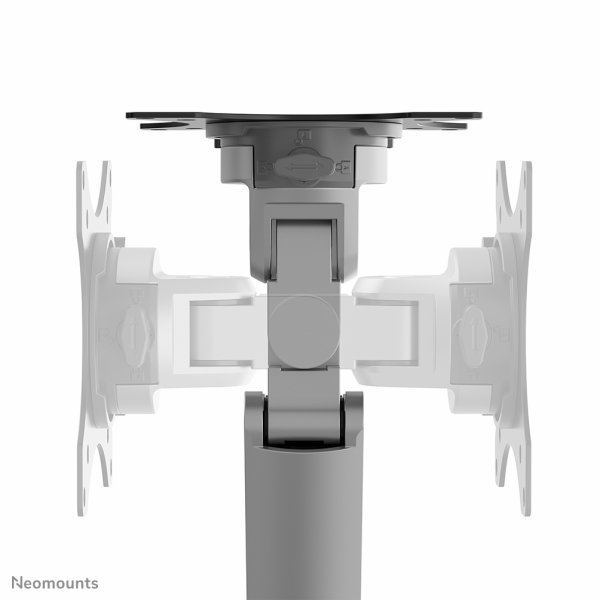

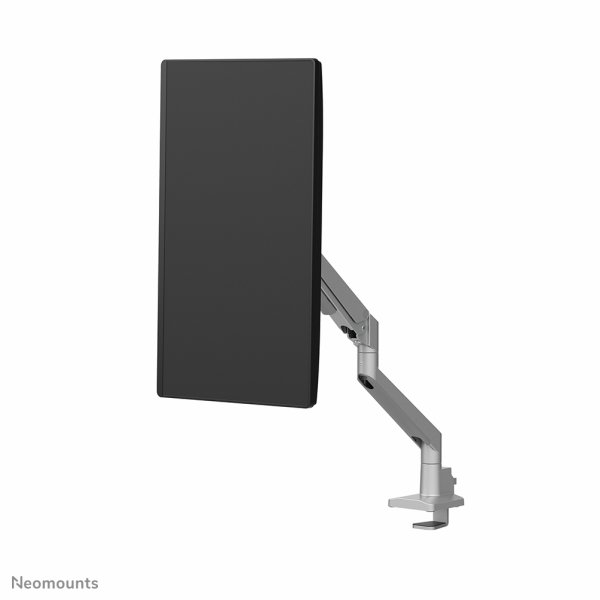

Rotating

Kyllä

Angle of rotation

360 °

Pivot angle

-180 - 180 °

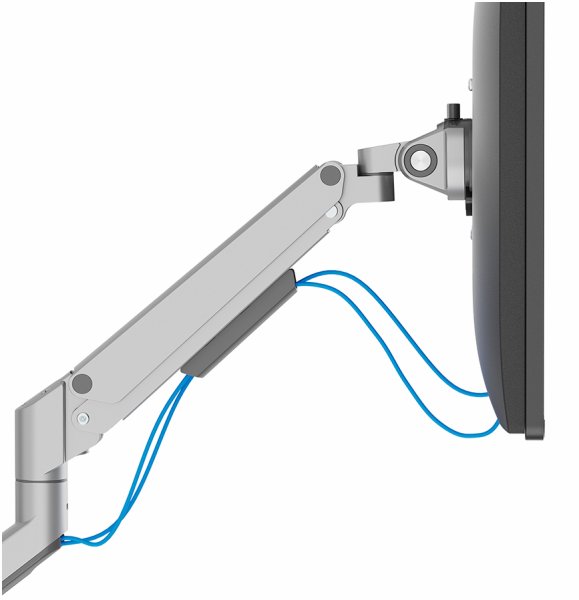

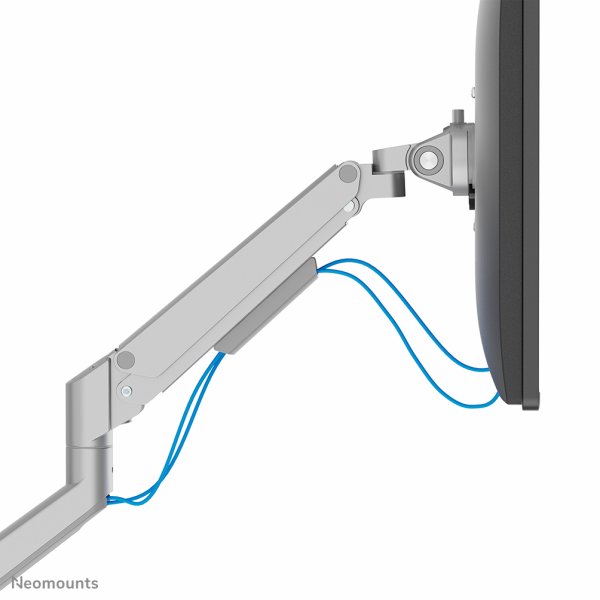

Cable management

Kyllä

Design

Product colour

Silver

Housing material

Aluminium

Accepts padlock

Ei

Weight & dimensions

Width

114 mm

Depth

580 mm

Height

552 mm

Weight

2300 g

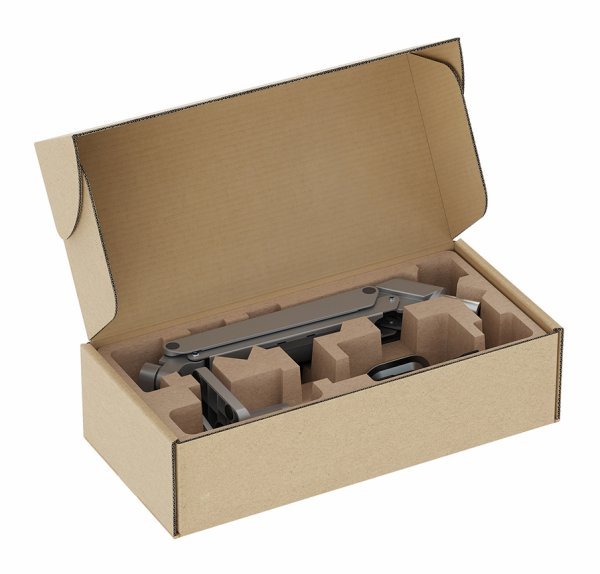

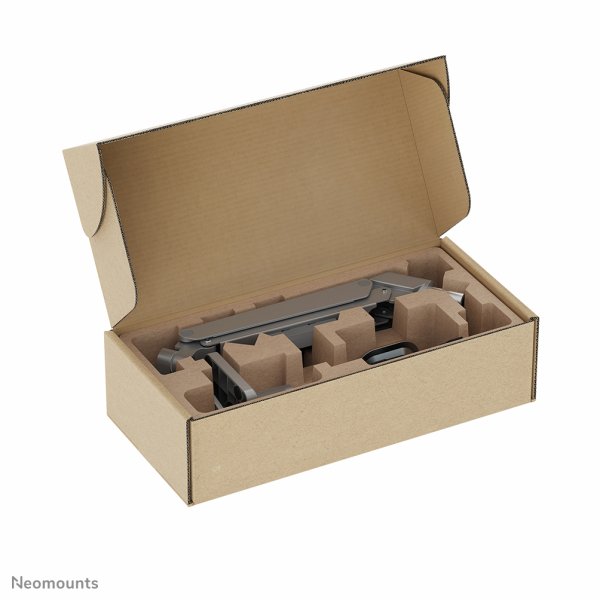

Packaging data

Package width

198 mm

Package depth

108 mm

Package height

428 mm

Package weight

2900 g

Other features

Minimum weight

1 kg

Width adjustment range

0 - 910 mm

Warranty period

5 year(s)

Logistics data

Master (outer) case width

410 mm

Master (outer) case length

345 mm

Master (outer) case height

445 mm

Master (outer) case gross weight

18300 g

Products per master (outer) case

6 pc(s)

Country of origin

China

Master (outer) case net weight

13800 g

Harmonized System (HS) code

7616991099

Products per pallet (EU)

84 pc(s)
