ASUS S56CM-XX043H

Tuote

Valmistaja

ASUS

Tuoteperhe / -sarja

S56

Tuotenimi

S56CM-XX043H

Julkaisupäivä

11.02.2013

Tuotekoodit

Valmistajan tuotekoodit

• S56CM-XX043H

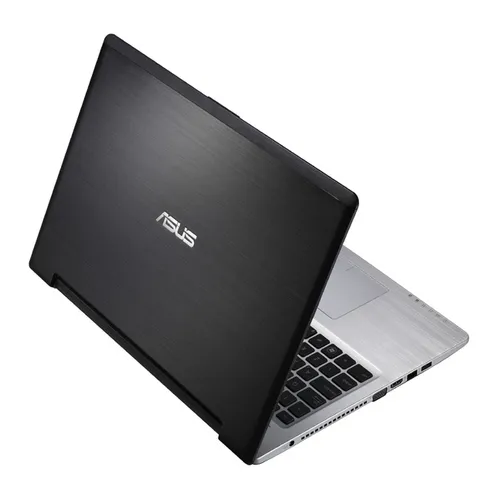

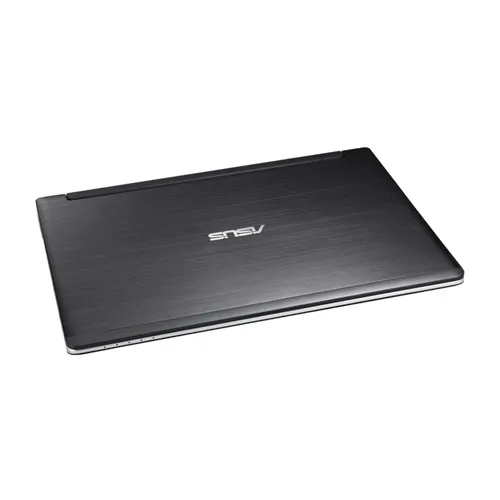

Tuotekuvat

Processor

Processor clock speed

1.7 GHz

Processor family

Intel Core i5

Processor model

i5-3317U

Turbo frequency (max)

2.6 GHz

Processor number of cores

2

Processor number of threads

4

System bus data transfer rate

5 GT/s

L3 cache

3 MB

Motherboard chipset

Intel HM76 Express

Memory

Internal memory

8 GB

Internal memory type

DDR3-SDRAM

Memory clock speed

1600 MHz

Memory layout

2 x 4 GB

Memory slots

2x SO-DIMM

Maximum internal memory

8 GB

Storage

Total storage capacity

500 GB

Storage media

Hybrid-HDD

Number of hard drives installed

1

Hard drive interface

SATA

Hard drive rotational speed

5400 RPM

Hybrid hard drive (H-HDD) type

SSD

Hybrid hard drive (H-HDD) capacity

500 GB

Hybrid hard drive (H-HDD) cache memory

24 GB

Hard drive size

2.5 "

Card reader integrated

Kyllä

Compatible memory cards

SD

Display

Display diagonal

15.6 "

Display resolution

1366 x 768 pixels

Touch sensitive screen

Ei

LED backlight

Kyllä

Full HD

Ei

Aspect ratio

16:9

Graphics

On-board graphics adapter model

Intel HD Graphics 4000

Discrete graphics adapter model

NVIDIA GeForce GT 635M

Discrete graphics adapter memory

2048 MB

Discrete graphics memory type

GDDR3

Optical drive

Optical drive type

DVD Super Multi DL

Audio

Audio system

SonicMaster Lite

Built-in speaker(s)

Kyllä

Built-in microphone

Kyllä

Camera

Built-in camera

Kyllä

Megapixel

1.3 MP

Networking

Bluetooth

Kyllä

3G network access module

Ei

Wireless LAN connection

Kyllä

Wireless LAN type

802.11b, 802.11g, 802.11n

Ethernet LAN connection

Kyllä

Ethernet LAN data transfer rates

10, 100, 1000 Mbit/s

Bluetooth version

4.0

Cabling technology

10/100/1000Base-T(X)

Ports & interfaces

USB 2.0 ports quantity

2

USB 3.0 ports quantity

1

VGA (D-Sub) ports quantity

1

HDMI ports quantity

1

DVI port

Ei

Ethernet LAN (RJ-45) ports quantity

1

Microphone in

Ei

S/PDIF out port

Ei

Combo headphone/microphone port

Kyllä

DC-in jack

Kyllä

Expansion slots

ExpressCard slot

Ei

CardBus PCMCIA slot type

Ei

SmartCard slot

Ei

Keyboard

Pointing device

Touchpad

Numeric keypad

Kyllä

Full-size keyboard

Kyllä

Windows keys

Kyllä

Operating system/software

Operating system installed

Windows 8

Operating system architecture

64-bit

Technical details

Device type

Ultrabook

Colour of product

Black, Silver

Form factor

Clamshell

Intel Wireless Display (WiDi) Technology

Kyllä

Intel My WiFi Technology

Kyllä

Intel Anti-Theft Technology

Kyllä

Intel vPro Technology

Ei

Intel visual technologies

Intel Clear Video HD, Intel Insider, Intel InTru 3D, Intel Quick Sync Video

Intel Hyper-Threading Technology

Kyllä

Intel Turbo Boost Technology

2.0

64-bit computing

Kyllä

Battery

Battery technology

Lithium-Ion (Li-Ion)

Number of battery cells

4

Battery capacity

2950 mAh

Battery capacity

44 Wh

Energy management

AC adapter power

65 W

AC adapter frequency

50/60 Hz

AC adapter input voltage

100 - 240 V

AC adapter output current

3.42 A

AC adapter output voltage

19 V

Weight & dimensions

Weight

2300 g

Width

380 mm

Depth

266 mm

Height (front)

21 mm

Height (rear)

21 mm

Packaging content

Cables included

AC

AC adapter included

Kyllä
