Axis 01925-004

Tuote

Valmistaja

Axis

Tuotenimi

01925-004

Julkaisupäivä

16.05.2021

Valmistajan linkki

https://www.axis.com/th-th/products/axis-q6315-le

Tuotekoodit

Valmistajan tuotekoodit

• 01925-004

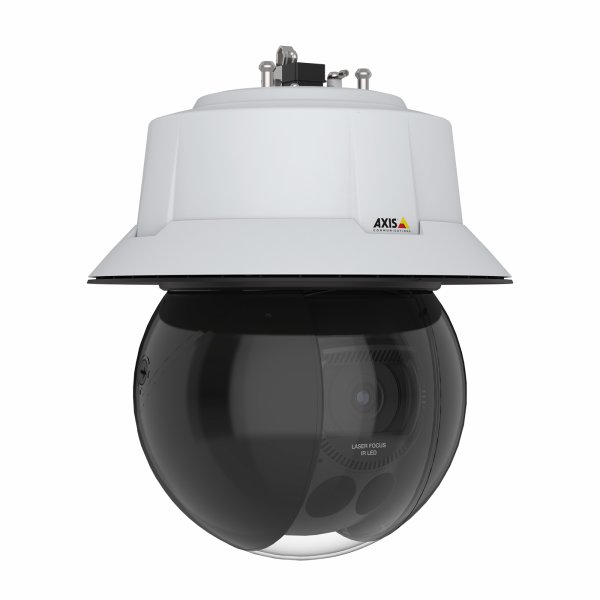

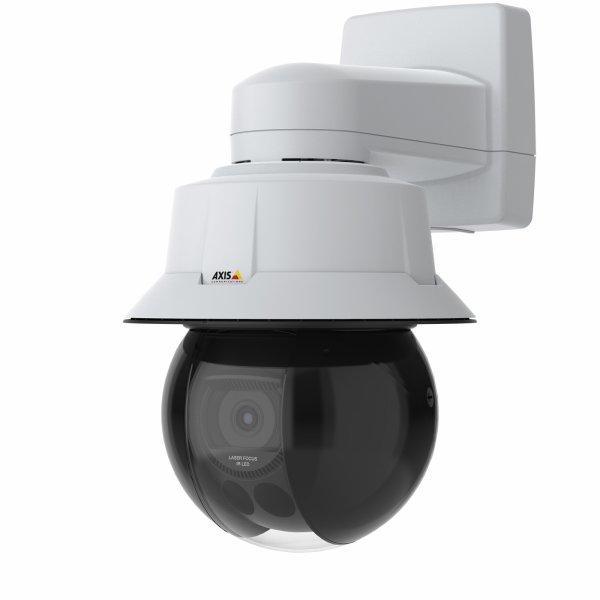

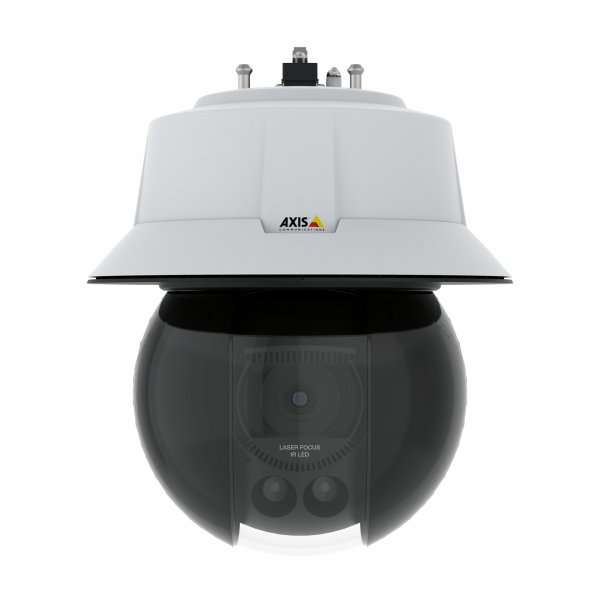

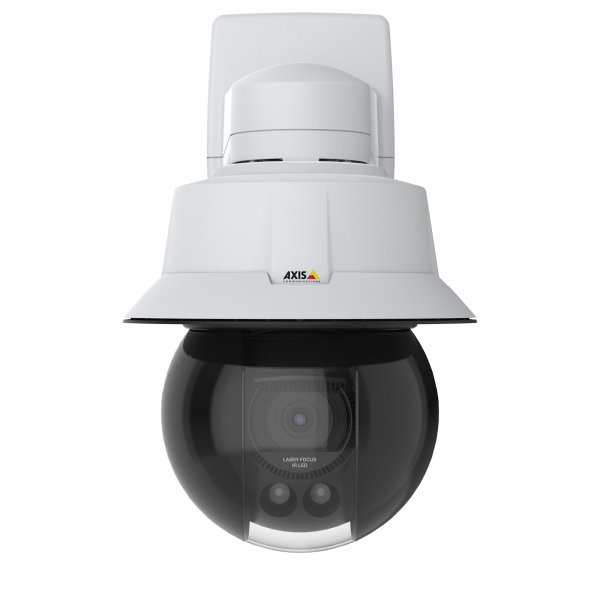

Tuotekuvat

Performance

Type

IP security camera

Placement supported

Indoor & outdoor

Connectivity technology

Wired

PTZ control

Kyllä

Tour recording

Kyllä

Preset points

Kyllä

Wide Dynamic Range (WDR)

Kyllä

Day/night mode

Kyllä

Infrared (IR) cut-off filter

Kyllä

Certification

55032 Class A, EN 55035, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, CISPR 35, EAC, EN 50121-4, KC KN32 Class A, KC KN35, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 60950-22, CAN/CSA-C22.2 No. 60950-22, IEC/EN 62471 risk group 2, IEC 60825-1 Class 1, IEC/EN 62262 IK10, IEC/EN 60529 IP66, NEMA 250, Type 4X, NEMA TS 2 (2.2.7–2.2.9), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, ISO 21207 (Method B)

Design

Form factor

Dome

Mounting type

Wall

Product colour

Black, White

Housing material

Aluminium, Polycarbonate (PC)

International Protection (IP) code

IP66, IP67

IK code

IK10

Fog proof

Kyllä

Camera

Minimum illumination

0.001 lx

Lens viewing angle, horizontal

60.6 °

Lens viewing angle, vertical

36.5 °

Tilt angle range

-90 - 20 °

Tilt speed

550 °/sec

Pan range

0 - 360 °

Pan speed

550 °/sec

Camera shutter speed

111000 - 1/2 s

Image sensor

Sensor type

CMOS

Number of sensors

1

Optical sensor size

1/2 "

Progressive scan

Kyllä

Lens system

Number of lenses

1

Zoom capability

Kyllä

Optical zoom

31 x

Digital zoom

12 x

Focal length range

6.91 - 214.64 mm

Auto focus

Kyllä

Maximum aperture number

4.6

Minimum aperture number

1.36

Night vision

Night vision

Kyllä

Night vision distance

300 m

LED type

IR

Infra-red wavelength

850 nm

Video

Maximum resolution

1920 x 1080 pixels

Video formats supported

AVC, H.264, H.265, HEVC, M-JPEG, MPEG4

Supported graphics resolutions

320 x 180, 1920 x 1080 (HD 1080)

Frame rate

60 fps

Video streaming

Kyllä

Image quality adjustment

Brightness, Colour depth, Sharpness

Privacy masking

Kyllä

Text caption overlay

Kyllä

Image stabilizer

Kyllä

Bit rate control

Variable Bit Rate (VBR)

Network

Ethernet LAN

Kyllä

Ethernet interface type

Fast Ethernet, Gigabit Ethernet

Networking standards

IEEE 802.1x, IEEE 802.3bt

Supported network protocols

IPv4, IPv6 USGv6, HTTP, HTTPS , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, RTCP, DHCP, SOCKS, SSH, NTCIP, MQTT v3.1.1, Syslog

Quality of Service (QoS) support

Kyllä

Streaming method

Multicast

Storage

Card reader integrated

Kyllä

Compatible memory cards

SD, SDHC, SDXC

Flash memory

512 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Security

Password protection

Kyllä

IP address filtering

Kyllä

Security algorithms

EAP-TLS

HTTPS encryption

Kyllä

Digest authentication

Kyllä

Management features

Behavior analysis

Line crossing detection

Power

Power source type

AC

AC input voltage

100-240 V

Power consumption (typical)

17 W

Power consumption (max)

51 W

Operational conditions

Operating temperature (T-T)

-50 - 50 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 100 %

Storage relative humidity (H-H)

5 - 95 %

Weight & dimensions

Height

261 mm

Diameter

239 mm

Weight

4800 g

Other features

Doesn't contain

PVC
