Ominaisuudet
- 80 PLUS certification
- 80 PLUS Titanium
- Hyötysuhde
- 94 %
Arvostelut
Arvostele tuoteAlin hinta 30 päivän aikana
419,00 €
+4,71 %
Hinta on nyt 19,75 € kalliimpi.
HintahistoriaTuotetiedot
Tuote
- Valmistaja
- Thermaltake
- Tuotenimi
- Toughpower TF3 1550W - TT Premium Edition
Tuotekoodit
- Valmistajan tuotekoodit
- PS-TPD-1550FNFATE-3
- GTIN- / EAN-koodit
- 4713227539012
Tuotekuvat
Power
- Total power
- 1550 W
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50/60 Hz
- Input current
- 15 A
- Power Factor Correction (PFC) type
- Active
- Combined power (+3.3V)
- 120 W
- Combined power (+12V)
- 1549.92 W
- Combined power (+5V)
- 120 W
- Combined power (-12V)
- 6 W
- Combined power (+5Vsb)
- 15 W
- Max output current (+3.3V)
- 22 A
- Max output current (+12V)
- 129.16 A
- Max output current (+5V)
- 22 A
- Max output current (-12V)
- 0.5 A
- Max output current (+5Vsb)
- 3 A
- Hold time
- 17 ms
- Efficiency
- 94 %
- Power Good signal delay range
- 100 - 500 ms
- Power protection features
- Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

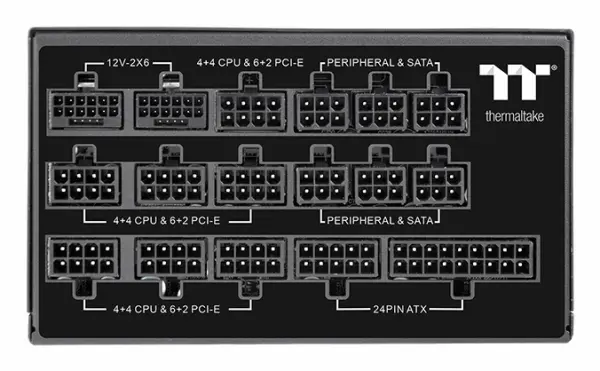

Ports & interfaces
- Motherboard power connector
- 24-pin ATX
- Motherboard power cable length
- 600 mm
- Number of SATA power connectors
- 16
- SATA power cable length
- 150,500 mm
- Number of SATA power cables
- 4
- Peripheral (Molex) power connectors (4-pin)
- 8
- Peripheral (Molex) power cable length
- 150,500 mm
- EPS power connector (8-pin)
- Kyllä
- EPS power connector (4+4 pin)
- Kyllä
- PCI Express power connectors (6+2 pin)
- 9
- PCI Express power connectors (12+4 pin)
- 1
- PCI Express power connectors (12+4 pin) cable length
- 600 mm
- ATX Power connector (24-pin)
- Kyllä
- PCI Express connector
- Kyllä
- Cabling type
- Fully-Modular
Performance
- Purpose
- PC
- Power supply unit (PSU) form factor
- ATX
- 80 PLUS certification
- 80 PLUS Titanium
- ATX version
- 3.0
- Bearing technology
- Hydraulic
- Mean time between failures (MTBF)
- 100000 h
Design
- Product colour
- Black
- Cooling type
- Active
- Fan diameter
- 140 mm
- Number of fans
- 1 fan(s)
- On/off switch
- Kyllä
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 20 - 90 %
- Storage relative humidity (H-H)
- 5 - 95 %
Certificates
- Compliance certificates
- CB, CE, ICES, Federal Communications Commission (FCC), Low Voltage Directive (LVD), UKCA, cTUVus
Weight & dimensions
- Width
- 150 mm
- Depth
- 180 mm
- Height
- 86 mm
