Eaton 5P850IG2

Tuote

Valmistaja

Eaton

Tuotenimi

5P850IG2

Valmistajan linkki

https://www.eaton.com/gb/en-gb/skuPage.5P850IG2.html

Tuotekoodit

Valmistajan tuotekoodit

• 5P850IG2

GTIN- / EAN-koodit

• 3553340710261

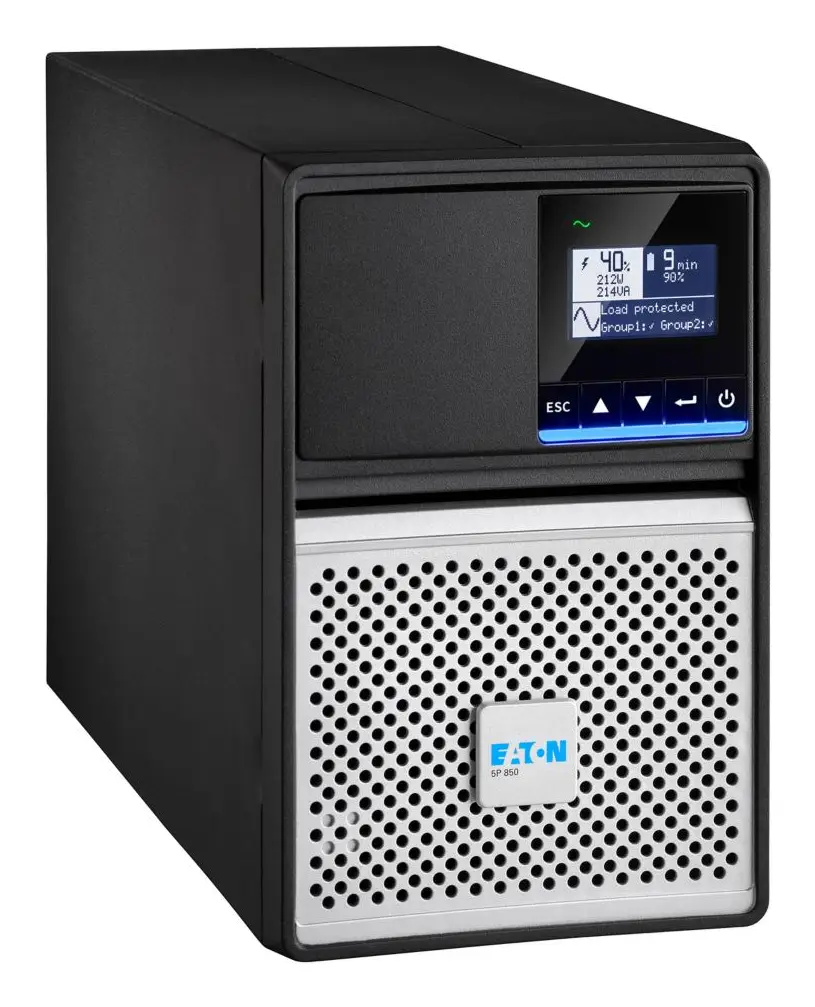

Tuotekuvat

Features

UPS topology

Line-Interactive

Output power

680 W

Waveform

Sine

Input operation voltage (min)

160 V

Input operation voltage (max)

294 V

Input frequency

47/70 Hz

Output operation voltage (max)

230 V

Output frequency

50/60 Hz

Number of input phases

1

Number of output phases

1

Efficiency

98 %

Output power factor

0.8

Noise level

35 dB

Auto shut-off

Kyllä

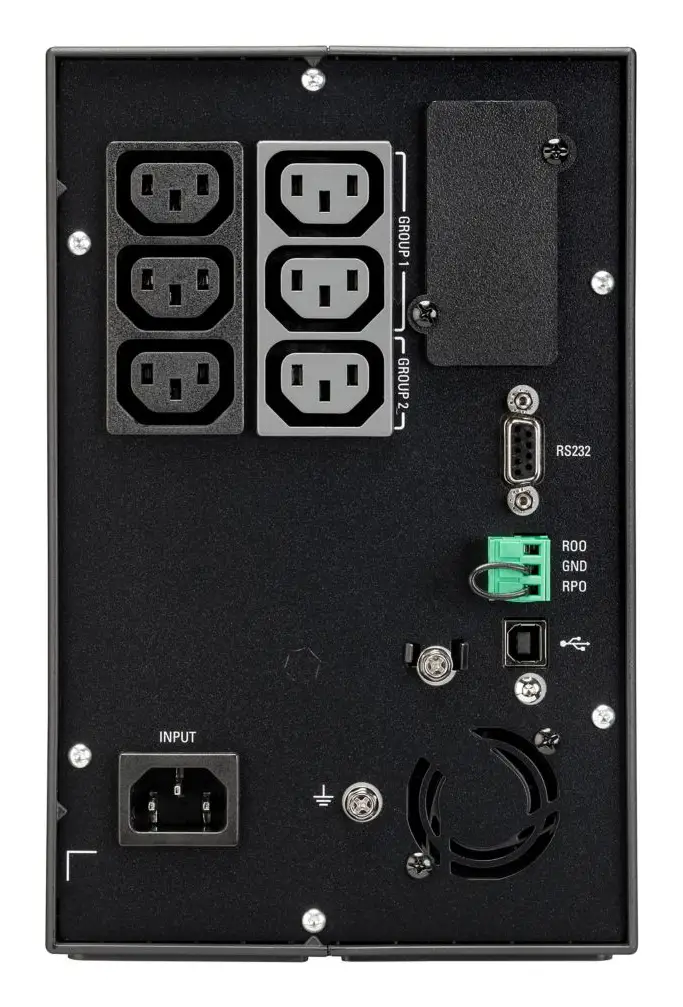

Ports & interfaces

AC outlet types

C13 coupler

Power plug

C14 coupler

AC outlets quantity

6 AC outlet(s)

USB port

Kyllä

Serial interface

Kyllä

Serial interface type

RS-232

Serial ports quantity

1

Battery

Battery technology

Lead-Acid

Battery capacity

7 Ah

Battery voltage

12 V

Number of batteries supported

2

Design

Form factor

Tower

Product colour

Black, Silver

Display type

LCD

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 90 %

Operating altitude

0 - 3000 m

Certificates

Compliance certificates

Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RoHS, WEEE

Certification

IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS

Packaging content

Rack mount kit

Ei

Cables included

USB cable

Quick installation guide

Kyllä

Weight & dimensions

Width

150 mm

Depth

345 mm

Height

233 mm

Weight

10200 g
