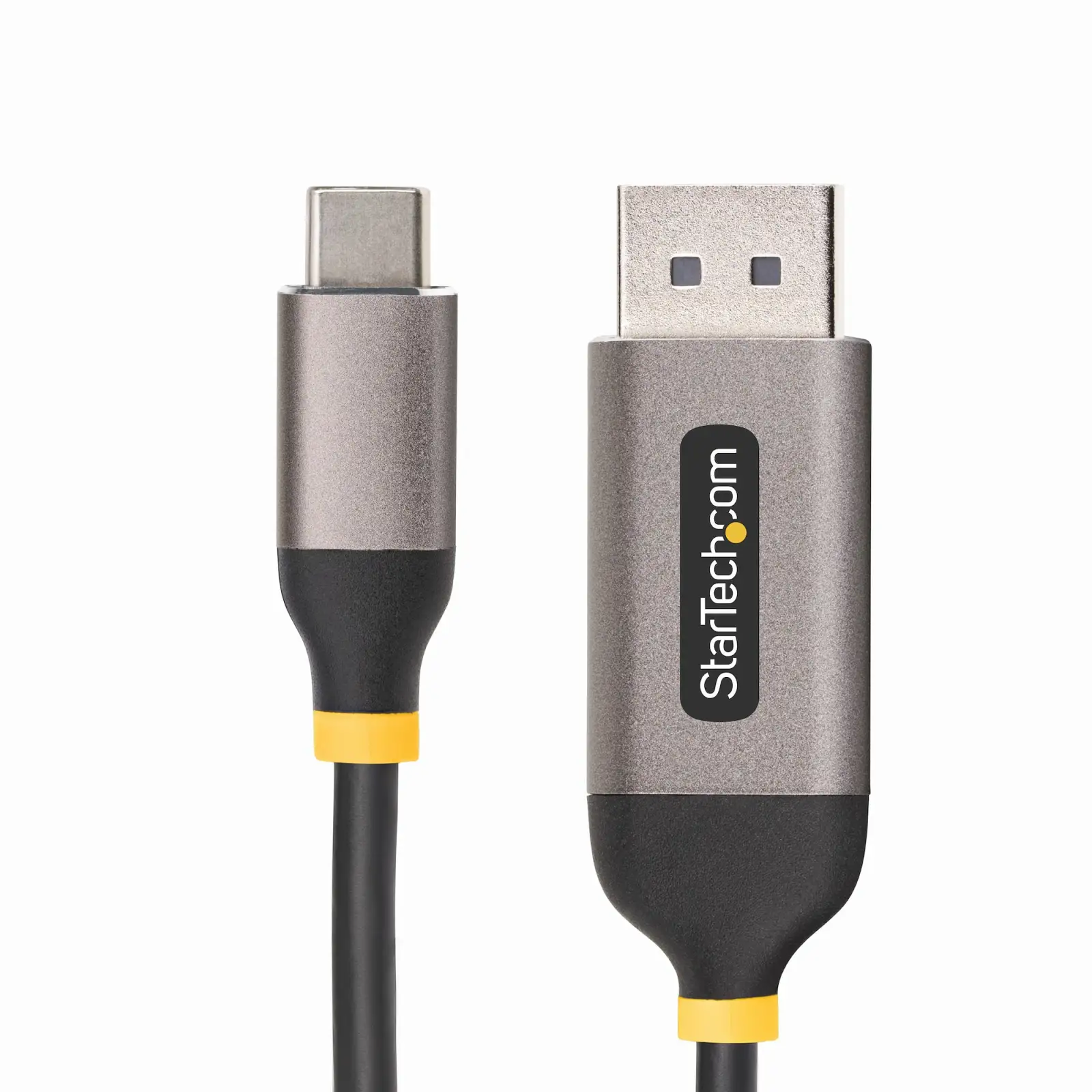

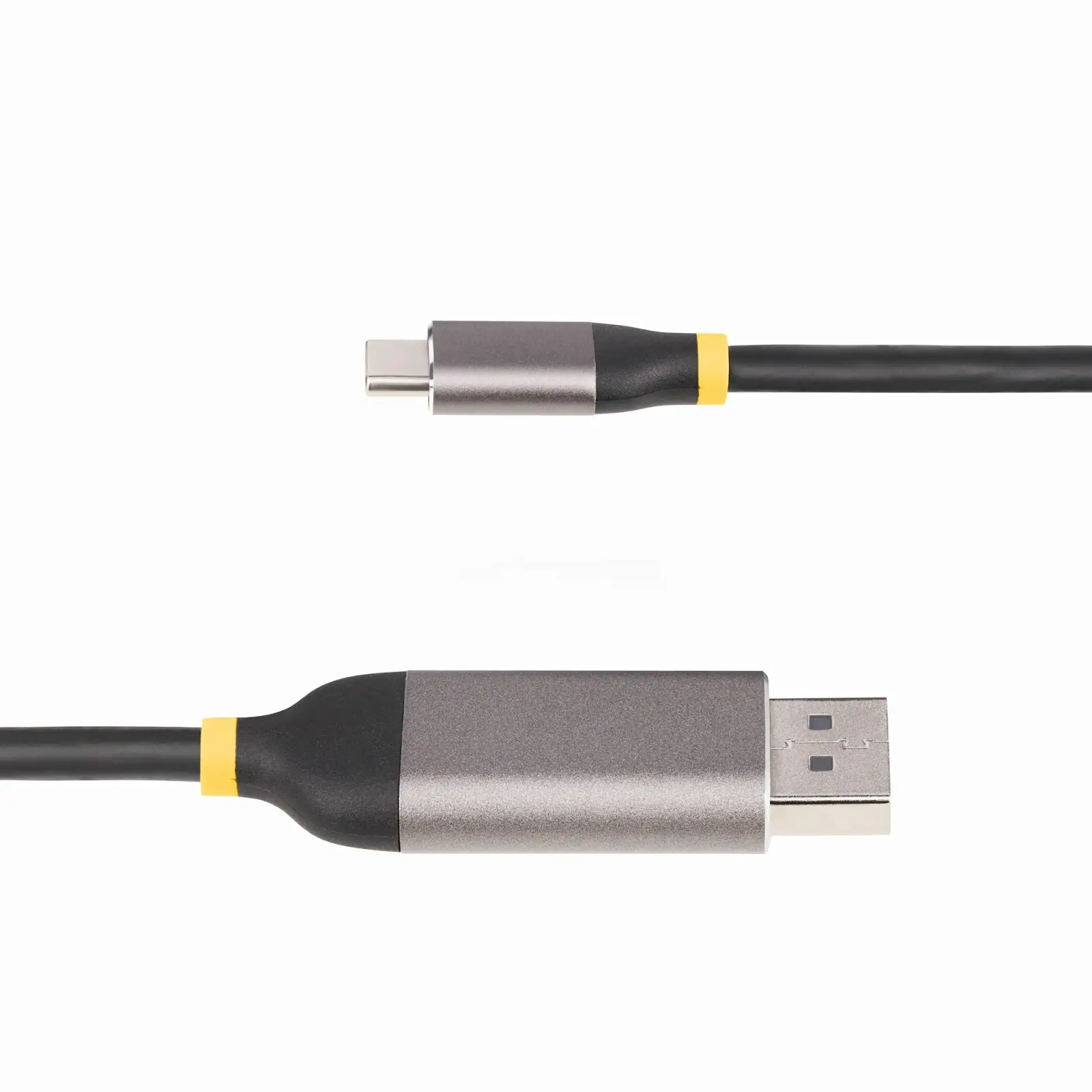

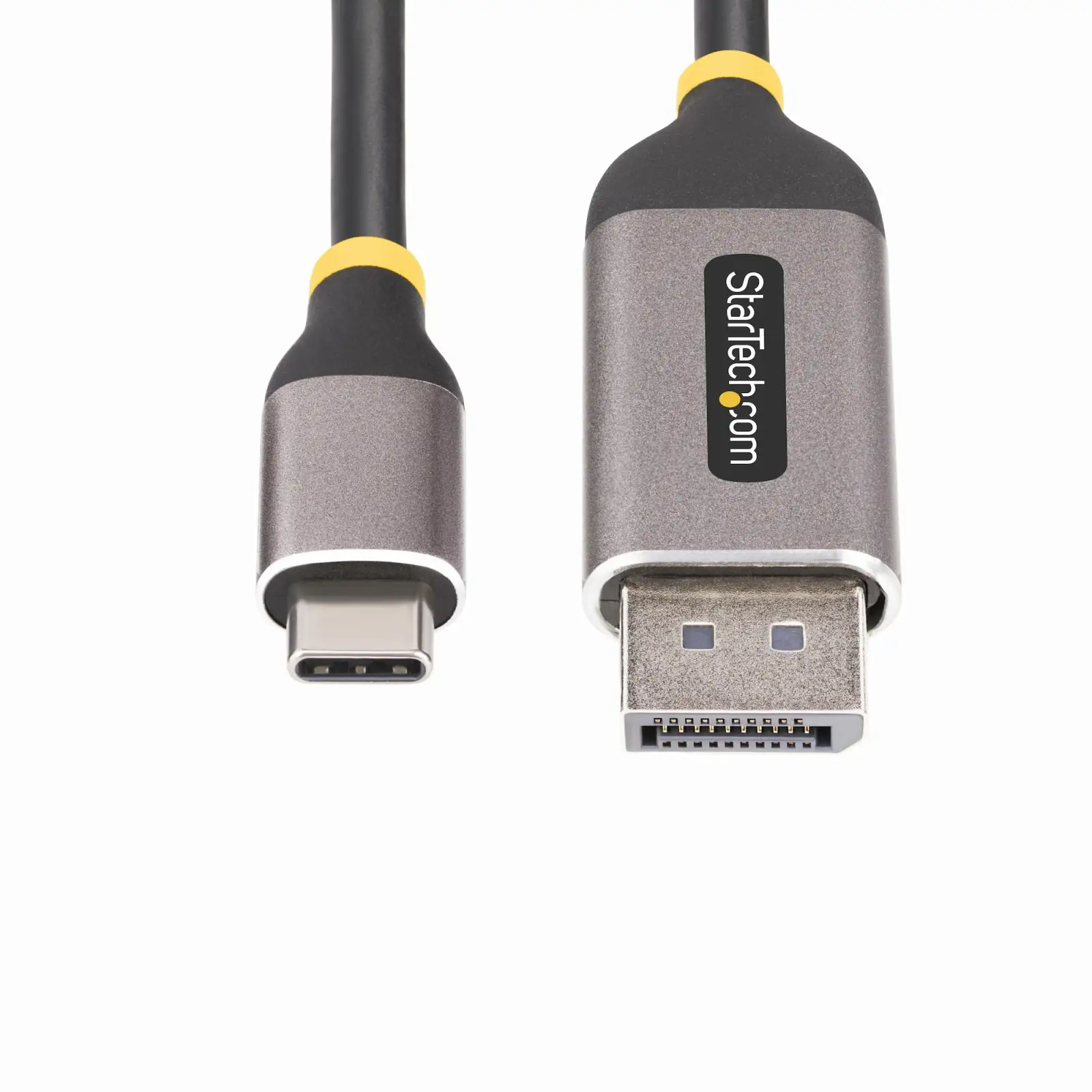

StarTech.com 142-USBC-DP-8K-10F

Tuote

Valmistaja

StarTech.com

Tuotenimi

142-USBC-DP-8K-10F

Valmistajan linkki

https://www.startech.com/en-us/142-USBC-DP-8K-10F

Tuotekoodit

Valmistajan tuotekoodit

• 142-USBC-DP-8K-10F

GTIN- / EAN-koodit

• 0065030901291

Tuotekuvat

Features

Cable length

3 m

Connector 1

USB Type-C

Connector 2

DisplayPort

Connector 1 gender

Male

Connector 2 gender

Male

Connector 1 form factor

Straight

Connector 2 form factor

Straight

HDCP

Kyllä

HDCP version

1.4/2.2/2.3

DisplayPort version

1.4

USB Type-C DisplayPort Alternate Mode

Kyllä

High Dynamic Range (HDR) supported

Kyllä

Supported graphics resolutions

800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768, 1280 x 768 (WXGA), 1280 x 800, 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 2560 x 1080, 3440 x 1440, 3840 x 2160, 4096 x 2160, 5120 x 1440, 5120 x 2880, 7680 x 4320

Bandwidth

32400 MB/s

Maximum refresh rate

144 Hz

Refresh rate at maximum resolution

60 Hz

Product colour

Black, Grey

Chipset

VL103

Jacket material

Thermoplastic elastomer (TPE)

Cable type

Round cable

Plug and Play

Kyllä

Latching connectors

Kyllä

Operational conditions

Operating temperature (T-T)

-20 - 70 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

5 - 95 %

Certificates

Compliance certificates

RoHS

Sustainability

Sustainability compliance

Kyllä

Weight & dimensions

Cable diameter

4.3 mm

Weight

111 g

Packaging data

Package width

199 mm

Package depth

169 mm

Package height

20 mm

Package weight

80 g

Logistics data

Master (outer) case width

524 mm

Master (outer) case length

381 mm

Master (outer) case height

346 mm

Products per master (outer) case

120 pc(s)
