Tuotetiedot
Tuote
- Valmistaja
- Seasonic
- Tuoteperhe / -sarja
- Focus
- Tuotenimi
- Focus GX
- Valmistajan linkki
- https://seasonic.com/focus-gx/
Tuotekoodit
- Valmistajan tuotekoodit
- FOCUS-GX-750-V4
- GTIN- / EAN-koodit
- 4711173878445

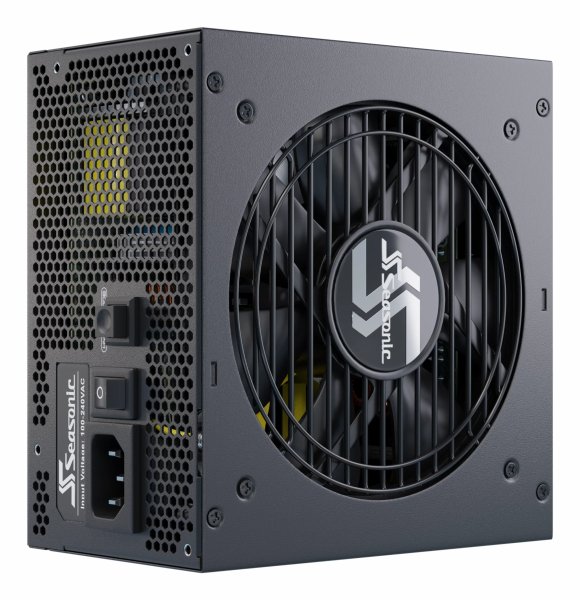

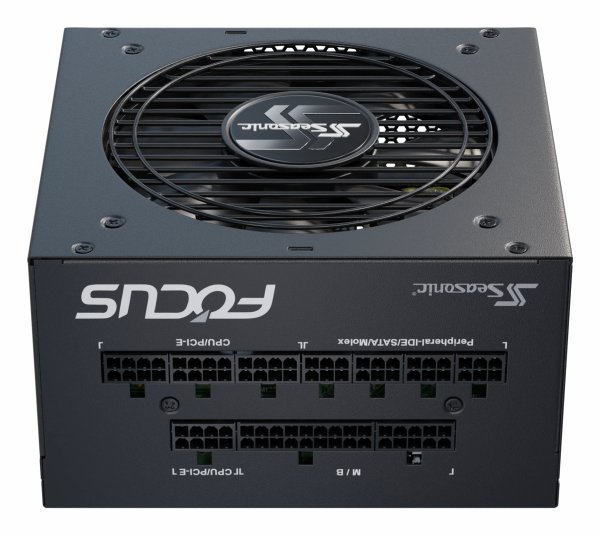

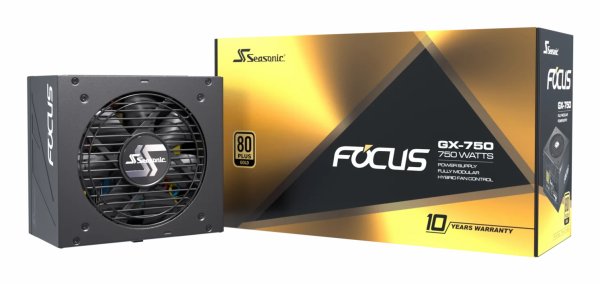

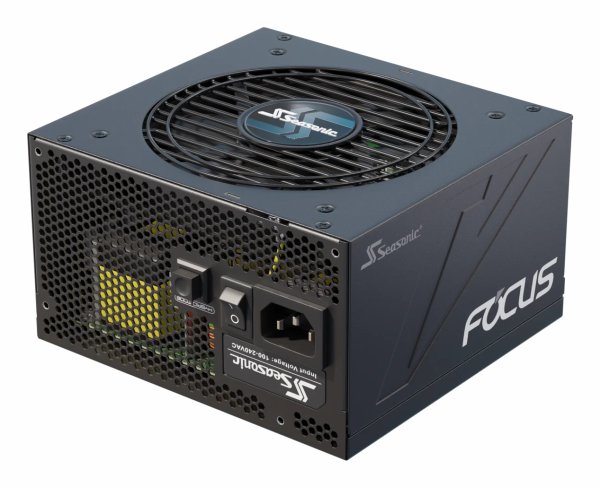

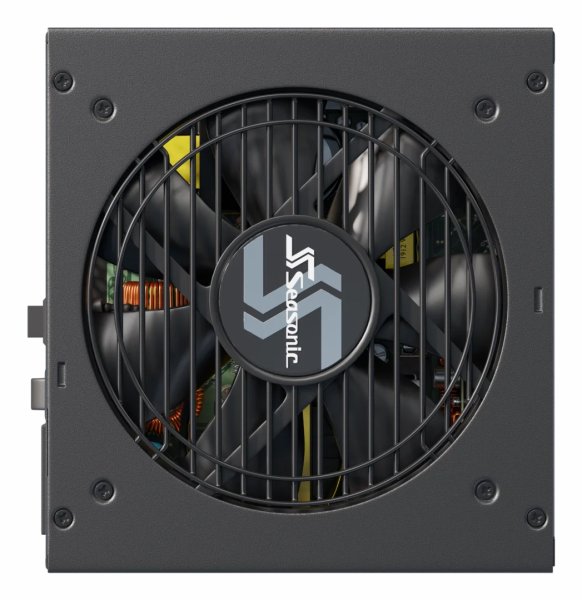

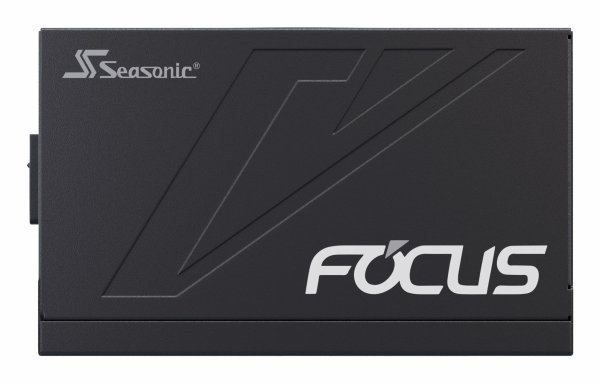

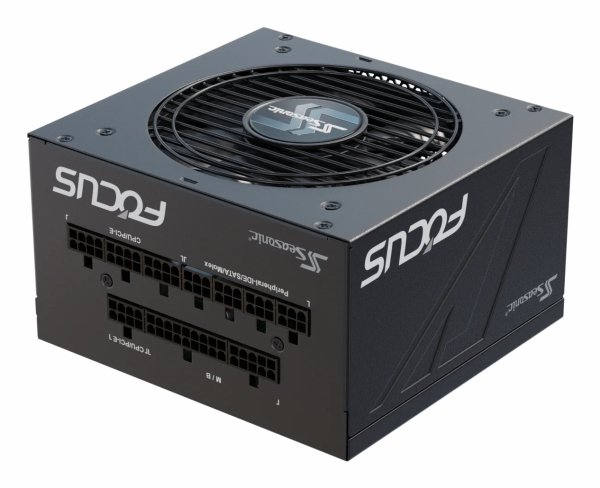

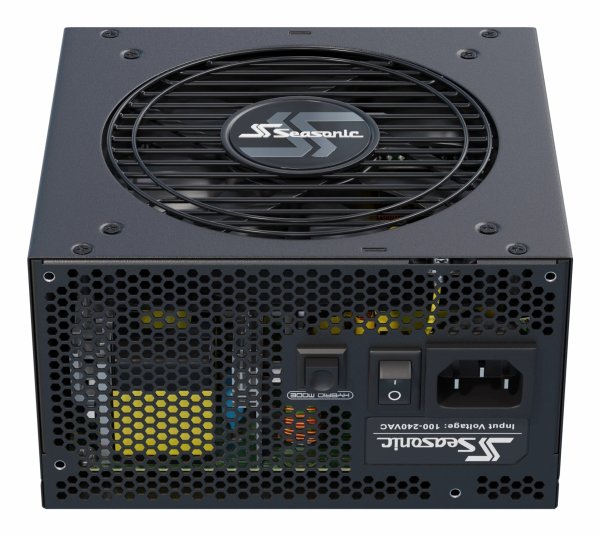

Tuotekuvat
Power
- Total power
- 750 W
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50/60 Hz
- Input current
- 10 - 5 A
- Combined power (+3.3V)
- 100 W
- Combined power (+12V)
- 744 W
- Combined power (-12V)
- 3.6 W
- Combined power (+5Vsb)
- 15 W
- Max output current (+3.3V)
- 20 A
- Max output current (+12V)
- 62 A
- Max output current (+5V)
- 20 A
- Max output current (-12V)
- 0.3 A
- Max output current (+5Vsb)
- 3 A
- Power protection features
- Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

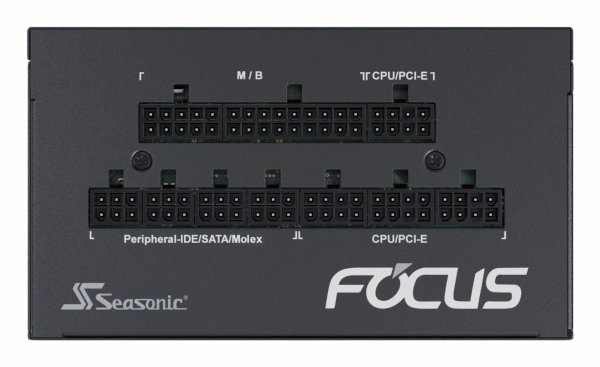

Ports & interfaces
- Motherboard power connector
- 20+4 pin ATX
- Motherboard power cable length
- 610 mm
- SATA power cable length
- 450,810,860 mm
- Peripheral (Molex) power cable length
- 470,690 mm
- PCI Express power connectors (6+2 pin)
- 2
- PCI Express power cable length
- 750 mm
- CPU power connector (4+4 pin)
- Kyllä
- CPU power cable length
- 650 mm
- PCI Express connector
- Kyllä
- Cabling type
- Fully-Modular
Performance
- Purpose
- PC
- Power supply unit (PSU) form factor
- ATX
- 80 PLUS certification
- 80 PLUS Gold
- ATX version
- 3.0
- Silent mode
- Kyllä
- Bearing technology
- FDB
- Mean time between failures (MTBF)
- 100000 h
Design
- Product colour
- Black
- Cooling type
- Active
- Fan diameter
- 120 mm
- Number of fans
- 1 fan(s)
- On/off switch
- Kyllä
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
Packaging content
- Cables included
- AC, CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA
- Cable tie(s) included
- Kyllä
Certificates
- Compliance certificates
- BSMI, CB, CCC, CE, EAC, REACH, RoHS, cTUVus, WEEE
- Certification
- cTUVus, TUV, CB, CCC, BSMI, EAC, CE, Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Weight & dimensions
- Width
- 150 mm
- Depth
- 140 mm
- Height
- 86 mm
Technical details
- Sustainability certificates
- ENERGY STAR, ErP
- Sustainability compliance
- Kyllä
Logistics data
- Warranty period
- 10 year(s)
