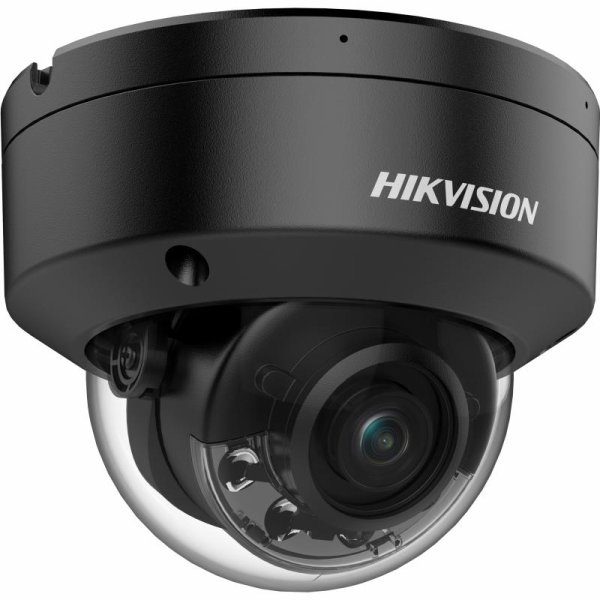

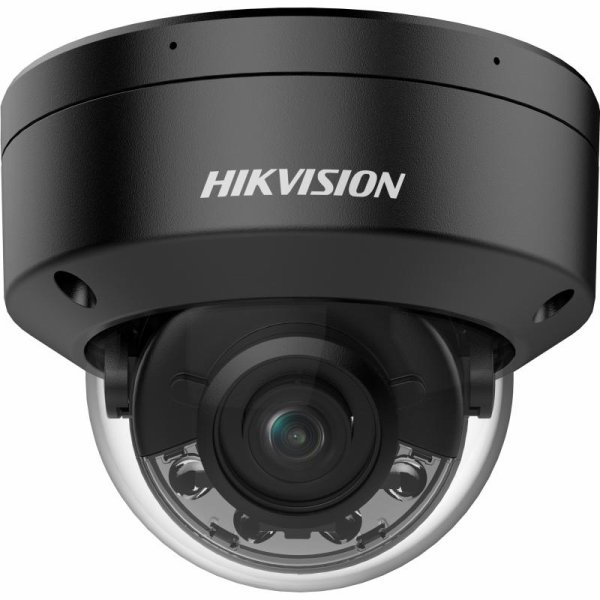

Hikvision Digital Technology Pro Series with ColorVu DS-2CD2187G2H-LISU(2.8MM)/EF/BLACK

Tuote

Valmistaja

Hikvision Digital Technology

Tuoteperhe / -sarja

Pro Series with ColorVu

Tuotenimi

DS-2CD2187G2H-LISU(2.8MM)/EF/BLACK

Valmistajan linkki

https://www.hikvision.com/en/products/IP-Products/Network-Came..

Tuotekoodit

Valmistajan tuotekoodit

• DS-2CD2187G2H-LISU(2.8MM)/EF/BLACK

GTIN- / EAN-koodit

• 6942160440057

Tuotekuvat

Performance

Type

IP security camera

Placement supported

Outdoor

Connectivity technology

Wired

Wide Dynamic Range (WDR)

Kyllä

Day/night mode

Kyllä

Infrared (IR) cut-off filter

Kyllä

Built-in light

Kyllä

Number of languages

33

Languages support

Multi

Dynamic range

130 dB

Design

Form factor

Dome

Mounting type

Ceiling/wall

Product colour

Black

Housing material

Aluminium

Protection features

Water resistant

International Protection (IP) code

IP65

IK code

IK10

Camera

Minimum illumination

0 lx

Angle of rotation

355 °

Lens viewing angle, horizontal

105.1 °

Lens viewing angle, vertical

54.8 °

Lens viewing angle, diagonal

128.2 °

Tilt angle range

0 - 75 °

Pan range

0 - 355 °

Camera shutter speed

1/3 - 1/100000 s

Number of Privacy masking areas

4

Image sensor

Sensor type

CMOS

Number of sensors

1

Optical sensor size

1/1.8 "

Progressive scan

Kyllä

Lens system

Number of lenses

1

Detect distance

89 m

Observe distance

35 m

Recognize distance

17 m

Fixed focus

Kyllä

Maximum aperture number

1

Identify distance

8 m

Fixed focal length

2.8 mm

Night vision

Night vision

Kyllä

Night vision distance

30 m

LED type

IR/White

Infra-red wavelength

850 nm

Video

Maximum resolution

3840 x 2160 pixels

Total megapixels

8 MP

Video compression formats

H.264, H.264+, H.265, H.265+, M-JPEG

Supported graphics resolutions

640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520, 3200 x 1800, 3840 x 2160

Frame rate

30 fps

Video streaming

Kyllä

Noise reduction

Kyllä

Noise reduction technology

3D noise reduction

Image quality adjustment

Brightness, Contrast, Saturation, Sharpness

Privacy masking

Kyllä

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Bit rate

32 Kbps - 16 Mbps

Back Light Compensation (BLC)

Kyllä

Highlight Compensation (HLC)

Kyllä

Region of Interest (ROI) encoding

Kyllä

Audio

Audio input channels

1.0 channels

Audio output channels

1.0 channels

Audio formats supported

AAC-LC, G.711, G.722.1, G.726, MP2L2, MP3, PCM

Signal-to-Noise Ratio (SNR)

52 dB

Built-in microphone

Kyllä

Bit rate range

8 - 320 Kbit/s

Sample rates

8 - 48 kHz

Network

Ethernet LAN

Kyllä

Wi-Fi

Ei

Bluetooth

Ei

Ethernet interface type

Fast Ethernet

Networking standards

IEEE 802.1x, IEEE 802.3af

Supported network protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

Number of users

32 user(s)

User access level

Administrator, Operator, User

Quality of Service (QoS) support

Kyllä

Live view

Kyllä

Number of simultaneous live view channels

6 channels

Client interoperability

iVMS-4200, Hik-Connect, Hik-Central

Storage

Built-in HDD

Ei

Card reader integrated

Kyllä

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Maximum memory card size

512 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Terminal block port

Kyllä

Security

Alarm input channels

1

Alarm output channels

1

Password protection

Kyllä

Video motion detection

Kyllä

Active tampering alarm

Kyllä

IP address filtering

Kyllä

Security algorithms

EAP-LEAP, EAP-TLS, HTTPS, TLS

HTTPS encryption

Kyllä

Privacy protection

Kyllä

Heartbeat

Kyllä

Mirror

Kyllä

Digital watermark

Kyllä

Password reset via email

Kyllä

Pixel counter

Kyllä

Human and vehicle targets classification

Kyllä

Audit log

Kyllä

Automatic Network Replenishment (ANR)

Kyllä

Digest authentication

Kyllä

Network access storage (NAS)

Kyllä

Management features

Web-based management

Kyllä

Reset button

Kyllä

Behavior analysis

Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection, Scene change detection

Power

Power source type

DC, PoE

Power consumption (max)

8 W

Power consumption (Power over Ethernet (PoE))

9.5 W

DC output voltage

12

DC output current

0.66 A

Operational conditions

Operating temperature (T-T)

-30 - 60 °C

Storage temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95 %

Storage relative humidity (H-H)

0 - 95 %

Weight & dimensions

Height

97.6 mm

Diameter

121.5 mm

Weight

525 g

Packaging data

Package width

234 mm

Package depth

120 mm

Package height

117 mm

Package weight

750 g

Sustainability

Compliance certificates

CB, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, Low Voltage Directive (LVD), RoHS, UL, WEEE

Sustainability compliance

Kyllä

Packaging content

Number of cameras

1

Technical details

Output impedance

100 Ω
