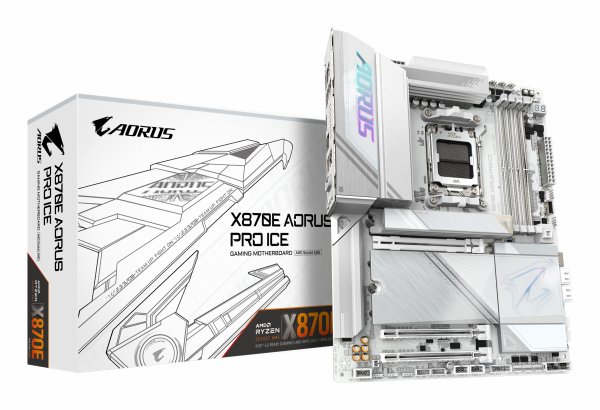

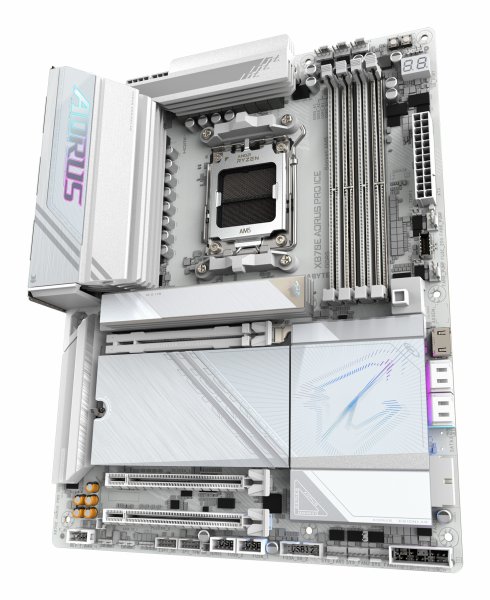

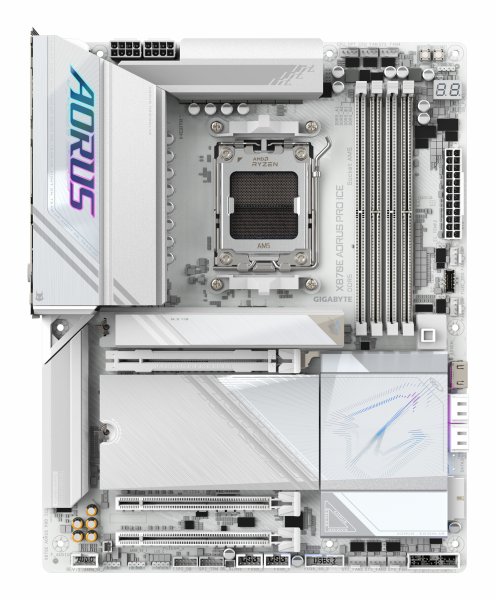

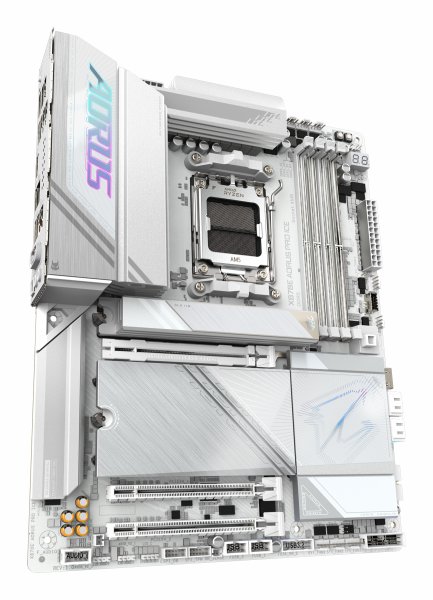

Gigabyte X870E AORUS PRO ICE

Tuote

Valmistaja

Gigabyte

Tuotenimi

X870E AORUS PRO ICE

Valmistajan linkki

https://www.gigabyte.com/uk/Motherboard/X870E-AORUS-PRO-ICE#kf

Tuotekoodit

Valmistajan tuotekoodit

• X870E AORUS PRO ICE
• X870E-AORUS-PRO-ICE

GTIN- / EAN-koodit

• 0889523045275
• 4719331864798

Tuotekuvat

Processor

Processor manufacturer

AMD

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Supported processor sockets

Socket AM5

Maximum internal memory supported by processor

256 GB

Memory

Supported memory types

DDR5-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

ECC сompatibility

Non-ECC

Supported memory clock speeds

4400,4800,5600,6000,6200,6400,6600,6800,7000,7600,7800,8000,8200 MHz

Supported memory clock speed (max)

8200 MHz

Maximum internal memory

256 GB

Supported memory module capacities

1GB, 2GB, 4GB, 8GB, 12GB, 24GB, 32GB

Unbuffered memory

Kyllä

Maximum internal memory per slot

64 GB

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

Number of HDDs supported

4

Number of storage drives supported

8

RAID support

Kyllä

RAID levels

0, 1, 10

Graphics

Parallel processing technology support

Not supported

On-board graphics card

Ei

DirectX version

12.0

Internal I/O

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

USB 3.2 Gen 2x2 connectors

1

Number of SATA III connectors

4

Audio connector

Kyllä

Front panel audio connector

Kyllä

ATX Power connector (24-pin)

Kyllä

CPU fan connector

Kyllä

Number of CPU fan connectors

2

Number of chassis fan connectors

6

EPS power connector (8-pin)

Kyllä

Number of EPS power connectors (8-pin)

2

TPM connector

Kyllä

Number of water pump connectors

2

RGB LED pin header

Kyllä

Number of RGB LED pin headers

4

Rear panel I/O ports

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 3.2 Gen 2x2 Type-C ports quantity

0

USB4 Gen 2x2 ports quantity

2

USB4 Gen 3x2 ports quantity

0

Ethernet LAN (RJ-45) ports

1

PS/2 ports quantity

0

VGA (D-Sub) ports quantity

0

HDMI ports quantity

1

HDMI version

2.1

DVI-D ports quantity

0

DisplayPorts quantity

0

DisplayPort version

1.4

Headphone outputs

1

Microphone in

Kyllä

S/PDIF out port

Kyllä

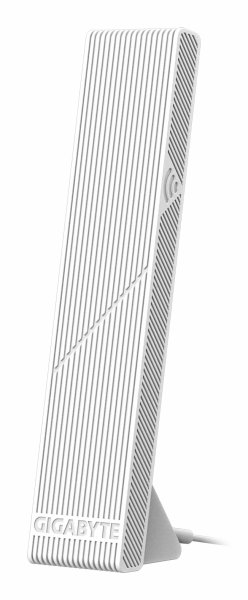

WiFi-AP antenna jack

2

Network

Ethernet LAN

Kyllä

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125

Wi-Fi

Kyllä

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Wi-Fi standards

Wi-Fi 7 (802.11be)

WLAN controller model

Qualcomm QCNCM865

Bluetooth

Kyllä

Bluetooth version

5.3

Features

Component for

PC

Motherboard form factor

ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD X870E

Audio chip

Realtek ALC1220

Audio output channels

7.1 channels

Product colour

White

PC health monitoring

Fan, Temperature, Voltage

Windows operating systems supported

Windows 11 x64

Expansion slots

PCI Express x1 (Gen 3.x) slots

0

PCI Express x1 (Gen 4.x) slots

0

PCI Express x4 slots

2

PCI Express x4 (Gen 4.x) slots

0

PCI Express x8 (Gen 3.x) slots

0

PCI Express x8 (Gen 4.x) slots

0

PCI Express x8 (Gen 5.x) slots

0

PCI Express x16 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

Number of M.2 (M) slots

4

1st M.2 largest key size

25110

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

5.0

3rd M.2 largest key size

22110

3rd M.2 highest PCI Express generation

5.0

4th M.2 largest key size

22110

4th M.2 highest PCI Express generation

4.0

BIOS

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

ACPI version

5.0

Clear CMOS jumper

Kyllä

Clear CMOS button

Kyllä

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Logistics data

Country of origin

China

Products per shipping (inner) case

1 pc(s)

Battery

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Packaging data

Package width

345 mm

Package depth

294 mm

Package height

80 mm

Package weight

2740 g

Weight & dimensions

Width

305 mm

Depth

244 mm

Height

35 mm

Packaging content

Batteries included

Kyllä

Antenna included

Kyllä

Screws included

Kyllä

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Other features

mSATA ports quantity

0

PCI Express x4 (Gen 3.x) slots

0

Weight

2400 g

Technical details

Warranty period

3 year(s)
