MSI MAG Z890 TOMAHAWK WIFI

Tuote

Valmistaja

MSI

Tuotenimi

MAG Z890 TOMAHAWK WIFI

Valmistajan linkki

https://www.msi.com/index.php

Tuotekoodit

Valmistajan tuotekoodit

• 7E32-001R
• 911-7E32-003
• MAG Z890 TOMAHAWK WIFI

GTIN- / EAN-koodit

• 4711377259712

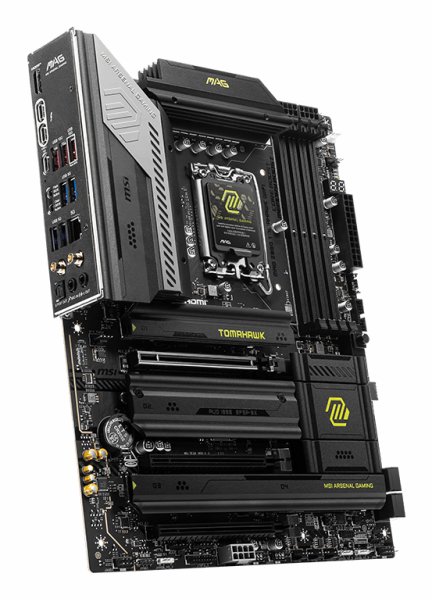

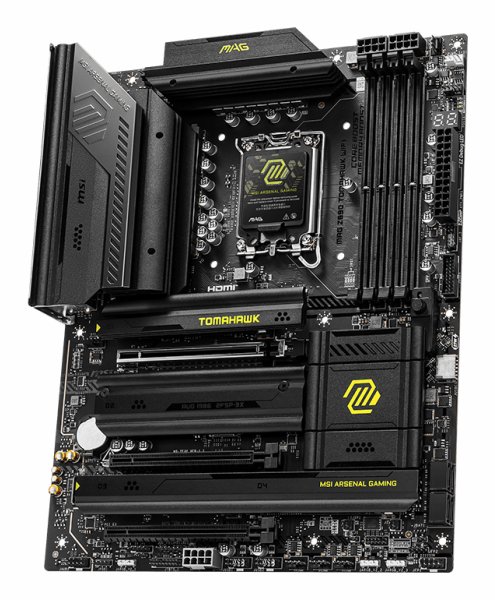

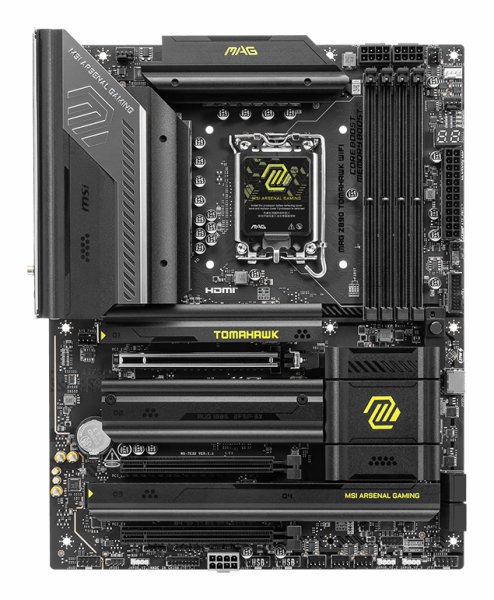

Tuotekuvat

Processor

Processor manufacturer

Intel

Processor socket

LGA 1851 (Socket V1)

Compatible processor series

Intel Core Ultra (Series 2)

Supported processor sockets

LGA 1851

Maximum internal memory supported by processor

256 GB

Memory

Supported memory types

DDR5-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

ECC сompatibility

Non-ECC

Supported memory clock speeds

6400,9200 MHz

Supported memory clock speed (max)

9200 MHz

Maximum internal memory

256 GB

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

Number of HDDs supported

8

Number of storage drives supported

4

RAID support

Kyllä

RAID levels

0, 5, 10

Graphics

On-board graphics card

Ei

Internal I/O

USB 2.0 connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of SATA connectors

0

Total number of SATA connectors

4

ATX Power connector (24-pin)

Kyllä

CPU fan connector

Kyllä

EPS power connector (8-pin)

Kyllä

Number of EPS power connectors (8-pin)

1

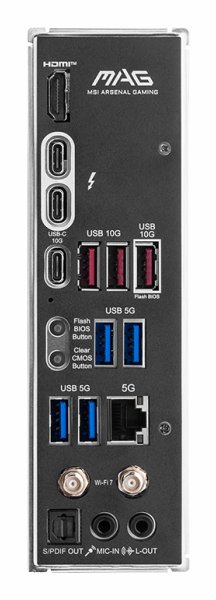

Rear panel I/O ports

USB 2.0 ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

Ethernet LAN (RJ-45) ports

1

VGA (D-Sub) ports quantity

0

HDMI ports quantity

1

HDMI version

2.1

DVI-D ports quantity

0

Thunderbolt ports quantity

2

Network

Ethernet LAN

Kyllä

Ethernet interface type

5 Gigabit Ethernet

Wi-Fi

Kyllä

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)

WLAN controller model

Killer Wi-Fi 7 BE1750

Bluetooth

Kyllä

Bluetooth version

5.4

Features

Component for

PC

Motherboard form factor

ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel Z890

Audio chip

Realtek ALC1220P

Audio output channels

7.1 channels

Product colour

Black

Windows operating systems supported

Windows 11

Expansion slots

PCI Express x4 (Gen 4.x) slots

2

PCI Express x16 (Gen 5.x) slots

1

Number of M.2 (M) slots

4

Weight & dimensions

Width

243.84 mm

Depth

304.8 mm

Other features

mSATA ports quantity

0
