ASUS ROG MAXIMUS Z890 EXTREME

Tuote

Valmistaja

ASUS

Tuotenimi

ROG MAXIMUS Z890 EXTREME

Valmistajan linkki

https://rog.asus.com/motherboards/rog-maximus/rog-maximus-z890..

Tuotekoodit

Valmistajan tuotekoodit

• 90MB1IA0-M0EAY0

GTIN- / EAN-koodit

• 4711387754153

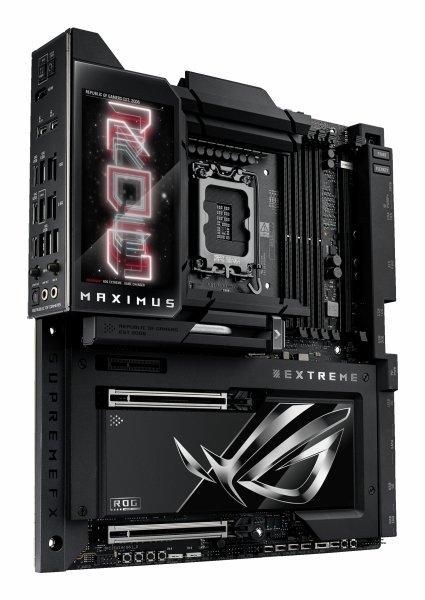

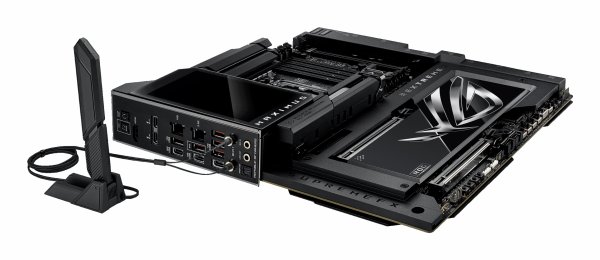

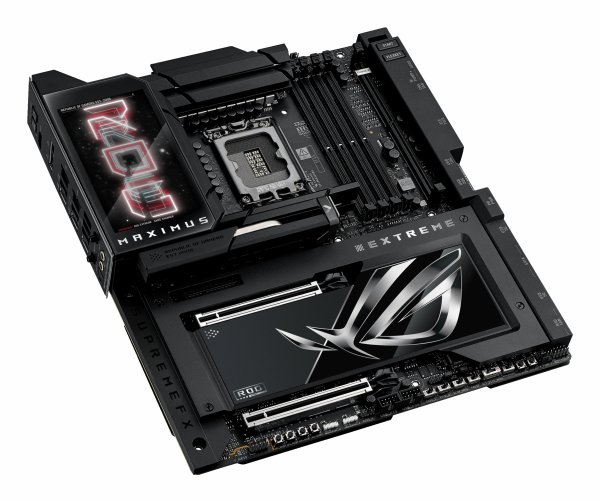

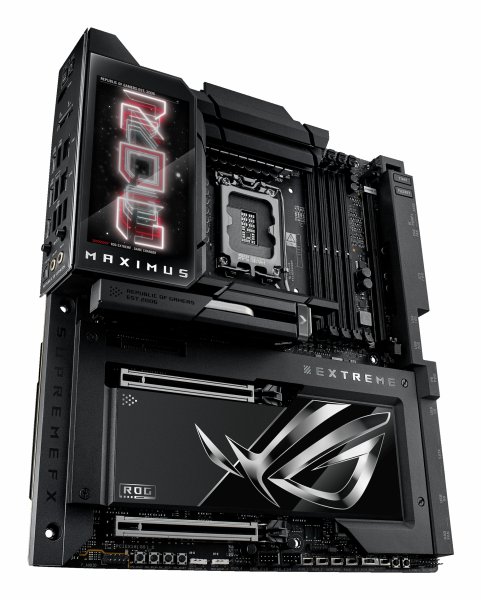

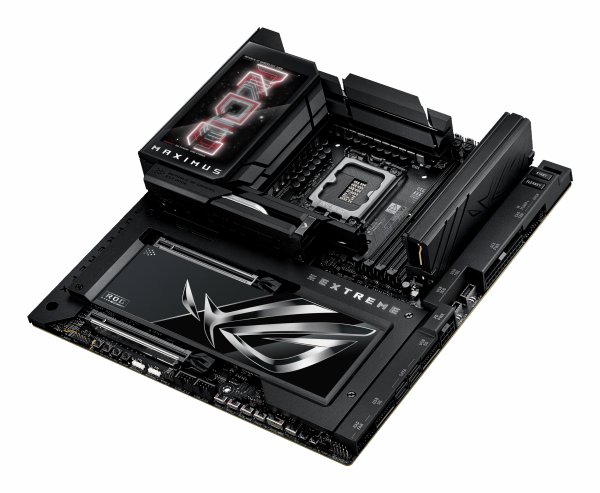

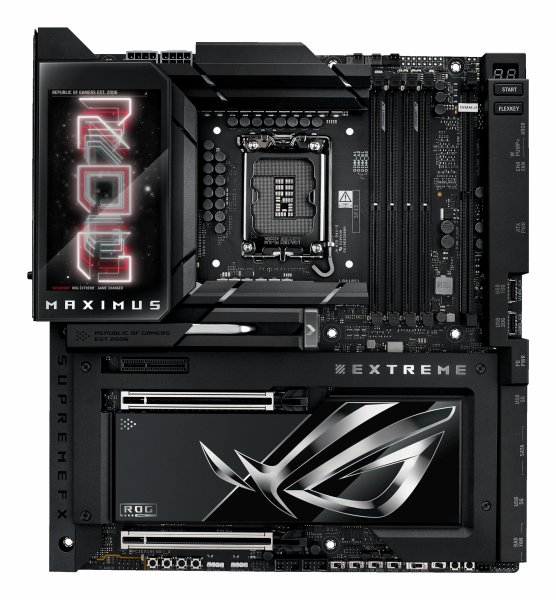

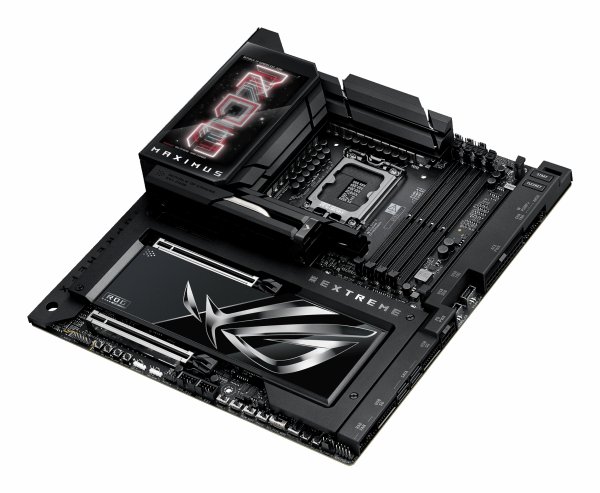

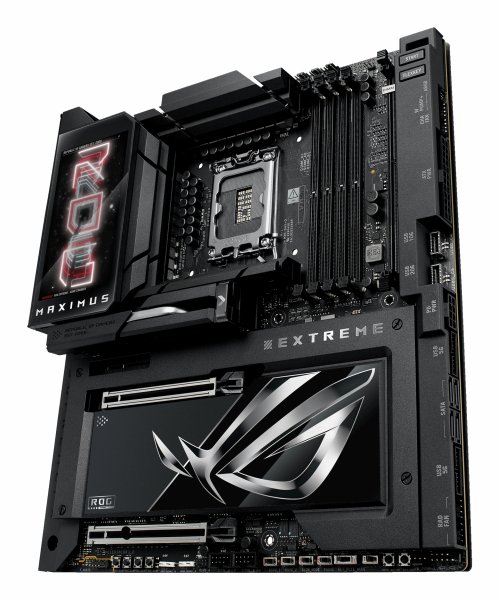

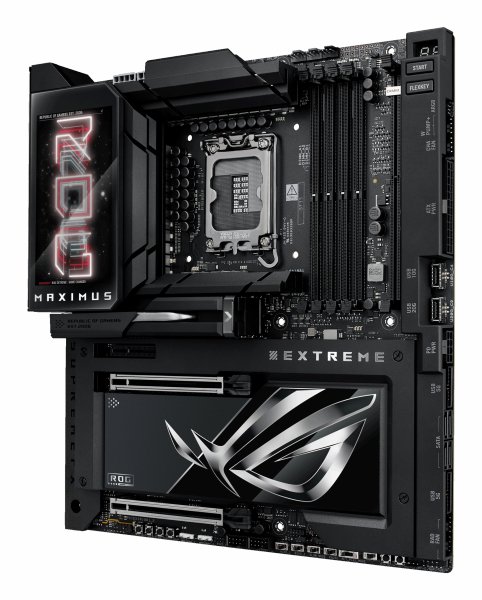

Tuotekuvat

Processor

Processor manufacturer

Intel

Processor socket

LGA 1851 (Socket V1)

Compatible processor series

Intel Core Ultra (Series 2)

Memory

Supported memory types

DDR5-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

ECC сompatibility

Non-ECC

Supported memory clock speed (max)

8800 MHz

Maximum internal memory

192 GB

Unbuffered memory

Kyllä

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

Number of HDDs supported

4

Number of storage drives supported

10

RAID support

Kyllä

RAID levels

0, 1, 5

Graphics

Parallel processing technology support

Not supported

On-board graphics card

Ei

Internal I/O

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

USB 3.2 Gen 2x2 connectors

1

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of SATA connectors

0

Front panel audio connector

Kyllä

ATX Power connector (24-pin)

Kyllä

CPU fan connector

Kyllä

Number of chassis fan connectors

2

EPS power connector (8-pin)

Kyllä

12V power connector

Kyllä

RGB LED pin header

Kyllä

Rear panel I/O ports

USB 2.0 ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

5

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

2

USB 3.2 Gen 2x2 Type-C ports quantity

1

Ethernet LAN (RJ-45) ports

2

VGA (D-Sub) ports quantity

0

HDMI ports quantity

1

DVI-D ports quantity

0

Microphone in

Kyllä

S/PDIF out port

Kyllä

Thunderbolt ports quantity

2

Network

Ethernet LAN

Kyllä

Ethernet interface type

2.5 Gigabit Ethernet, 10 Gigabit Ethernet

Wi-Fi

Kyllä

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Bluetooth

Kyllä

Bluetooth version

5.4

Features

Component for

PC

Motherboard form factor

Extended ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel Z890

Audio chip

Realtek ALC4082

Audio output channels

7.1 channels

Product colour

Black

Windows operating systems supported

Windows 11

Expansion slots

PCI Express x4 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

2

Number of M.2 (M) slots

6

BIOS

BIOS type

UEFI AMI

BIOS memory size

512 Mbit

Clear CMOS button

Kyllä

Packaging data

Package width

380 mm

Package depth

320 mm

Package height

125 mm

Package weight

5730 g

Weight & dimensions

Width

305 mm

Depth

277 mm

Other features

mSATA ports quantity

0
