ASUS ROG STRIX-1000P-GAMING

Tuote

Valmistaja

ASUS

Tuoteperhe / -sarja

ROG

Tuotenimi

STRIX-1000P-GAMING

Valmistajan linkki

https://rog.asus.com/power-supply-units/rog-strix/rog-strix-10..

Tuotekoodit

Valmistajan tuotekoodit

• 90YE00W1-B0NA00
• ROG-STRIX-1000P-GAMING

GTIN- / EAN-koodit

• 4711387594384

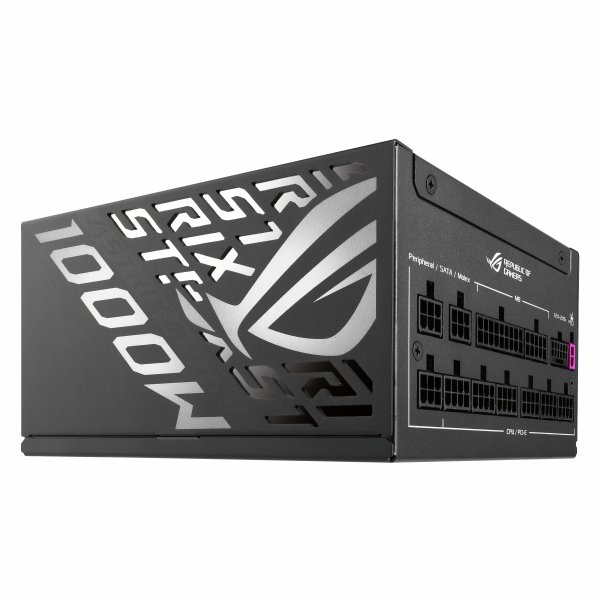

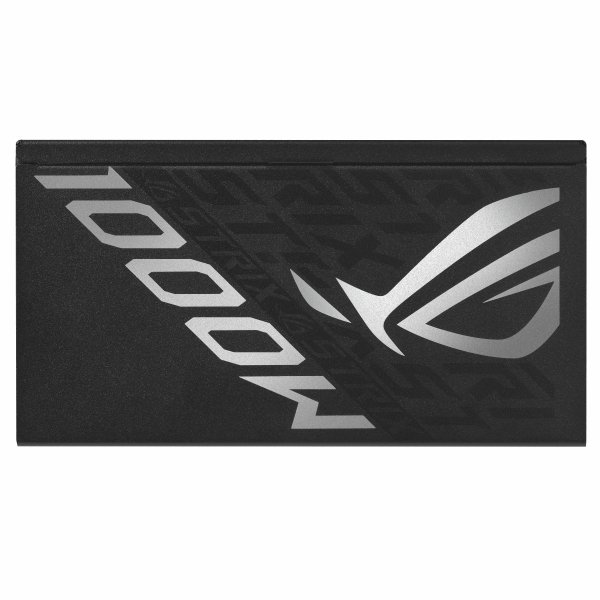

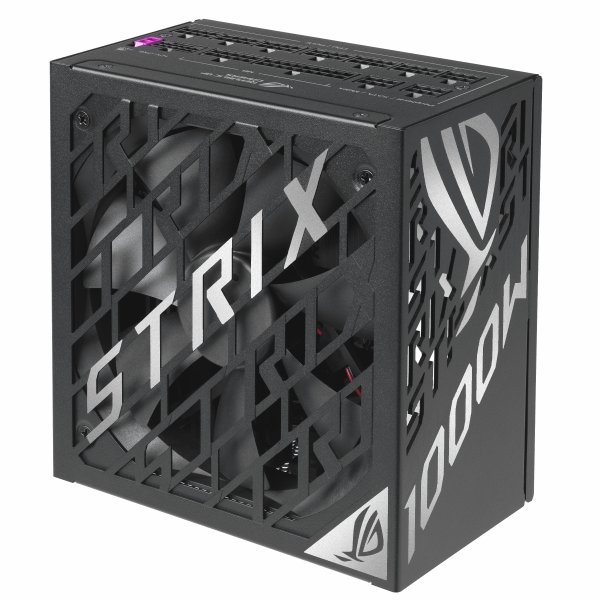

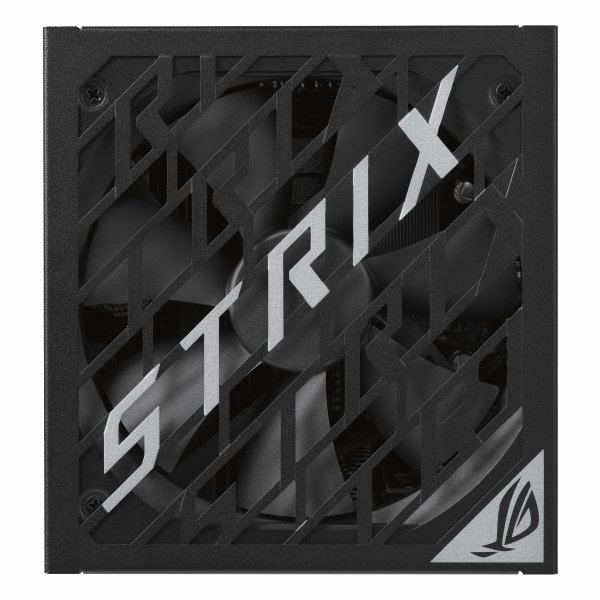

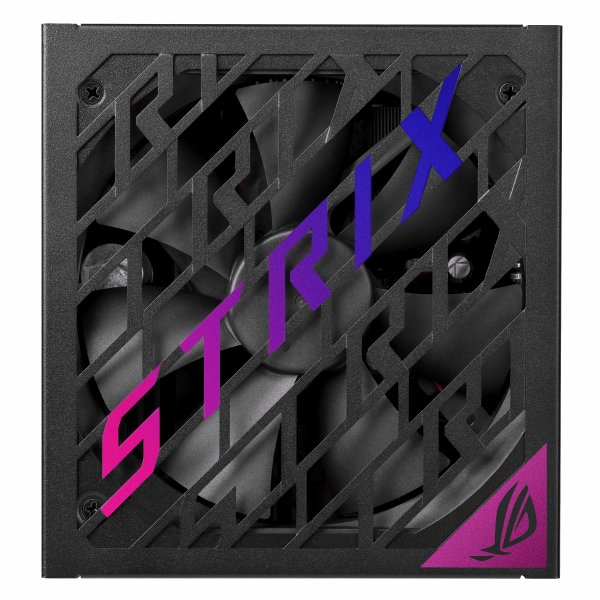

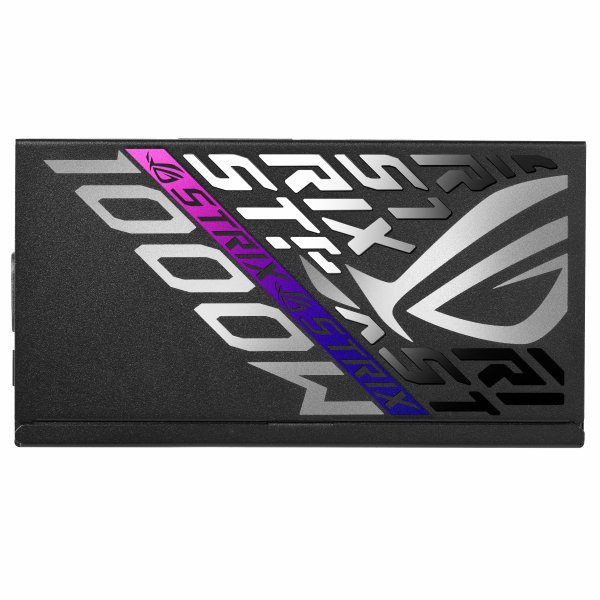

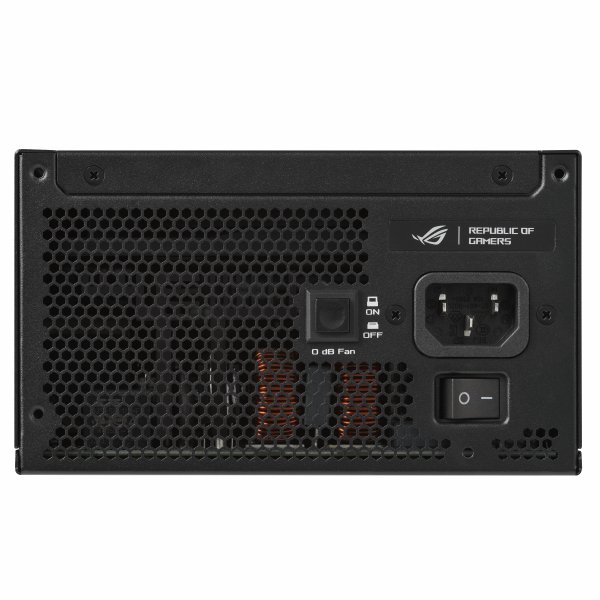

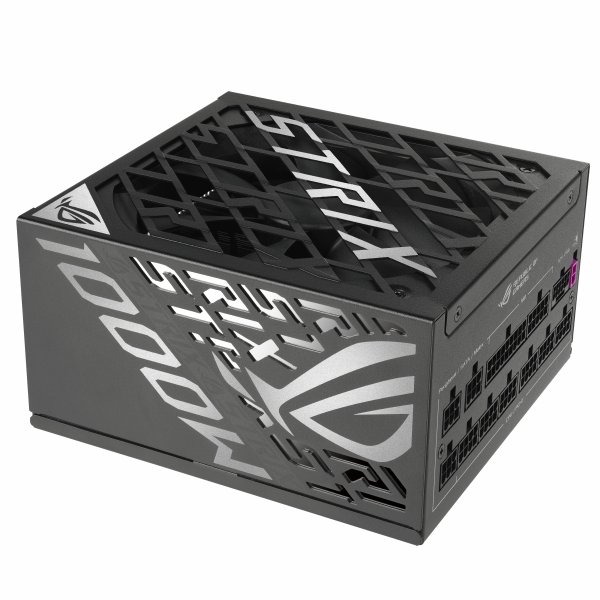

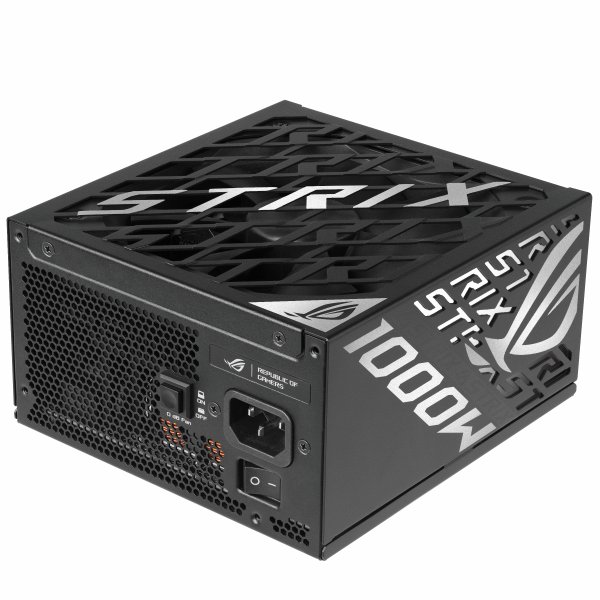

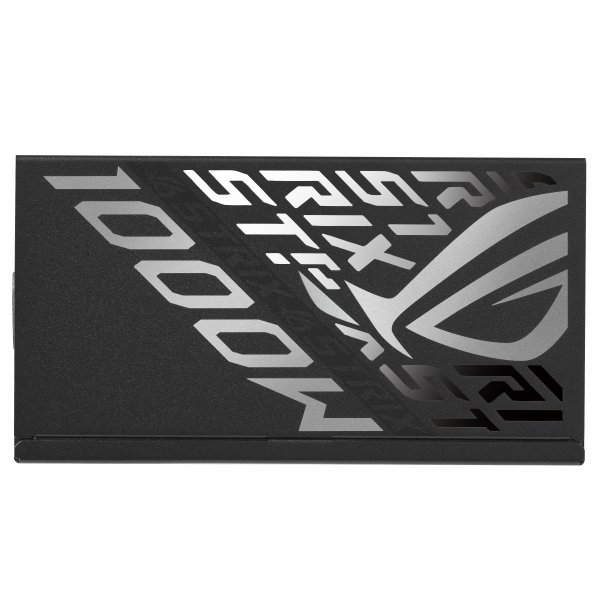

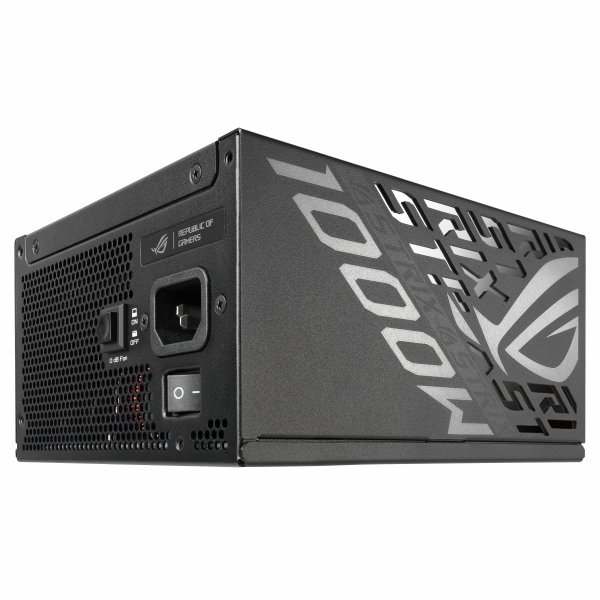

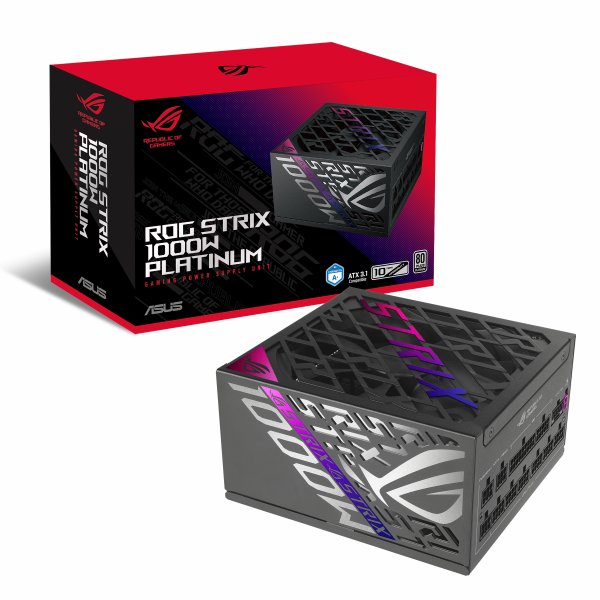

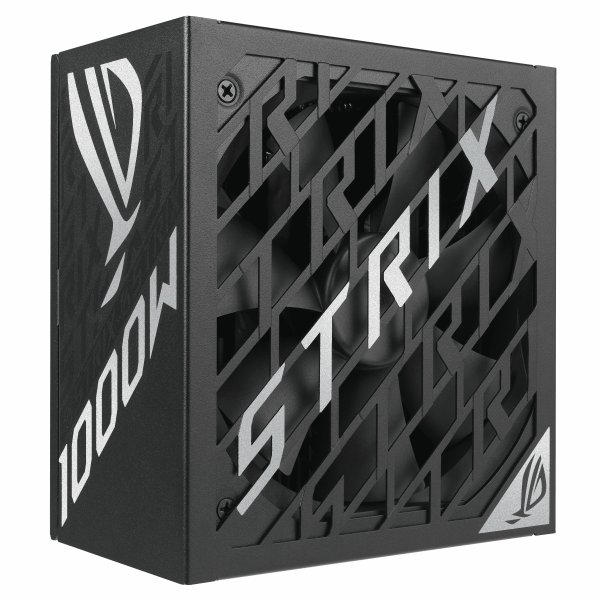

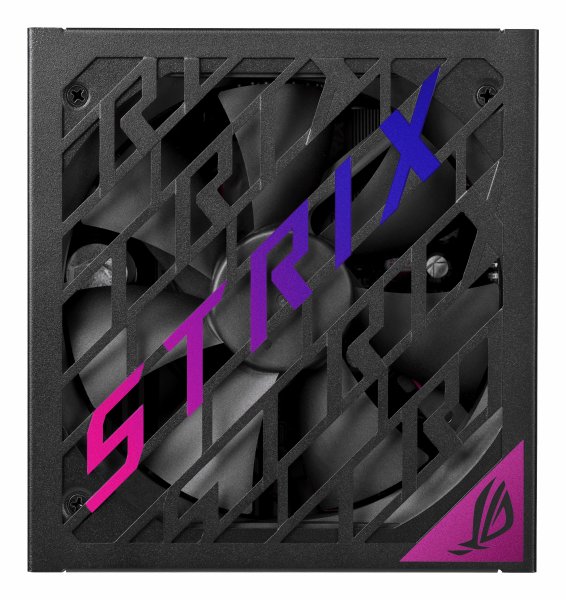

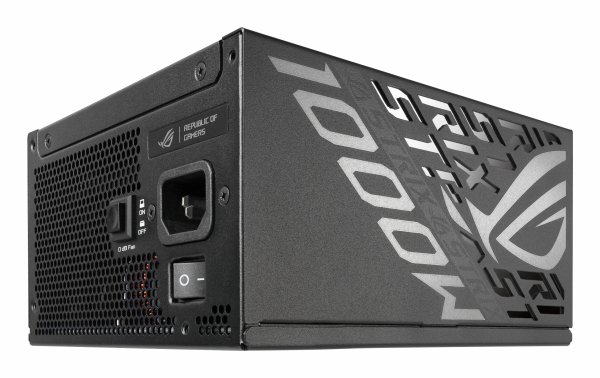

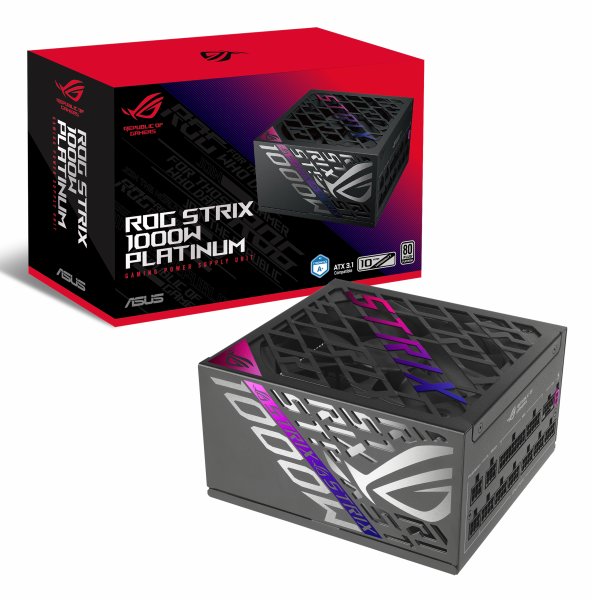

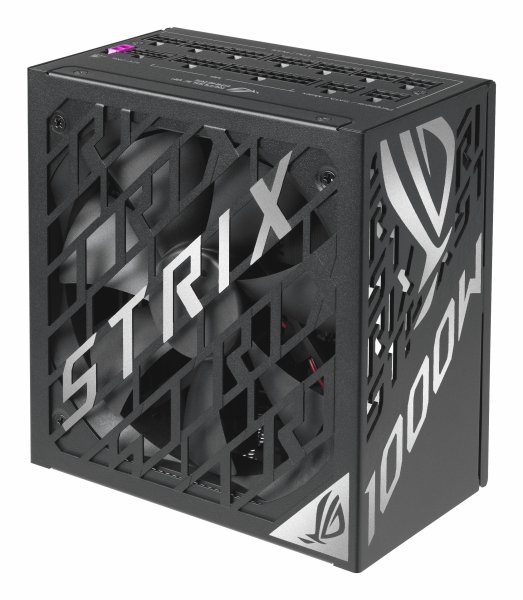

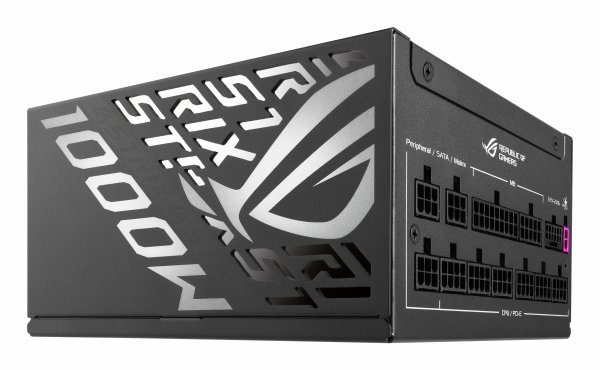

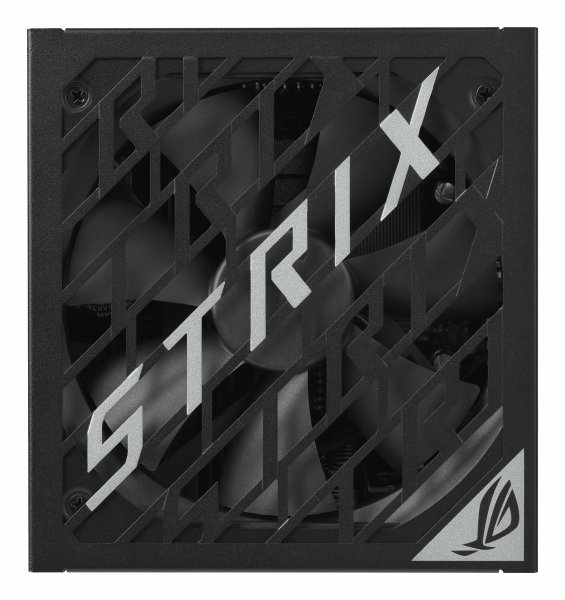

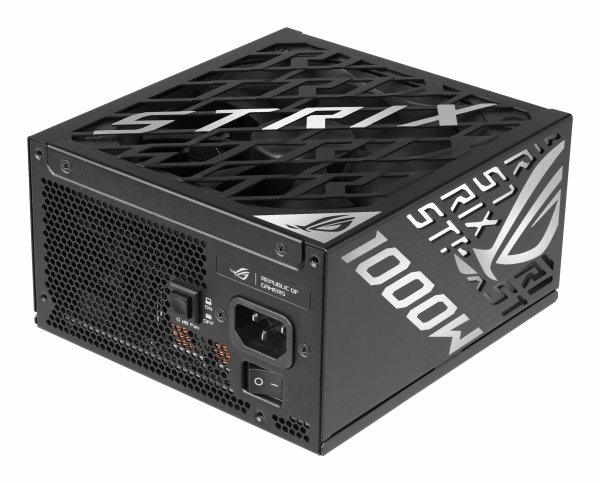

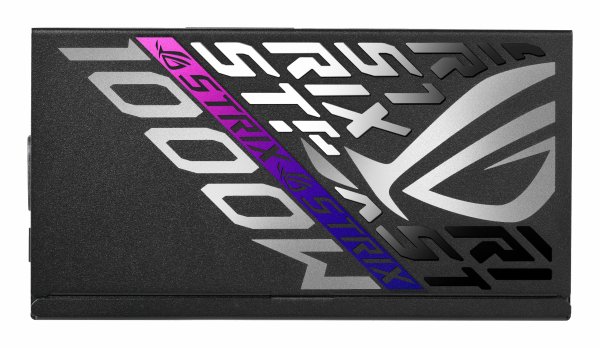

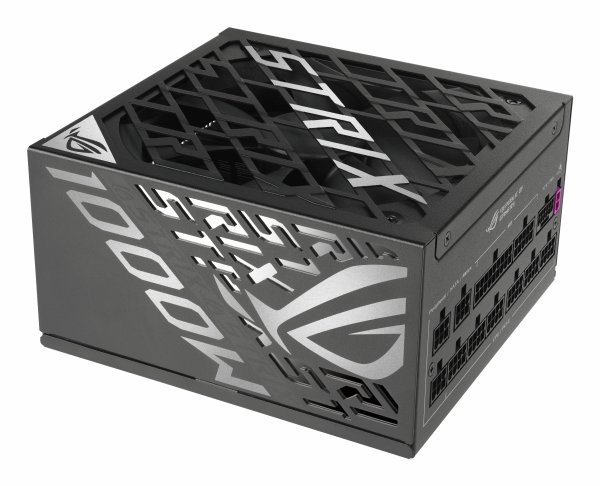

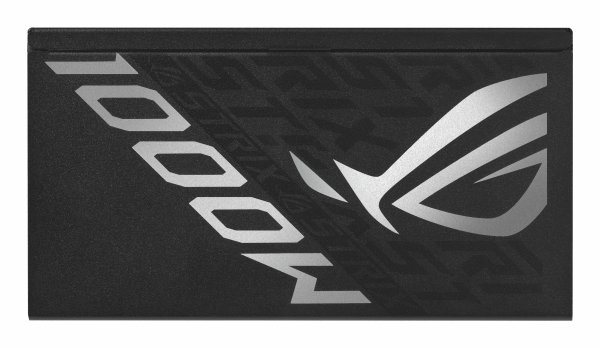

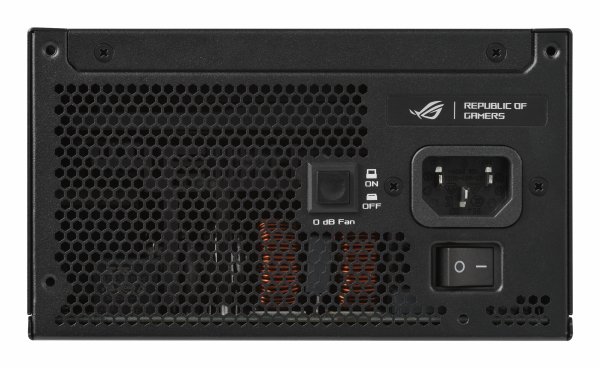

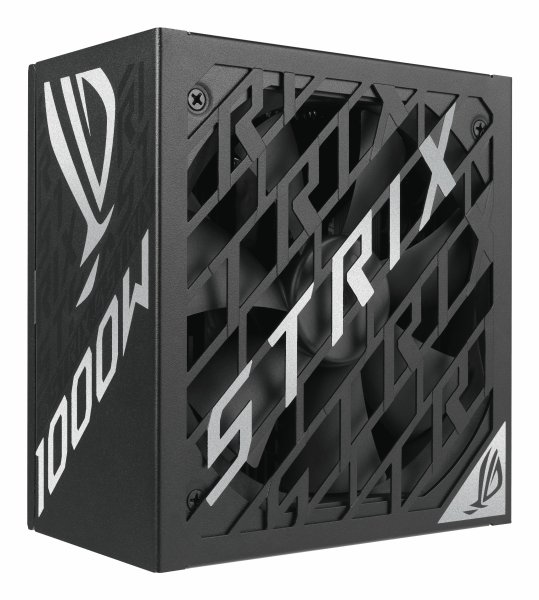

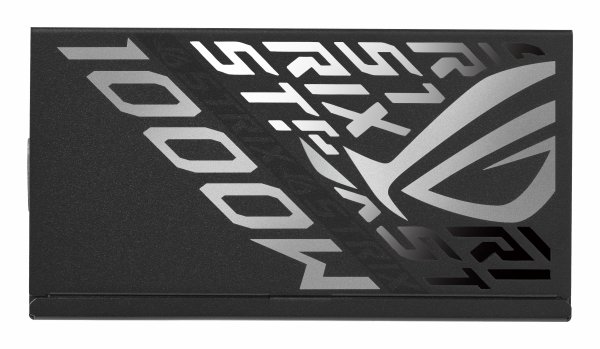

Tuotekuvat

Power

Total power

1000 W

AC input voltage

100 - 240 V

Power Factor Correction (PFC) type

Active

Combined power (+3.3V)

130 W

Combined power (+12V)

1000 W

Combined power (+5V)

130 W

Combined power (-12V)

3.6 W

Combined power (+5Vsb)

15 W

Max output current (+3.3V)

25 A

Max output current (+12V)

83.3 A

Max output current (+5V)

25 A

Max output current (-12V)

0.3 A

Max output current (+5Vsb)

3 A

Power protection features

Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

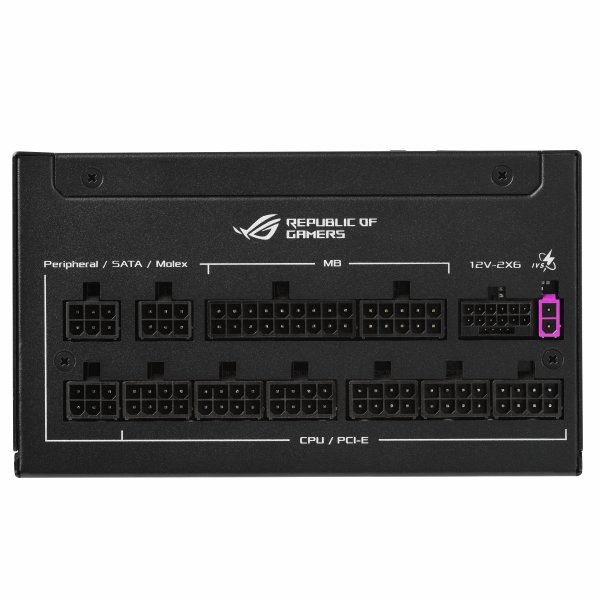

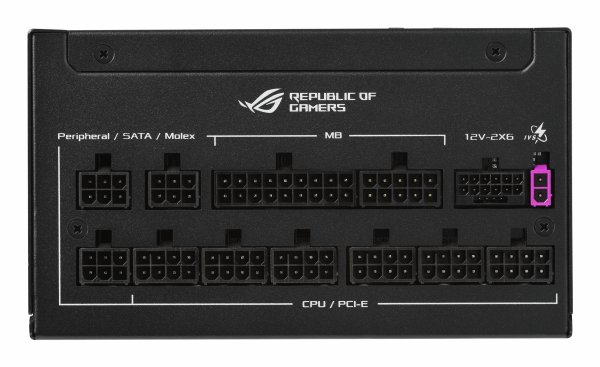

Ports & interfaces

Motherboard power connector

20+4 pin ATX

Motherboard power cable length

610 mm

Number of SATA power connectors

6

SATA power cable length

120,400 mm

Peripheral (Molex) power connectors (4-pin)

3

Peripheral (Molex) power cable length

150,400 mm

PCI Express power connectors (6+2 pin)

4

PCI Express power connectors (16-pin)

1

PCI Express power cable length

750 mm

CPU power connector (4+4 pin)

Kyllä

CPU power cable length

1000 mm

ATX power connector (20+4 pin)

Kyllä

PCI Express connector

Kyllä

Cabling type

Fully-Modular

Performance

Purpose

PC

Power supply unit (PSU) form factor

ATX

80 PLUS certification

80 PLUS Platinum

ATX version

3.1

Noise level

20 dB

Bearing technology

Ball bearing

Mean time between failures (MTBF)

120000 h

Design

Product colour

Black, Silver

Cooling type

Semi-passive

Number of fans

1 fan(s)

Illumination

Kyllä

On/off switch

Kyllä

Packaging content

Cables included

AC, CPU, PCIe, Peripheral (Molex), SATA

Certificates

Certification

Cybenetics Noise Level Certification A+

Weight & dimensions

Width

160 mm

Depth

150 mm

Height

86 mm

Weight

2910 g

Packaging data

Package width

320 mm

Package depth

200 mm

Package height

108 mm

Package weight

3620 g

Package type

Box
