Gigabyte GA-H61M-USB3H
Ominaisuudet
- Prosessorityyppi
- Intel
- Prosessorin kanta
- Socket H2 (LGA 1155)
- Emolevyn piirisarja
- Intel H61
- Emolevyn tyyppi
- mikro ATX
- Tuetut muistityypit
- DDR3-SDRAM
Arvostelut
Arvostele tuoteTuotetiedot
Tuote
- Valmistaja
- Gigabyte
- Tuotenimi
- GA-H61M-USB3H
- Julkaisupäivä
- 04.04.2013
- Valmistajan linkki
- http://www.gigabyte.com/products/product-page.aspx?pid=4478#sp
Tuotekoodit
- Valmistajan tuotekoodit
- GA-H61M-USB3H
- GTIN- / EAN-koodit
- 4719331808112
Tuotekuvat
Memory
- Supported memory types
- DDR3-SDRAM
- Memory slots type
- DIMM
- Memory channels
- Dual
- Memory voltage
- 1.5 V
- Non-ECC
- Kyllä
- Supported memory clock speeds
- 800,1066,1333 MHz
- Maximum internal memory
- 16 GB
- Memory slots
- 2
Processor
- Processor family
- Intel
- Compatible processor series
- Celeron, Core i3, Core i5, Core i7, Pentium
- Processor socket
- Socket H2 (LGA 1155)
- Maximum number of SMP processors
- 1
Internal I/O
- USB 2.0 connectors
- 2
- USB 3.0 (3.1 Gen 1) connectors
- 1
- Supported hard disk drive interfaces
- SATA, Serial ATA II
- Number of SATA connectors
- 4
- S/PDIF out connector
- Ei
- GAME/MIDI connector
- Ei
- CPU fan connector
- Kyllä
- Number of COM connectors
- Ei
- ATX Power connector (24-pin)
- Kyllä
- Number of EATX power connectors
- 1
- EZ plug connector
- Ei
- Chassis intrusion connector
- Kyllä
- Number of chassis fan connectors
- 1
- Floppy disk drive connector
- Ei
- CD/AUX audio in
- Ei
- Front panel audio connector
- Kyllä
- Power fan connector
- Ei
- TPM connector
- Ei
- IPMI 2.0 slot
- Ei
- CF card connector
- Ei
- CNR slot
- Ei
- S/PDIF in connector
- Ei
- Dual Power System (DPS) slot
- Ei
- Audio Modem Rise (AMR) slot
- Ei
- Number of SATA II connectors
- 4
- EPS power connector (8-pin)
- Ei
- Parallel connector
- Ei

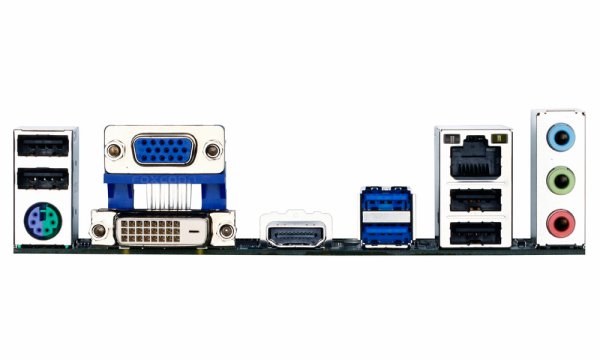

Back panel I/O ports
- USB 2.0 ports quantity
- 4
- USB 3.0 (3.1 Gen 1) Type-A ports quantity
- 2
- Ethernet LAN (RJ-45) ports
- 1
- PS/2 ports quantity
- 1
- Microphone in
- Kyllä
- S/PDIF out port
- Ei
- VGA (D-Sub) ports quantity
- 1
- DVI-D ports quantity
- 1
- S/PDIF in port
- Ei
- HDMI ports quantity
- 1
Networking
- Ethernet LAN
- Kyllä
Performance
- Component for
- PC
- Motherboard chipset family
- Intel
- Motherboard chipset
- Intel H61
- Motherboard form factor
- Micro ATX
- Audio output channels
- 7.1
- Audio system
- Realtek ALC887
- Trusted Platform Module (TPM)
- Ei
- Intel HD Audio Technology
- Kyllä
- Processor with Intel Graphics Technology required
- Kyllä
Graphics
- Parallel processing technology support
- Ei
- Graphics adapter
- HD Graphics
- Maximum resolution
- 1920 x 1200 pixels
- On-board graphics adapter
- Kyllä
- Discrete graphics support
- Kyllä
Expansion slots
- PCI Express x1 (Gen 2.x) slots
- 1
- PCI Express x16 slots
- 1
- PCI Express x16 (Gen 3.x) slots
- 1
BIOS
- BIOS type
- UEFI
- ACPI version
- 2.0a
- Clear CMOS jumper
- Kyllä
Weight & dimensions
- Width
- 226 mm
- Depth
- 174 mm
Packaging content
- Drivers included
- Kyllä
- Quick installation guide
- Kyllä
