ASUS PROART Z890-CREATOR WIFI

Tuote

Valmistaja

ASUS

Tuotenimi

PROART Z890-CREATOR WIFI

Valmistajan linkki

https://www.asus.com/motherboards-components/motherboards/proa..

Tuotekoodit

Valmistajan tuotekoodit

• 514309
• 90MB1JD0-M0EAY0
• PROART Z890-CREATOR WIFI
• PROART-Z890-CREATOR-WIFI

GTIN- / EAN-koodit

• 0197105766167
• 4711387766163

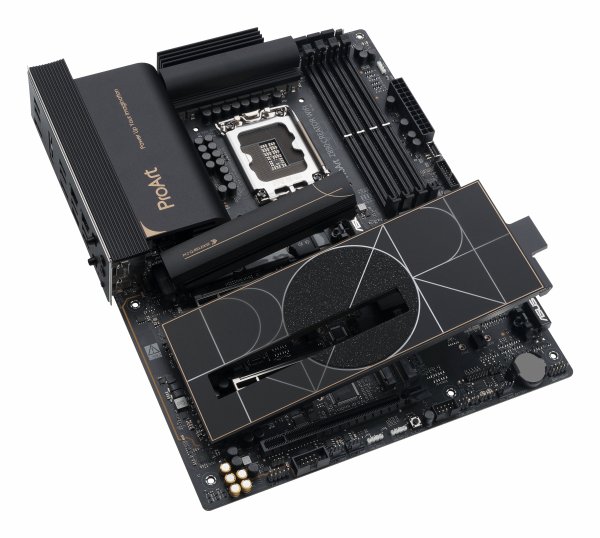

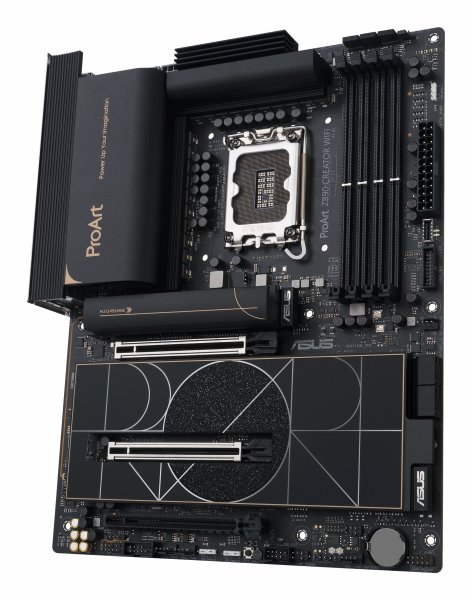

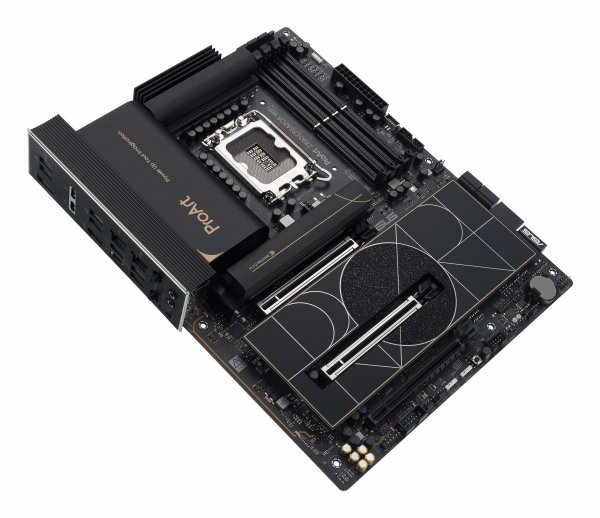

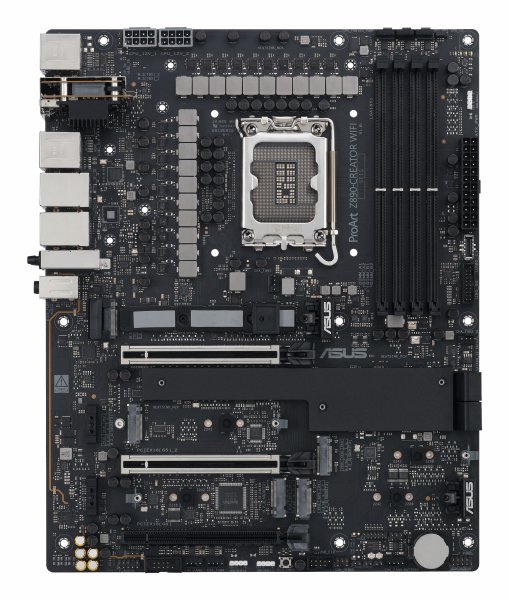

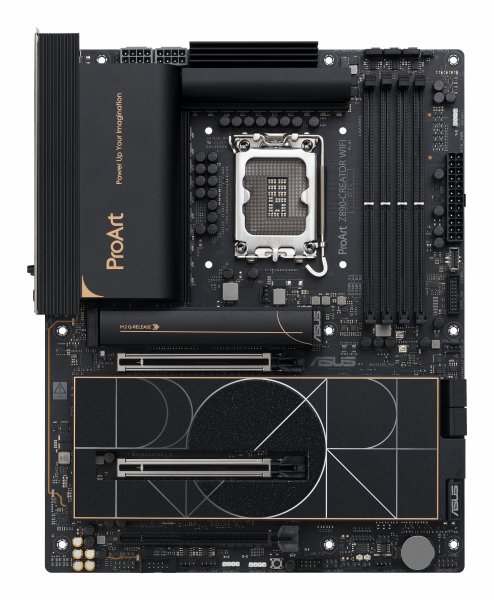

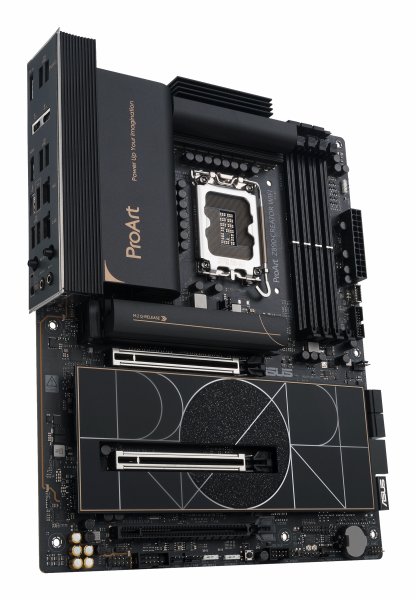

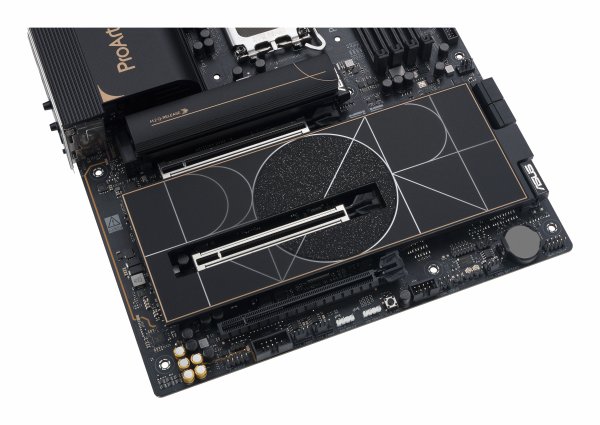

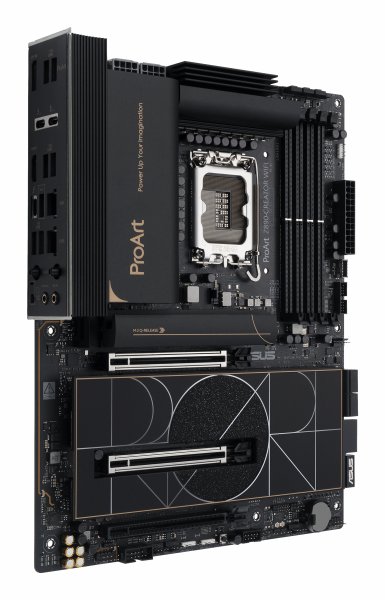

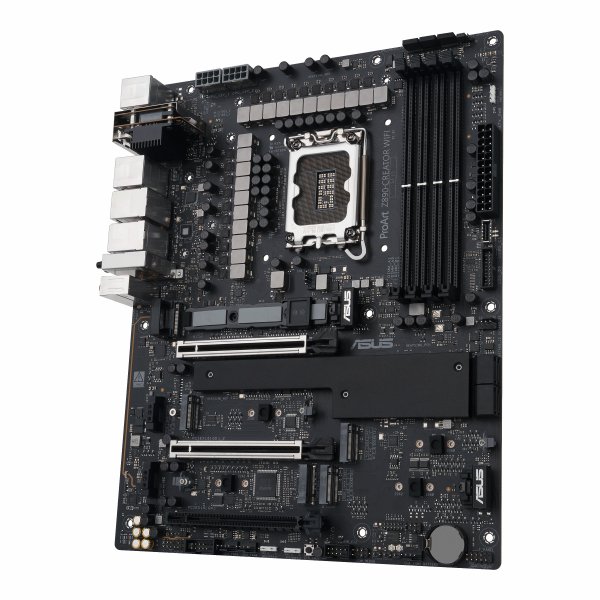

Tuotekuvat

Processor

Processor manufacturer

Intel

Processor socket

LGA 1851 (Socket V1)

Compatible processor series

Intel Core Ultra (Series 2)

Supported processor sockets

LGA 1851

Memory

Supported memory types

DDR5-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

ECC сompatibility

Non-ECC

Supported memory clock speeds

9066 MHz

Supported memory clock speed (max)

9066 MHz

Maximum internal memory

192 GB

Unbuffered memory

Kyllä

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

Number of HDDs supported

4

Number of storage drives supported

9

RAID support

Kyllä

RAID levels

0, 1, 5, 10

Graphics

Parallel processing technology support

Not supported

On-board graphics card

Ei

Maximum resolution

7680 x 4320 pixels

Internal I/O

USB 2.0 connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of SATA connectors

0

Front panel audio connector

Kyllä

Front panel connector

Kyllä

ATX Power connector (24-pin)

Kyllä

CPU fan connector

Kyllä

Number of CPU fan connectors

2

Number of chassis fan connectors

5

Chassis intrusion connector

Kyllä

EPS power connector (8-pin)

Kyllä

Number of EPS power connectors (8-pin)

2

Number of COM connectors

1

TPM connector

Kyllä

12V power connector

Kyllä

Number of water pump connectors

1

Number of temperature sensor headers

1

RGB LED pin header

Kyllä

Number of RGB LED pin headers

3

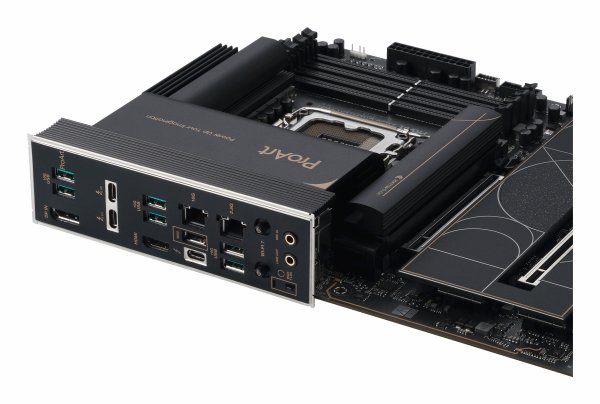

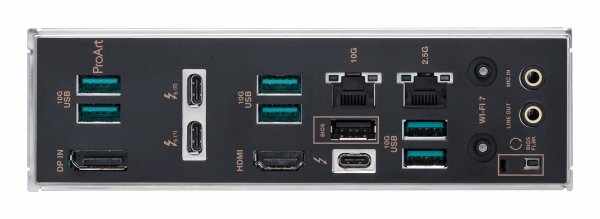

Rear panel I/O ports

USB 2.0 ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

6

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

Ethernet LAN (RJ-45) ports

2

VGA (D-Sub) ports quantity

0

HDMI ports quantity

1

HDMI version

2.1

DVI-D ports quantity

0

DisplayPorts quantity

1

DisplayPort version

2.1

Headphone outputs

1

Line-in

Kyllä

Thunderbolt ports quantity

3

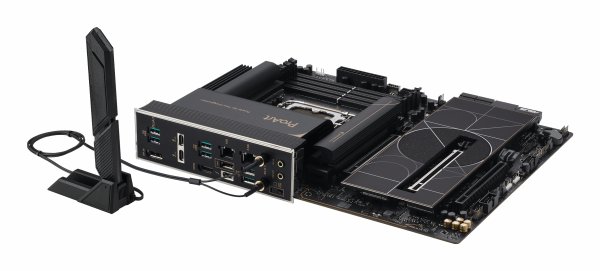

WiFi-AP antenna jack

2

Network

Ethernet LAN

Kyllä

Ethernet interface type

2.5 Gigabit Ethernet, 10 Gigabit Ethernet

Wi-Fi

Kyllä

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Wi-Fi standards

Wi-Fi 7 (802.11be)

Bluetooth

Kyllä

Bluetooth version

5.4

Features

Component for

PC

Motherboard form factor

ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel Z890

Audio chip

Realtek ALC1220P

Audio output channels

7.1 channels

Product colour

Black

Power source type

ATX

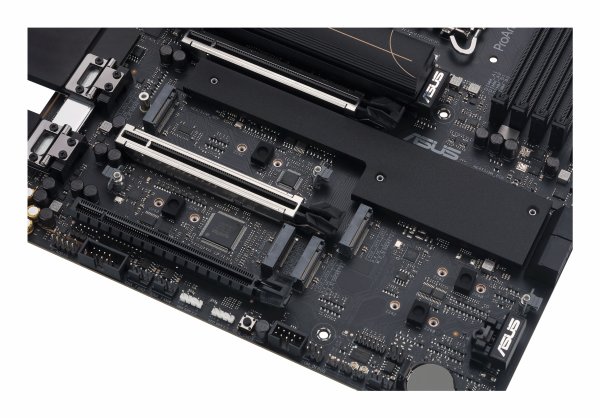

Expansion slots

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

2

Number of M.2 (M) slots

5

1st M.2 largest key size

22110

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

2280

3rd M.2 highest PCI Express generation

4.0

4th M.2 largest key size

2280

4th M.2 highest PCI Express generation

4.0

5th M.2 largest key size

2280

5th M.2 highest PCI Express generation

4.0

BIOS

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS button

Kyllä

Packaging data

Package width

356 mm

Package depth

281 mm

Package height

244 mm

Package weight

2354 g

Weight & dimensions

Width

305 mm

Depth

244 mm

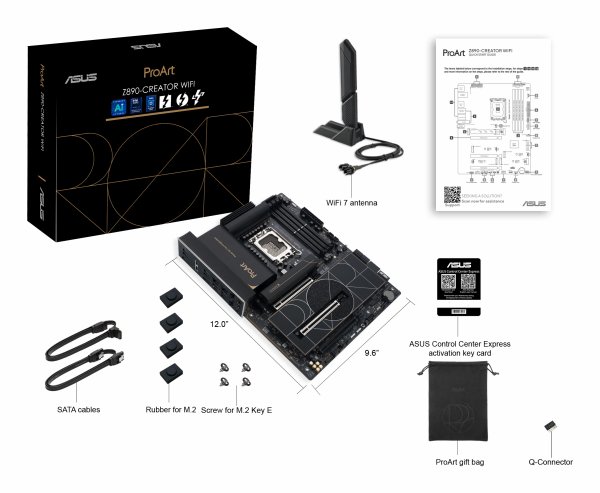

Packaging content

Cables included

SATA

Antenna included

Kyllä

Other features

mSATA ports quantity

0

Weight

1965 g
