Cudy WR11000

Tuote

Valmistaja

Cudy

Tuotenimi

WR11000

Valmistajan linkki

https://www.cudy.com/en-eu/products/wr11000-1-0?_pos=1&_ps..

Tuotekoodit

Valmistajan tuotekoodit

• WR11000

GTIN- / EAN-koodit

• 6971690793357

Tuotekuvat

WAN connection

Ethernet WAN

Kyllä

DSL WAN

Ei

SIM card slot

Ei

3G/4G USB modem compatibility

Ei

WAN connection type

RJ-45

Wireless LAN features

Wi-Fi band

Tri-band (2.4 GHz / 5 GHz / 6 GHz)

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

WLAN data transfer rate (max)

5765 Mbit/s

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)

WLAN data transfer rate (first band)

688 Mbit/s

WLAN data transfer rate (second band)

4324 Mbit/s

WLAN data transfer rate (third band)

5765 Mbit/s

Network

Ethernet LAN

Kyllä

Ethernet LAN interface type

2.5 Gigabit Ethernet

Ethernet LAN data rates

10,100,1000,2500 Mbit/s

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n

Port forwarding

Kyllä

Port triggering

Kyllä

Number of guest networks (2.4 GHz)

1

Number of guest networks (5 GHz)

1

Number of guest networks (6 GHz)

1

VPN server

WireGuard OpenVPN IPsec Zerotier PPTP L2TP

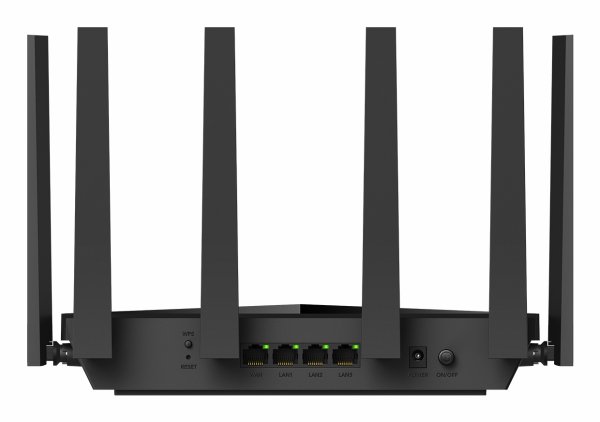

Ports & interfaces

Ethernet LAN (RJ-45) ports

3

USB port

Ei

DC-in jack

Kyllä

Management features

Web-based management

Kyllä

Quality of Service (QoS) support

Kyllä

Wake-on-LAN ready

Kyllä

Reset button

Kyllä

WPS push button

Kyllä

MU-MIMO technology

Kyllä

MIMO

Kyllä

Security

Security algorithms

WPA, WPA3, WPA2

Filtering

Kyllä

MAC address filtering

Kyllä

IP address filtering

Kyllä

URL filtering

Kyllä

IGMP snooping

Kyllä

DMZ support

Kyllä

Protocols

DHCP client

Kyllä

DHCP server

Kyllä

Design

Product type

Tabletop router

Product colour

Black

Wall mountable

Kyllä

LED indicators

LAN, System, WLAN, WPS

Certificates

Compliance certificates

CE, Federal Communications Commission (FCC)

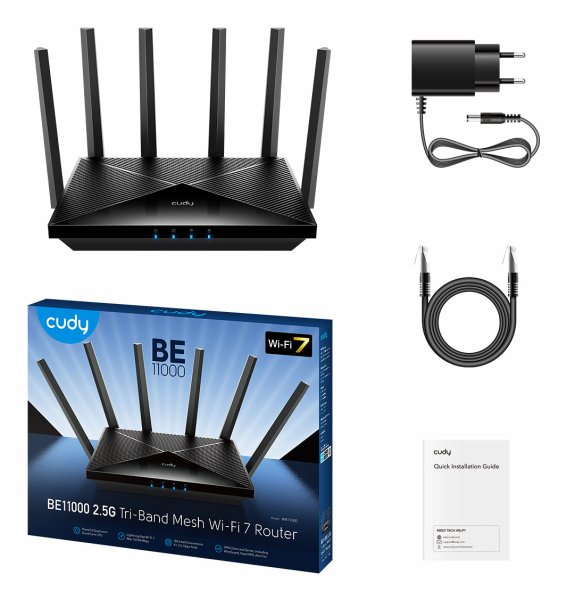

Packaging content

Cables included

LAN (RJ-45)

AC adapter included

Kyllä

Quick installation guide

Kyllä

Antenna

Antenna design

External

Antenna type

2x2

Antenna gain level (max)

5 dBi

Antennas quantity

6

Detachable antenna(s)

Ei

Features

Built-in processor

Kyllä

Processor architecture

ARM Cortex-A53

Processor frequency

1500 MHz

Processor cores

4

Internal memory

512 MB

Internal memory type

DDR4

Flash memory

128 MB

Power

Power source type

DC

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Output voltage

12 V

Output current

2 A

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90 %

Storage relative humidity (H-H)

5 - 95 %

Weight & dimensions

Width

253 mm

Depth

152.5 mm

Height

48.2 mm

Weight

643.4 g

Packaging data

Package width

431 mm

Package depth

324 mm

Package height

58 mm

Package weight

1236.3 g
