Gigabyte B850I AORUS PRO

Tuote

Valmistaja

Gigabyte

Tuotenimi

B850I AORUS PRO

Julkaisupäivä

06.01.2025

Valmistajan linkki

https://www.gigabyte.com/

Tuotekoodit

Valmistajan tuotekoodit

• B850I AORUS PRO
• B850I-AORUS-PRO

GTIN- / EAN-koodit

• 4719331867263

Tuotekuvat

Processor

Processor manufacturer

AMD

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Supported processor sockets

Socket AM5

Memory

Supported memory types

DDR5-SDRAM

Number of memory slots

2

Memory slots type

DIMM

Memory channels

Dual-channel

ECC сompatibility

Non-ECC

Supported memory clock speeds

4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200,8400 MHz

Supported memory clock speed (max)

8400 MHz

Maximum internal memory

128 GB

Unbuffered memory

Kyllä

Maximum internal memory per slot

64 GB

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

Number of HDDs supported

2

Number of storage drives supported

4

RAID support

Kyllä

RAID levels

0, 1, 10

Graphics

Parallel processing technology support

Not supported

On-board graphics card

Ei

Maximum resolution

4096 x 2160 pixels

HDCP

Kyllä

DirectX version

12.0

Internal I/O

USB 2.0 connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Number of SATA III connectors

2

Number of SATA II connectors

0

Number of SATA connectors

0

Total number of SATA connectors

2

Front panel audio connector

Kyllä

Front panel connector

Kyllä

ATX Power connector (24-pin)

Kyllä

CPU fan connector

Kyllä

Number of CPU fan connectors

2

EPS power connector (8-pin)

Kyllä

Number of EPS power connectors (8-pin)

1

12V power connector

Kyllä

Number of water pump connectors

1

RGB LED pin header

Kyllä

Number of RGB LED pin headers

4

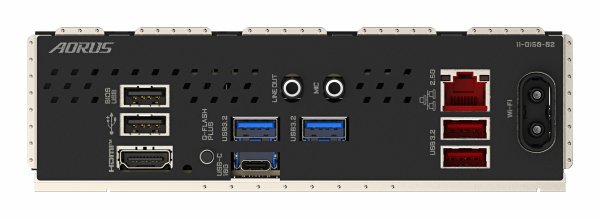

Rear panel I/O ports

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Ethernet LAN (RJ-45) ports

1

VGA (D-Sub) ports quantity

0

HDMI ports quantity

1

HDMI version

2.1

DVI-D ports quantity

0

DisplayPorts quantity

1

DisplayPort version

2.1

Headphone outputs

1

Microphone in

Kyllä

WiFi-AP antenna jack

2

Network

Ethernet LAN

Kyllä

Ethernet interface type

Gigabit Ethernet

Wi-Fi

Kyllä

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)

WLAN controller model

Realtek RTL8922AE

Bluetooth

Kyllä

Bluetooth version

5.4

Features

Component for

PC

Motherboard form factor

mini ITX

Motherboard chipset family

AMD

Motherboard chipset

AMD B850

Audio output channels

7.1 channels

Product colour

Black, Brown

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Windows operating systems supported

Windows 11 x64

Expansion slots

PCI Express x16 (Gen 5.x) slots

1

Number of M.2 (M) slots

2

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

BIOS

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

ACPI version

5.0

Clear CMOS jumper

Kyllä

Clear CMOS button

Kyllä

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Logistics data

Country of origin

China

Products per shipping (inner) case

1 pc(s)

Battery

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Weight & dimensions

Width

170 mm

Depth

170 mm

Height

35 mm

Packaging content

Batteries included

Kyllä

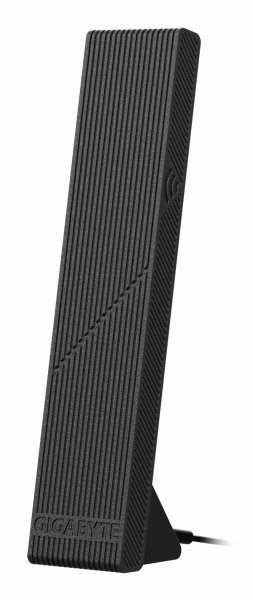

Antenna included

Kyllä

Screws included

Kyllä

Bundled software

Norton Internet Security (OEM version) LAN bandwidth management software

Other features

mSATA ports quantity

0

Weight

1300 g

Technical details

Warranty period

3 year(s)
