Ominaisuudet
- 80 PLUS certification
- 80 PLUS Platinum
- Hyötysuhde
- 94 %
Arvostelut
Arvostele tuoteAlin hinta 30 päivän aikana
325,62 €
+2,07 %
Hinta on nyt 6,75 € kalliimpi.
HintahistoriaTuotetiedot
Tuote
- Valmistaja
- Cooler Master
- Tuotenimi

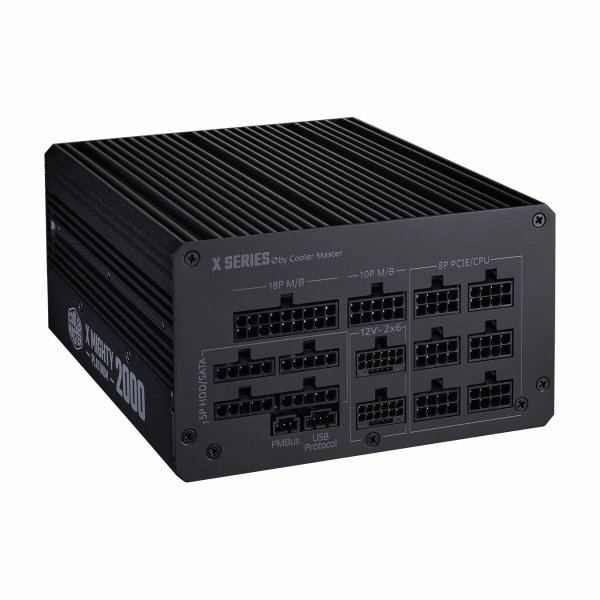

- X Mighty Platinum 2000W 230V
- Valmistajan linkki
- https://www.coolermaster.com/en-global/products/x-mighty-plati..
Tuotekoodit
- Valmistajan tuotekoodit
- MPS-K001-AFBP-BEU
- GTIN- / EAN-koodit
- 4719512143285
Tuotekuvat
Power
- Total power
- 2000 W
- AC input voltage
- 200 - 240 V
- AC input frequency
- 50/60 Hz
- Input current
- 12 A
- Power Factor Correction (PFC) type
- Active
- Combined power (+3.3V)
- 120 W
- Combined power (+12V)
- 1999.2 W
- Combined power (+5V)
- 120 W
- Combined power (-12V)
- 3.6 W
- Combined power (+5Vsb)
- 15 W
- Max output current (+3.3V)
- 20 A
- Max output current (+12V)
- 166.6 A
- Max output current (+5V)
- 20 A
- Max output current (-12V)
- 0.3 A
- Max output current (+5Vsb)
- 3 A
- Hold time
- 16 ms
- Efficiency
- 94 %
- Power Good signal delay range
- 100 - 150 ms
- Power protection features
- Over current, Over power, Over voltage, Overheating, Short circuit, Surge and inrush, Under voltage
Ports & interfaces
- Motherboard power connector
- 24-pin ATX
- Motherboard power cable length
- 650 mm
- Number of SATA power connectors
- 12
- SATA power cable length
- 500,650,800,950 mm
- Peripheral (Molex) power connectors (4-pin)
- 4
- Peripheral (Molex) power cable length
- 500,620,740,860 mm
- EPS power connector (8-pin)
- Kyllä
- EPS power connector (4+4 pin)
- Kyllä
- PCI Express power connectors (6+2 pin)
- 4
- PCI Express power connectors (12-pin)
- 1
- ATX Power connector (24-pin)
- Kyllä
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- Number of EPS connectors
- 2
- Cabling type
- Fully-Modular
Performance
- Purpose
- PC
- Power supply unit (PSU) form factor
- ATX
- 80 PLUS certification
- 80 PLUS Platinum
- ATX version
- 3.1
- Bearing technology
- FDB
- Mean time between failures (MTBF)
- 100000 h
Design
- Product colour
- Black
- Cooling type
- Active
- Fan diameter
- 120 mm
- Number of fans
- 1 fan(s)
- Fan speed
- 0 - 2500 RPM
- Fan location
- Top
- On/off switch
- Kyllä
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
Certificates
- Certification
- TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS, UKCA
Weight & dimensions
- Width
- 150 mm
- Depth
- 180 mm
- Height
- 86 mm
- Weight
- 4100 g
Packaging data
- Package width
- 382 mm
- Package depth
- 224 mm
- Package height
- 126 mm
- Package weight
- 4800 g
- Package type
- Box
Technical details
- Sustainability certificates
- ErP
