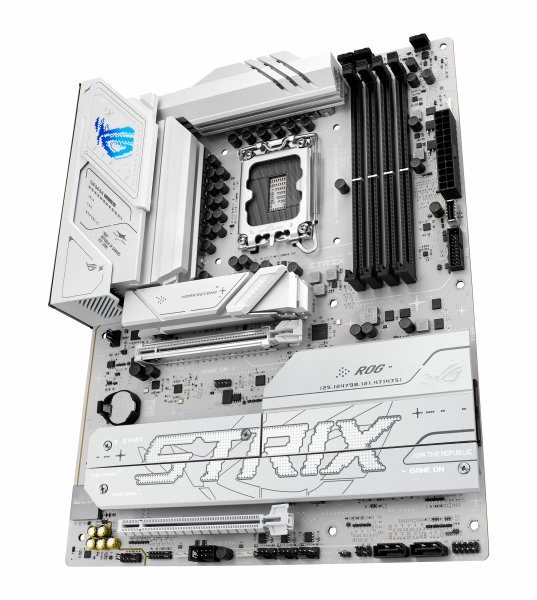

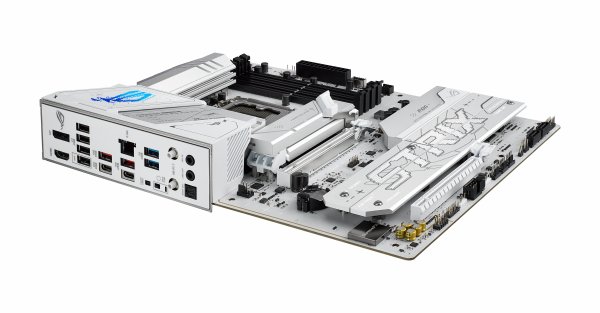

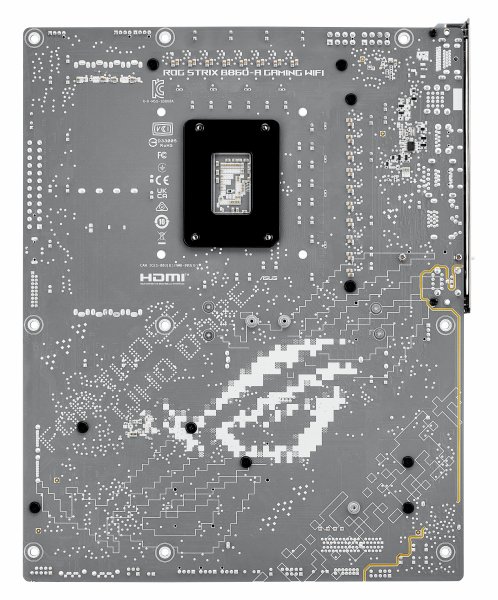

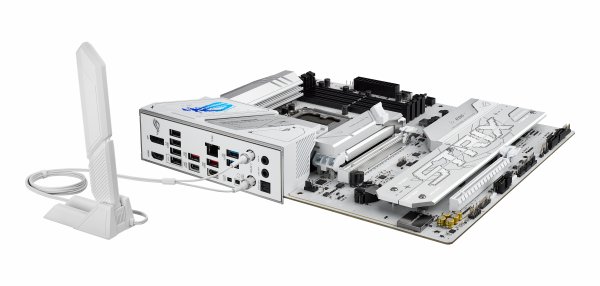

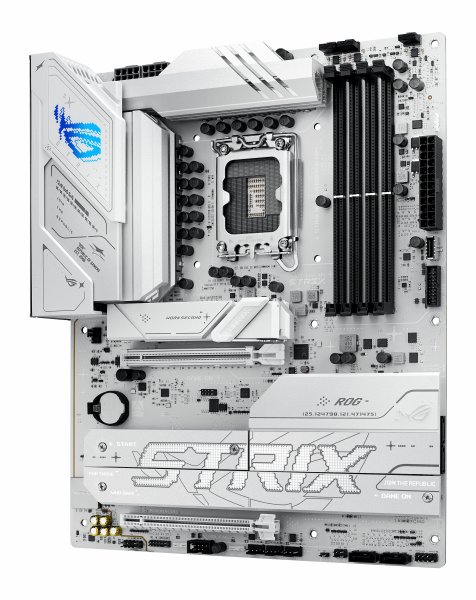

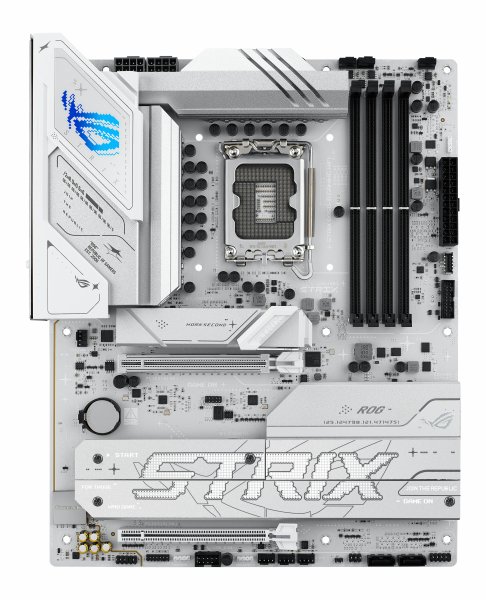

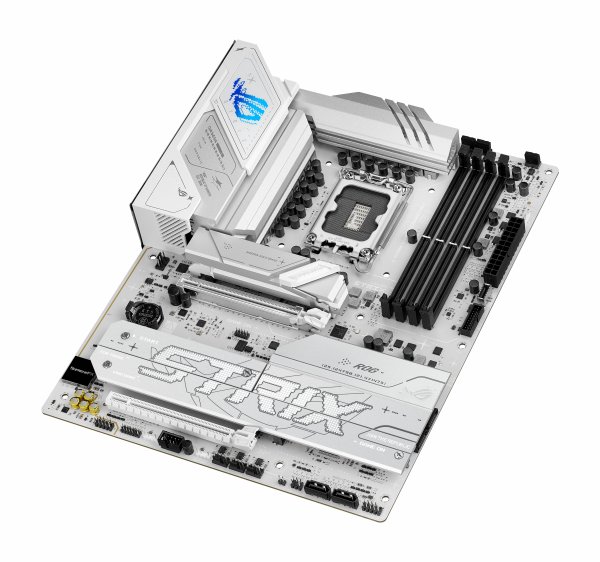

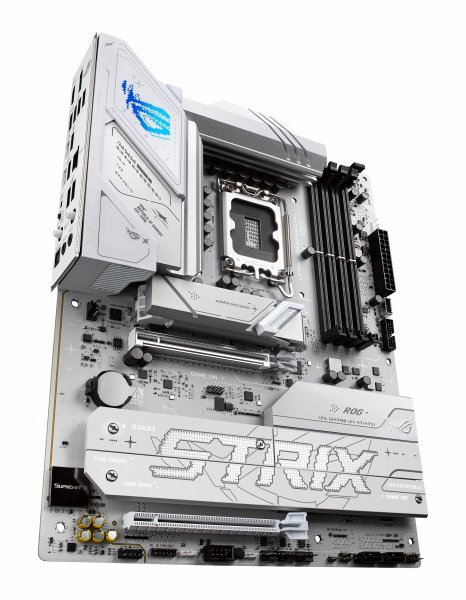

ASUS ROG STRIX B860-A GAMING WIFI

Tuote

Valmistaja

ASUS

Tuotenimi

ROG STRIX B860-A GAMING WIFI

Valmistajan linkki

https://rog.asus.com/motherboards/rog-strix/rog-strix-b860-a-g..

Tuotekoodit

Valmistajan tuotekoodit

• 90MB1JI0-M0EAY0

GTIN- / EAN-koodit

• 4711387788424

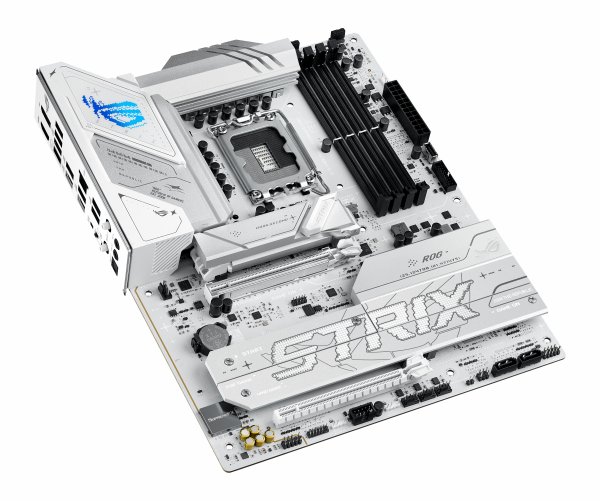

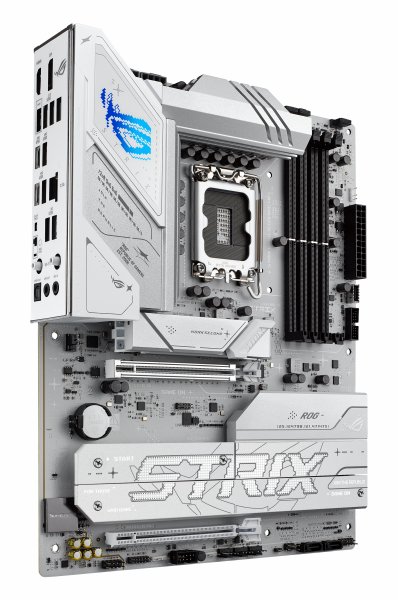

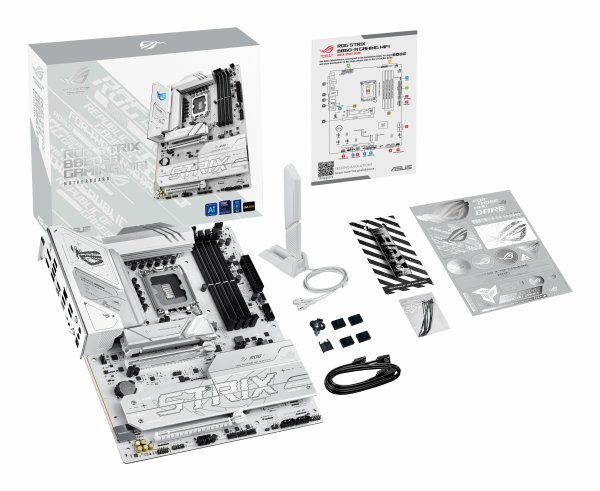

Tuotekuvat

Processor

Processor manufacturer

Intel

Processor socket

LGA 1851 (Socket V1)

Compatible processor series

Intel Core Ultra (Series 2)

Memory

Supported memory types

DDR5-SDRAM

Number of memory slots

4

Memory slots type

DIMM

ECC сompatibility

Non-ECC

Supported memory clock speed (max)

8600 MHz

Maximum internal memory

256 GB

Unbuffered memory

Kyllä

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

Number of HDDs supported

4

Number of storage drives supported

8

RAID support

Kyllä

RAID levels

0, 1, 5, 10

Graphics

Parallel processing technology support

Not supported

Internal I/O

USB 2.0 connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Number of SATA III connectors

4

Front panel audio connector

Kyllä

ATX Power connector (24-pin)

Kyllä

CPU fan connector

Kyllä

Number of CPU fan connectors

1

Number of chassis fan connectors

4

EPS power connector (8-pin)

Kyllä

Thunderbolt headers

1

12V power connector

Kyllä

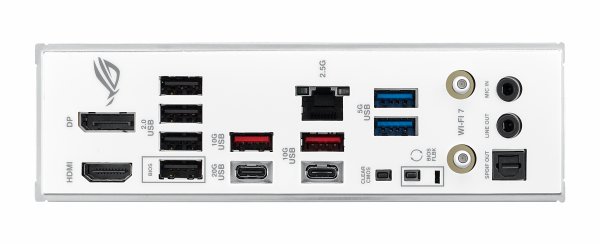

Rear panel I/O ports

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB4 Gen 2x2 ports quantity

1

Ethernet LAN (RJ-45) ports

1

VGA (D-Sub) ports quantity

0

HDMI ports quantity

1

DVI-D ports quantity

0

DisplayPorts quantity

1

Microphone in

Kyllä

S/PDIF out port

Kyllä

Network

Ethernet LAN

Kyllä

Ethernet interface type

2.5 Gigabit Ethernet

Wi-Fi

Kyllä

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Bluetooth

Kyllä

Bluetooth version

5.4

Features

Component for

PC

Motherboard form factor

ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel B860

Audio chip

Realtek ALC1220P

Audio output channels

7.1 channels

Product colour

White

Windows operating systems supported

Windows 11

Expansion slots

PCI Express x16 (Gen 4.x) slots

1

BIOS

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS button

Kyllä

Packaging data

Package width

355 mm

Package depth

273 mm

Package height

70 mm

Package weight

1683 g

Weight & dimensions

Width

305 mm

Depth

244 mm

Height

50 mm

Other features

Weight

1401 g
