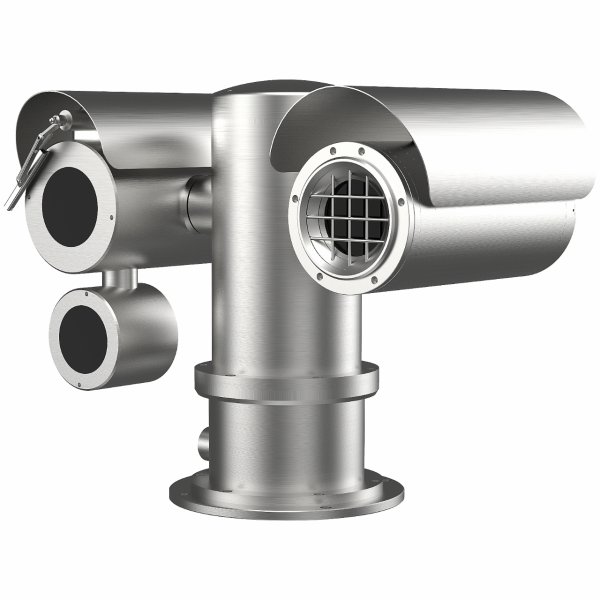

Hikvision Digital Technology DS-2TD6567T-25H4LX/W

Tuote

Valmistaja

Hikvision Digital Technology

Tuotenimi

DS-2TD6567T-25H4LX/W

Valmistajan linkki

https://www.hikvision.com/en/products/Thermal-Products/Securit..

Tuotekoodit

Valmistajan tuotekoodit

• DS-2TD6567T-25H4LX/W

GTIN- / EAN-koodit

• 6931847172381

Performance

Type

IP security camera

Placement supported

Outdoor

Connectivity technology

Wired

PTZ control

Kyllä

Preset points

Kyllä

Wide Dynamic Range (WDR)

Kyllä

Day/night mode

Kyllä

Infrared (IR) cut-off filter

Kyllä

Alarm input/output

Kyllä

Number of languages

32

Languages support

Multi

Thermal sensitivity (NETD)

35 mK

IFOV (spatial resolution)

0.68 mRad

Dynamic range

120 dB

Design

Form factor

Bullet

Mounting type

Pole clamp

Product colour

Stainless steel

Housing material

Stainless steel

Protection features

Dust resistant, Waterproof

International Protection (IP) code

IP68

IK code

IK10

Camera

Minimum illumination

0.001 lx

Field of view (FOV) angle (thermal module)

24.9 x 20 °

Lens viewing angle, horizontal

56.6 - 1.8 °

Lens viewing angle, vertical

33.7 - 1 °

Tilt angle range

-90 - 90 °

Tilt speed

40 °/sec

Pan range

0 - 360 °

Pan speed

40 °/sec

Camera pixel size

17 µm

Response waveband

8 - 14 µm

Preset programs quantity

300

Camera shutter speed

1 - 1/100000 s

Image sensor

Sensor type

CMOS

Optical sensor size

1/1.8 "

Sensor type (thermal module)

Vanadium Oxide Uncooled Focal Plane Arrays

Effective sensor resolution (thermal module)

640 x 512 pixels

Progressive scan

Kyllä

Lens system

Number of lenses

1

Zoom capability

Kyllä

Optical zoom

40 x

Digital zoom

16 x

Detect distance

2255 m

Observe distance

564 m

Recognize distance

282 m

Focal length range

6 - 240 mm

Auto focus

Kyllä

Focus

Motorized/Manual

Maximum aperture number

4.6

Minimum aperture number

1.3

Closest focusing distance

1.5 m

Fixed focal length (thermal module)

25 mm

Aperture number (thermal module)

1

Night vision

Night vision

Kyllä

Night vision distance

200 m

LED type

IR

Video

Maximum resolution

2688 x 1520 pixels

Total megapixels

4 MP

Video compression formats

H.264, H.264+, H.265, H.265+, M-JPEG

Supported graphics resolutions

352 x 288, 384 x 288, 640 x 512, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2688 x 1520

Frame rate

30 fps

Video streaming

Kyllä

Audio

Voice codecs

AAC, G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM

Network

Ethernet LAN

Kyllä

Wi-Fi

Ei

Bluetooth

Ei

Ethernet interface type

Fast Ethernet

Supported network protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, SSH

Number of users

32 user(s)

User access level

Administrator, Operator, User

Live view

Kyllä

Number of simultaneous live view channels

20 channels

Client interoperability

iVMS-4200, Hik-Connect

Storage

Built-in HDD

Ei

Card reader integrated

Kyllä

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Maximum memory card size

256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

RS-485 ports

1

BNC output ports

1

Microphone in

Kyllä

Headphone outputs

1

Security

Alarm input channels

7

Alarm output channels

2

Temperature measurement range

-20 - 550 °C

Fire detection

Kyllä

Password protection

Kyllä

Password protection type

User

IP address filtering

Kyllä

Security algorithms

EAP-MD5, EAP-TLS

HTTPS encryption

Kyllä

Automatic Network Replenishment (ANR)

Kyllä

Management features

Web-based management

Kyllä

Power

Power source type

AC

AC input voltage

100 - 240 V

Power consumption

600 mA

Power consumption (max)

75 W

Operational conditions

Operating temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

0 - 90 %

Weight & dimensions

Width

441 mm

Depth

330 mm

Height

541.3 mm

Weight

40000 g

Packaging content

Number of cameras

1

Technical details

Output impedance

600 Ω
