Hikvision Digital Technology DS-2CD2143G2-LIS2U(2.8MM)(BLACK)

Tuote

Valmistaja

Hikvision Digital Technology

Tuotenimi

DS-2CD2143G2-LIS2U(2.8MM)(BLACK)

Valmistajan linkki

https://www.hikvision.com/en/products/IP-Products/Network-Came..

Tuotekoodit

Valmistajan tuotekoodit

• DS-2CD2143G2-LIS2U(2.8MM)(BLACK
• DS-2CD2143G2-LIS2U(2.8MM)(BLACK)

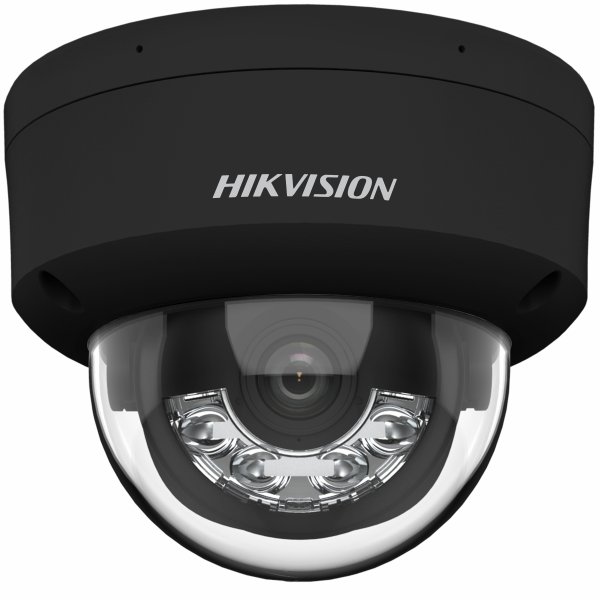

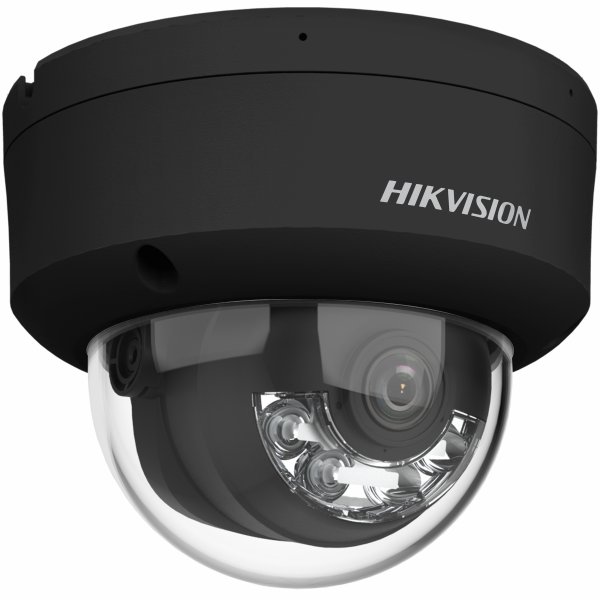

Tuotekuvat

Performance

Type

IP security camera

Placement supported

Indoor & outdoor

Connectivity technology

Wired

Wide Dynamic Range (WDR)

Kyllä

Day/night mode

Kyllä

Infrared (IR) cut-off filter

Kyllä

Alarm input/output

Kyllä

Number of languages

33

Languages support

Multi

Dynamic range

120 dB

Certification

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 IP67: IEC 60529-2013,IK10: IEC 62262:2002

Design

Form factor

Dome

Mounting type

Ceiling/wall

Product colour

Black

Housing material

Aluminium

Protection features

Dust resistant, Vandal proof, Water resistant

International Protection (IP) code

IP67

IK code

IK10

Camera

Minimum illumination

0 lx

Angle of rotation

355 °

Lens viewing angle, horizontal

104 °

Lens viewing angle, vertical

57 °

Lens viewing angle, diagonal

112 °

Tilt angle range

0 - 75 °

Pan range

0 - 355 °

Camera shutter speed

1/3 - 1/100000 s

Number of Privacy masking areas

8

Image sensor

Sensor type

CMOS

Number of sensors

1

Optical sensor size

1/2.9 "

Progressive scan

Kyllä

Lens system

Number of lenses

1

Detect distance

63 m

Observe distance

25 m

Recognize distance

12 m

Maximum aperture number

1.6

Identify distance

6 m

Fixed focal length

2.8 mm

Night vision

Night vision

Kyllä

Night vision distance

30 m

LED type

IR/White

Infra-red wavelength

850 nm

Video

Maximum resolution

1920 x 1080 pixels

Total megapixels

4 MP

Video compression formats

H.264, H.264+, H.265, H.265+

Supported graphics resolutions

640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520

Frame rate

30 fps

Video streaming

Kyllä

Noise reduction

Kyllä

Noise reduction technology

3D noise reduction

Gain control type

Auto

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Bit rate

32 Kbps - 8 Mbps

Back Light Compensation (BLC)

Kyllä

Highlight Compensation (HLC)

Kyllä

Region of Interest (ROI) encoding

Kyllä

Audio

Audio input channels

1.0 channels

Audio output channels

1.0 channels

Audio codecs

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Signal-to-Noise Ratio (SNR)

52 dB

Built-in microphone

Kyllä

Bit rate range

32 - 320 Kbit/s

Sample rates

8 - 48 kHz

Network

Ethernet LAN

Kyllä

Wi-Fi

Ei

Bluetooth

Ei

Ethernet interface type

Fast Ethernet

Networking standards

IEEE 802.3af

Supported network protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets

Number of users

32 user(s)

User access level

Administrator, Operator, User

Live view

Kyllä

Number of simultaneous live view channels

6 channels

Storage

Card reader integrated

Kyllä

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Maximum memory card size

512 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Security

Alarm input channels

1

Alarm output channels

1

Password protection

Kyllä

Video motion detection

Kyllä

Active tampering alarm

Kyllä

IP address filtering

Kyllä

Security algorithms

TLS

HTTPS encryption

Kyllä

Heartbeat

Kyllä

Mirror

Kyllä

Password reset via email

Kyllä

Pixel counter

Kyllä

Audit log

Kyllä

Digest authentication

Kyllä

Management features

Web browser

Kyllä

Reset button

Kyllä

Behavior analysis

Line crossing detection

Power

Power source type

DC, PoE

Power consumption (max)

7.2 W

Power consumption (Power over Ethernet (PoE))

8.5 W

DC output voltage

12

DC output current

0.6 A

Operational conditions

Operating temperature (T-T)

-30 - 60 °C

Storage temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95 %

Storage relative humidity (H-H)

0 - 95 %

Weight & dimensions

Height

97.6 mm

Diameter

121.5 mm

Weight

600 g

Packaging data

Package width

150 mm

Package depth

150 mm

Package height

141 mm

Package weight

830 g

Packaging content

Number of cameras

1
