iiyama ProLite T2454MSC-B2AG

Tuote

Valmistaja

iiyama

Tuoteperhe / -sarja

ProLite

Tuotenimi

T2454MSC-B2AG

Valmistajan linkki

https://iiyama.com/

Tuotekoodit

Valmistajan tuotekoodit

• T2454MSC-B2AG

GTIN- / EAN-koodit

• 4948570125210

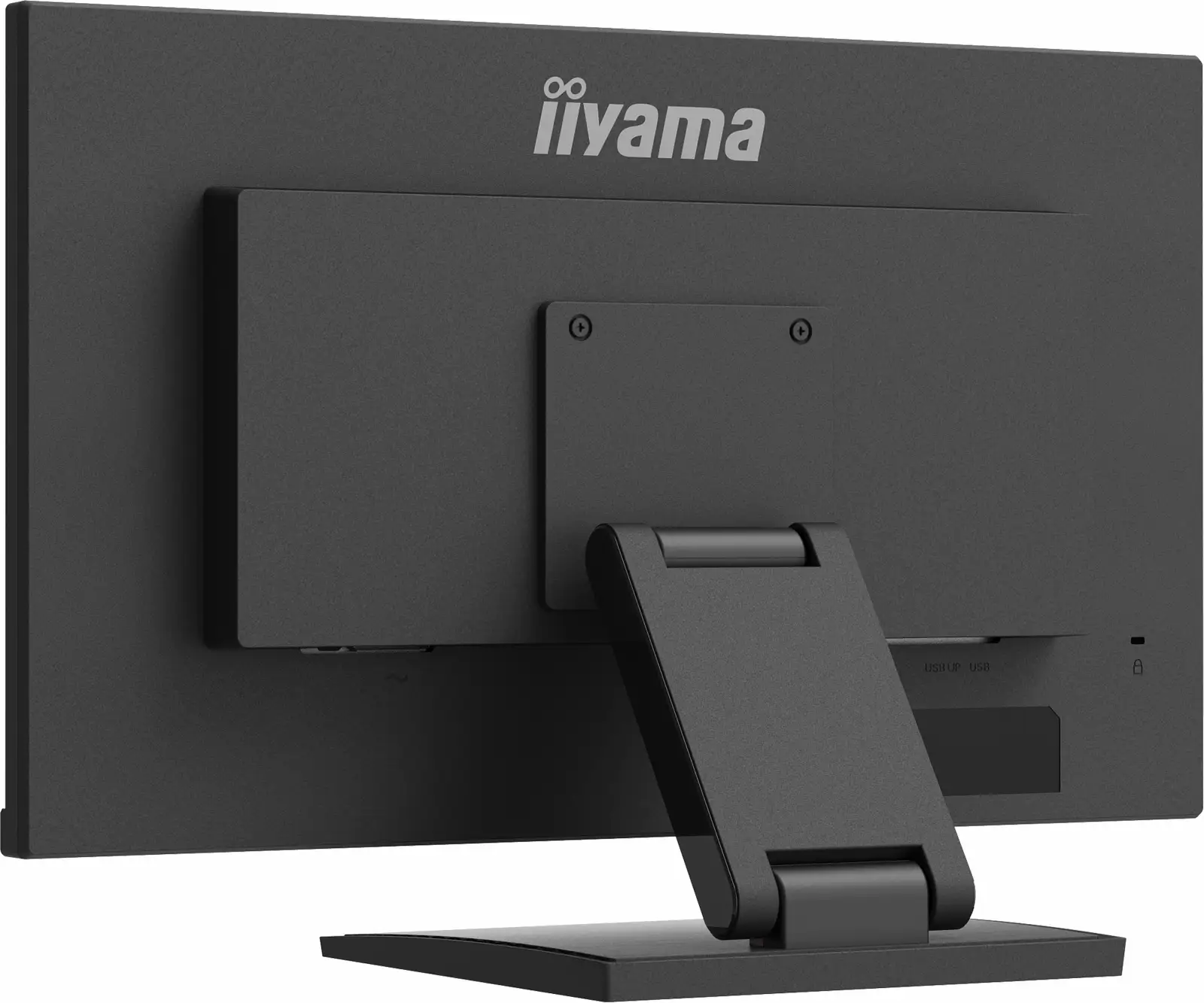

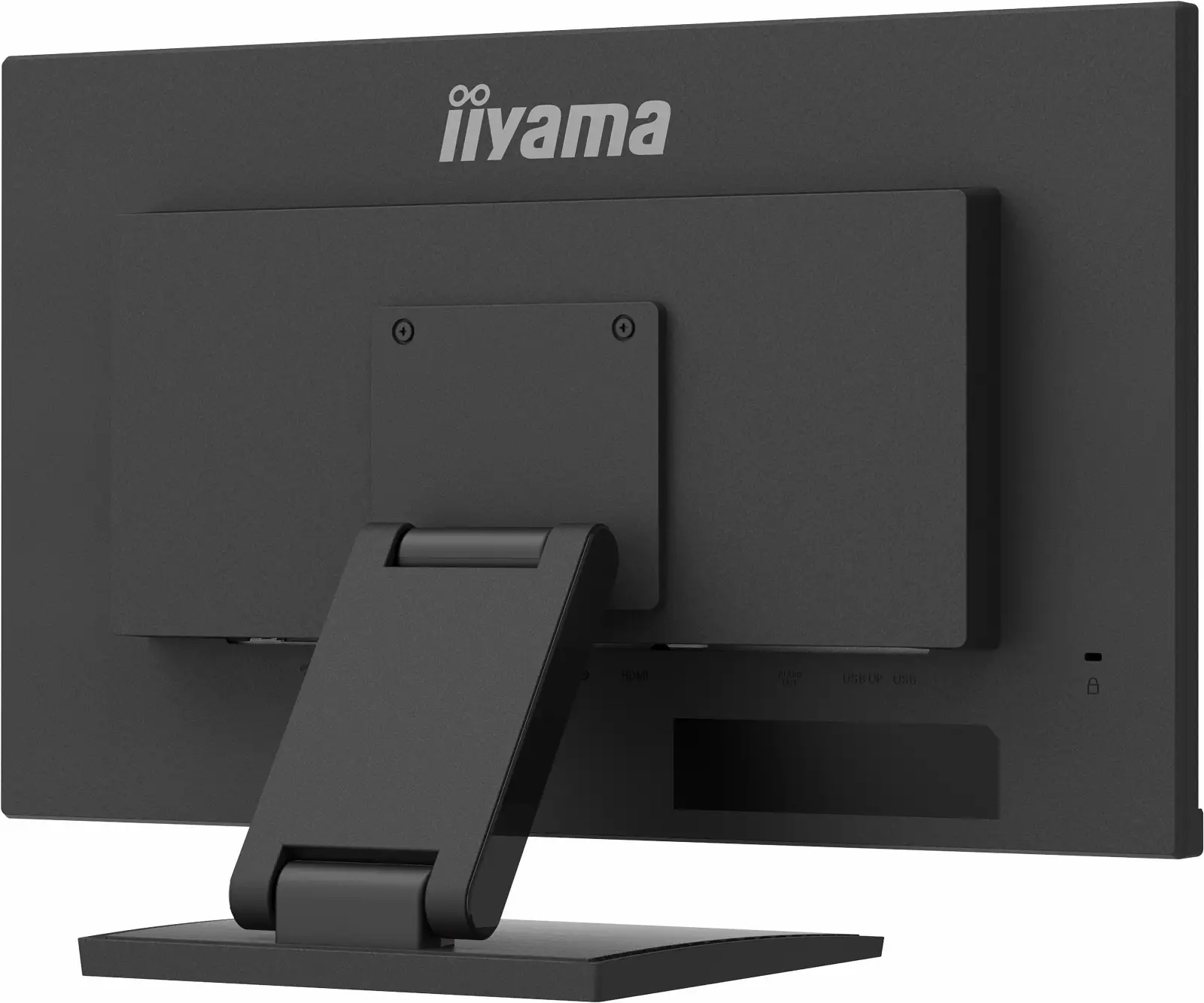

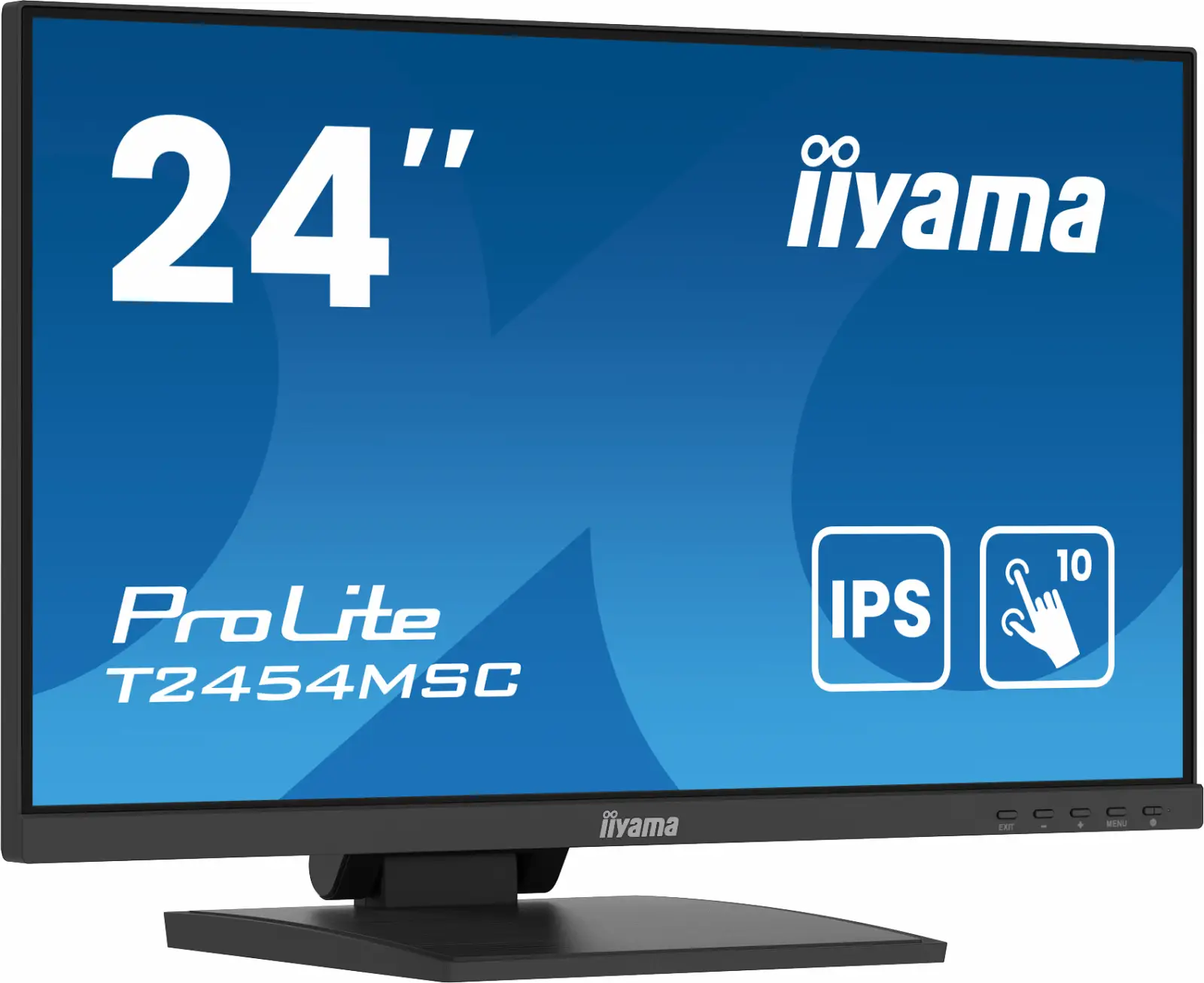

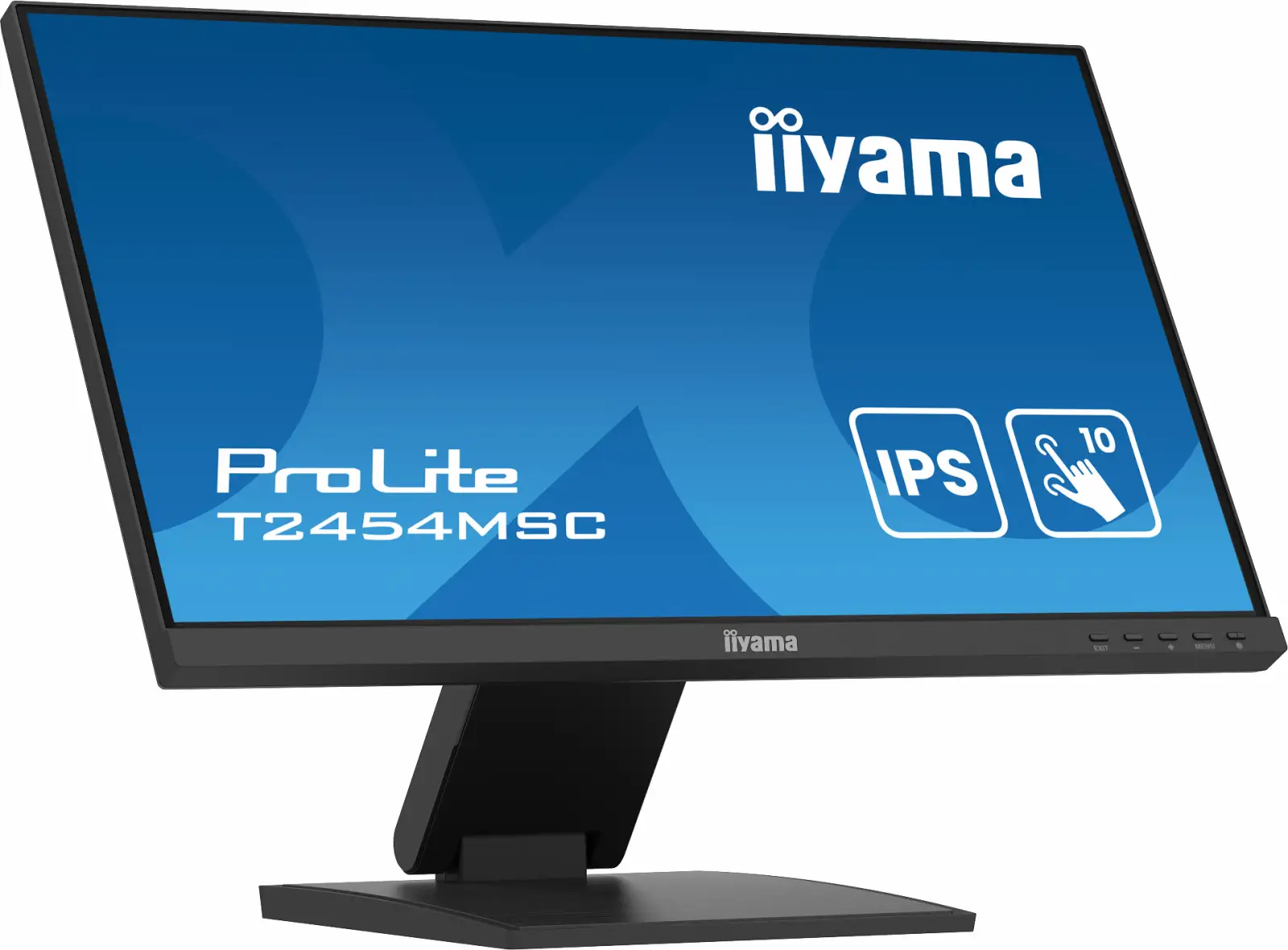

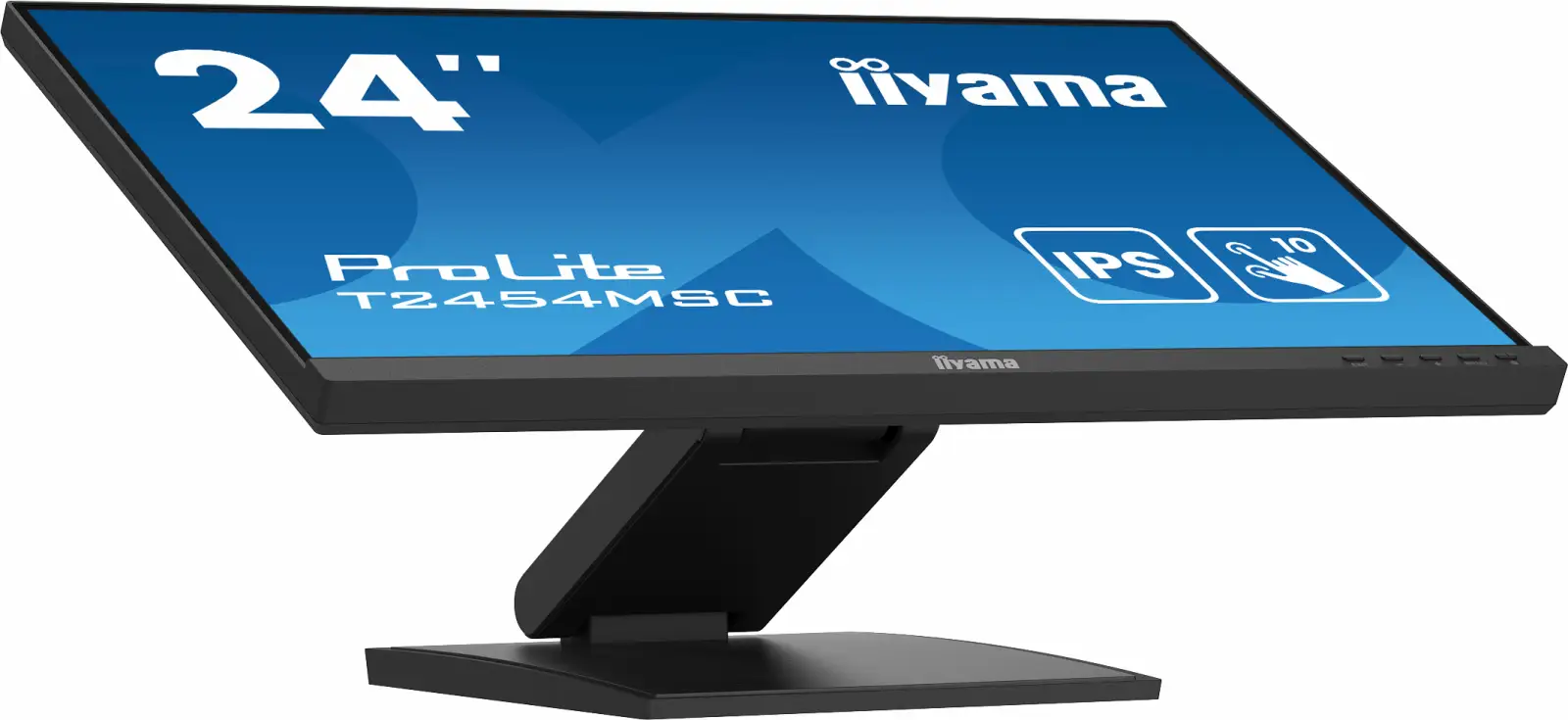

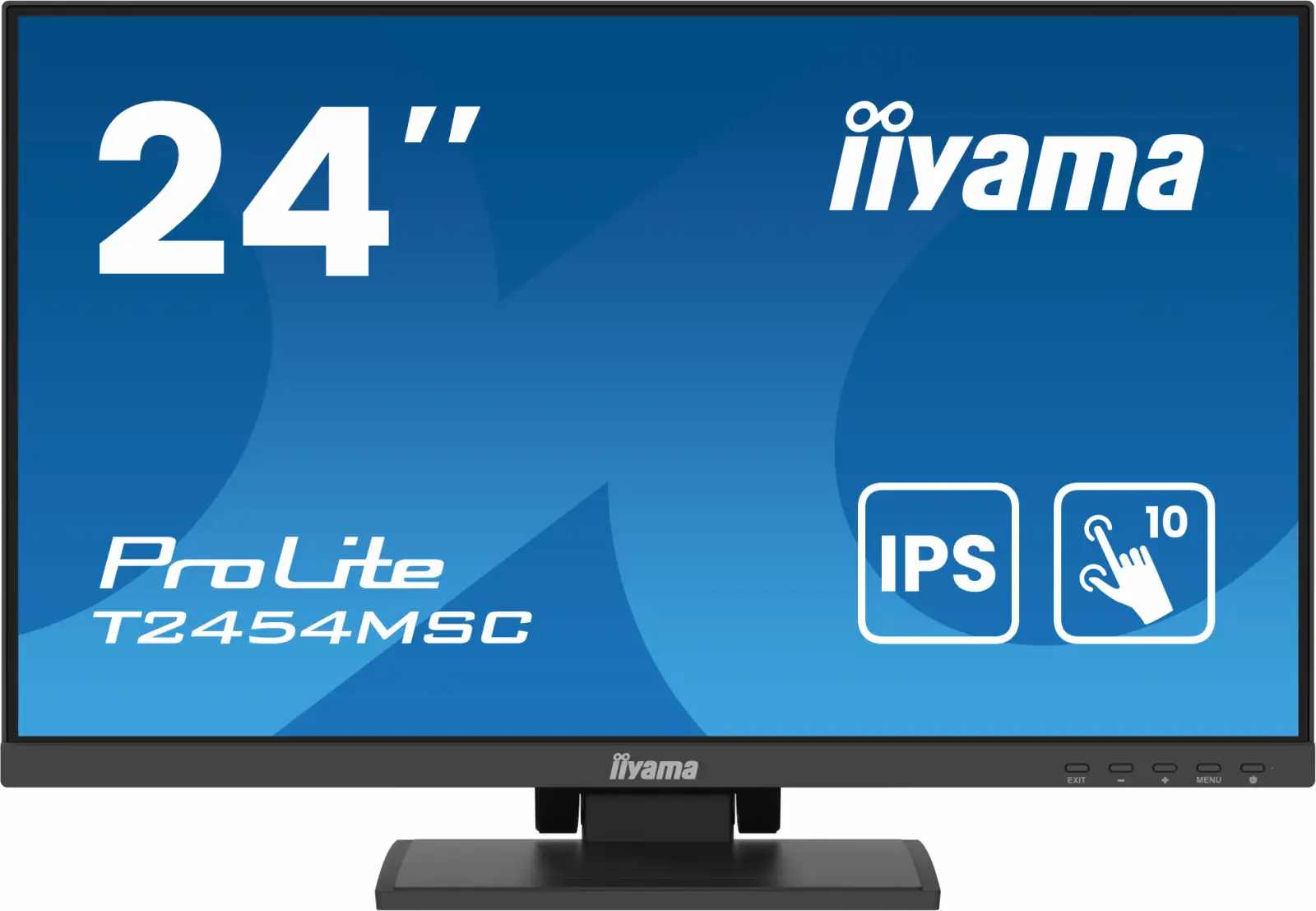

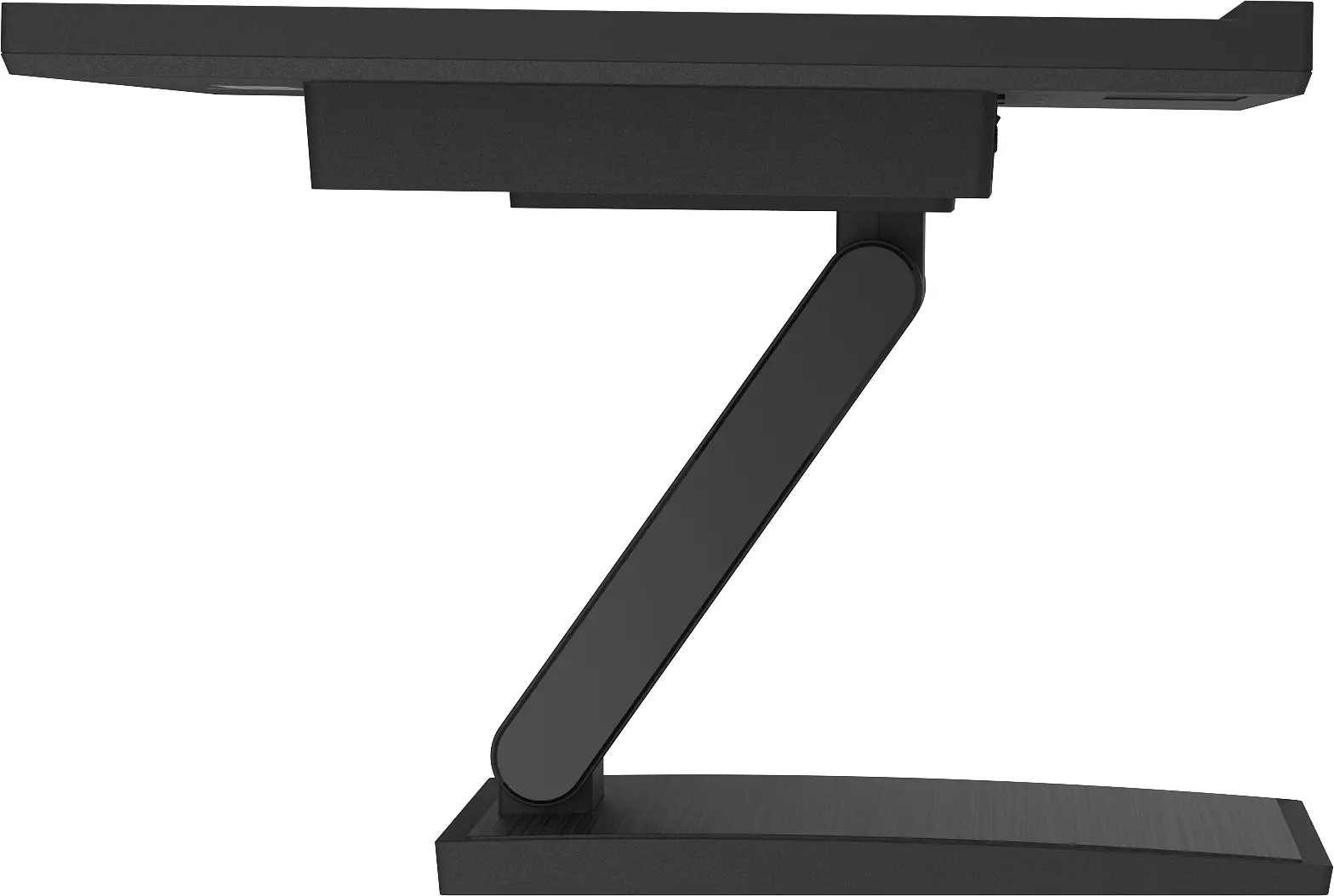

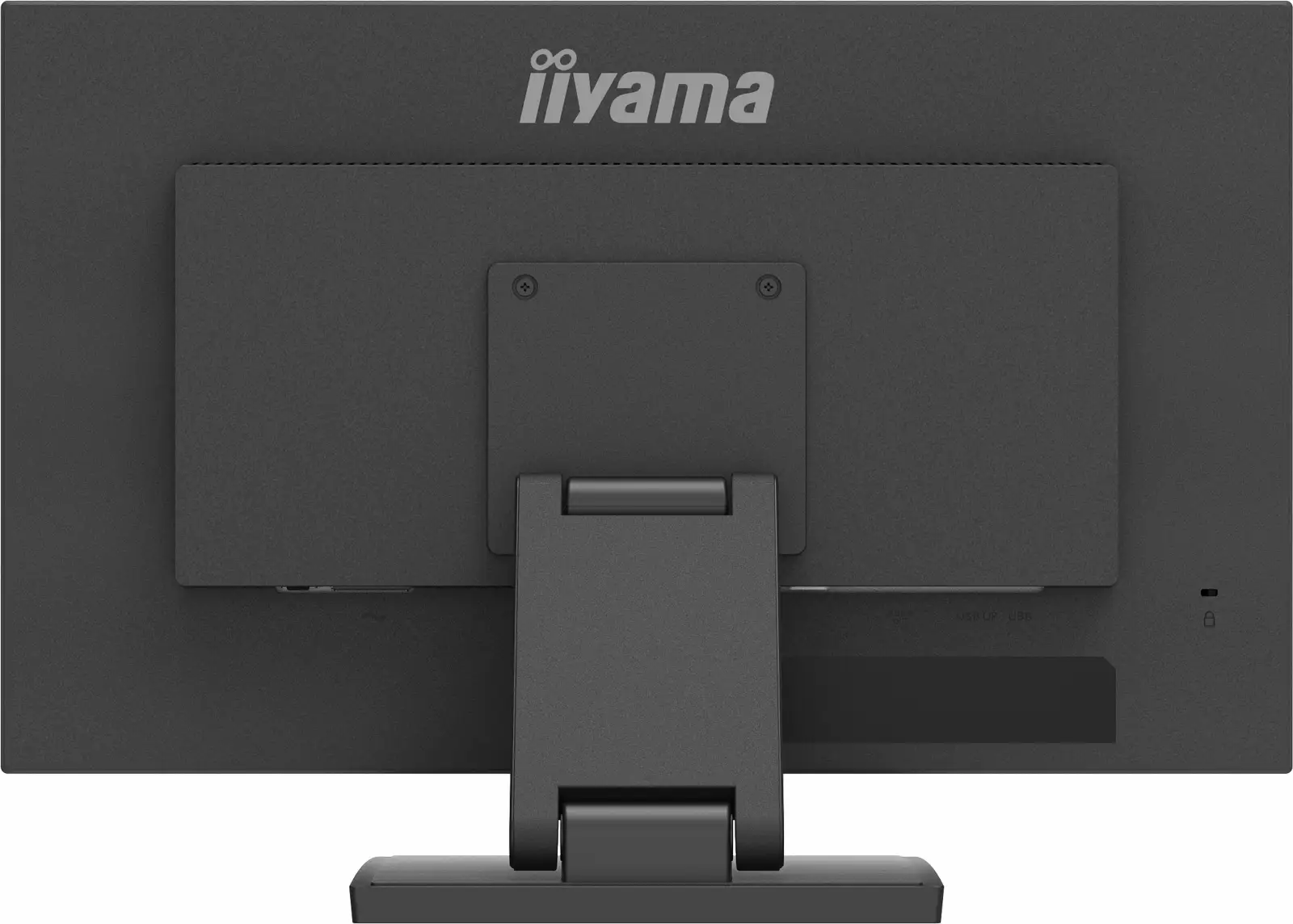

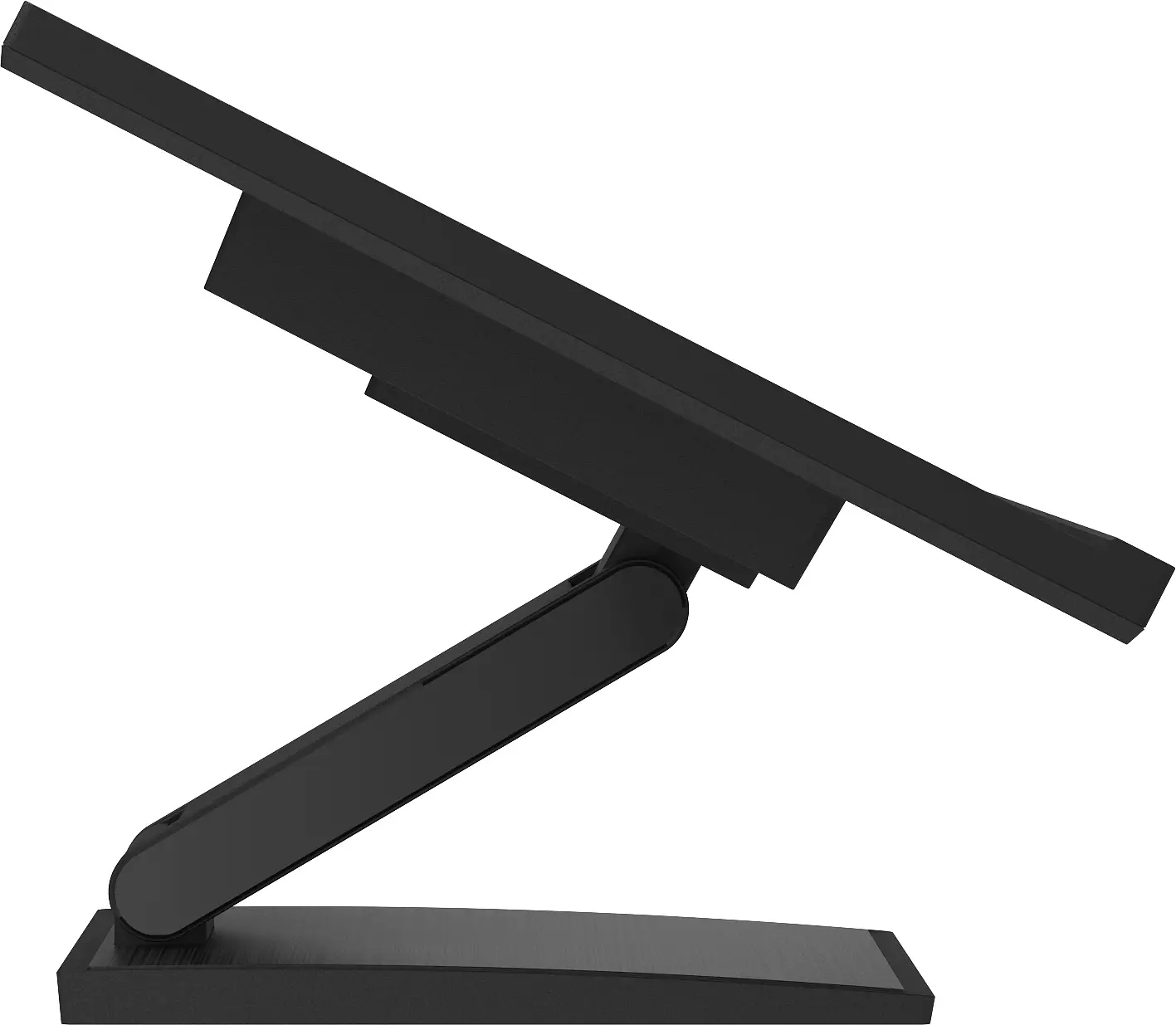

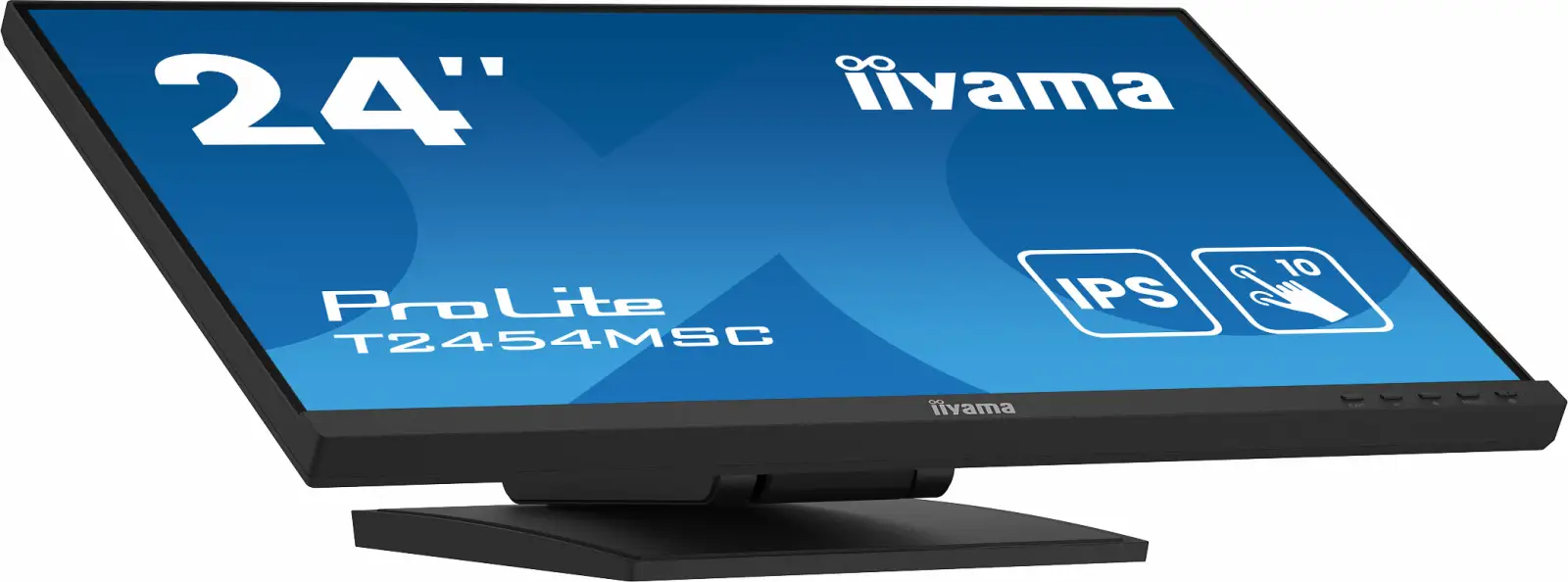

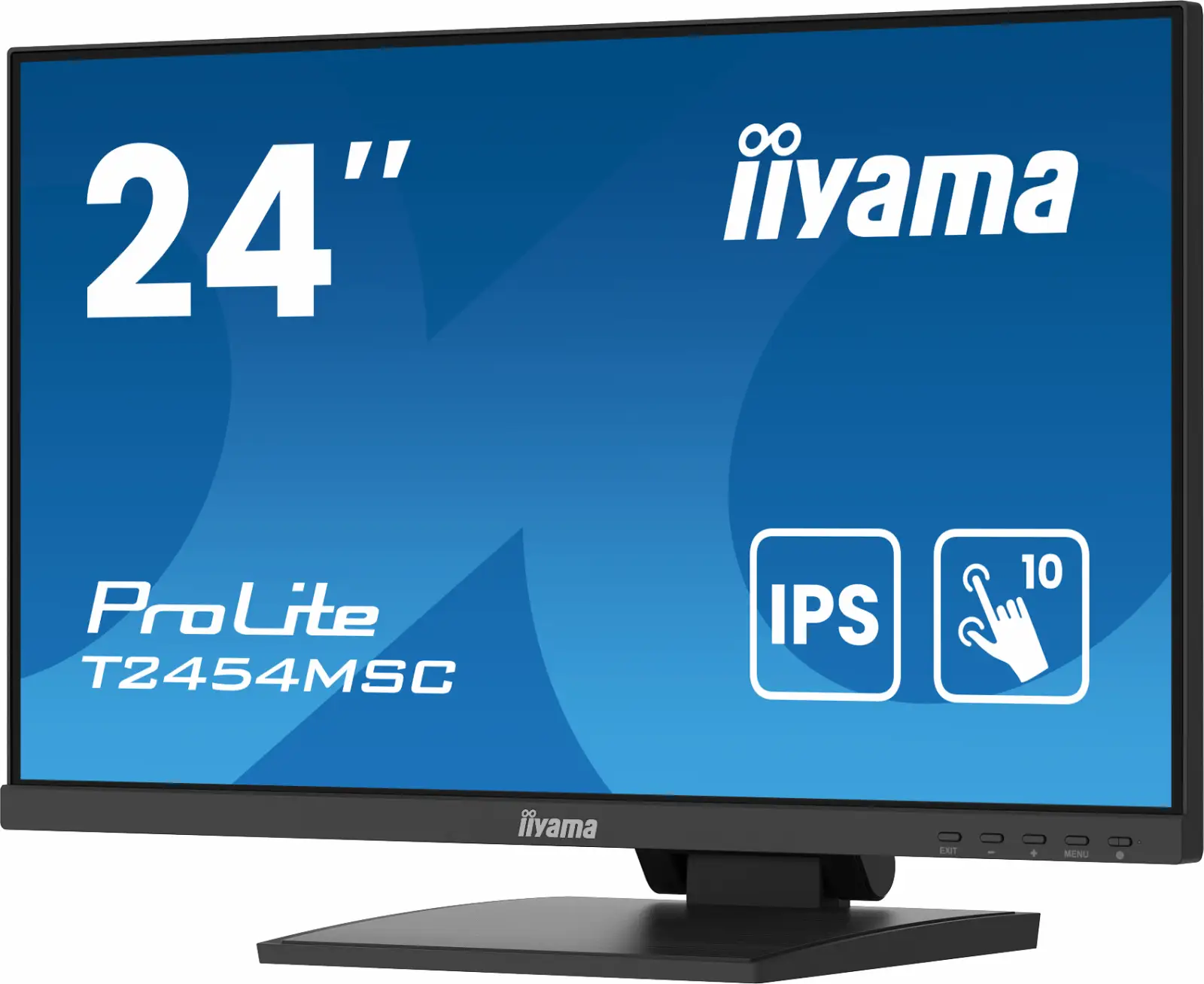

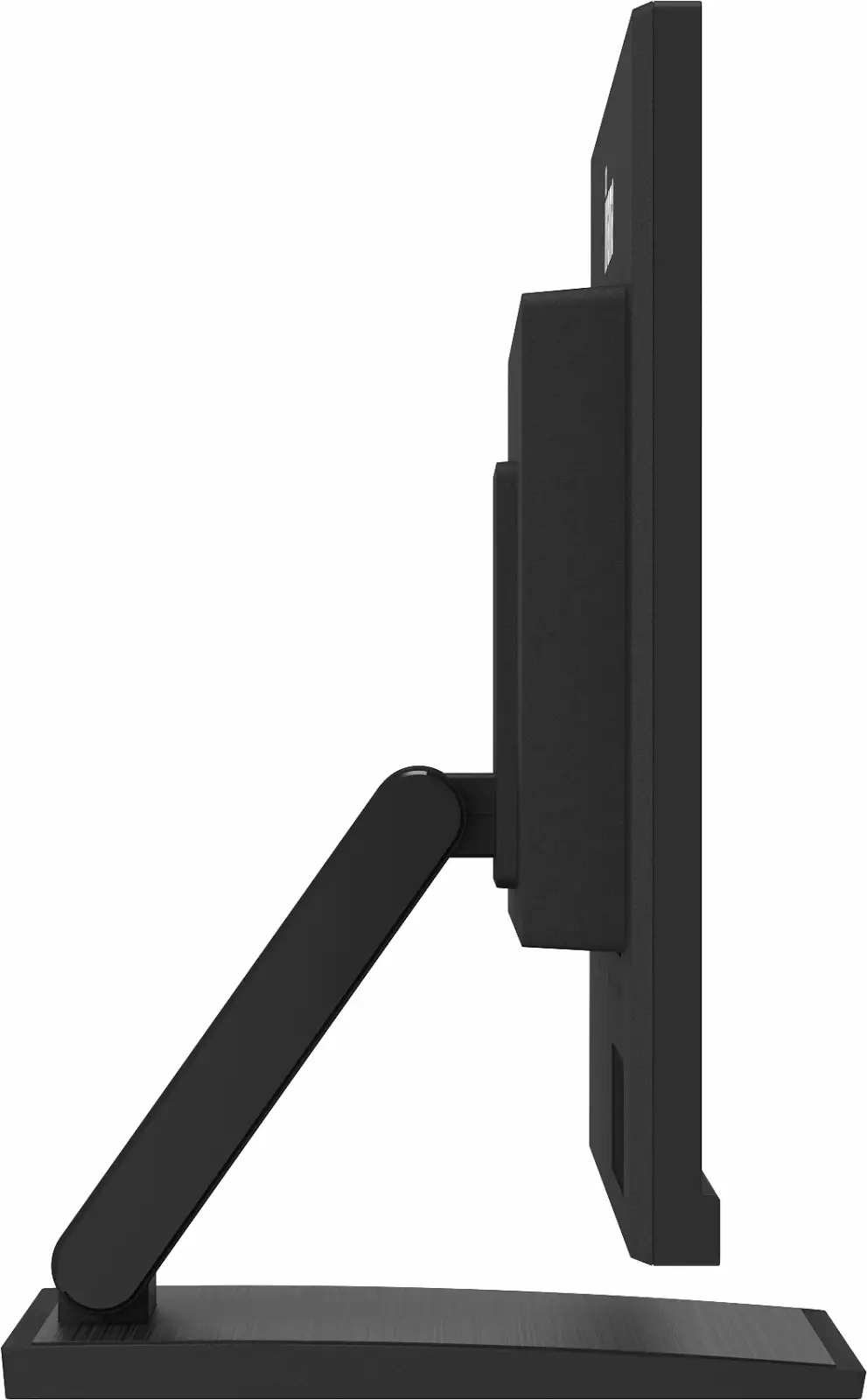

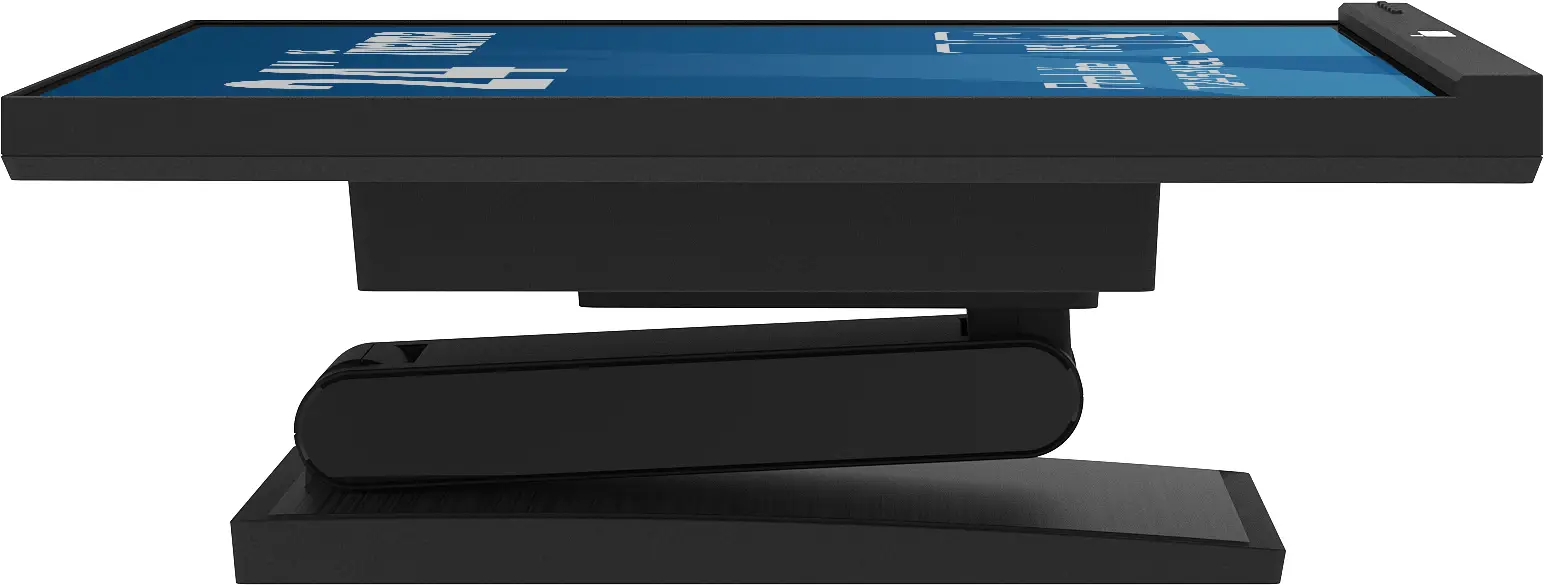

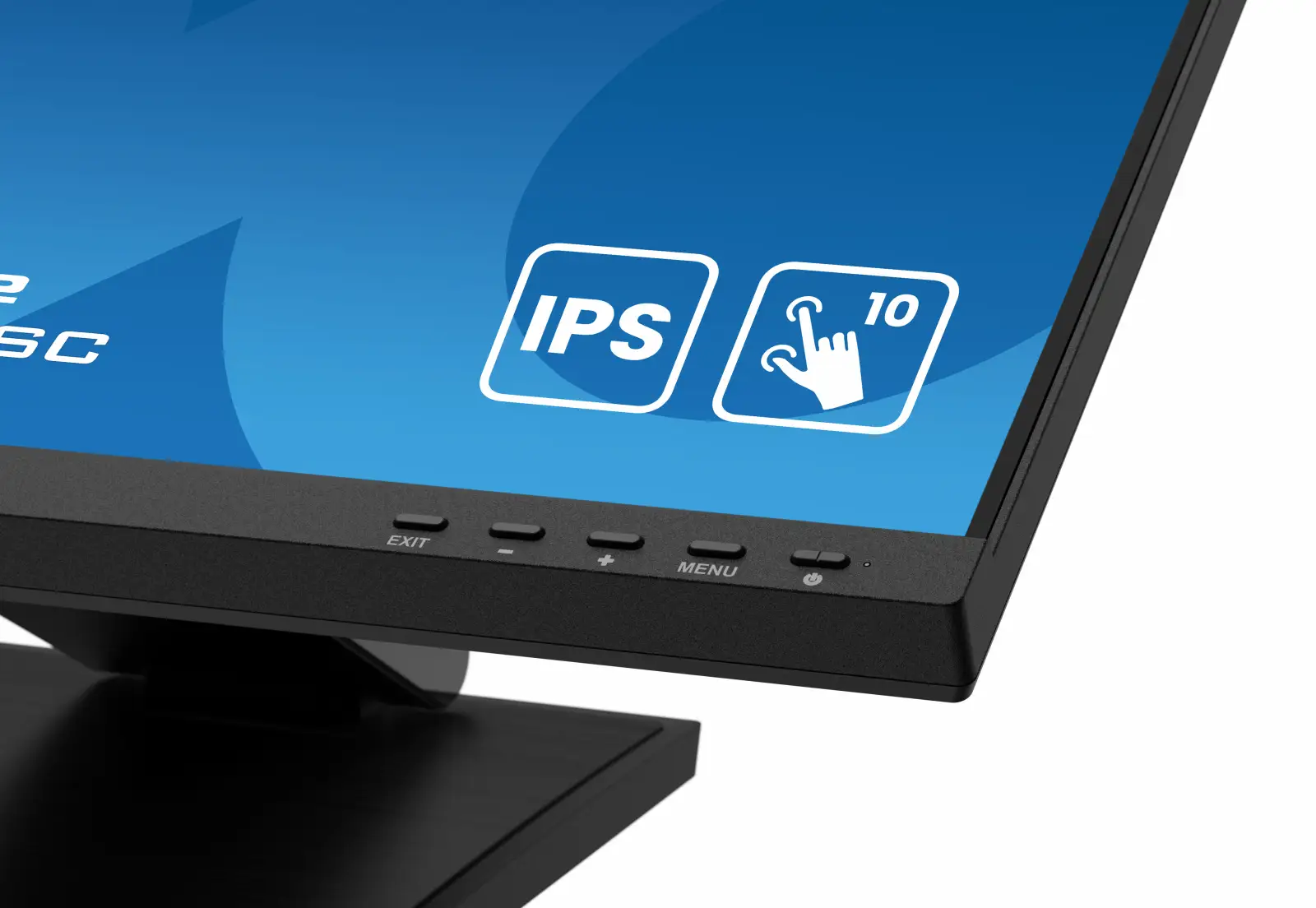

Tuotekuvat

Display

Display diagonal

23.8 "

Display resolution

1920 x 1080 pixels

Native aspect ratio

16:9

Display technology

LED

Touchscreen

Kyllä

HD type

Full HD

Panel type

IPS

LED backlight

Kyllä

Touchscreen type

Multi-user

Touchscreen technology

Projected capacitive system

Touch technology

Multi-touch

Number of simultaneous touchpoints

10

Display brightness (typical)

300 cd/m²

Display brightness

300 cd/m²

Response time

4 ms

Response time measurement type

GTG (Gray to Gray)

Anti-glare screen

Kyllä

Screen shape

Flat

Supported graphics resolutions

640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)

Aspect ratio

16:9

Contrast ratio (typical)

1000:1

Contrast ratio (dynamic)

5000000:1

Maximum refresh rate

75 Hz

Viewing angle, horizontal

178 °

Viewing angle, vertical

178 °

Display number of colours

16.7 million colours

Pixel pitch

0.274 x 0.274 mm

Horizontal scan range

30 - 83 kHz

Vertical scan range

56 - 75 Hz

Viewable size, horizontal

527.04 mm

Viewable size, vertical

296.46 mm

Display diagonal (metric)

60.5 cm

Colour depth

8 bit

Performance

NVIDIA G-SYNC

Ei

AMD FreeSync

Ei

Low Blue Light technology

Kyllä

Windows operating systems supported

Kyllä

Linux operating systems supported

Kyllä

OmniTapps Multitouch compatibility

Ei

Palm rejection

Kyllä

Multimedia

Built-in speaker(s)

Kyllä

Number of speakers

2

RMS rated power

4 W

Built-in camera

Ei

Megapixel (approx.)

2.1 MP

Built-in microphone

Ei

Design

Product colour

Black

Front bezel colour

Black

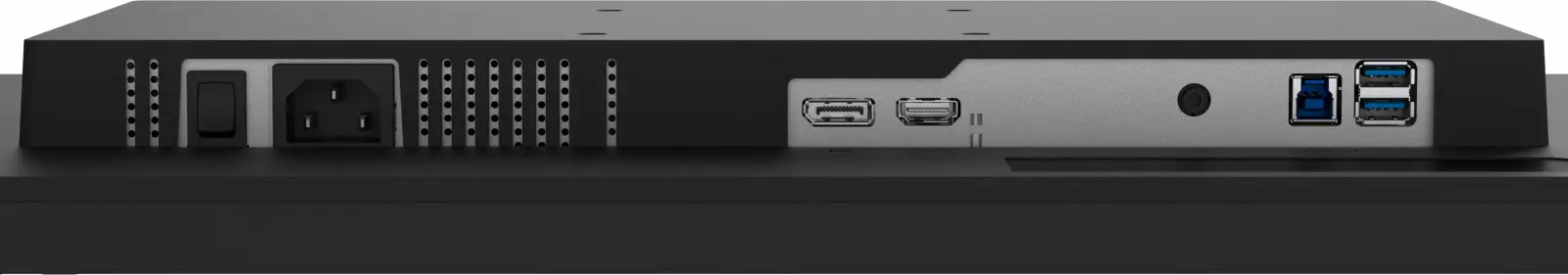

Ports & interfaces

Built-in USB hub

Kyllä

USB hub version

3.2 Gen 1 (3.1 Gen 1)

Number of upstream ports

1

Number of downstream ports

2

USB Type-A downstream ports quantity

1

USB Touch port

Kyllä

HDMI

Kyllä

HDMI ports quantity

1

DisplayPorts quantity

1

Audio input

Kyllä

HDCP

Kyllä

Ergonomics

VESA mounting

Kyllä

Panel mounting interface

100 x 100 mm

Wall mountable

Kyllä

Cable lock slot

Kyllä

Cable lock slot type

Kensington

Height adjustment

Kyllä

Adjustable height (max)

110 mm

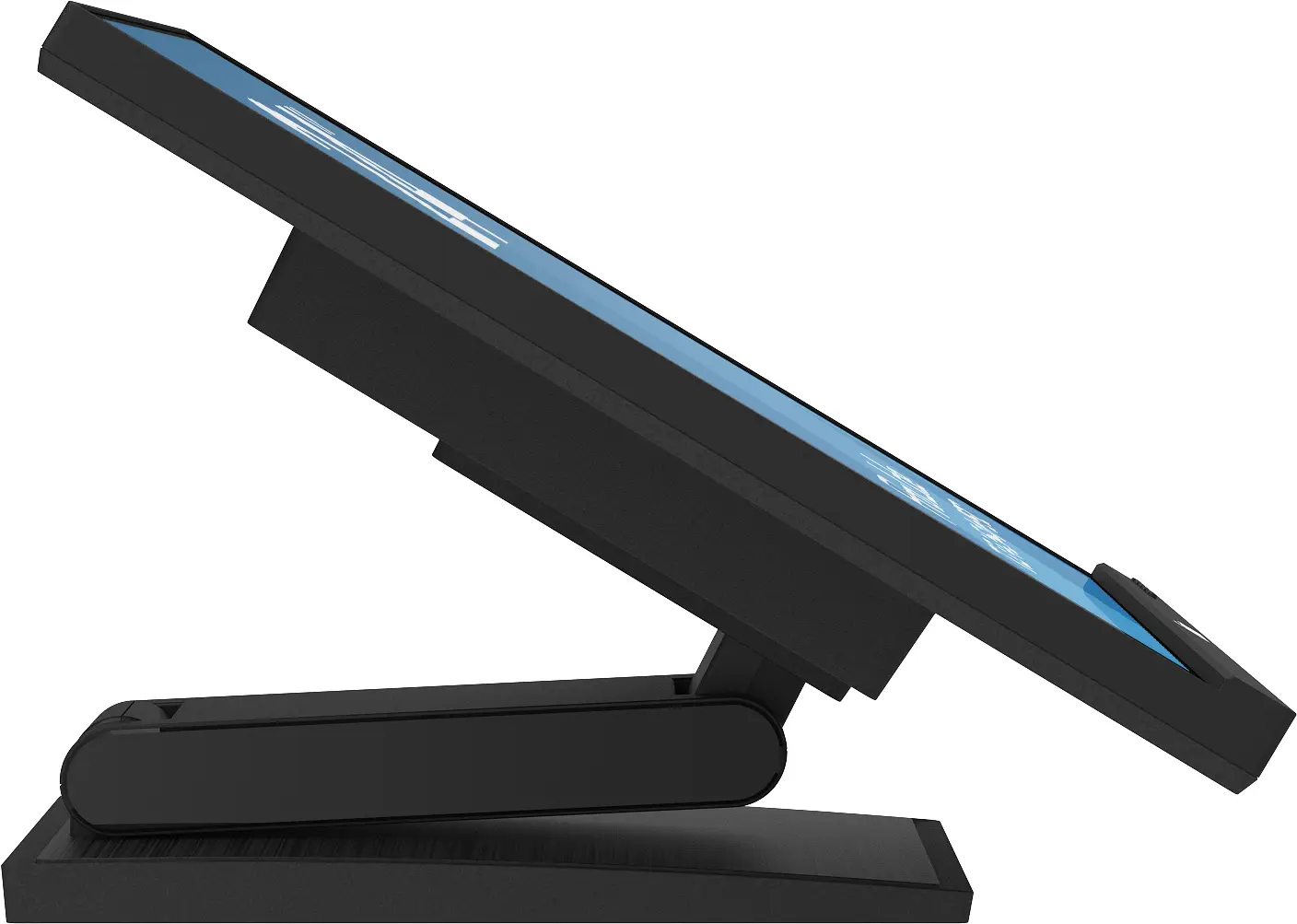

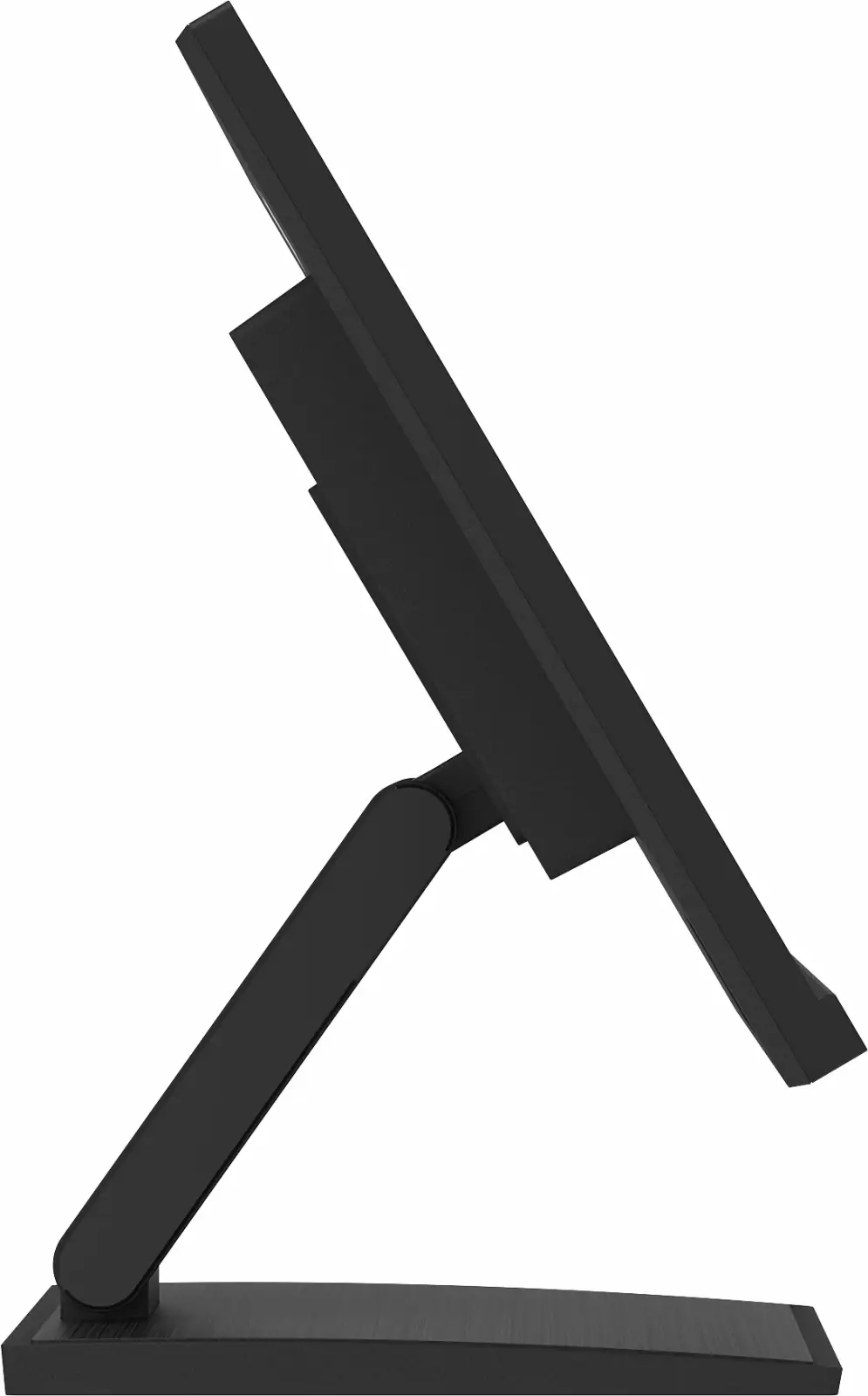

Tilt adjustment

Kyllä

Tilt angle range

-5 - 90 °

On Screen Display (OSD)

Kyllä

On Screen Display (OSD) languages

German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian

Number of OSD languages

10

Plug and Play

Kyllä

Power

Energy efficiency class (SDR)

E

Energy efficiency class (HDR)

Not available

Energy consumption (SDR) per 1000 hours

17 kWh

Power consumption (typical)

17 W

Power consumption (standby)

0.5 W

Power consumption (off)

0.3 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Power supply type

Internal

Energy efficiency scale

A to G

Operational conditions

Operating temperature (T-T)

5 - 35 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

20 - 80 %

Storage relative humidity (H-H)

10 - 90 %

Weight & dimensions

Dimensions (W x D x H) with stand

540.5 x 128 x 388 mm

Width (with stand)

540 mm

Depth (with stand)

238.5 mm

Height (with stand)

371 mm

Weight (with stand)

5600 g

Width (without stand)

540.5 mm

Depth (without stand)

46.5 mm

Height (without stand)

322.5 mm

Packaging data

Package width

615 mm

Package depth

170 mm

Package height

410 mm

Package weight

8300 g

Packaging content

Cables included

AC, USB, HDMI

Quick start guide

Kyllä

Sustainability

Sustainability certificates

ErP

Other features

International Protection (IP) code

IPX1

Compatible operating systems

All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

Display viewable area (HxV)

527.04 x 296.46 mm

Placement supported

Horizontal/Vertical

Active display area (W x H)

527.04 x 296.46 mm

USB ports quantity

2

Weight

5600 g

Height

371 mm

Width

540 mm

Depth

238.5 mm

Compliance certificates

CE, EAC, REACH, RoHS, UKCA, WEEE

Mean time between failures (MTBF)

50000 h

Certification

CE, TÜV-Bauart, VCCI-B, EAC, ErP, WEEE, REACH, CB

User controls

Luminance (contrast, brightness, i-Style Color, adv. contrast, eco), Image settings (aspect ratio), Color settings (gamma, 6- axis, color temp), OSD (OSD horizontal position, OSD vertical position, OSD time, language), Extra (reset, DDC/CI, signal select, OverDrive, opening logo, information)

Touch method

stylus, finger, glove (latex)

Control panel

Power, Menu, +, -, Exit

Supplied AC adapter type

AC

Technical details

Native refresh rate

60 Hz

Logistics data

Harmonized System (HS) code

85285210
