MSI Cubi NUC 1MG-003EU

Tuote

Valmistaja

MSI

Tuoteperhe / -sarja

Cubi

Tuotenimi

Cubi NUC 1MG-003EU

Valmistajan linkki

https://www.msi.com/index.php

Tuotekoodit

Valmistajan tuotekoodit

• CUBI NUC 1MG-003EU

GTIN- / EAN-koodit

• 4711377264372

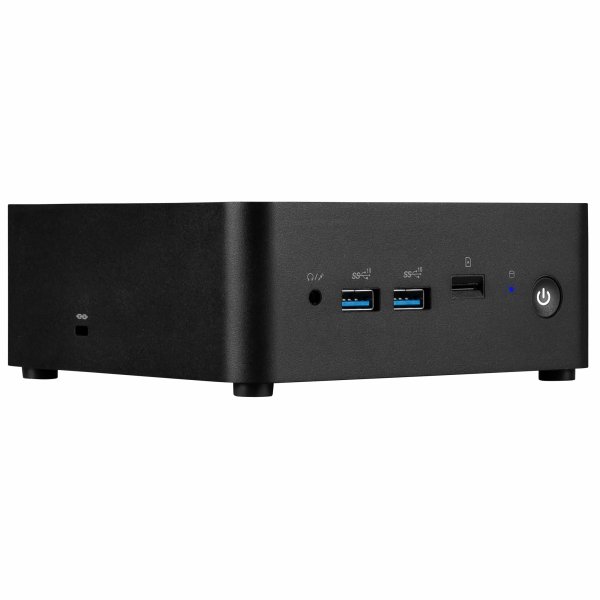

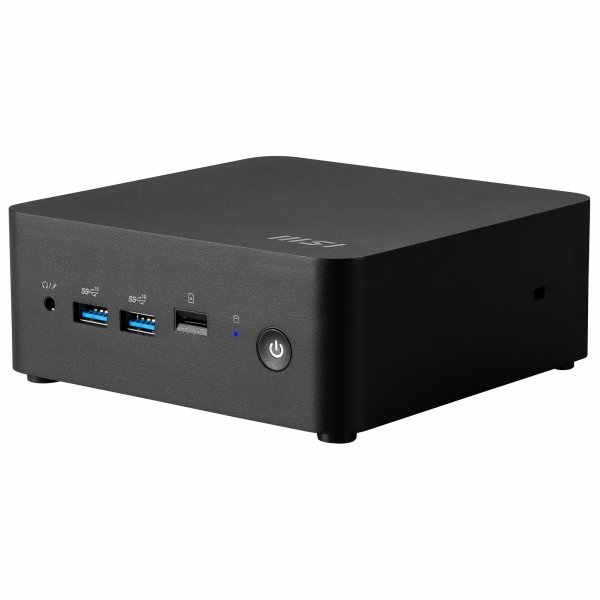

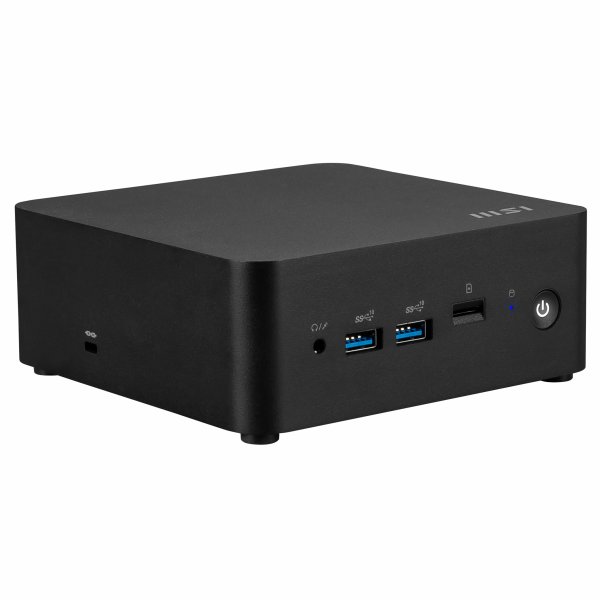

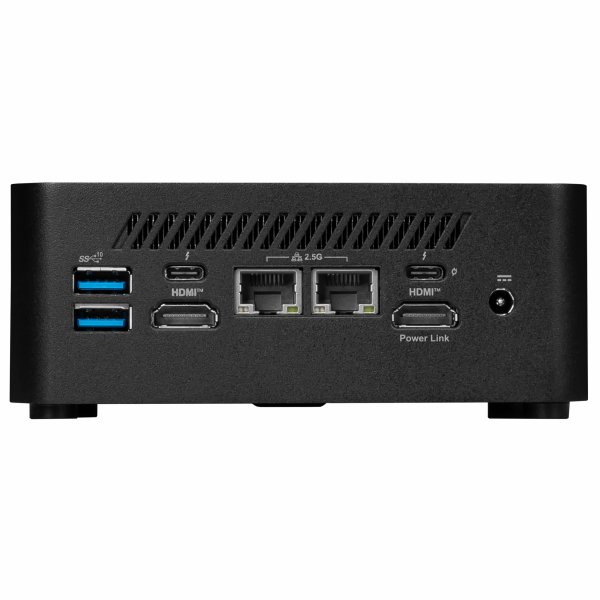

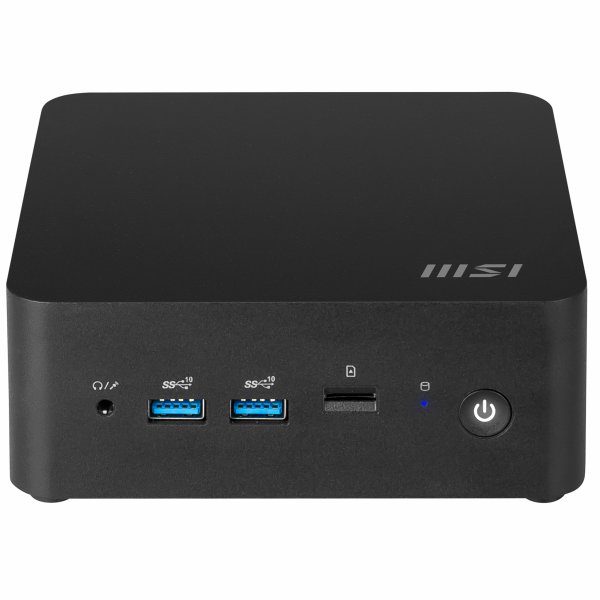

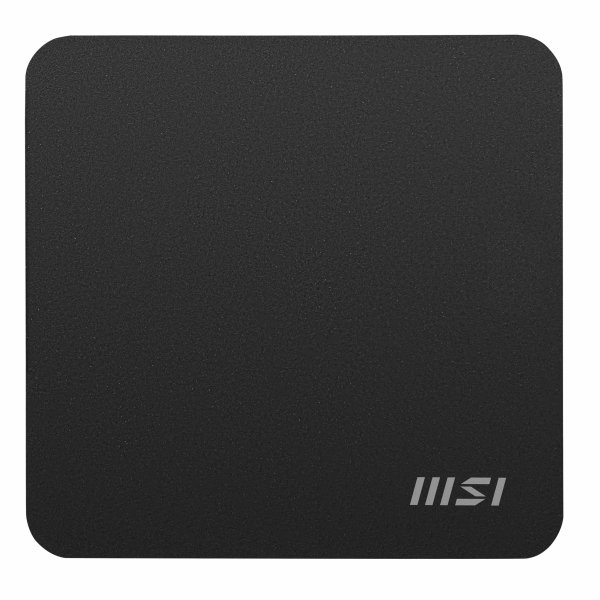

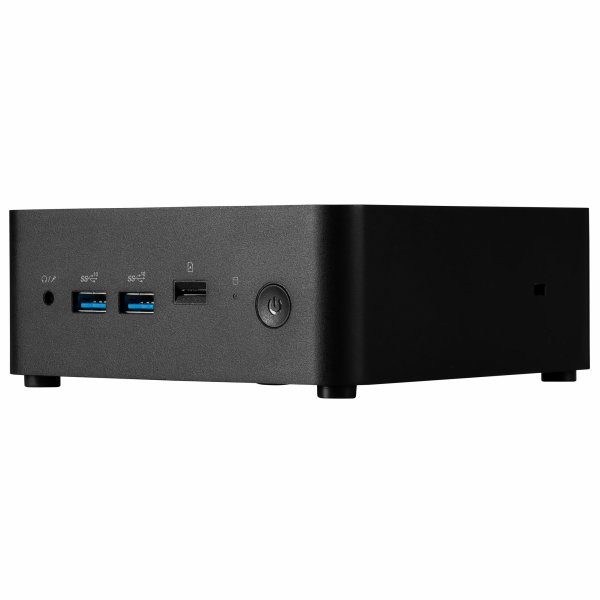

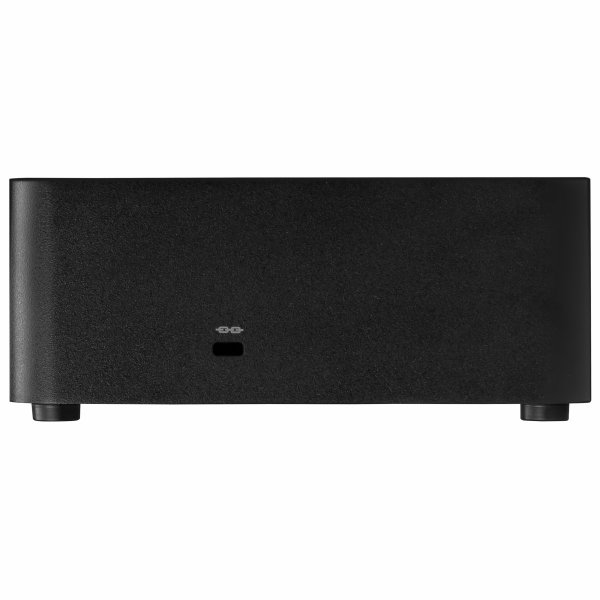

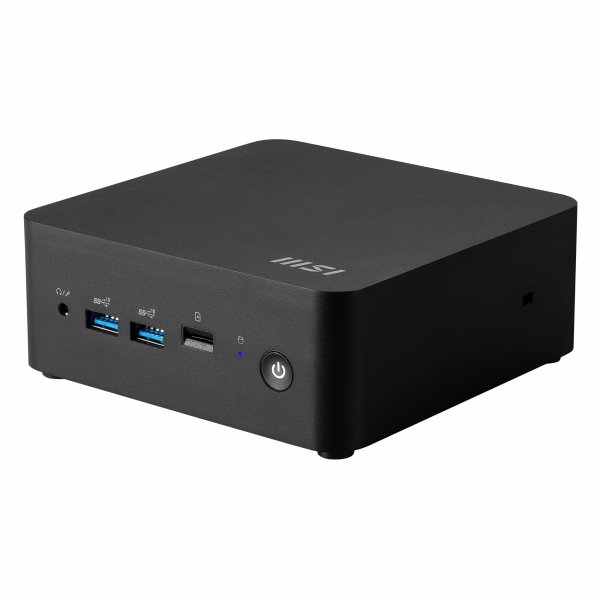

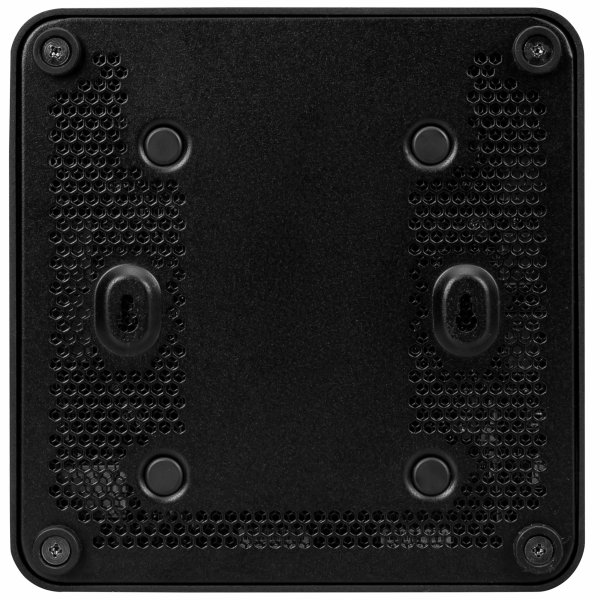

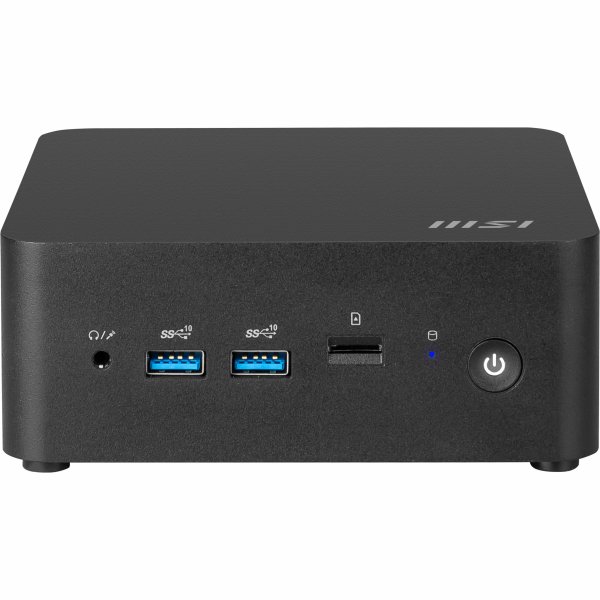

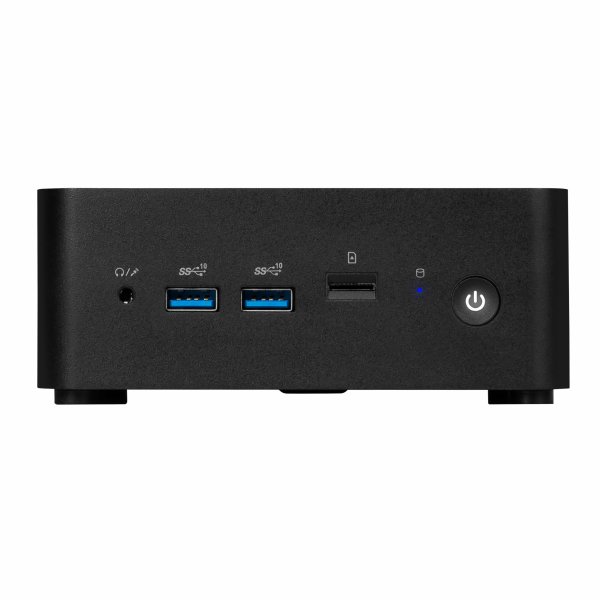

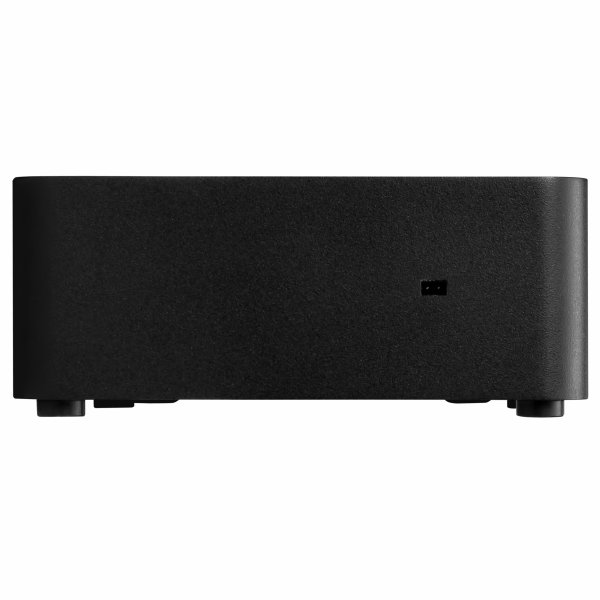

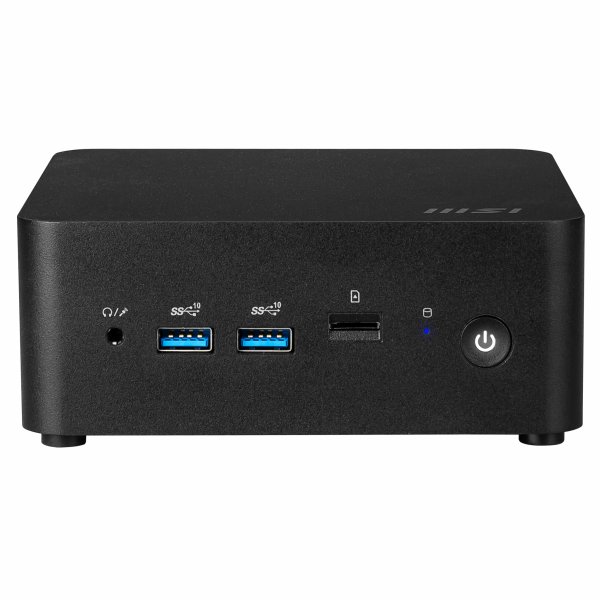

Tuotekuvat

Processor

Processor manufacturer

Intel

Processor family

Intel Core 3

Processor generation

Intel Core (Series 1)

Processor model

100U

Processor cores

6

Processor threads

8

Processor boost frequency

4.7 GHz

Performance cores

2

Efficient cores

4

Performance-core Max Turbo Frequency

4.7 GHz

Efficient-core Max Turbo Frequency

3.3 GHz

Performance-core base frequency

1.2 GHz

Efficient-core base frequency

0.9 GHz

Processor cache

10 MB

Processor cache type

Smart Cache

Number of processors supported

1

Processor base power

15 W

Maximum turbo power

55 W

Memory

Internal memory

8 GB

Maximum internal memory

64 GB

Internal memory type

DDR5-SDRAM

Memory layout (slots x size)

1 x 8 GB

Memory slots

2x SO-DIMM

Memory clock speed

5600 MHz

Supported memory types

DDR5-SDRAM

Storage

Total storage capacity

512 GB

Optical drive type

Ei

Storage media

SSD

Total SSDs capacity

512 GB

Number of SSDs installed

1

SSD capacity

512 GB

SSD interface

PCI Express 4.0

NVMe

Kyllä

SSD form factor

M.2

Card reader integrated

Kyllä

Compatible memory cards

MicroSD (TransFlash)

Graphics

Discrete graphics card

Ei

On-board graphics card

Kyllä

Discrete graphics card model

Not available

On-board GPU manufacturer

Intel

On-board graphics card family

Intel Graphics

On-board graphics card model

Intel Graphics

Graphics card family

Intel

Performance

Product type

Mini PC

Motherboard chipset

Intel SoC

Motherboard form factor

NUC

Trusted Platform Module (TPM)

Kyllä

Trusted Platform Module (TPM) version

2.0

Built-in speaker(s)

Ei

Network

Ethernet LAN

Kyllä

LAN controller

Intel I226-V

Wi-Fi

Kyllä

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Wi-Fi standards

Wi-Fi 6E (802.11ax)

WLAN controller model

Intel Wi-Fi 6E AX211

Bluetooth

Kyllä

Bluetooth version

5.3

Ports & interfaces

USB 2.0 ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

Thunderbolt 3 ports quantity

0

Intel® Thunderbolt 4

Kyllä

Thunderbolt 4 ports quantity

2

DisplayPorts quantity

0

HDMI ports quantity

2

HDMI version

1.4b/2.1

Ethernet LAN (RJ-45) ports

2

Combo headphone/mic port

Kyllä

Headphone outputs

1

VGA (D-Sub) ports quantity

0

Microphone in

Ei

DVI port

Ei

DC-in jack

Kyllä

Expansion slots

Number of M.2 (M) slots

2

Power

Power supply type

External AC adapter

Power supply

120 W

Design

Chassis type

Mini PC

Panel mounting interface

100 x 100 mm

VESA mounting

Kyllä

Cable lock slot

Kyllä

Cable lock slot type

Kensington

Product colour

Black

Cooling type

Active

Housing material

Plastic

Software

Operating system installed

Windows 11 Pro

Display

Display included

Ei

Number of displays supported

4

Operational conditions

Operating temperature (T-T)

0 - 35 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 85 %

Storage relative humidity (H-H)

0 - 90 %

Weight & dimensions

Width

132.5 mm

Depth

135.6 mm

Height

50.1 mm

Weight

630 g

Packaging data

Package width

205 mm

Package depth

220 mm

Package height

94 mm

Package weight

1380 g

Packaging content

Mouse included

Ei

Keyboard included

Ei

AC adapter included

Kyllä

Power cord included

Kyllä

Certificates

Certification

FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick)

Other features

Warranty period

3 year(s)
