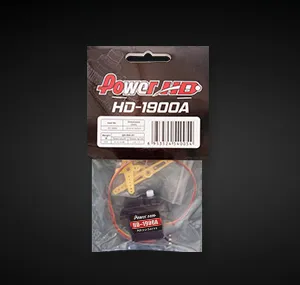

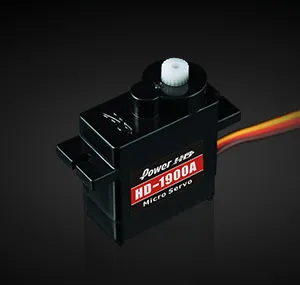

PowerHD HD-1900A

Tuote

Valmistaja

PowerHD

Tuotenimi

HD-1900A

Valmistajan linkki

http://www.chd.hk/Product_Detail.aspx?id=35

Tuotekoodit

GTIN- / EAN-koodit

• 6953524540054

Tuotekuvat

Features

Product type

Servo

Brand compatibility

Universal

Proper use

Airplane, Helicopter

Compatibility

PowerHD

Product colour

Black

Torque (@4.8 V)

1.2 kg/cm

Torque (@6 V)

1.5 kg/cm

Speed (@60°, 4.8 V)

0.11 s

Speed (@60°, 6 V)

0.08 s

Stall current (@4.8 V)

670 mA

Stall current (@6.0 V)

830 mA

Neutral position

1500 µs

Dead bandwidth

7 µs

Limit angle

180 °

Rotating direction

Left

Type

Radio-Controlled (RC) Model Parts

Other features

Working frequence: 1520μs / 50Hz Plastic Gear

Certification

CE

Power

Voltage

4.8 / 6 V

Running current (@4.8 V)

130 mA

Running current (@6.0 V)

140 mA

Idle current (@4.8 V)

4 mA

Idle current (@6.0 V)

5 mA

Safety warning

EU TSD warning

Not for children under 36 months

Not for children 0-3 years

Kyllä

Operational conditions

Operating temperature (T-T)

-20 - 60 °C

Weight & dimensions

Width

23 mm

Depth

12 mm

Height

27.5 mm

Weight

9 g

Packaging data

Quantity per pack

1 pc(s)

Manual

Kyllä
