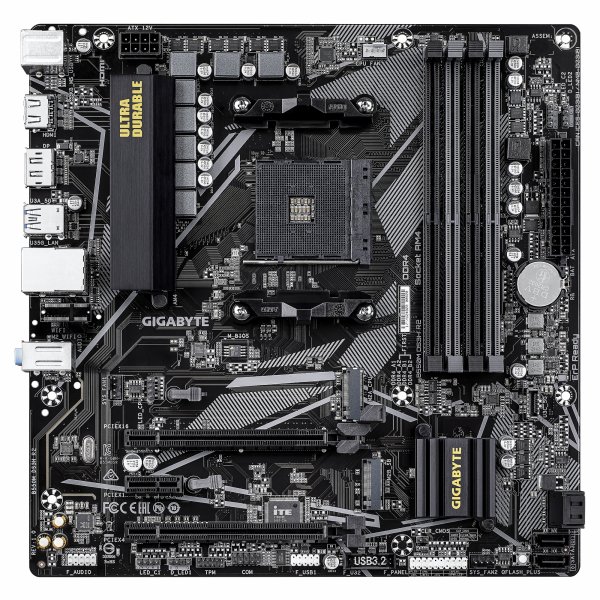

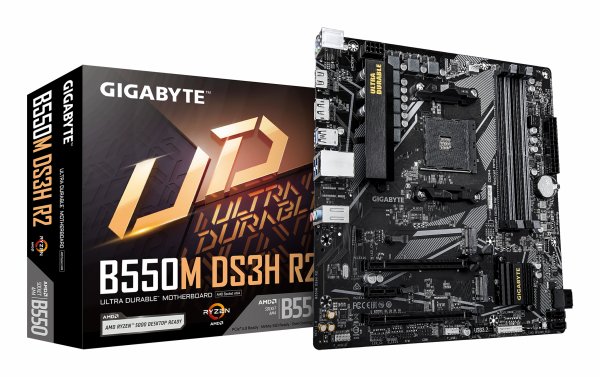

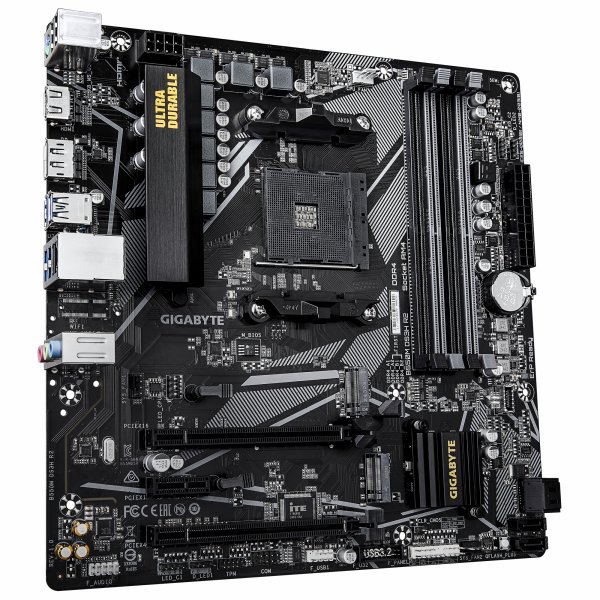

Gigabyte B550M DS3H R2

Tuote

Valmistaja

Gigabyte

Tuotenimi

B550M DS3H R2

Valmistajan linkki

https://www.gigabyte.com/

Tuotekoodit

Valmistajan tuotekoodit

• B550M DS3H R2
• B550M-DS3H R2

GTIN- / EAN-koodit

• 4719331870454

Tuotekuvat

Processor

Processor manufacturer

AMD

Processor socket

Socket AM4

Compatible processor series

AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series

Supported processor sockets

Socket AM4

Memory

Supported memory types

DDR4-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

ECC сompatibility

ECC & Non-ECC

Supported memory clock speeds

4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz

Supported memory clock speed (max)

4733 MHz

Maximum internal memory

128 GB

Unbuffered memory

Kyllä

Maximum internal memory per slot

32 GB

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, PCI Express 3.0, PCI Express 4.0, SATA III

Number of HDDs supported

4

Number of storage drives supported

6

RAID support

Kyllä

RAID levels

0, 1, 10

Graphics

Parallel processing technology support

Not supported

Maximum resolution

5120 x 2880 pixels

HDCP

Kyllä

DirectX version

12.0

Internal I/O

USB 2.0 connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Kyllä

Front panel connector

Kyllä

ATX Power connector (24-pin)

Kyllä

CPU fan connector

Kyllä

Number of CPU fan connectors

1

Number of chassis fan connectors

2

EPS power connector (8-pin)

Kyllä

Number of EPS power connectors (8-pin)

1

TPM connector

Kyllä

Serial port headers

1

RGB LED pin header

Kyllä

Number of RGB LED pin headers

5

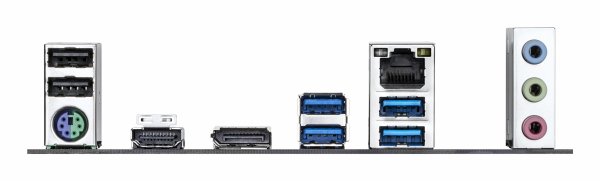

Rear panel I/O ports

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

Ethernet LAN (RJ-45) ports

1

PS/2 ports quantity

1

VGA (D-Sub) ports quantity

0

HDMI ports quantity

1

HDMI version

2.1

DVI-D ports quantity

0

DisplayPorts quantity

1

DisplayPort version

1.4

Headphone outputs

1

Line-in

Kyllä

Microphone in

Kyllä

Network

Ethernet LAN

Kyllä

Ethernet interface type

Gigabit Ethernet

LAN controller

Realtek RTL8111H

Wi-Fi

Ei

Features

Component for

PC

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD B550

Audio chip

Realtek ALC1220-VB

Audio output channels

7.1 channels

Product colour

Dark brown

PC health monitoring

Fan, Temperature, Voltage

Cooling type

Passive

Power source type

ATX

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Expansion slots

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2280

2nd M.2 highest PCI Express generation

3.0

BIOS

BIOS type

UEFI AMI

BIOS memory size

128 Mbit

ACPI version

5.0

Clear CMOS jumper

Kyllä

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Logistics data

Products per shipping (inner) case

1 pc(s)

Battery

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Packaging data

Package width

265 mm

Package depth

265 mm

Package height

54 mm

Package weight

947 g

Weight & dimensions

Width

244 mm

Depth

244 mm

Height

35 mm

Packaging content

Batteries included

Kyllä

Screws included

Kyllä

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Other features

Weight

870 g

Technical details

Warranty period

3 year(s)
