Shuttle Nano PC NE10N

Tuote

Valmistaja

Shuttle

Tuotenimi

Nano PC NE10N

Valmistajan linkki

https://www.shuttle.eu/en/products/nano/ne10n

Tuotekoodit

Valmistajan tuotekoodit

• NE10N

GTIN- / EAN-koodit

• 0887993007779

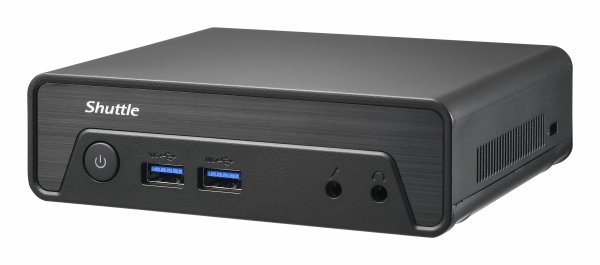

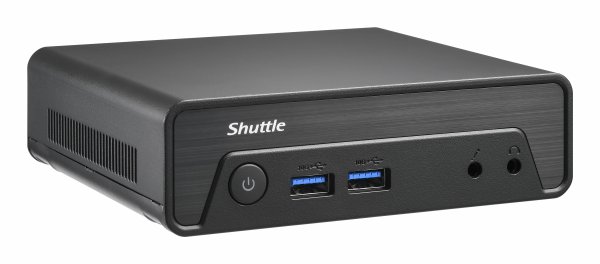

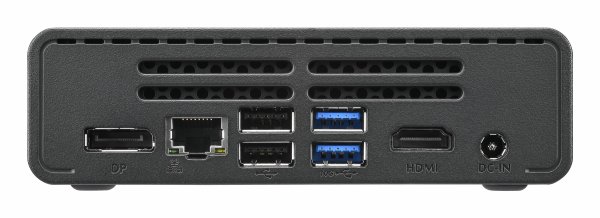

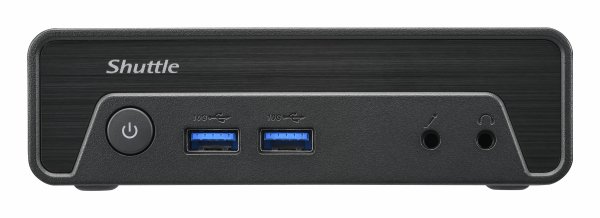

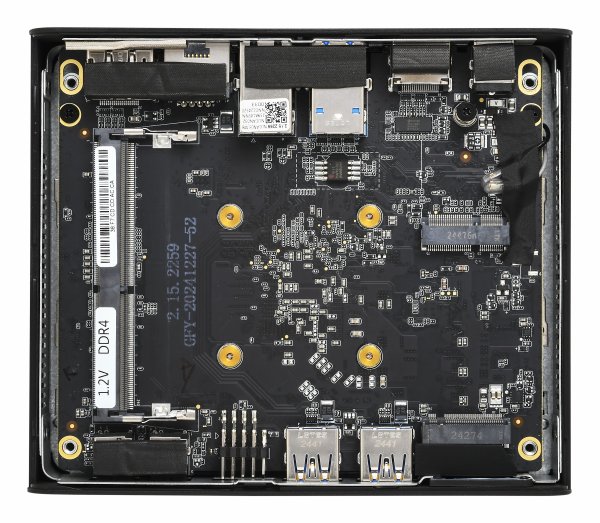

Tuotekuvat

Processor

Built-in processor

Kyllä

Processor manufacturer

Intel

Processor model

N100

Processor cores

4

Processor threads

4

Processor boost frequency

3.4 GHz

Processor cache

6 MB

Memory

Memory slots type

SO-DIMM

Number of memory slots

1

Maximum internal memory

16 GB

Supported memory clock speeds

3200 MHz

Supported memory types

DDR4-SDRAM

Memory channels

Single-channel

Memory voltage

1.2 V

ECC

Ei

Non-ECC

Kyllä

Storage

Supported storage drive types

SSD

Storage drive sizes supported

M.2 "

SSD form factor

M.2

Storage drive interface

PCI Express, Serial ATA

Card reader integrated

Ei

Graphics

On-board graphics card

Kyllä

Graphics card family

Intel

On-board graphics card model

Intel® UHD Graphics

Performance

Motherboard chipset

Intel SoC

Number of processors supported

1

BIOS type

EFI AMI

Trusted Platform Module (TPM)

Kyllä

Trusted Platform Module (TPM) version

2.0

Audio chip

Senary SN6141

Audio

Built-in speaker(s)

Ei

Network

Ethernet LAN

Kyllä

Wi-Fi

Ei

Ports & interfaces

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

4

HDMI ports quantity

1

HDMI version

2.0

VGA (D-Sub) ports quantity

0

DisplayPorts quantity

1

DisplayPort version

1.4

Microphone in

Kyllä

Headphone outputs

1

Ethernet LAN (RJ-45) ports

1

DC-in jack

Kyllä

Design

Chassis type

0.6L sized PC

Product colour

Black

Cooling type

Passive

LED indicators

Kyllä

Housing material

Plastic

Cable lock slot

Kyllä

Cable lock slot type

Kensington

VESA mounting

Kyllä

Panel mounting interface

75 x 75,100 x 100 mm

Product type

Mini PC barebone

Technical details

Compliance certificates

BSMI, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI

Logistics data

Harmonized System (HS) code

84733080

Software

Windows operating systems supported

Windows 11

Linux operating systems supported

Kyllä

Sustainability

Sustainability certificates

ENERGY STAR, ErP

Power

Power supply type

External AC adapter

Power supply

65 W

Number of power supply units

1

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

AC adapter output voltage

19 V

AC adapter output current

3.42 A

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90 %

Weight & dimensions

Width

135 mm

Depth

115 mm

Height

39 mm

Weight

600 g

Package weight

1500 g

Packaging content

Power cord included

Kyllä

AC adapter included

Kyllä

Quick start guide

Kyllä

Drivers included

Kyllä
