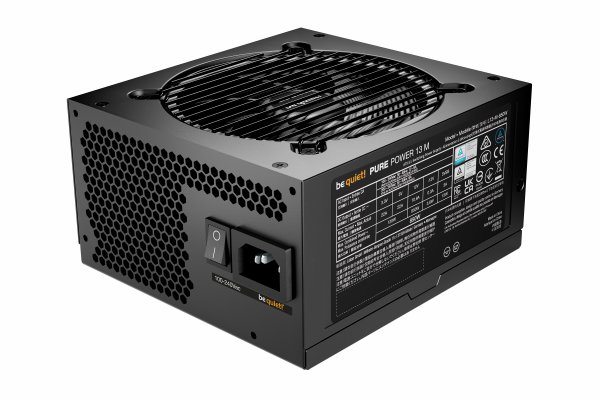

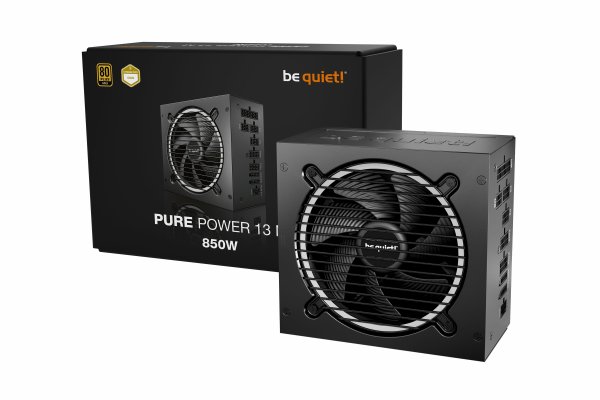

Be-Quiet Pure Power 13 M 850W

Tuote

Valmistaja

Be-Quiet

Tuotenimi

Pure Power 13 M | 850W

Valmistajan linkki

https://www.bequiet.com/en/download/powersupply/5931?utm_sourc..

Tuotekoodit

Valmistajan tuotekoodit

• BP027EU

GTIN- / EAN-koodit

• 4260052192191

Tuotekuvat

Power

Total power

850 W

Peak power

900 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Maximum input current (@110V)

12 A

Maximum input current (@220V)

6 A

Power factor

0.98

Power Factor Correction (PFC) type

Active

Number of +12V rail(s)

1

Combined power (+3.3V)

120 W

Combined power (+12V)

850 W

Combined power (+5V)

120 W

Combined power (-12V)

3.6 W

Combined power (+5Vsb)

15 W

Max output current (+3.3V)

22 A

Max output current (+12V1)

70.9 A

Max output current (+5V)

22 A

Max output current (-12V)

0.3 A

Max output current (+5Vsb)

3 A

Hold time

25.09 ms

Efficiency

92.8 %

Power protection features

Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage

Ports & interfaces

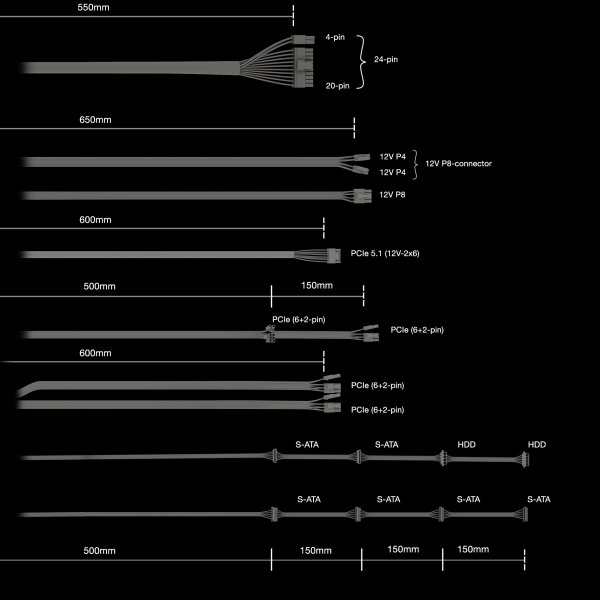

Motherboard power connector

20+4 pin ATX

Motherboard power cable length

550 mm

Number of SATA power connectors

6

SATA power cable length

500,650,800,950 mm

Peripheral (Molex) power connectors (4-pin)

2

Peripheral (Molex) power cable length

800,950 mm

EPS power connector (8-pin)

Kyllä

PCI Express power connectors (6+2 pin)

4

PCI Express power connectors (12-pin)

1

CPU P4 connector (4-pin)

2

CPU power connector (4+4 pin)

Kyllä

CPU power cable length

650 mm

PCI Express connector

Kyllä

Cabling type

Fully-Modular

Performance

Purpose

PC

Power supply unit (PSU) form factor

ATX

80 PLUS certification

80 PLUS Gold

ATX version

3.1

EPS version

2.92

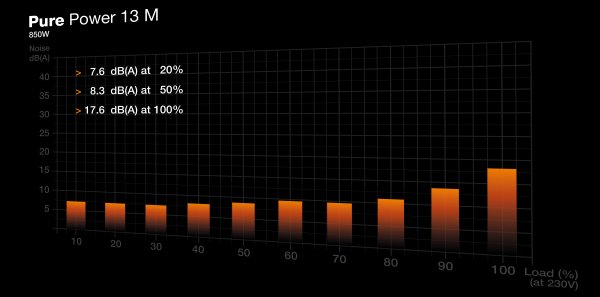

Noise level

30.2 dB

Bearing technology

Rifle

Mean time between failures (MTBF)

100000 h

Design

Product colour

Black

Cooling type

Active

Fan diameter

120 mm

Number of fans

1 fan(s)

Fan speed

0 - 2000 RPM

Illumination

Ei

On/off switch

Kyllä

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Packaging content

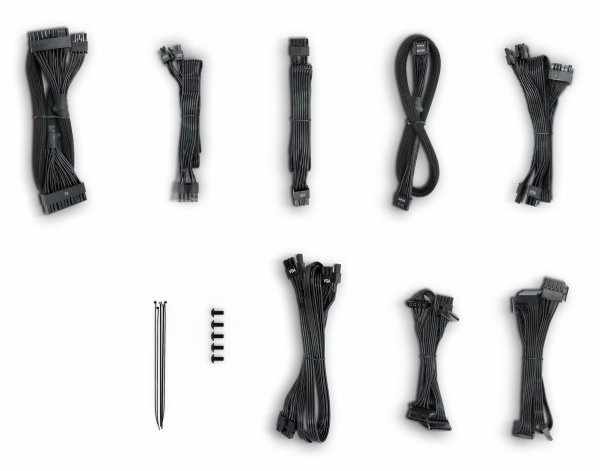

Cables included

AC, CPU, PCIe, Peripheral (Molex), SATA

Certificates

Compliance certificates

BSMI, CB, CCC, CE, Federal Communications Commission (FCC), IRAM, RCM, RoHS, TÜV mark, UKCA, WEEE, cTUVus

Weight & dimensions

Width

150 mm

Depth

160 mm

Height

86 mm

Weight

2620 g

Packaging data

Package width

210 mm

Package depth

320 mm

Package height

133 mm

Package weight

3400 g

Technical details

Sustainability certificates

ENERGY STAR, ErP

Logistics data

Shipping (inner) case length

580 mm

Shipping (inner) case width

325 mm

Shipping (inner) case height

233 mm

Products per shipping (inner) case

6 pc(s)

Shipping (inner) case gross weight

22700 g

Other features

Screws included

Kyllä

Cable ties included

Kyllä
