Axis P3275-LV

Tuote

Valmistaja

Axis

Tuotenimi

P3275-LV

Valmistajan linkki

https://www.axis.com/products/axis-p3275-lv

Tuotekoodit

Valmistajan tuotekoodit

• 03149-001

GTIN- / EAN-koodit

• 7331021089853

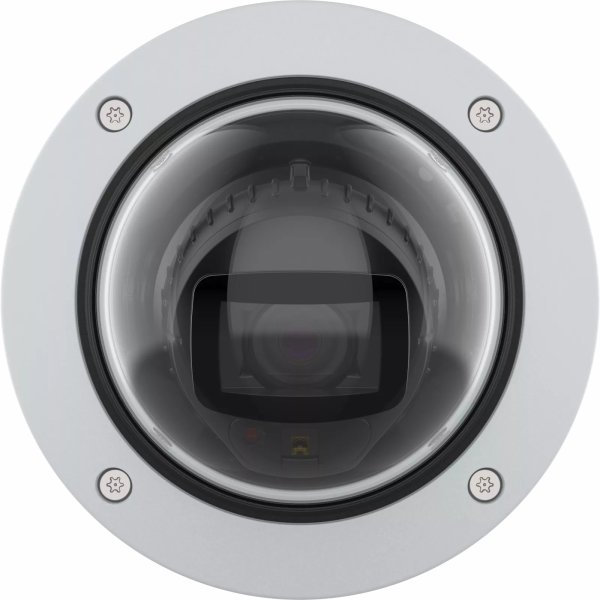

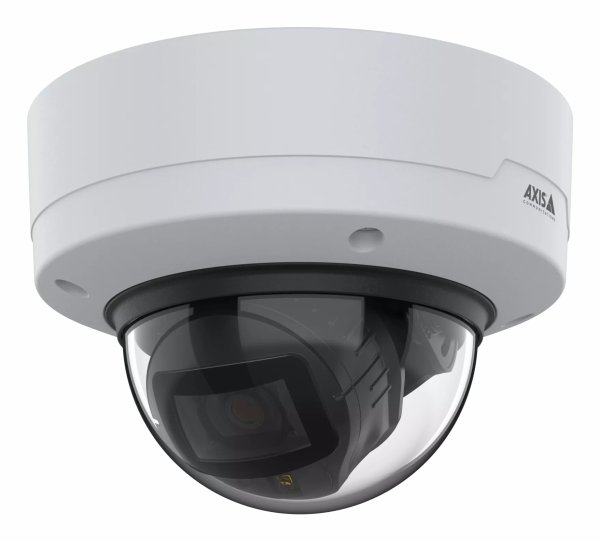

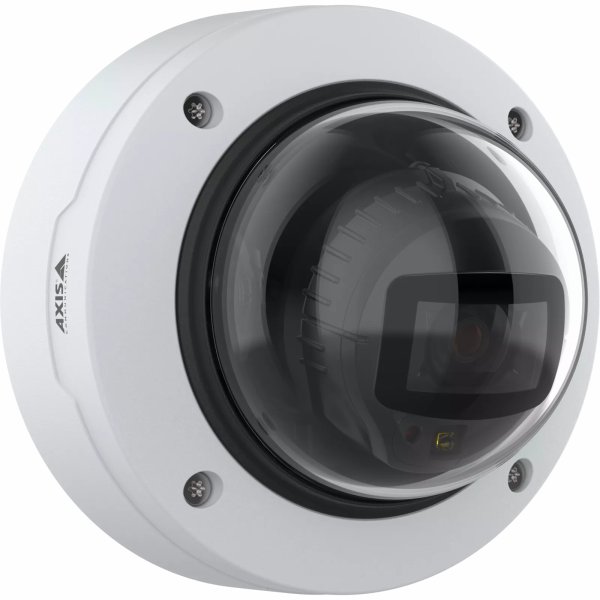

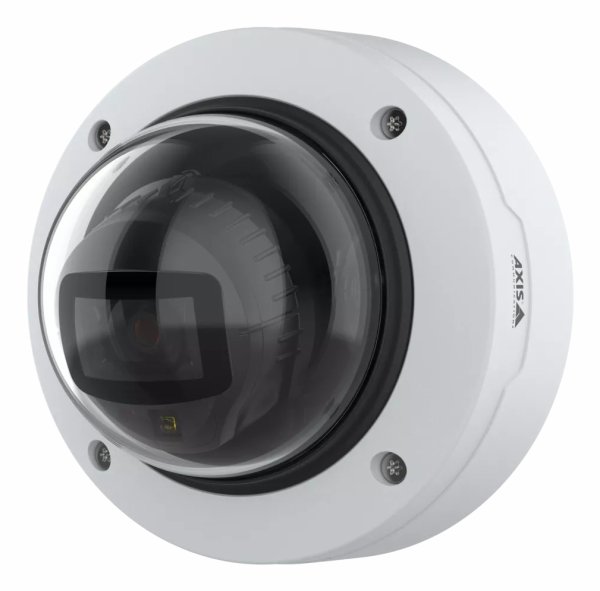

Tuotekuvat

Performance

Type

IP security camera

Placement supported

Indoor

Connectivity technology

Wired

PTZ control

Kyllä

Wide Dynamic Range (WDR)

Kyllä

Day/night mode

Kyllä

Infrared (IR) cut-off filter

Kyllä

Alarm input/output

Kyllä

Processor model

ARTPEC-9

Built-in processor

Kyllä

Dynamic range

120 dB

Design

Form factor

Dome

Mounting type

Ceiling/Wall/Pole

Product colour

White

LED indicators

Kyllä

Housing material

Plastic, Polycarbonate (PC)

International Protection (IP) code

IP54

IK code

IK10

Camera

Camera pan control

Kyllä

Camera tilt control

Kyllä

Minimum illumination

0.02 lx

Angle of rotation

95 °

Lens viewing angle, horizontal

100 - 32 °

Lens viewing angle, vertical

52 - 18 °

Tilt angle range

-45 - 80 °

Pan range

-190 - 190 °

Camera pixel size

2.9 µm

Camera shutter speed

1/37000 - 2 s

Image sensor

Sensor type

CMOS

Number of sensors

1

Optical sensor size

1/2.8 "

Progressive scan

Kyllä

Lens system

Zoom capability

Kyllä

Focal length range

3.4 - 9.8 mm

Auto focus

Kyllä

Maximum aperture number

2.7

Minimum aperture number

1.4

Detect distance (wide)

48 m

Detect distance (tele)

135 m

Observe distance (wide)

19 m

Observe distance (tele)

54 m

Recognize distance (wide)

9.6 m

Recognize distance (tele)

27 m

Identify distance (wide)

4.8 m

Identify distance (tele)

14 m

Night vision

Night vision

Kyllä

Night vision distance

40 m

LED type

IR

Infra-red wavelength

850 nm

Video

Maximum resolution

1920 x 1080 pixels

Total megapixels

2 MP

Video compression formats

AV1, H.264, H.265, M-JPEG

Video recording

Kyllä

Frame rate

60 fps

Video streaming

Kyllä

Noise reduction

Kyllä

Noise reduction technology

2D noise reduction, 3D noise reduction

Gain control type

Auto

Image quality adjustment

Brightness, Contrast, Saturation, Sharpness, White balance

Text caption overlay

Kyllä

Audio

Audio system

2-way

Audio system full duplex

Kyllä

Network

Ethernet LAN

Kyllä

Wi-Fi

Ei

Bluetooth

Ei

Ethernet interface type

Fast Ethernet

Networking standards

IEEE 802.1AE, IEEE 802.1ar, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at

Quality of Service (QoS) support

Kyllä

Storage

Built-in HDD

Ei

Card reader integrated

Kyllä

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Flash memory

8192 MB

RAM capacity

2048 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Microphone in

Kyllä

Terminal block port

Kyllä

DC-in jack

Kyllä

Security

Video motion detection

Kyllä

Pixel counter

Kyllä

Network access storage (NAS)

Kyllä

Management features

Cloud-managed

Kyllä

Power

Power source type

DC, PoE

Power consumption (typical)

3.4 W

Power consumption (max)

10 W

DC output voltage

12

DC output current

0.025 A

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-40 - 65 °C

Operating relative humidity (H-H)

10 - 85 %

Storage relative humidity (H-H)

5 - 95 %

Weight & dimensions

Weight

800 g

Packaging content

Number of cameras

1

Mounting kit

Kyllä

Manual

Kyllä
