Asrock X870 NOVA WIFI

Tuote

Valmistaja

Asrock

Tuotenimi

X870 NOVA WIFI

Valmistajan linkki

https://pg.asrock.com/mb/AMD/X870%20Nova%20WiFi/index.asp#Over..

Tuotekoodit

Valmistajan tuotekoodit

• 90-MXBT20-A0UAYZ

GTIN- / EAN-koodit

• 4710483942754

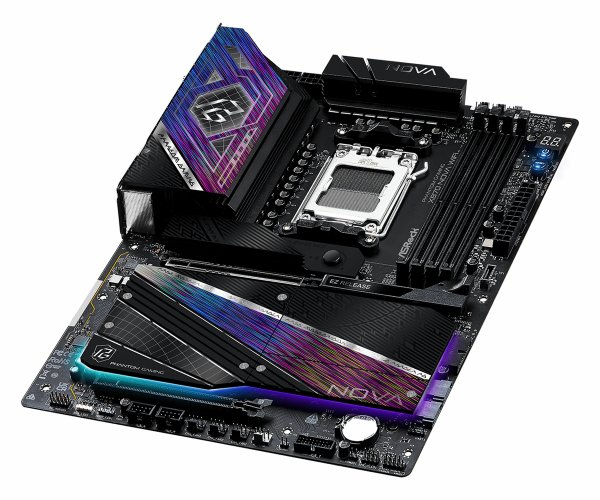

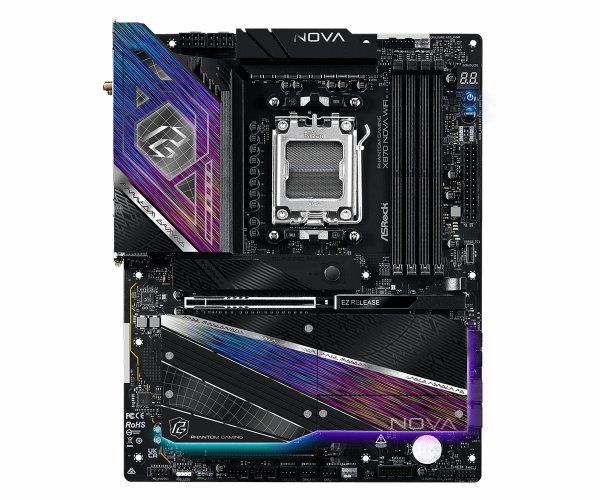

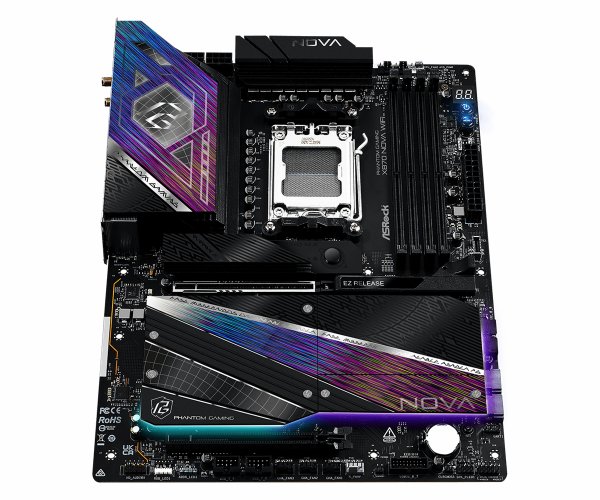

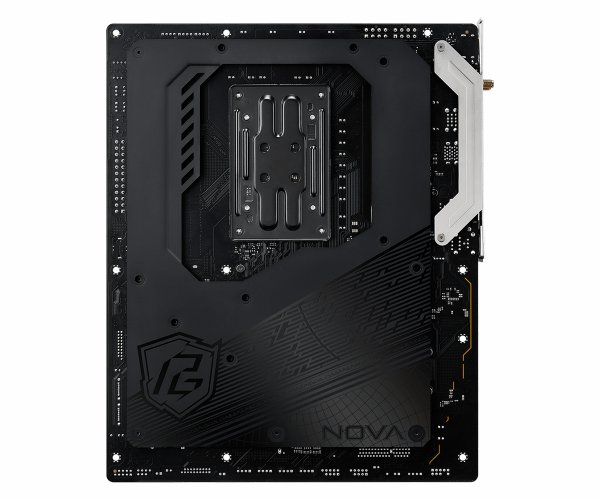

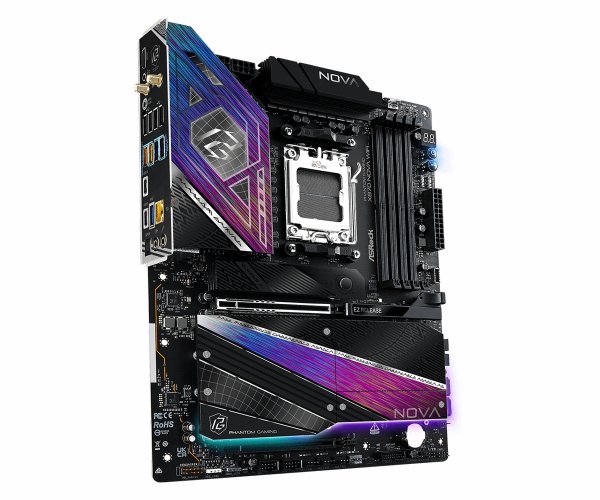

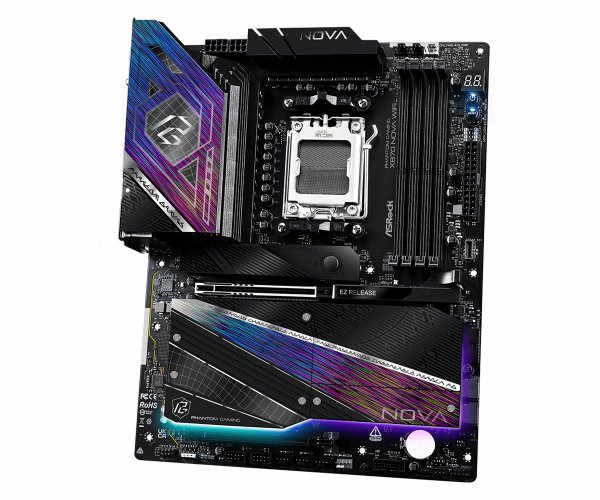

Tuotekuvat

Processor

Processor manufacturer

AMD

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Memory

Supported memory types

DDR5-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

ECC сompatibility

ECC & Non-ECC

Supported memory clock speeds

8400 MHz

Maximum internal memory

256 GB

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

RAID support

Kyllä

RAID levels

0, 1, 10

Internal I/O

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 2x2 connectors

1

Front panel audio connector

Kyllä

ATX Power connector (24-pin)

Kyllä

CPU fan connector

Kyllä

Number of CPU fan connectors

2

EPS power connector (8-pin)

Kyllä

Number of EPS power connectors (8-pin)

2

RGB LED pin header

Kyllä

Rear panel I/O ports

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB4 Gen 2x2 ports quantity

2

Ethernet LAN (RJ-45) ports

1

VGA (D-Sub) ports quantity

0

HDMI ports quantity

1

DVI-D ports quantity

0

Microphone in

Kyllä

S/PDIF out port

Kyllä

Network

Ethernet LAN

Kyllä

Ethernet interface type

5 Gigabit Ethernet

LAN controller

Realtek RTL8126

Wi-Fi

Kyllä

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)

Bluetooth

Kyllä

Bluetooth version

5.4

Features

Component for

PC

Motherboard form factor

ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD X870

Audio chip

Realtek ALC4082

Audio output channels

7.1 channels

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Expansion slots

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

Number of M.2 (M) slots

1

BIOS

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Weight & dimensions

Width

305 mm

Depth

244 mm

Packaging content

Cables included

SATA

Antenna included

Kyllä
