Lenovo Legion 5 15AHP10

Tuote

Valmistaja

Lenovo

Tuoteperhe / -sarja

Legion 5

Tuotenimi

Legion 5 15AHP10

Valmistajan linkki

https://www.lenovo.com/gb/en/p/laptops/legion-laptops/legion-5..

Tuotekoodit

Valmistajan tuotekoodit

• 83M0000DMX

GTIN- / EAN-koodit

• 0198157260153

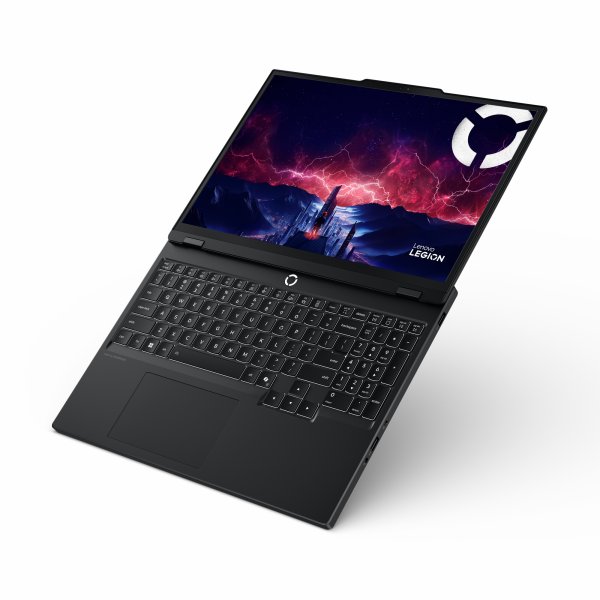

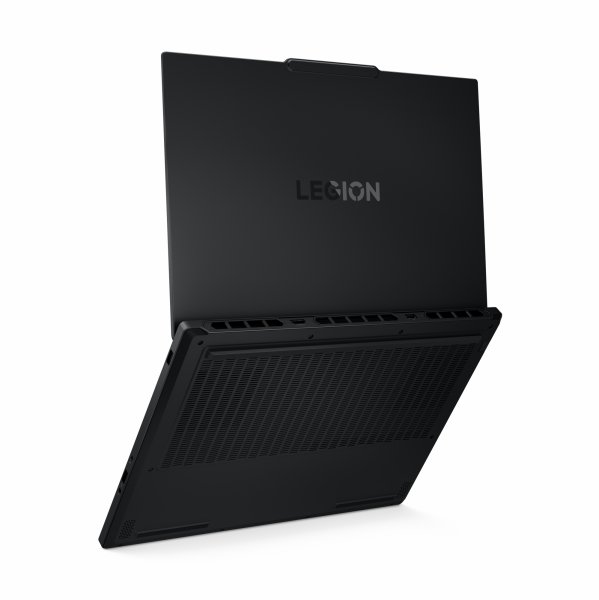

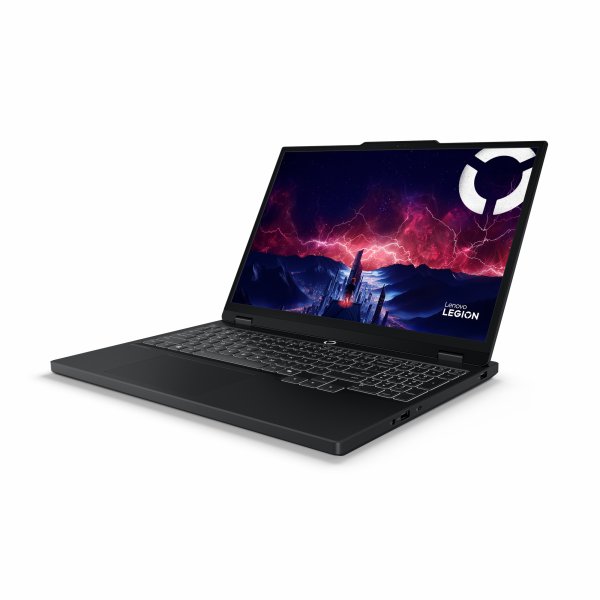

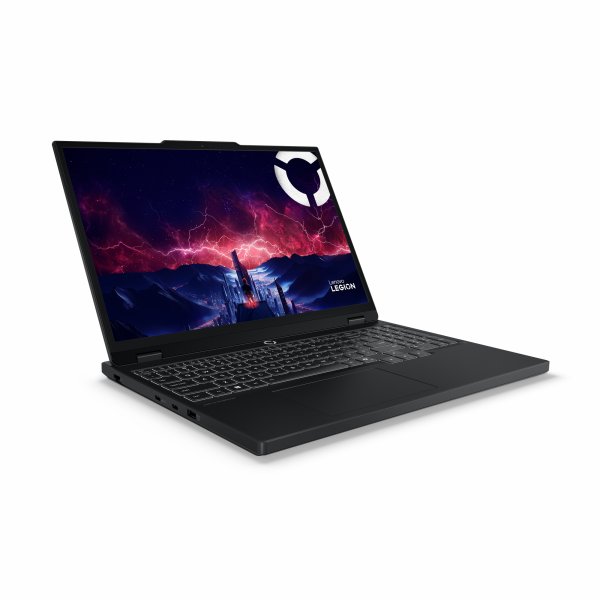

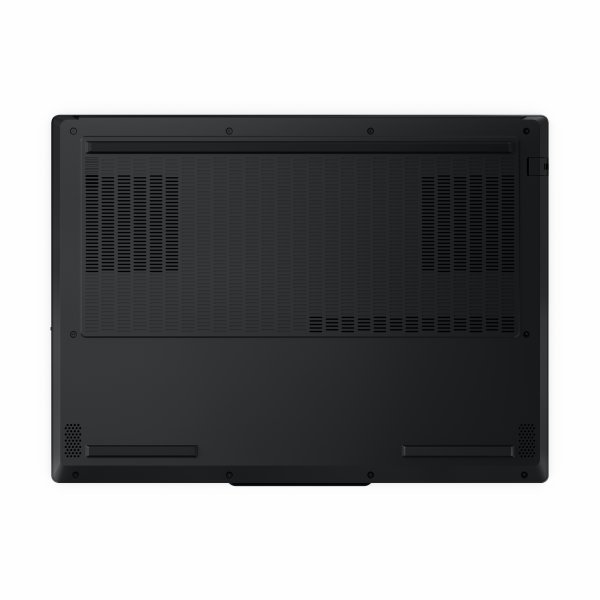

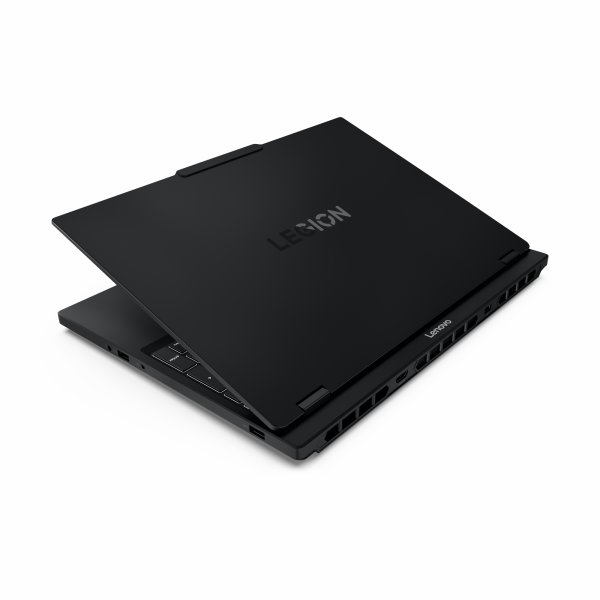

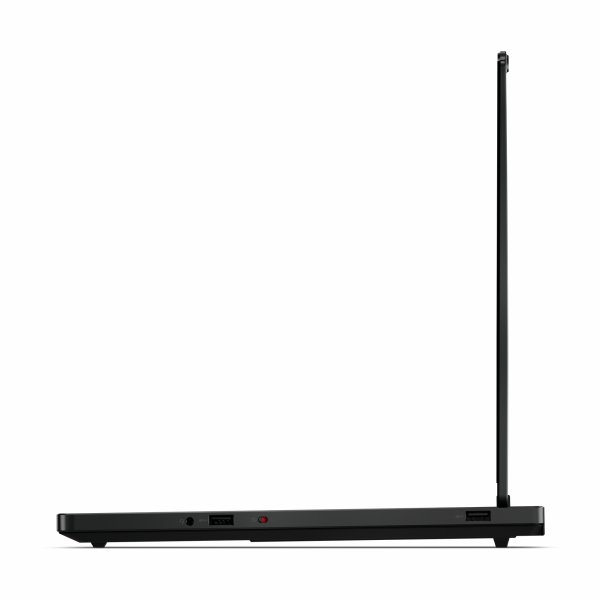

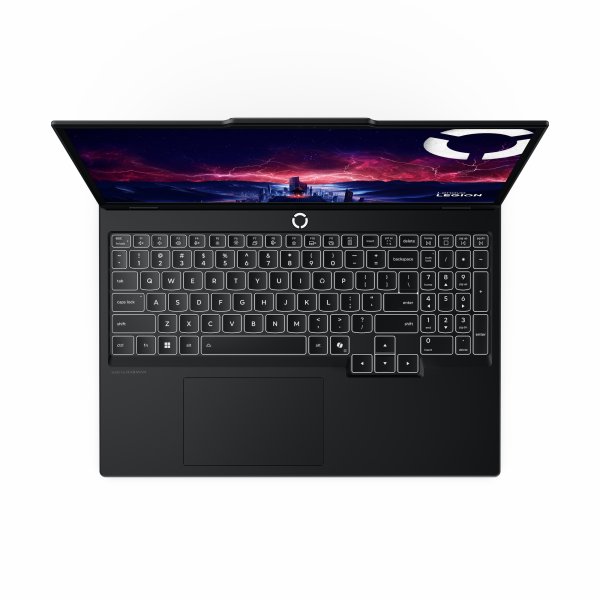

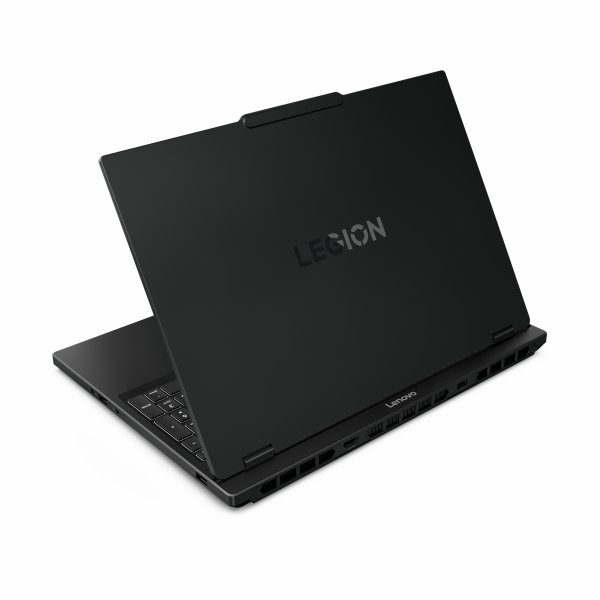

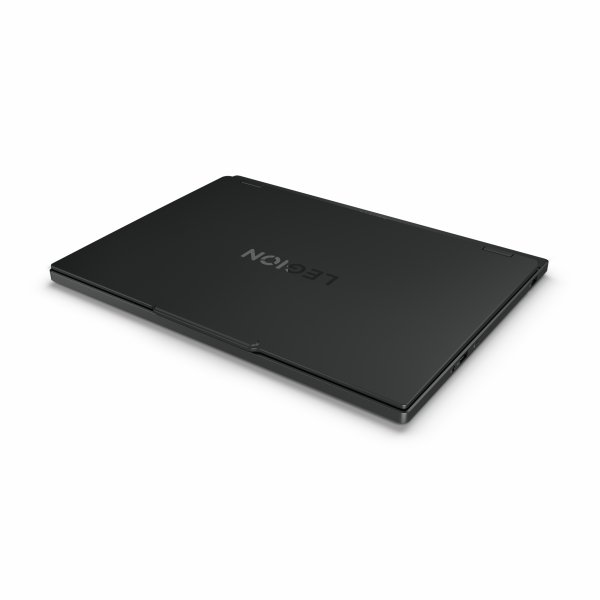

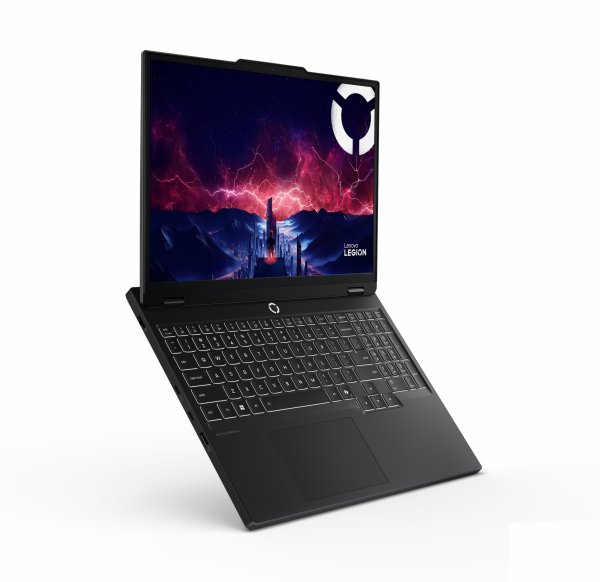

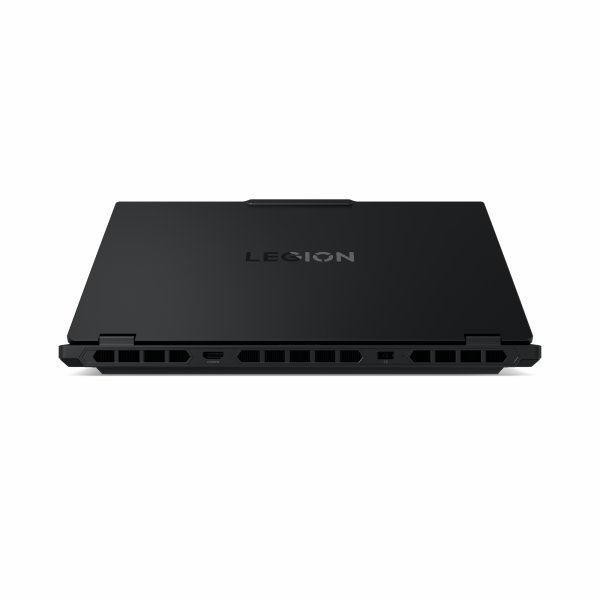

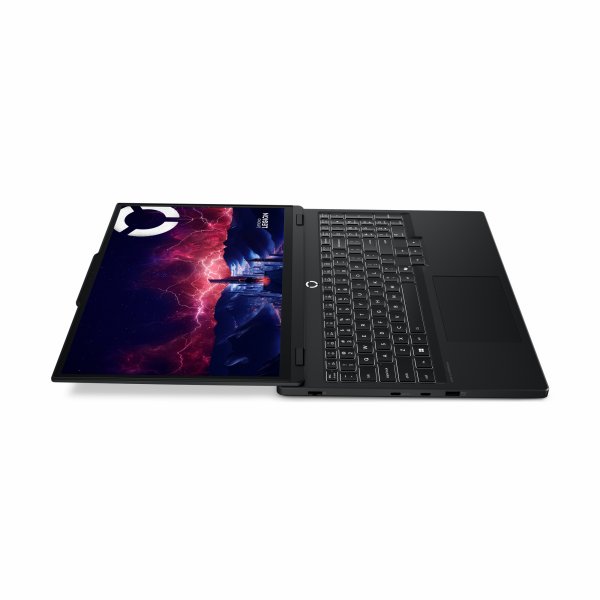

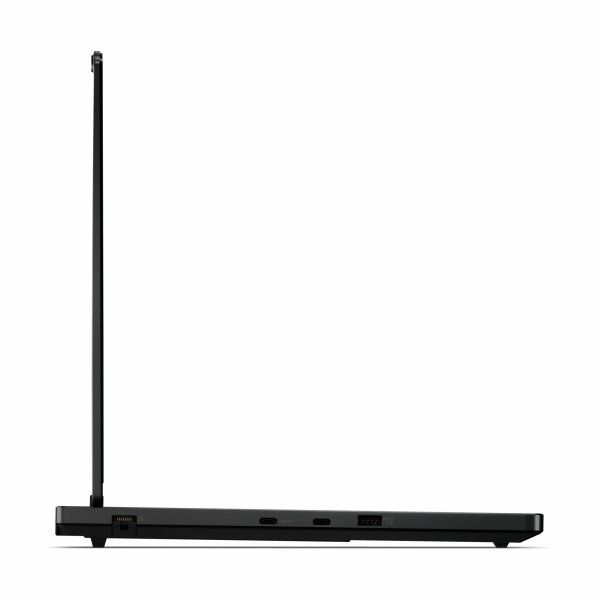

Tuotekuvat

Design

Product type

Laptop

Product colour

Black

Colour name

Eclipse black

Form factor

Clamshell

Housing material

Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)

Market positioning

Gaming

Display

Display diagonal

15.1 "

Display resolution

1920 x 1200 pixels

Touchscreen

Ei

HD type

WUXGA

Panel type

IPS

LED backlight

Kyllä

Native aspect ratio

16:10

Anti-glare screen

Kyllä

Display brightness

300 cd/m²

RGB colour space

sRGB

Colour gamut

100 %

Maximum refresh rate

165 Hz

Contrast ratio (typical)

1000:1

High Dynamic Range (HDR) supported

Kyllä

High Dynamic Range (HDR) technology

Dolby Vision

Processor

Processor manufacturer

AMD

Processor family

AMD Ryzen™ 7

Processor generation

AMD Ryzen 200 Series

Processor model

260

Processor cores

8

Processor threads

16

Processor boost frequency

5.1 GHz

Processor frequency

3.8 GHz

L3 cache

16 MB

L2 cache

8 MB

Processor base power

35 W

Maximum turbo power

54 W

Neural processor unit (NPU)

Neural processor unit (NPU)

AMD Ryzen AI

Total processor performance up to

38 TOPs

NPU performance up to

16 TOPs

Memory

Internal memory

16 GB

Internal memory type

DDR5-SDRAM

Memory clock speed

5600 MHz

Memory form factor

SO-DIMM

Memory layout (slots x size)

1 x 16 GB

Memory slots

2x SO-DIMM

Maximum internal memory

32 GB

Memory channels

Dual-channel

Storage

Total storage capacity

512 GB

Storage media

SSD

Total SSDs capacity

512 GB

Number of SSDs installed

1

SSD capacity

512 GB

SSD interface

PCI Express 4.0

NVMe

Kyllä

SSD form factor

M.2

M.2 SSD size

2242 (22 x 42 mm)

Optical drive type

Ei

Card reader integrated

Ei

Graphics

On-board graphics card

Kyllä

Discrete graphics card

Kyllä

Discrete GPU manufacturer

NVIDIA

Discrete graphics card model

NVIDIA GeForce RTX 5060

Discrete graphics card memory

8 GB

Discrete graphics memory type

GDDR7

On-board GPU manufacturer

AMD

On-board graphics card family

AMD Radeon

On-board graphics card model

AMD Radeon 780M

Audio

Audio chip

Realtek ALC3287

Audio system

Nahimic Audio

Number of built-in speakers

2

Speakers manufacturer

Harman Kardon

Speaker power

2 W

Built-in microphone

Kyllä

Number of microphones

2

Camera

Front camera

Kyllä

Front camera resolution

1280 x 720 pixels

Front camera HD type

HD

Privacy camera

Kyllä

Privacy type

Webcam kill switch

Network

Mobile network connection

Ei

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Wi-Fi standards

Wi-Fi 6 (802.11ax)

Antenna type

2x2

Ethernet LAN

Kyllä

Ethernet LAN data rates

100,1000 Mbit/s

Bluetooth

Kyllä

Bluetooth version

5.2

WWAN

Not installed

Ports & interfaces

USB 2.0 ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB4 Gen 3x2 ports quantity

1

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

HDMI version

2.1

Combo headphone/mic port

Kyllä

USB Type-C DisplayPort Alternate Mode

Kyllä

USB Sleep-and-Charge

Kyllä

USB Sleep-and-Charge ports

1

Performance

Motherboard chipset

AMD SoC

Keyboard

Pointing device

Touchpad

Numeric keypad

Kyllä

Keyboard backlit

Kyllä

Keyboard backlit colour

White

Keyboard language

Nordic

Copilot key

Kyllä

Software

Operating system installed

Windows 11 Home

Operating system architecture

64-bit

Operating system language

Danish, English, Finnish, Norwegian, Swedish

Trial software

Office

Bundled software

Office Trial + Lenovo AI Now

Battery

Battery technology

Lithium-Ion (Li-Ion)

Battery capacity

60 Wh

Battery life (max)

4.2 h

Continuous video playback time

9.6 h

Fast charging

Kyllä

Power

AC adapter power

245 W

AC adapter frequency

50/60 Hz

AC adapter input voltage

100 - 240 V

USB Type-C charging port

Kyllä

USB Type-C required charging power (min)

65 W

USB Type-C required charging power (max)

100 W

USB Power Delivery (USB PD)

Kyllä

Security

Fingerprint reader

Ei

Trusted Platform Module (TPM)

Kyllä

Trusted Platform Module (TPM) version

2.0

Password protection

Kyllä

Password protection type

BIOS, Power on, Supervisor

Operational conditions

Operating temperature (T-T)

5 - 35 °C

Storage temperature (T-T)

5 - 43 °C

Operating relative humidity (H-H)

8 - 95 %

Storage relative humidity (H-H)

5 - 95 %

Maximum shipping altitude

3048 m

Certificates

Compliance certificates

RoHS

Certification

ErP Lot 6/26 TÜV Rheinland® High Gaming Performance TÜV Rheinland® Low Blue Light (Hardware Solution)

Sustainability

Sustainability certificates

ENERGY STAR

Weight & dimensions

Weight

2100 g

Width

344.9 mm

Depth

255.35 mm

Height (front)

22.5 mm

Height (rear)

23.99 mm

Packaging content

AC adapter included

Kyllä
