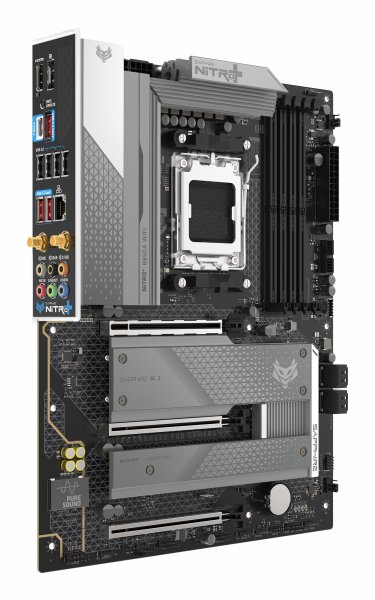

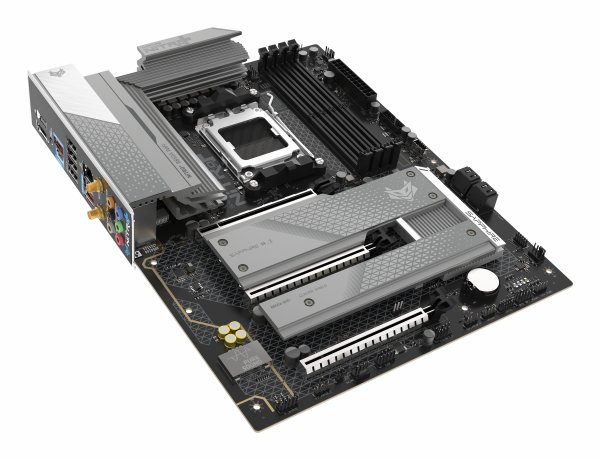

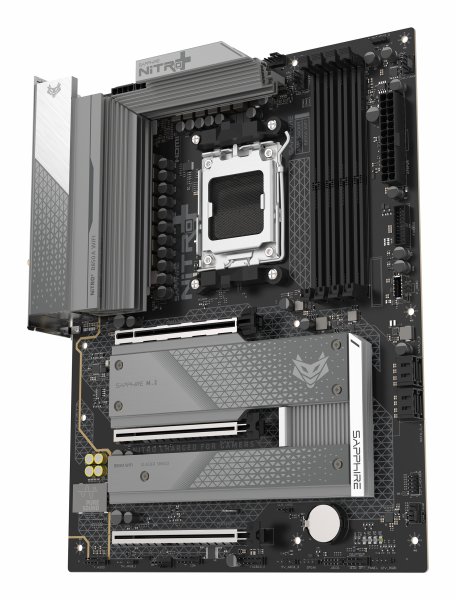

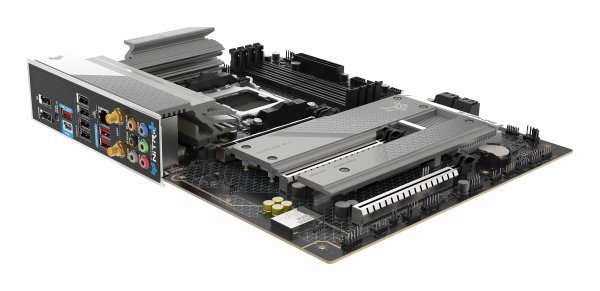

Sapphire NITRO+ B850A WIFI 7

Tuote

Valmistaja

Sapphire

Tuotenimi

NITRO+ B850A WIFI 7

Valmistajan linkki

https://www.sapphiretech.com/en/consumer/mb_nitro_b850a-wifi7

Tuotekoodit

Valmistajan tuotekoodit

• 52123-03-40G

GTIN- / EAN-koodit

• 4895106296930

Tuotekuvat

Processor

Processor manufacturer

AMD

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Supported processor sockets

Socket AM5

Memory

Supported memory types

DDR5-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

Supported memory clock speed (max)

8000 MHz

Maximum internal memory

256 GB

Maximum internal memory per slot

48 GB

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

PCI Express 4.0, PCI Express 5.0, SATA III

Graphics

Parallel processing technology support

Not supported

Internal I/O

USB 2.0 connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Kyllä

Front panel connector

Kyllä

ATX Power connector (24-pin)

Kyllä

CPU fan connector

Kyllä

Number of CPU fan connectors

1

EPS power connector (8-pin)

Kyllä

Number of EPS power connectors (8-pin)

1

Number of water pump connectors

1

RGB LED pin header

Kyllä

Number of RGB LED pin headers

3

Rear panel I/O ports

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Ethernet LAN (RJ-45) ports

1

VGA (D-Sub) ports quantity

0

HDMI ports quantity

1

DVI-D ports quantity

0

DisplayPorts quantity

1

Headphone outputs

3

Microphone in

Kyllä

Subwoofer out

Kyllä

Network

Ethernet LAN

Kyllä

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Dragon RTL8125BG

Wi-Fi

Kyllä

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)

Bluetooth

Kyllä

Bluetooth version

5.3

Features

Component for

PC

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD B850

Audio chip

Realtek ALC897

Audio output channels

7.1 channels

Expansion slots

PCI Express x4 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

Weight & dimensions

Width

305 mm

Depth

245 mm

Other features

Back-to-BIOS button

Kyllä
