Thermalright KG-650

Tuote

Valmistaja

Thermalright

Tuotenimi

KG-650

Valmistajan linkki

https://www.thermalright.com/product/kg-650/

Tuotekoodit

Valmistajan tuotekoodit

• KG650

GTIN- / EAN-koodit

• 0814256019729

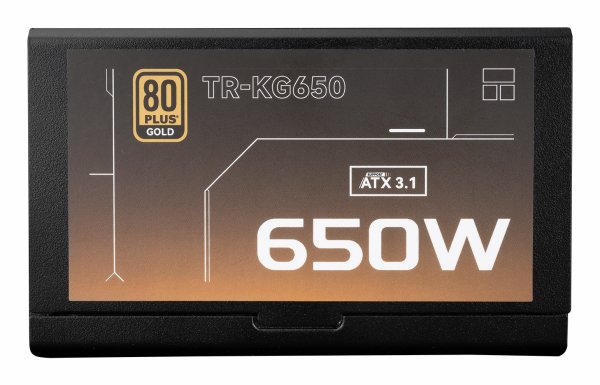

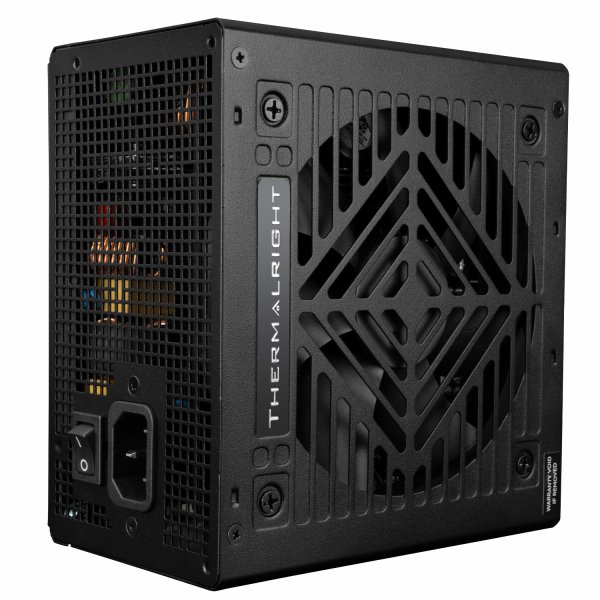

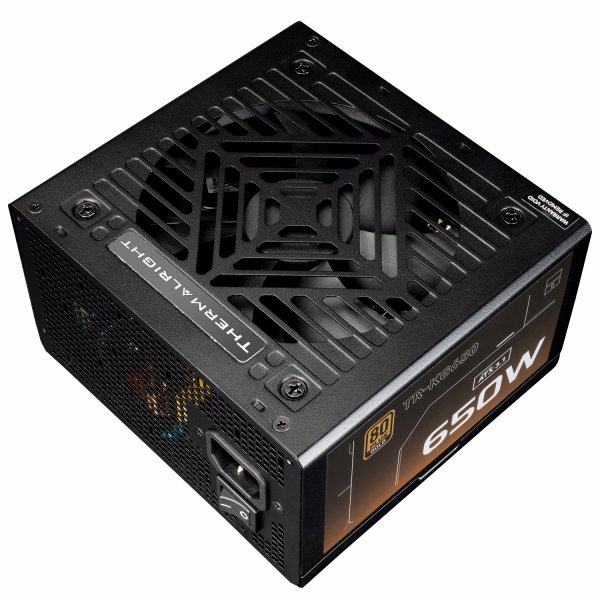

Tuotekuvat

Power

Total power

650 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Input current

10 A

Combined power (+3.3V)

100 W

Combined power (+12V)

648 W

Combined power (+5V)

100 W

Combined power (-12V)

3.6 W

Combined power (+5Vsb)

15 W

Max output current (+3.3V)

20 A

Max output current (+12V)

56 A

Max output current (+5V)

20 A

Max output current (-12V)

0.3 A

Max output current (+5Vsb)

3 A

Power protection features

Over power, Over total voltage, Over voltage, Overcharge, Overheating, Under voltage

Ports & interfaces

Motherboard power connector

20+4 pin ATX

Number of PATA power connectors

1

SATA power cable length

150,450 mm

Peripheral (Molex) power connectors (4-pin)

600

PCI Express power connectors (6+2 pin)

600

CPU P4 connector (4-pin)

650

CPU power connector (4+4 pin)

Kyllä

ATX power connector (20+4 pin)

Kyllä

Cabling type

Fully-Modular

Performance

Purpose

All-in-One PC

Power supply unit (PSU) form factor

ATX

80 PLUS certification

80 PLUS Gold

ATX version

3.1

Mean time between failures (MTBF)

100000 h

Design

Product colour

Black

Fan diameter

120 mm

On/off switch

Kyllä

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Packaging content

Cables included

CPU, PATA, PCIe, SATA

Weight & dimensions

Width

140 mm

Depth

150 mm

Height

86 mm

Logistics data

Country of origin

Taiwan
