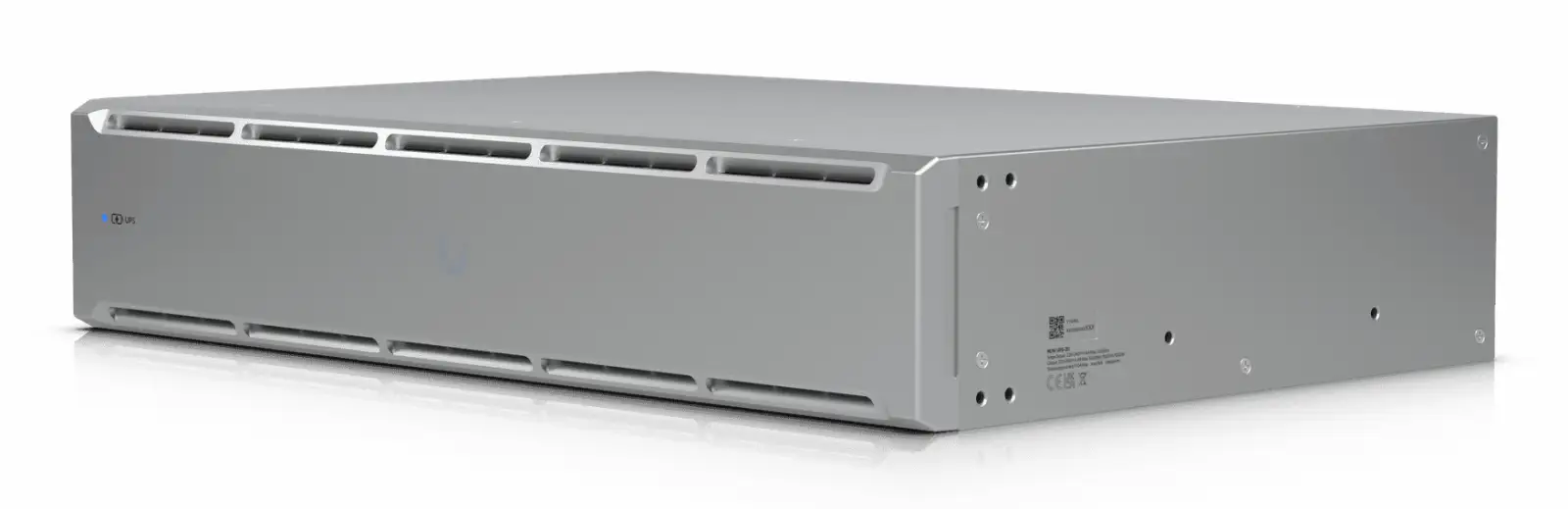

Ubiquiti Networks UPS-2U

Tuote

Valmistaja

Ubiquiti Networks

Tuotenimi

UPS-2U

Valmistajan linkki

https://eu.store.ui.com/eu/en/category/integrations-power-tech..

Tuotekoodit

Valmistajan tuotekoodit

• UPS-2U

GTIN- / EAN-koodit

• 0810177161875

Tuotekuvat

Features

UPS topology

Line-Interactive

Output power capacity

1.44 kVA

Output power

1000 W

Waveform

Sine

Input operation voltage (min)

170 V

Input operation voltage (max)

280 V

Input frequency

50/60 Hz

Output operation voltage (min)

220 V

Output operation voltage (max)

240 V

Output frequency

50/60 Hz

Output voltage regulation

10 %

Transfer time (Line Mode to Battery Mode)

10 ms

Overload capacity (5 minute)

110 %

Surge protection

Kyllä

Power protection features

Over voltage, Overload, Short circuit

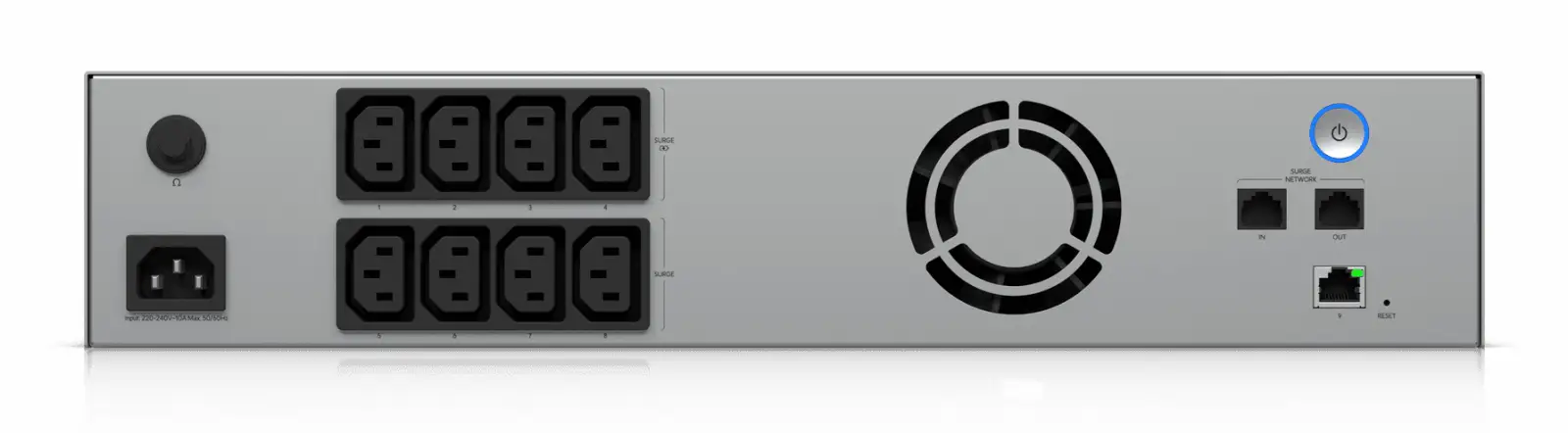

Ports & interfaces

AC outlet types

C13 coupler, C14 coupler

Power plug

NEMA 5-15P

AC outlets quantity

8 AC outlet(s)

Ethernet LAN (RJ-45) ports

3

Battery

Battery technology

Lead-Acid

Battery capacity

9 Ah

Battery voltage

12 V

Number of batteries included

2 pc(s)

Typical backup time at full load

2.3 min

Typical backup time at half load

8 min

Battery recharge time

8 h

Battery capacity

216 Wh

Design

Form factor

Rackmount

Product colour

Grey

Housing material

Galvanized steel

Rack capacity

2U

Control type

Buttons

LED indicators

Status

International Protection (IP) code

IP20

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 50 °C

Operating relative humidity (H-H)

0 - 95 %

Operating altitude

0 - 3000 m

Certificates

Compliance certificates

CE, Federal Communications Commission (FCC), UL, CSA

Packaging content

Rack mount kit

Kyllä

Cables included

Input power cable

Weight & dimensions

Width

442.4 mm

Depth

300 mm

Height

87.4 mm

Weight

13700 g
