Be-Quiet Dark Power 14 1000 W - 80 Plus Titanium

Tuote

Valmistaja

Be-Quiet

Tuotenimi

Dark Power 14 1000 W - 80 Plus Titanium

Valmistajan linkki

https://www.bequiet.com/en/download/products

Tuotekoodit

Valmistajan tuotekoodit

• BP020EU

GTIN- / EAN-koodit

• 4260052192023

Tuotekuvat

Power

Total power

1000 W

Peak power

1100 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Maximum input current (@110V)

10 A

Maximum input current (@220V)

5 A

Power factor

0.98

Number of +12V rail(s)

4

Combined power (+3.3V)

120 W

Combined power (+12V)

996 W

Combined power (+5V)

120 W

Max output current (+3.3V)

25 A

Max output current (+12V1)

33 A

Max output current (+12V2)

33 A

Max output current (+12V3)

40 A

Max output current (+12V4)

40 A

Max output current (+5V)

24 A

Max output current (-12V)

0.5 A

Max output current (+5Vsb)

3 A

Hold time

20.1 ms

Efficiency

93.8 %

Power protection features

Over current, Over voltage, Overheating, Overload, Short circuit, Surge & inrush protection (SIP), Under voltage

Ports & interfaces

Motherboard power connector

20+4 pin ATX

Motherboard power cable length

600 mm

Number of SATA power connectors

13

SATA power cable length

600,750,900,1050 mm

Number of SATA power cables

4

Peripheral (Molex) power connectors (4-pin)

2

Peripheral (Molex) power cable length

900,1050 mm

EPS power connector (8-pin)

Kyllä

EPS power connector (4+4 pin)

Kyllä

PCI Express power connectors (6+2 pin)

4

PCI Express power connectors (12-pin)

1

PCI Express power cable length

600 mm

CPU power connector (4+4 pin)

Kyllä

CPU power cable length

700 mm

ATX power connector (20+4 pin)

Kyllä

PCI Express connector

Kyllä

Cabling type

Fully-Modular

Performance

Purpose

PC

Power supply unit (PSU) form factor

ATX

80 PLUS certification

80 PLUS Titanium

ATX version

3.1

EPS version

2.92

Noise level

18.2 dB

Bearing technology

FDB

Mean time between failures (MTBF)

100000 h

Design

Product colour

Black

Cooling type

Active

Fan diameter

135 mm

Number of fans

1 fan(s)

Fan speed

0 - 2100 RPM

Illumination

Ei

On/off switch

Kyllä

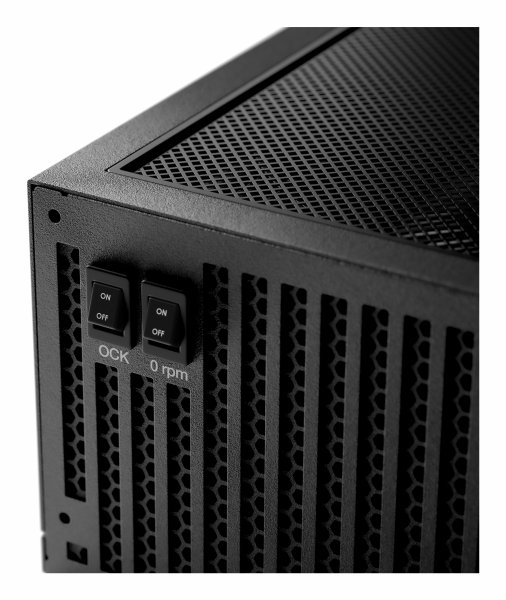

On/off fan switch

Kyllä

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Certificates

Compliance certificates

CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus

Weight & dimensions

Width

150 mm

Depth

175 mm

Height

86 mm

Weight

2200 g

Packaging data

Manual

Kyllä

Manual languages

Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Polish, Russian, Thai, Ukrainian

Package width

230 mm

Package depth

126 mm

Package height

355 mm

Package weight

3500 g

Technical details

Sustainability certificates

ENERGY STAR, ErP, Triman

Logistics data

Shipping (inner) case length

528 mm

Shipping (inner) case width

368 mm

Shipping (inner) case height

260 mm

Shipping (inner) case net weight

19340 g

Products per shipping (inner) case

4 pc(s)

Other features

Screws included

Kyllä

Cable ties included

Kyllä
