MSI CUBI NUC AI+ 2MG-039AT

Tuote

Valmistaja

MSI

Tuoteperhe / -sarja

Cubi

Tuotenimi

CUBI NUC AI+ 2MG-039AT

Valmistajan linkki

https://www.msi.com/Business-Productivity-PC/Cubi-NUC-AI-Plus..

Tuotekoodit

Valmistajan tuotekoodit

• 00B20611-039

GTIN- / EAN-koodit

• 4711377383141

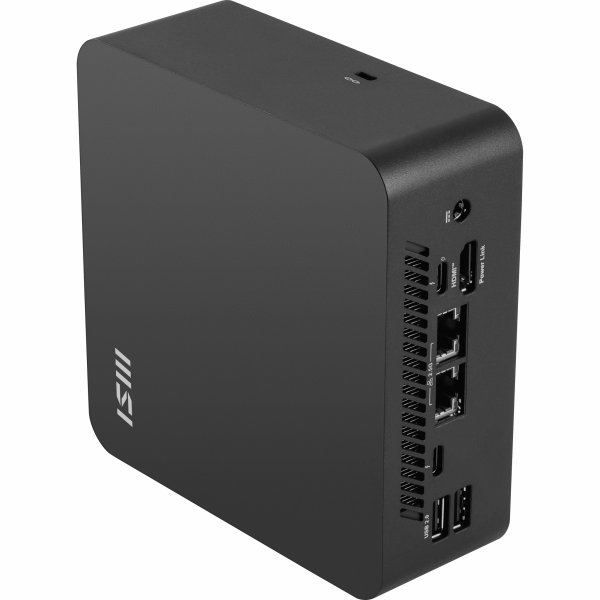

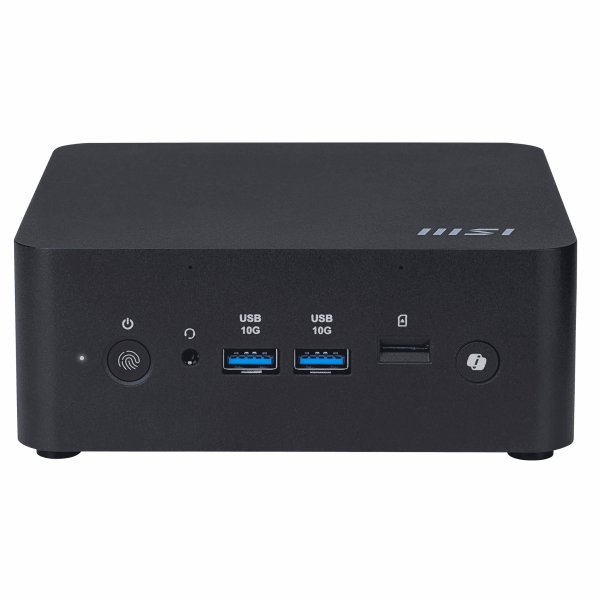

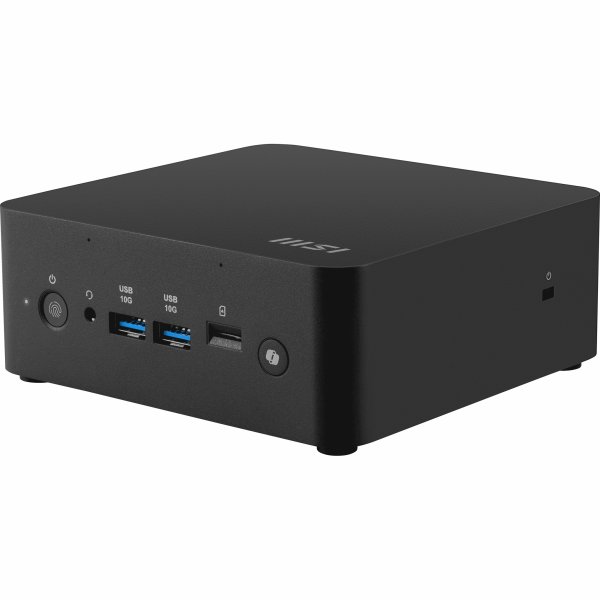

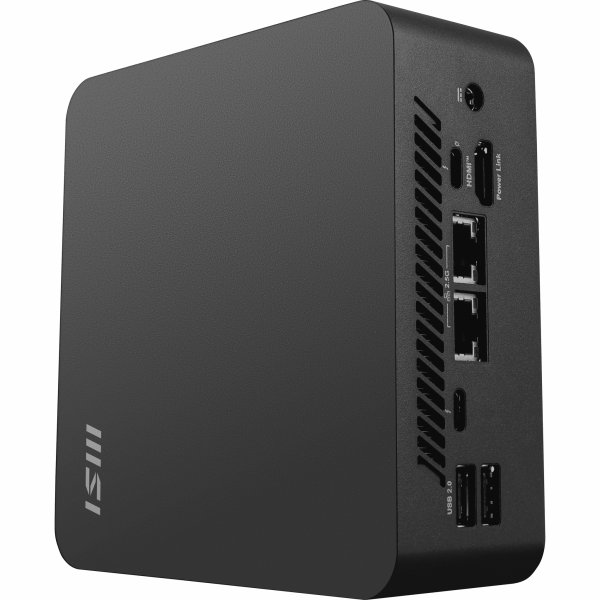

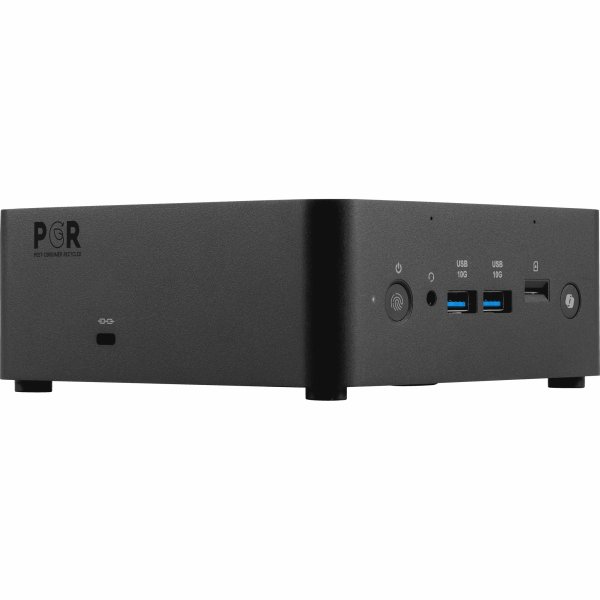

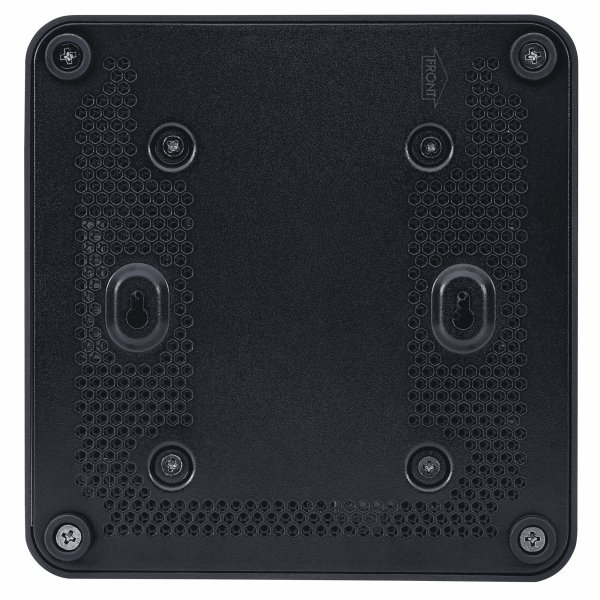

Tuotekuvat

Processor

Processor manufacturer

Intel

Processor family

Intel Core Ultra 7

Processor generation

Intel Core Ultra (Series 2)

Processor model

258V

Processor cores

8

Processor threads

8

Processor boost frequency

4.8 GHz

Performance cores

4

Performance-core Max Turbo Frequency

4.8 GHz

Performance-core base frequency

2.2 GHz

Processor cache

12 MB

Processor cache type

Smart Cache

Processor base power

17 W

Maximum turbo power

37 W

Neural processor unit (NPU)

Copilot+ PC

Kyllä

Neural processor unit (NPU)

Intel AI Boost

Sparsity support

Kyllä

Windows Studio effects support

Kyllä

AI software frameworks supported by NPU

DirectML, OpenVINO, Windows ML, ONNX RT, WebNN

Total processor performance up to

115 TOPs

NPU performance up to

47 TOPs

GPU performance up to

64 TOPs

Memory

Internal memory

32 GB

Maximum internal memory

32 GB

Internal memory type

LPDDR5x-SDRAM

Storage

Total storage capacity

1000 GB

Optical drive type

Ei

Storage media

SSD

Total SSDs capacity

1000 GB

Number of SSDs installed

1

SSD capacity

1000 GB

SSD interface

PCI Express 4.0

NVMe

Kyllä

SSD form factor

M.2

Card reader integrated

Kyllä

Graphics

Discrete graphics card

Ei

On-board graphics card

Kyllä

Discrete graphics card model

Not available

On-board GPU manufacturer

Intel

On-board graphics card family

Intel Arc Graphics

On-board graphics card model

Intel Arc Graphics 140V

Performance

Product type

Mini PC

Market positioning

Business

Motherboard form factor

NUC

Trusted Platform Module (TPM)

Kyllä

Trusted Platform Module (TPM) version

2.0

Built-in speaker(s)

Kyllä

Network

Ethernet LAN

Kyllä

Ethernet LAN data rates

2500 Mbit/s

Cabling technology

10/100/1000Base-T(X)

LAN controller

Intel I226-V

Wi-Fi

Kyllä

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Wi-Fi standards

Wi-Fi 6E (802.11ax)

WLAN controller manufacturer

Intel

WLAN controller model

Intel Wi-Fi 6E AX211

Antenna type

2x2

Bluetooth

Kyllä

Bluetooth version

5.3

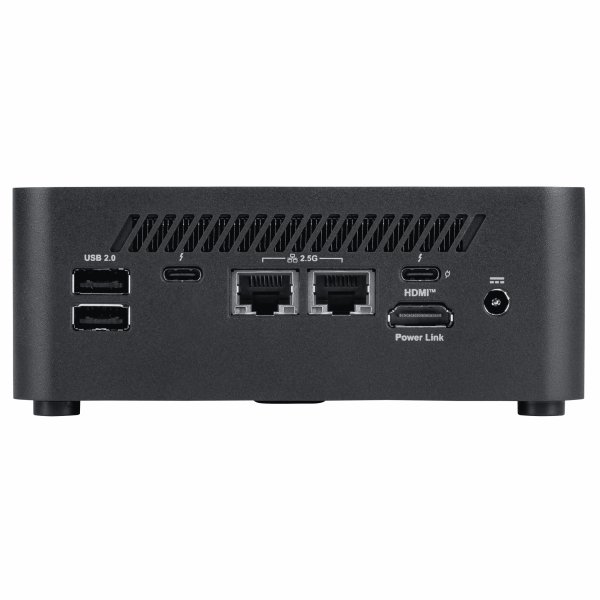

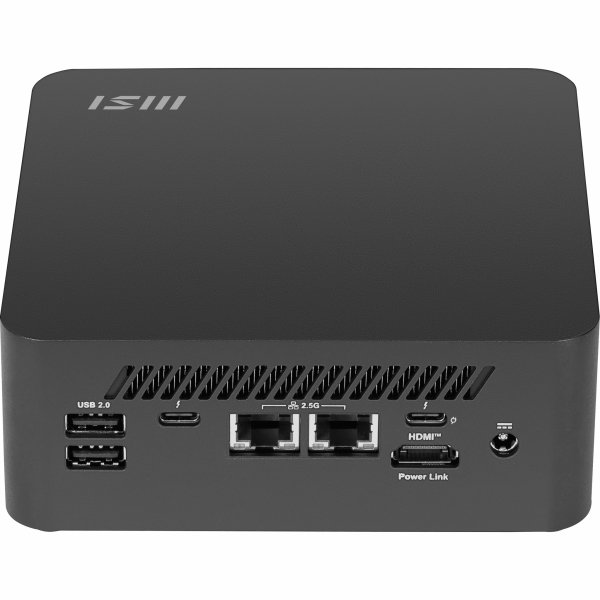

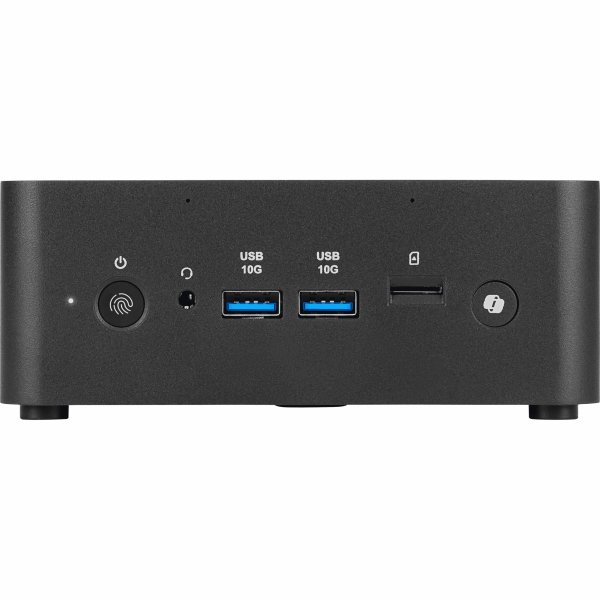

Ports & interfaces

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

Number of USB ports with PowerShare support

1

USB Type-C DisplayPort Alternate Mode

Kyllä

Thunderbolt 3 ports quantity

0

Intel® Thunderbolt 4

Kyllä

Thunderbolt 4 ports quantity

2

HDMI ports quantity

1

HDMI version

2.1

Ethernet LAN (RJ-45) ports

1

Combo headphone/mic port

Kyllä

Headphone outputs

1

Microphone in

Kyllä

Expansion slots

Number of 3.5" bays

1

PCI Express x1 slots

1

PCI Express x16 slots

1

Power

Power supply

120 W

Design

Chassis type

Mini PC

Volume

0.826 L

Placement supported

Horizontal/Vertical

Cable lock slot

Kyllä

Cable lock slot type

Kensington

Product colour

Black

Software

Operating system installed

Ei

Display

Display included

Ei

Audio

Audio chip

Realtek ALC256

Audio system

High Definition Audio

Operational conditions

Operating temperature (T-T)

0 - 35 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 85 %

Storage relative humidity (H-H)

0 - 90 %

Weight & dimensions

Width

135.6 mm

Depth

132.5 mm

Height

50.1 mm

Weight

667 g

Packaging data

Package width

205 mm

Package depth

220 mm

Package height

94 mm

Package weight

1682 g

Packaging content

Mouse included

Ei

Keyboard included

Ei

Certificates

Compliance certificates

CB, Federal Communications Commission (FCC)

Other features

Warranty period

3 year(s)
