Seasonic CORE BC-650

Tuote

Valmistaja

Seasonic

Tuotenimi

CORE BC-650

Valmistajan linkki

https://seasonic.com/core-bc/

Tuotekoodit

Valmistajan tuotekoodit

• SRP-CBC651-A5A51JF

GTIN- / EAN-koodit

• 4711173879435

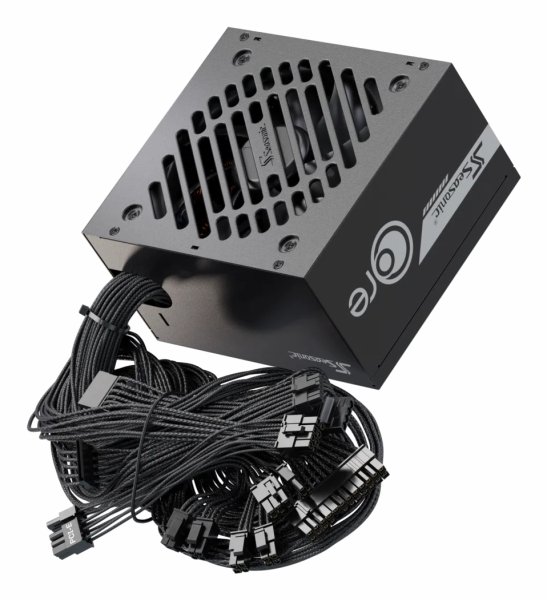

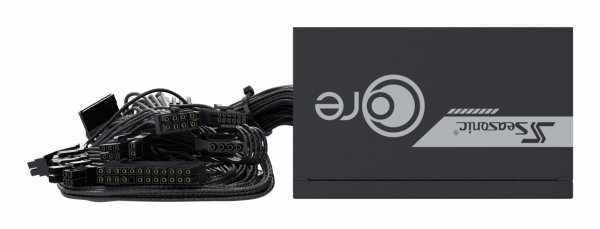

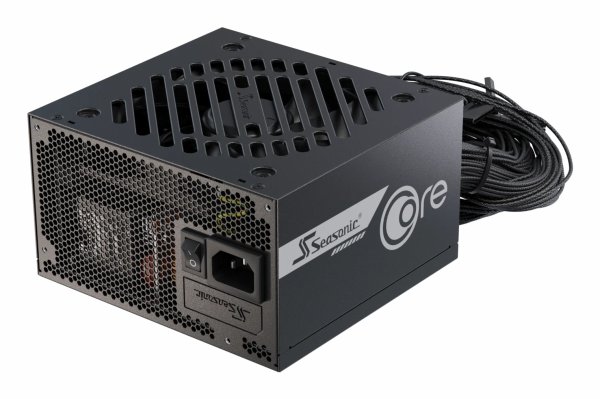

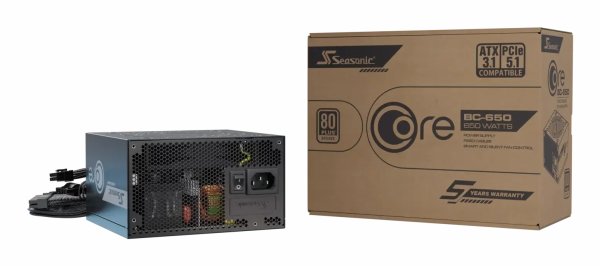

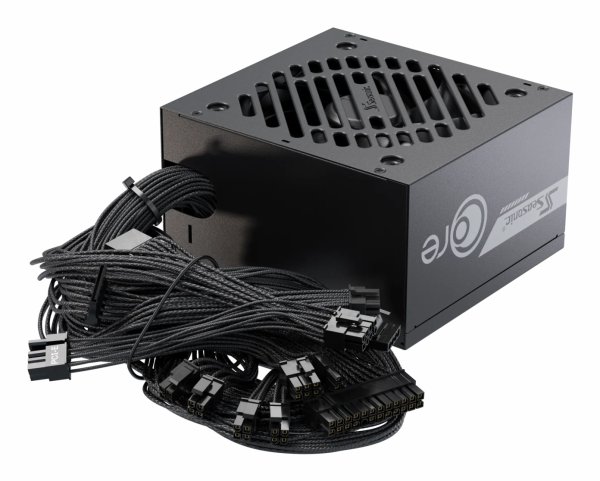

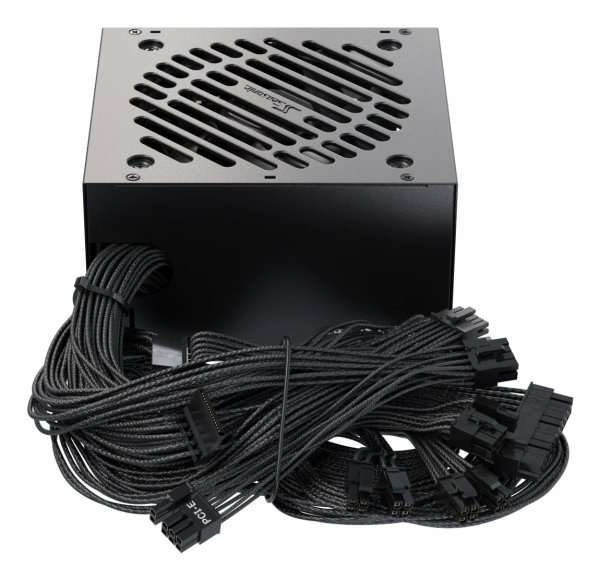

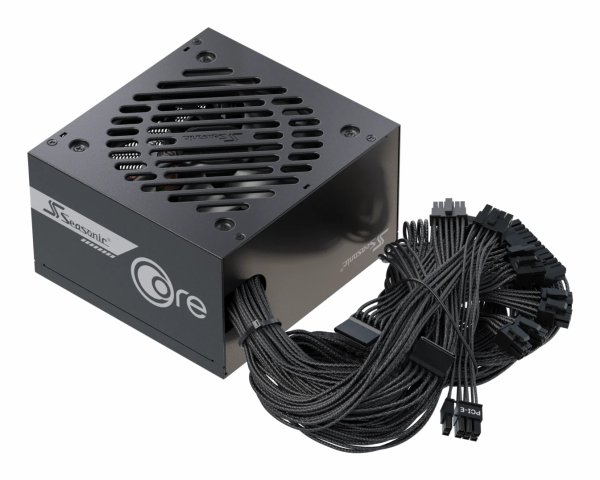

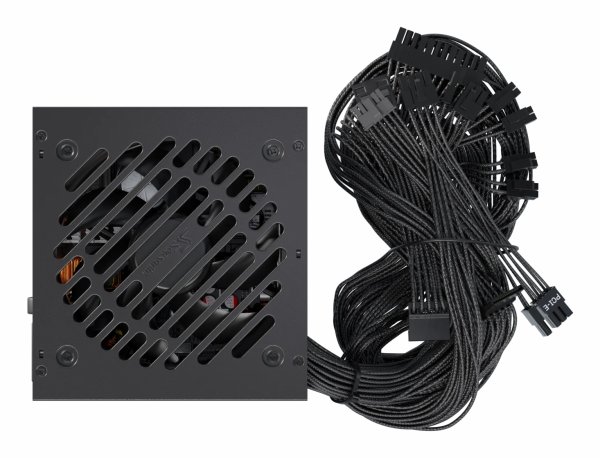

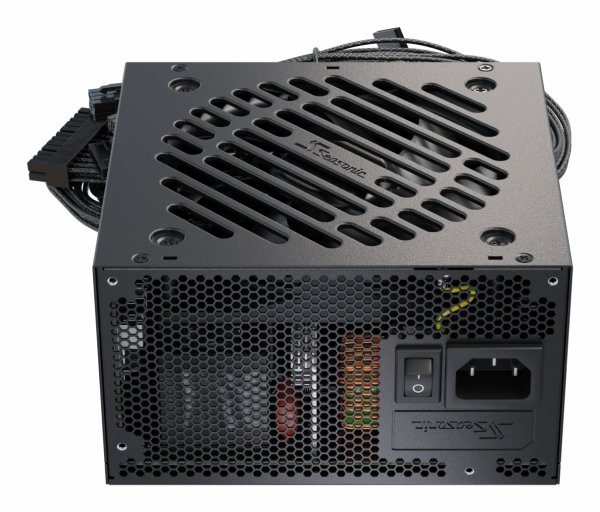

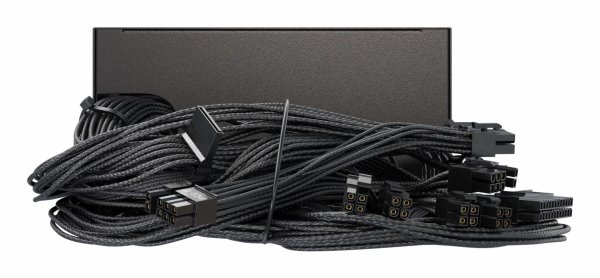

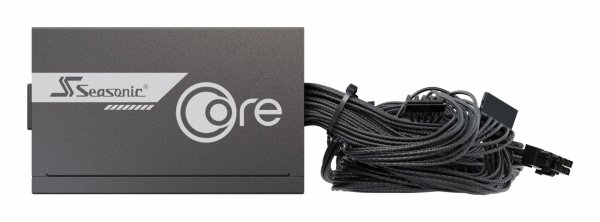

Tuotekuvat

Power

Total power

650 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Input current

9 - 4.5 A

Combined power (+3.3V)

100 W

Combined power (+12V)

648 W

Combined power (-12V)

3.6 W

Combined power (+5Vsb)

12.5 W

Max output current (+3.3V)

20 A

Max output current (+12V)

54 A

Max output current (+5V)

2.5 A

Max output current (-12V)

0.3 A

Max output current (+5Vsb)

20 A

Power protection features

Over current, Over power, Over voltage, Short circuit

Ports & interfaces

Motherboard power connector

20+4 pin ATX

Motherboard power cable length

550 mm

Number of SATA power connectors

6

Peripheral (Molex) power connectors (4-pin)

3

EPS power connector (4+4 pin)

Kyllä

PCI Express power connectors (6+2 pin)

4

CPU power connector (4+4 pin)

Kyllä

CPU power cable length

600 mm

ATX power connector (20+4 pin)

Kyllä

PCI Express connector

Kyllä

Cabling type

Non-Modular

Performance

Purpose

PC

Power supply unit (PSU) form factor

ATX

80 PLUS certification

80 PLUS Bronze

Bearing technology

Sleeve

Mean time between failures (MTBF)

100000 h

Design

Product colour

Black

Cooling type

Active

Fan diameter

120 mm

Number of fans

1 fan(s)

Fan location

Top

On/off switch

Kyllä

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Certificates

Compliance certificates

BSMI, CB, CCC, CE, EAC, REACH, RoHS, UKCA, WEEE, cTUVus

Certification

CE, CB, CCC, cTUVus, TUV, BSMI, EAC, UKCA, Energy Star, RoHS, REACH, WEEE, ErP Lot 6

Weight & dimensions

Width

150 mm

Depth

140 mm

Height

86 mm

Technical details

Sustainability certificates

ENERGY STAR
