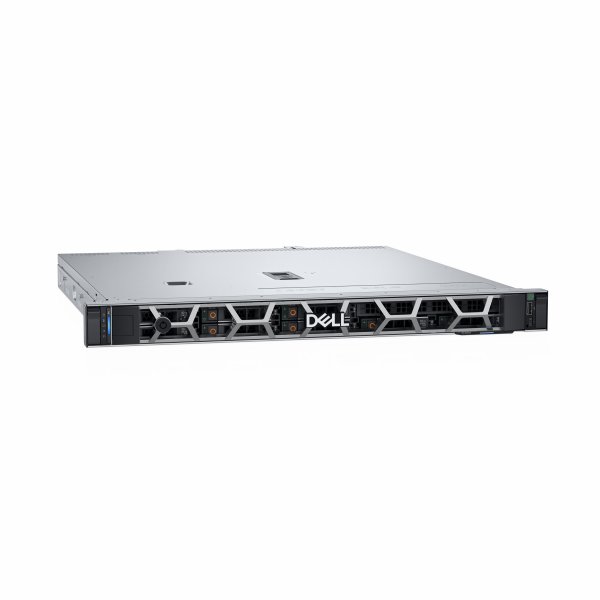

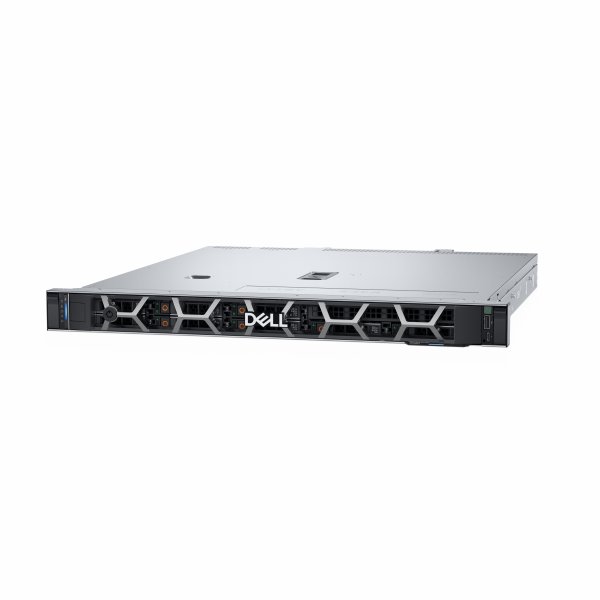

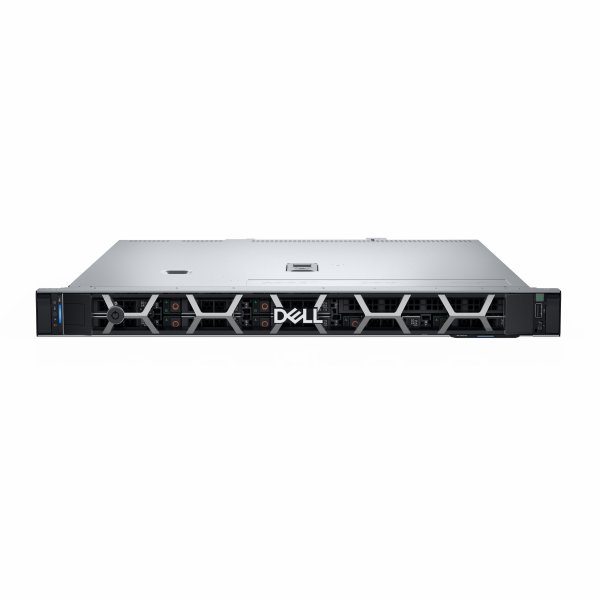

DELL PowerEdge R360

Tuote

Valmistaja

DELL

Tuoteperhe / -sarja

PowerEdge

Tuotenimi

R360

Valmistajan linkki

https://www.dell.com/en-uk/shop/ipovw/poweredge-r360

Tuotekoodit

Valmistajan tuotekoodit

• GNYR5

GTIN- / EAN-koodit

• 5397184969694

Tuotekuvat

Processor

Processor manufacturer

Intel

Processor family

Intel Xeon 6

Processor model

6315P

Processor frequency

2.8 GHz

Processor boost frequency

5.2 GHz

Performance cores

4

Processor cores

4

Processor cache

12 MB

Number of processors installed

1

Thermal Design Power (TDP)

55 W

System bus rate

16 GT/s

Processor threads

4

Memory types supported by processor

DDR5-SDRAM

Memory clock speeds supported by processor

4800 MHz

Memory

Internal memory

32 GB

Internal memory type

DDR5-SDRAM

Buffered memory type

Unregistered (unbuffered)

Memory slots

4x DIMM

ECC

Kyllä

Memory layout (slots x size)

1 x 32 GB

Memory data transfer rate

5600 MT/s

Maximum internal memory

128 GB

Storage

Total storage capacity

480 GB

Number of SSDs installed

1

SSD capacity

480 GB

SSD size

2.5"

Supported SSD sizes

3.5"

Number of SSDs supported

4

RAID support

Kyllä

Supported RAID controllers

Front PERC H355 Front Load

Hot-Plug support

Kyllä

Optical drive type

Ei

Drive writes per day (DWPD)

1

Storage drive adapter included

Kyllä

Storage drive adapter type

2.5" - 3.5"

Network

LAN controller

Broadcom 5720

Ethernet LAN

Kyllä

Cabling technology

10/100/1000Base-T(X)

Ethernet interface type

Gigabit Ethernet

Ports & interfaces

Ethernet LAN (RJ-45) ports

2

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

VGA (D-Sub) ports quantity

1

Serial ports quantity

1

Expansion slots

PCI Express x8 slots

1

PCI Express x16 slots

1

Design

Chassis type

Rack (1U)

Product colour

Black

Bezel

Kyllä

Performance

Remote administration

iDRAC9, Enterprise 16G

Software

Operating system installed

Ei

Compatible operating systems

Canonical® Ubuntu® Server LTS Microsoft® Windows Server® with Hyper-V RedHat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi®

Power

Redundant power supply (RPS) support

Ei

Power supply

700 W

Number of main power supplies

1

Power supply input voltage

200 - 240 V

Certificates

80 PLUS certification

80 PLUS Titanium

Carbon footprint

Total carbon footprint (kg of CO2e)

1140

Total carbon emissions, standard deviation (kg of CO2e)

943

Carbon emissions, manufacturing (kg of CO2e)

307.8

Carbon emissions, logistics (kg of CO2e)

102.6

Carbon emissions, energy usage (kg of CO2e)

718.2

Carbon emissions, end-of-life (kg of CO2e)

11.4

PAIA version

PAIA 1.4.0, 2024

Weight & dimensions

Width

482 mm

Height

42.8 mm

Packaging content

Packaging content

ReadyRails™ Sliding Rails Without Cable Management Arm,Riser Config 0 Rack Power Cord 2M (C13/C14 10A)

Other features

Data transfer rate

6 Gbit/s

Bytes per sector

512e

Target workload

Read Intensive (RI)
