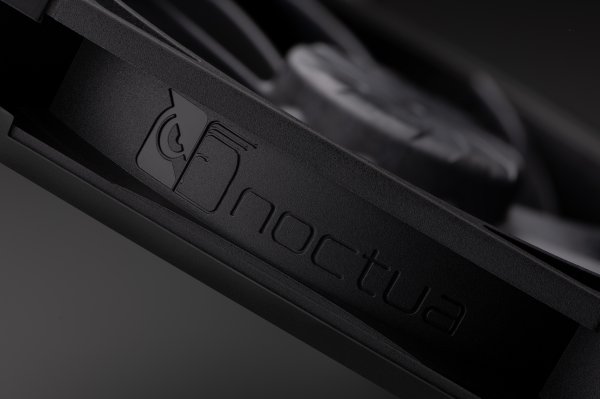

Noctua NF-A14X25 G2 PWM CHROMAX.BLACK

Tuote

Valmistaja

Noctua

Tuotenimi

NF-A14X25 G2 PWM CHROMAX.BLACK

Valmistajan linkki

https://www.noctua.at/

Tuotekoodit

Valmistajan tuotekoodit

• NF-A14X25 G2 PWM CHROMAX.BLACK
• NF-A14X25 G2PWM CHROMAX.BLACK
• NF-A14X25 G2 PWM CHROMAX.BLACK
• NF-A14X25-G2-PWM-CHROMAX.BLACK

GTIN- / EAN-koodit

• 9010018100723

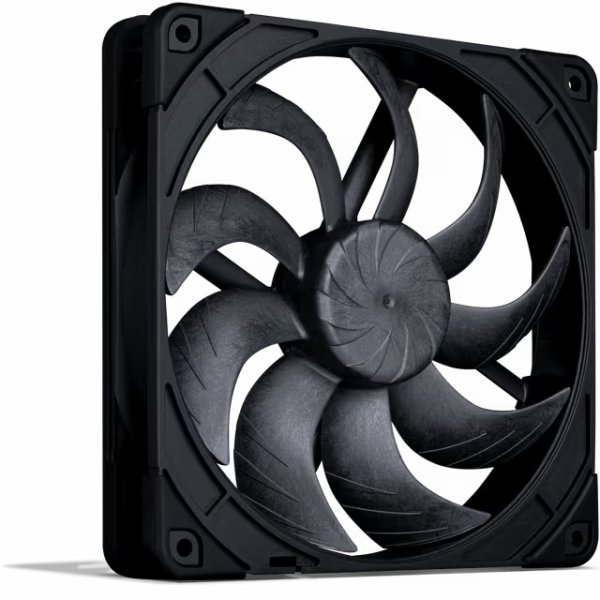

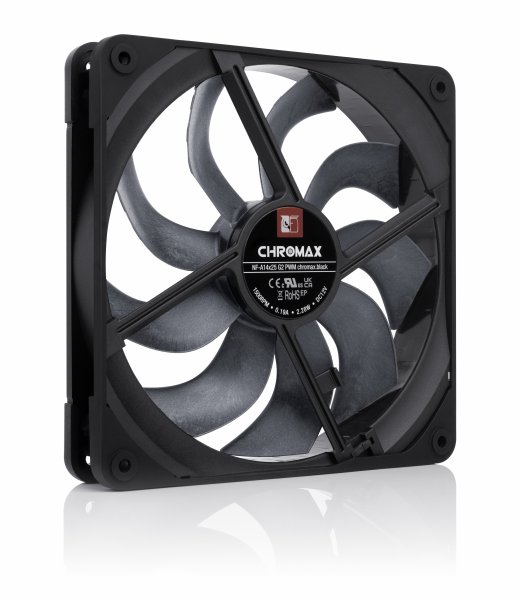

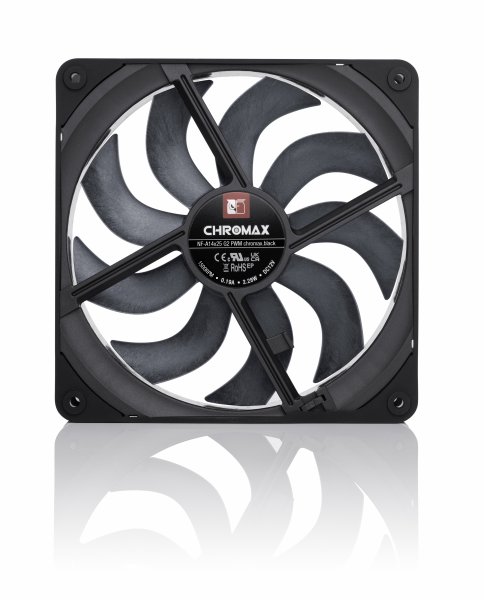

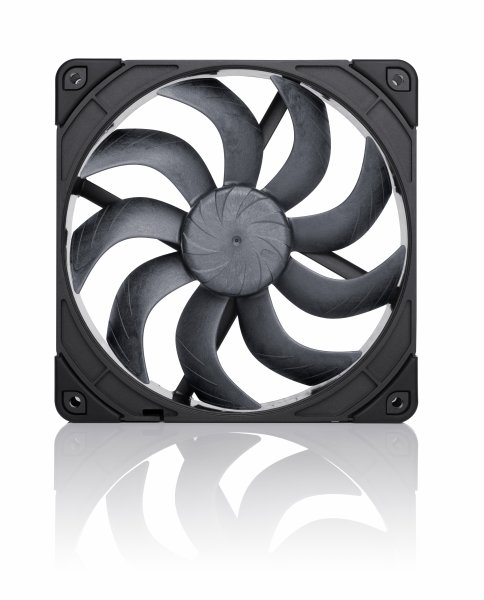

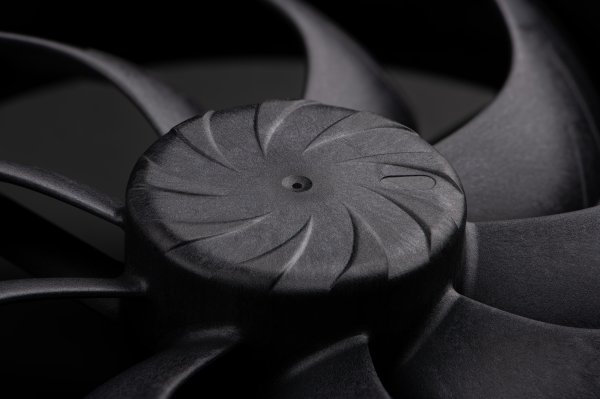

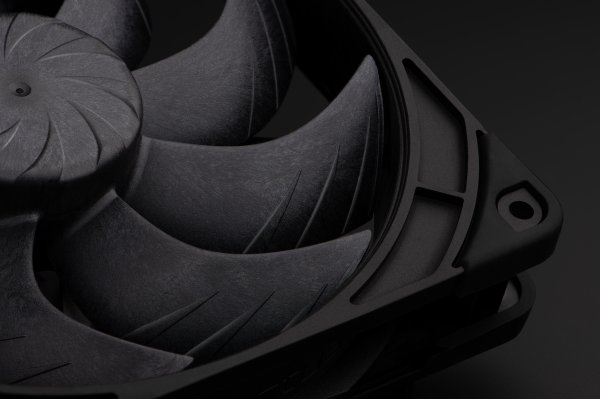

Tuotekuvat

Performance

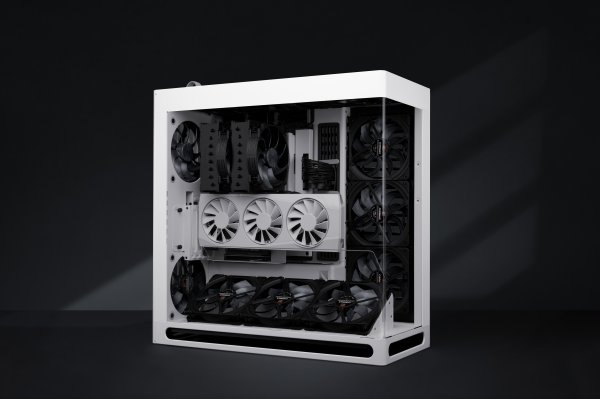

Suitable location

Computer case

Type

Fan

Fan diameter

140 mm

Maximum airflow

91.58 cfm

Airflow

155.6 m³/h

Maximum air pressure

2.56 mmH2O

Bearing type

Self-Stabilising Oil-pressure (SSO2) bearing

Fan noise level (max)

24.8 dB

Quantity per pack

1 pc(s)

Fan speed (min)

0 RPM

Fan speed (max)

1500 RPM

Fan's mean time to failure (MTTF)

150000 h

Operating temperature (T-T)

-10 - 60 °C

Design

Product colour

Black

Material

Polybutylene terephthalate (PBT), Acrylonitrile butadiene styrene (ABS), Silicone, Rubber

Number of fans

1 fan(s)

Number of fan blades

9

Fan connector

4-pin

Power

Rated voltage

12 V

Starting voltage

7 V

Fan power consumption

2.28 W

Fan current

0.19 A

Weight & dimensions

Fan dimensions (W x D x H)

140 x 25 x 140 mm

Fan weight

225 g

Package width

199 mm

Package depth

148 mm

Package height

33 mm

Package weight

362 g

Technical details

Warranty period

6 year(s)

Compliance certificates

UL, UKCA, CE, RoHS, REACH

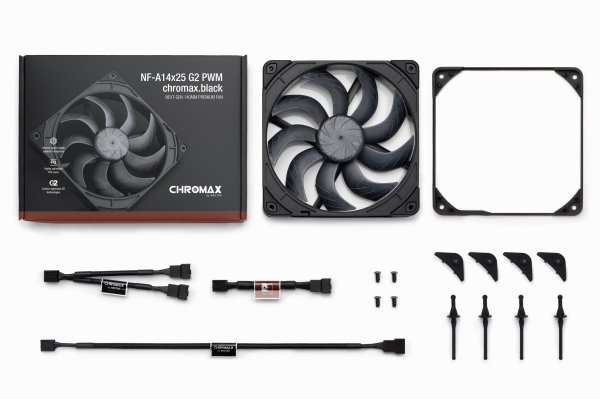

Packaging content

Cables included

4-pin

Mounting kit

Kyllä

Screws included

Kyllä
