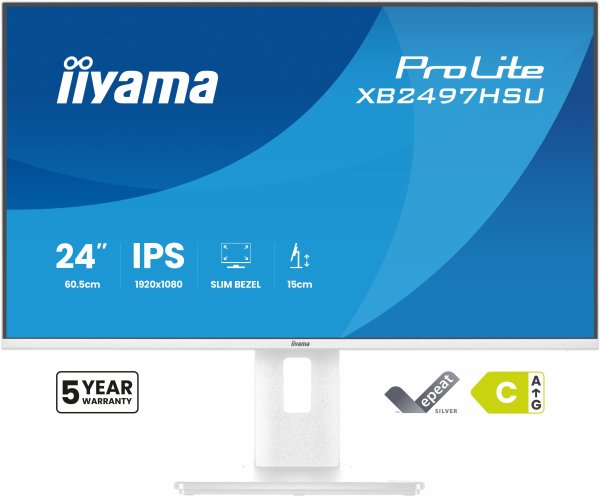

iiyama ProLite XB2497HSU-W1

Tuote

Valmistaja

iiyama

Tuoteperhe / -sarja

ProLite

Tuotenimi

XB2497HSU-W1

Valmistajan linkki

https://iiyama.com/

Tuotekoodit

Valmistajan tuotekoodit

• XB2497HSU-W1

GTIN- / EAN-koodit

• 4948570125838

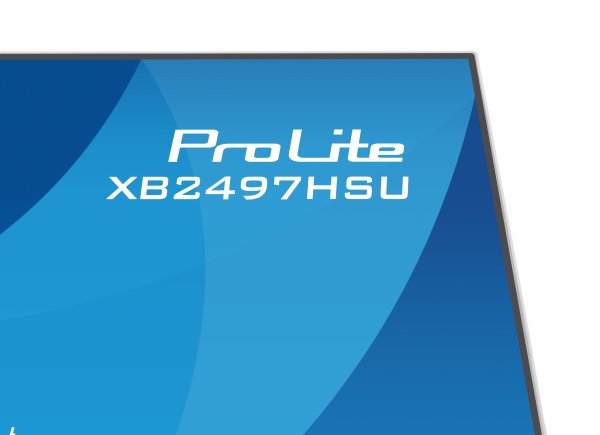

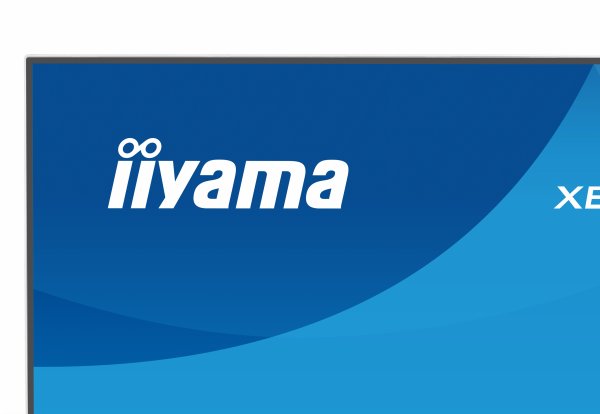

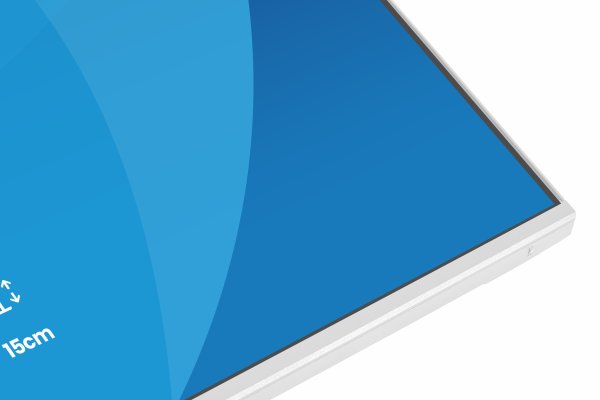

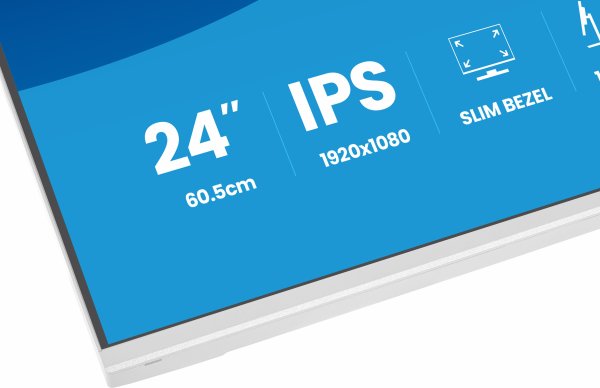

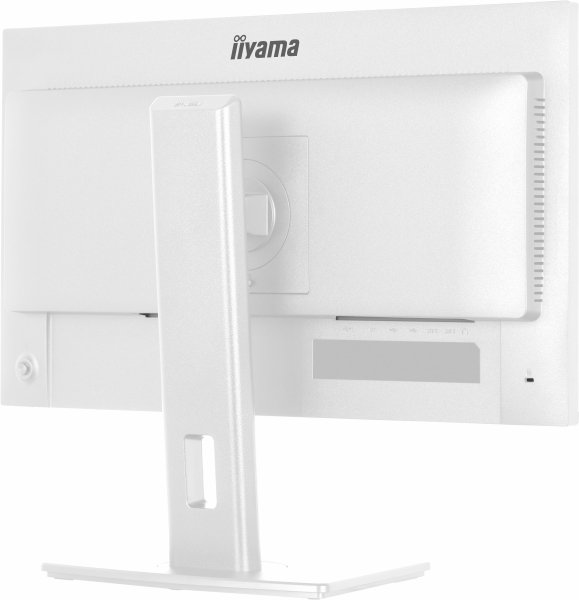

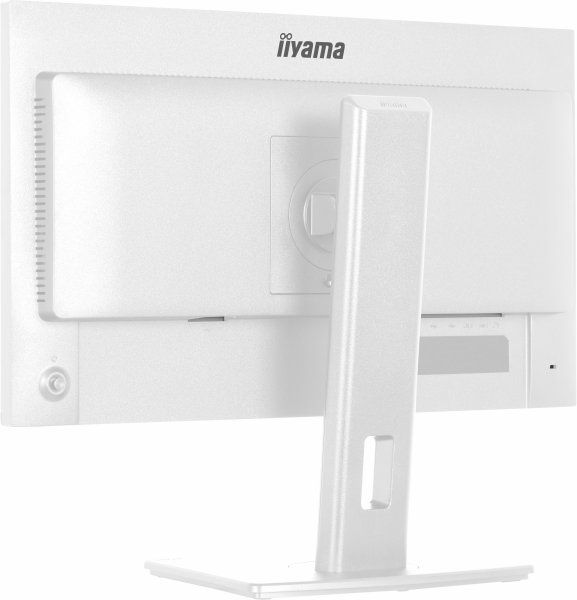

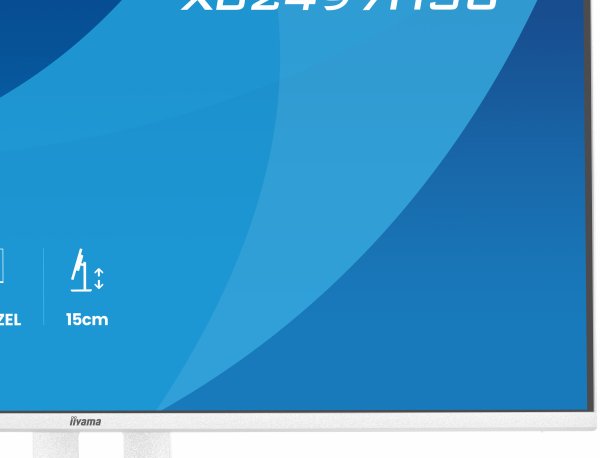

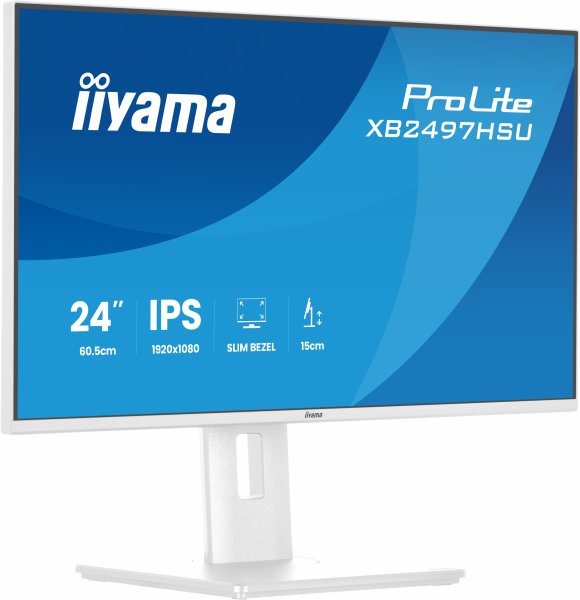

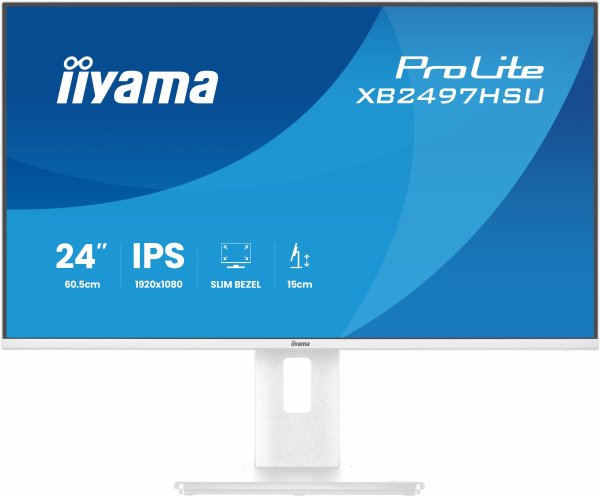

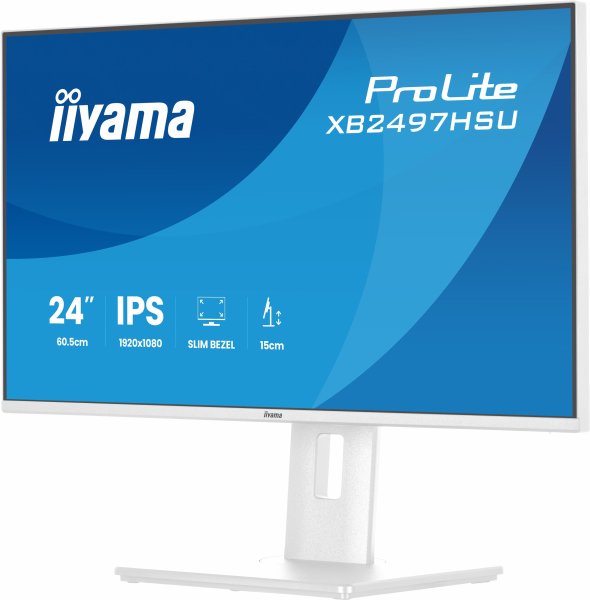

Tuotekuvat

Display

Display diagonal

23.8 "

Display resolution

1920 x 1080 pixels

Native aspect ratio

16:9

Display technology

LED

Touchscreen

Ei

HD type

Full HD

Panel type

IPS

Display brightness (typical)

350 cd/m²

Response time

4 ms

Response time measurement type

GTG (Gray to Gray)

Display surface

Matt

Screen shape

Flat

Contrast ratio (typical)

1500:1

Contrast ratio (dynamic)

80000000:1

Maximum refresh rate

120 Hz

Viewing angle, horizontal

178 °

Viewing angle, vertical

178 °

Display number of colours

16.7 million colours

Pixel pitch

0.275 x 0.275 mm

Horizontal scan range

30 - 140 kHz

Viewable size, horizontal

527 mm

Viewable size, vertical

296.5 mm

Display diagonal (metric)

60.5 cm

Colour gamut standard

sRGB, NTSC

sRGB coverage (typical)

99 %

NTSC coverage (typical)

72 %

Performance

AMD FreeSync

Kyllä

VESA Adaptive Sync support

Kyllä

Flicker-free technology

Kyllä

Low Blue Light technology

Kyllä

Multimedia

Built-in speaker(s)

Kyllä

Number of speakers

2

RMS rated power

4 W

Built-in camera

Ei

Design

Market positioning

Business

Product colour

White

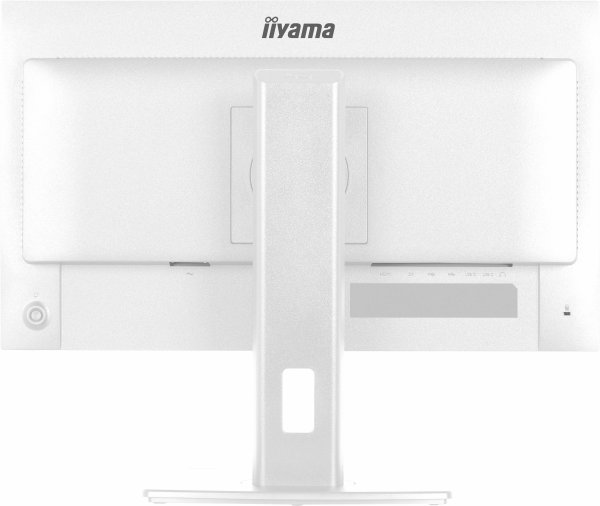

Ports & interfaces

Built-in USB hub

Kyllä

USB hub version

3.2 Gen 1 (3.1 Gen 1)

Number of downstream ports

4

HDMI

Kyllä

HDMI ports quantity

1

HDMI version

1.4

DisplayPorts quantity

1

Headphone out

Kyllä

HDCP

Kyllä

Ergonomics

VESA mounting

Kyllä

Panel mounting interface

100 x 100 mm

Wall mountable

Kyllä

Cable management

Kyllä

Cable lock slot

Kyllä

Cable lock slot type

Kensington

Height adjustment

Kyllä

Adjustable height (max)

150 mm

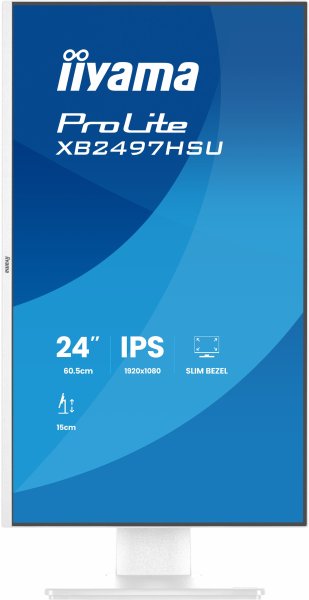

Pivot

Kyllä

Pivot angle

0 - 90 °

Swivelling

Kyllä

Swivel angle range

-60 - 60 °

Tilt adjustment

Kyllä

Tilt angle range

23 - 5 °

On Screen Display (OSD)

Kyllä

On Screen Display (OSD) languages

Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Russian

Power

Energy efficiency class (SDR)

C

Energy efficiency class (HDR)

Not available

Energy consumption (SDR) per 1000 hours

12 kWh

Power consumption (typical)

12 W

Power consumption (standby)

12 W

Power consumption (off)

0.3 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Power supply type

Internal

Energy efficiency scale

A to G

Weight & dimensions

Width (with stand)

539 mm

Depth (with stand)

209.5 mm

Height (with stand)

495 mm

Weight (with stand)

4700 g

Width (without stand)

539 mm

Depth (without stand)

209.5 mm

Height (without stand)

372 mm

Packaging data

Package width

685 mm

Package depth

126 mm

Package height

405 mm

Package weight

6700 g

Package type

Box

USB cable length

1.5 m

Packaging content

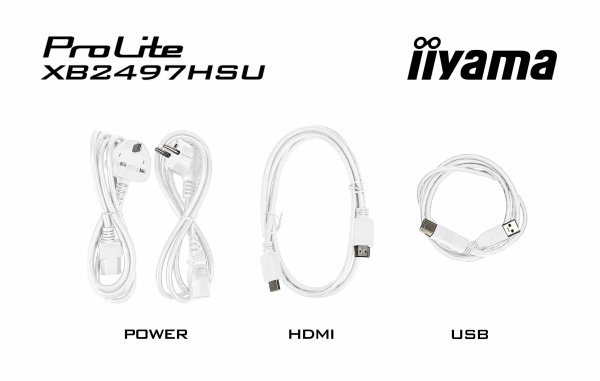

Cables included

AC, USB, HDMI, DisplayPort

DisplayPort cable length

1.8 m

HDMI cable length

1.5 m

Power cable length

1.8 m

Sustainability

Sustainability certificates

ErP, TCO

Other features

Packaging content

quick start guide, safety guide

Weight

4700 g

Width

539 mm

Depth

209.5 mm

Compliance certificates

CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE

Manufacturer warranty

5 years (for details and eligible countries please check the Warranty section of our website)

User controls

picture adjust (brightness, contrast, ECO, ACR, OD, motion blur reduction, Adpative Sync), colour settings (i-Style colour, RGB range, colour temperature, user preset), OSD (OSD H. position, OSD V. position, OSD rotate, OSD background, DDC/CI control, display information), language, extra1 (sharpness, video mode adjust, opening logo, power LED), extra2 (shortcut, FW version), input select, audio settings (volume, mute audio), reset

Control panel

Joystick: Centre: Power/MenuPower, Up/Signal Select, Down, Left/Shortcut, Right/Volume
