ASUS ROG STRIX X870E-A GAMING WIFI7 NEO

Tuote

Valmistaja

ASUS

Tuotenimi

ROG STRIX X870E-A GAMING WIFI7 NEO

Valmistajan linkki

https://rog.asus.com/motherboards/rog-strix/rog-strix-x870e-a..

Tuotekoodit

Valmistajan tuotekoodit

• 90MB1P30-M0EAY0

GTIN- / EAN-koodit

• 4711636491617

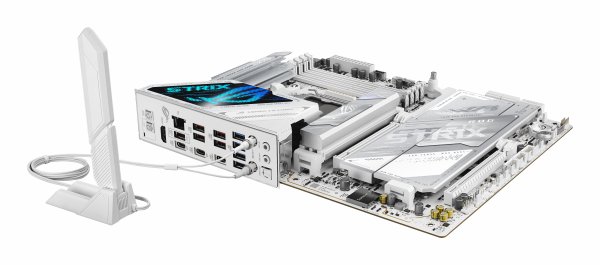

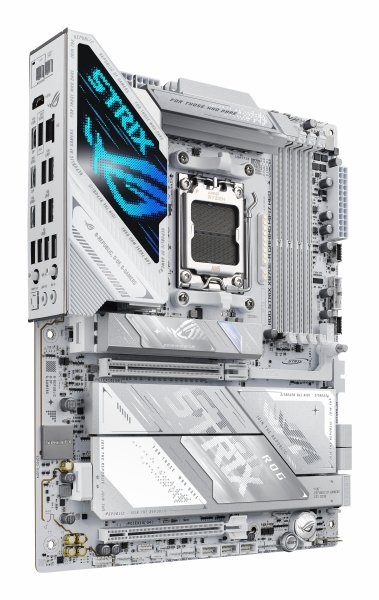

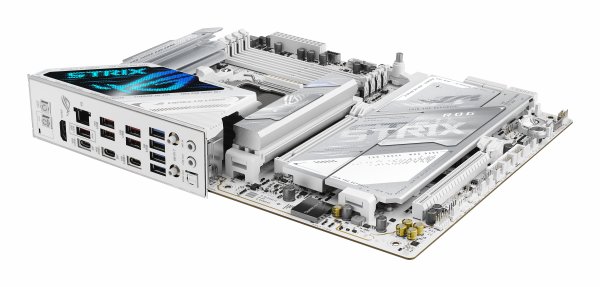

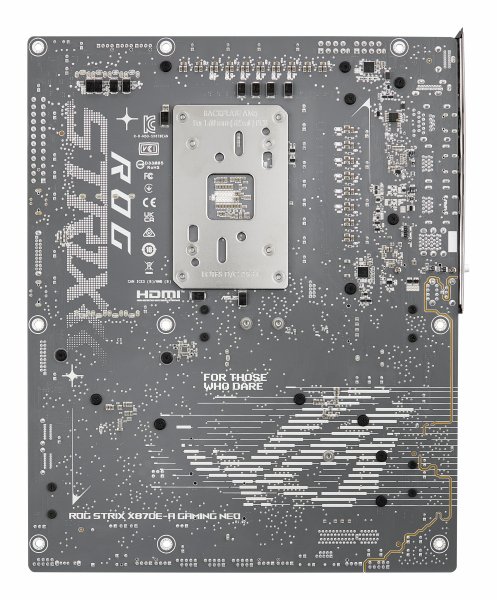

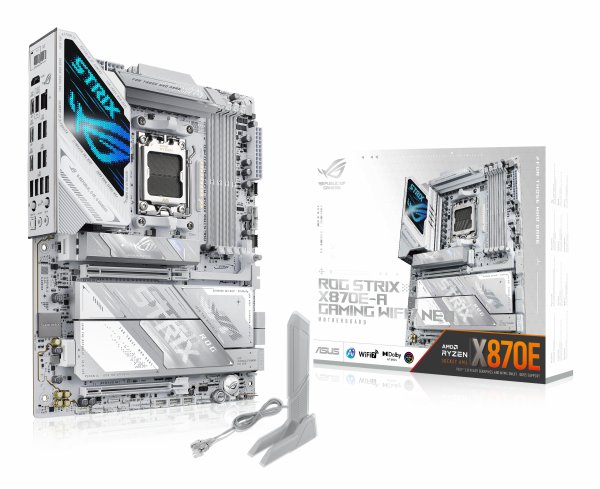

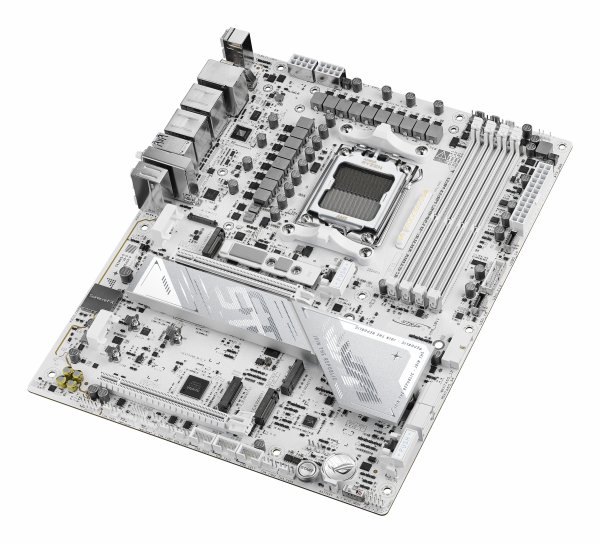

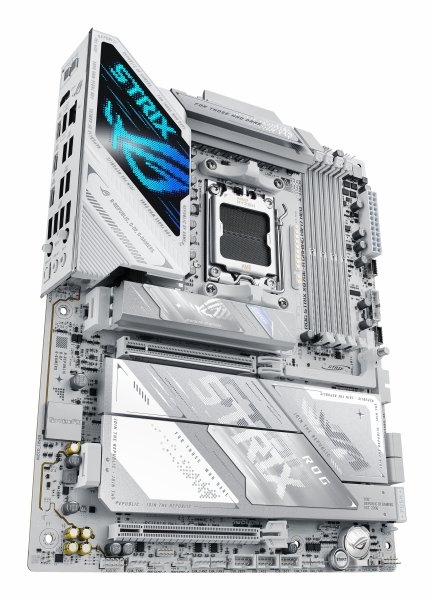

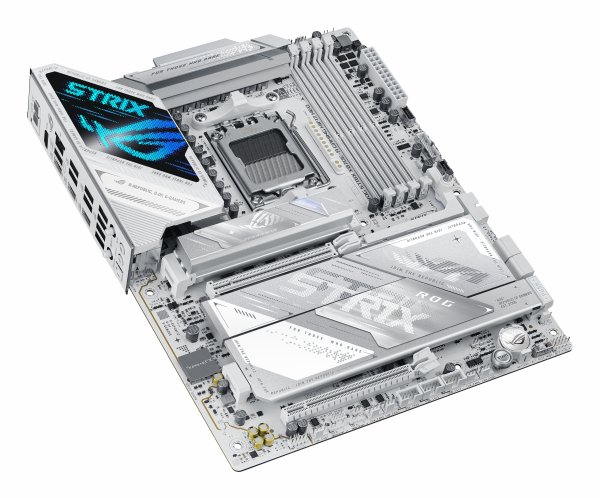

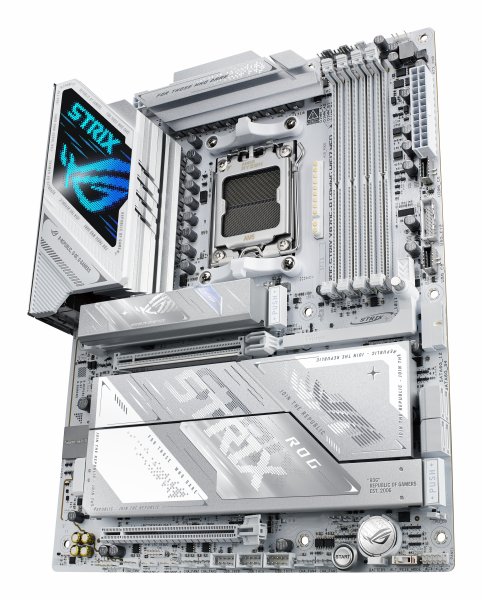

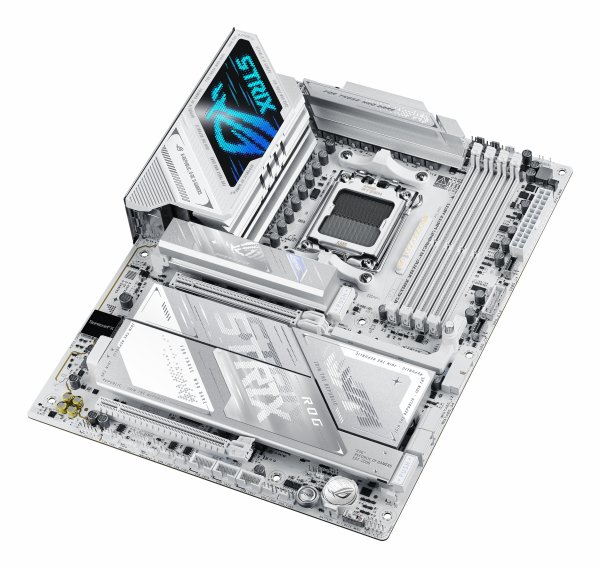

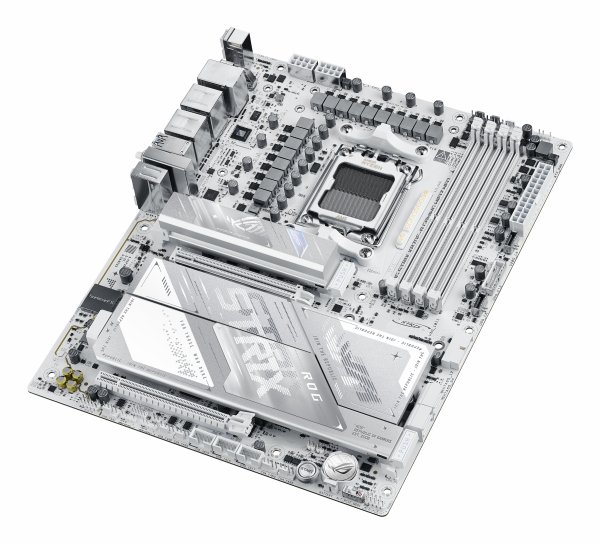

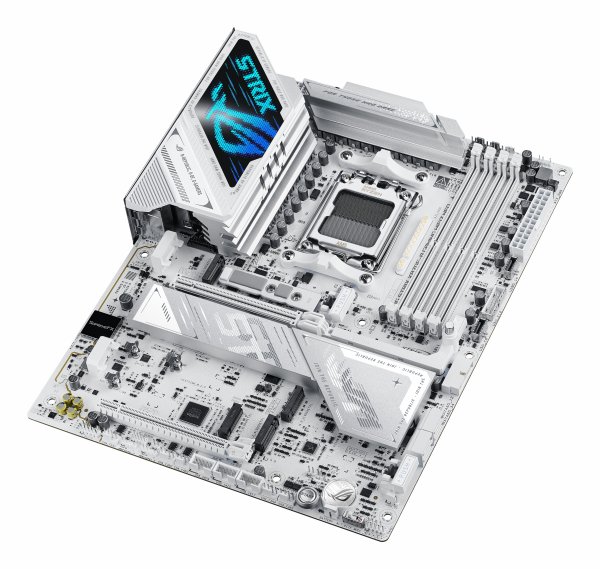

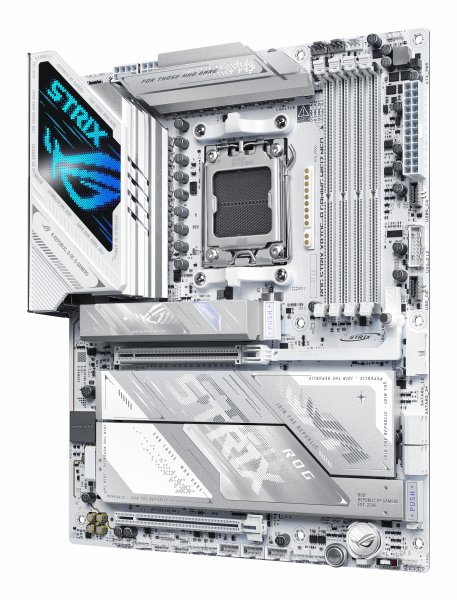

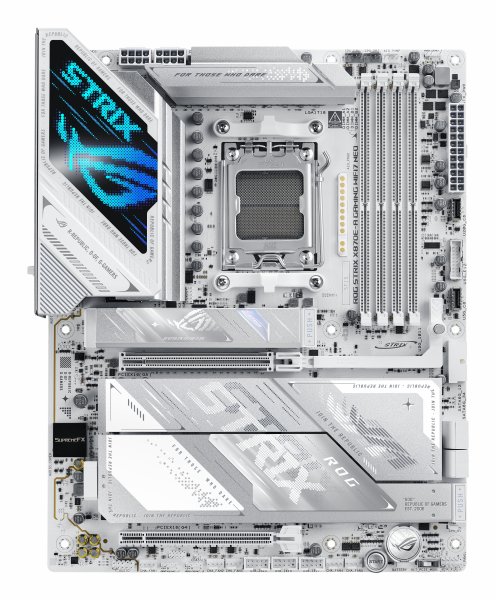

Tuotekuvat

Processor

Processor manufacturer

AMD

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series

Memory

Supported memory types

DDR5-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

ECC сompatibility

ECC & Non-ECC

Supported memory clock speed (max)

9600 MHz

Maximum internal memory

256 GB

Unbuffered memory

Kyllä

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

SATA III, M.2

Number of HDDs supported

4

Number of storage drives supported

8

RAID support

Kyllä

RAID levels

0, 1, 5, 10

Graphics

Parallel processing technology support

Not supported

Internal I/O

USB 2.0 connectors

3

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

USB 3.2 Gen 2x2 connectors

1

Number of SATA III connectors

4

Front panel audio connector

Kyllä

ATX Power connector (24-pin)

Kyllä

CPU fan connector

Kyllä

Number of CPU fan connectors

1

Number of chassis fan connectors

5

Chassis intrusion connector

Kyllä

EPS power connector (8-pin)

Kyllä

12V power connector

Kyllä

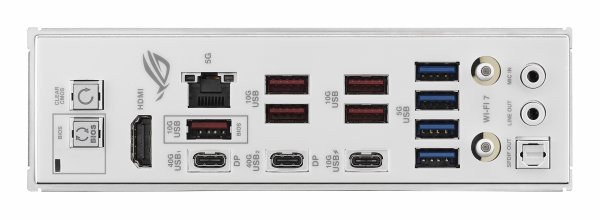

Rear panel I/O ports

USB 2.0 ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

5

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB4 Gen 3x2 ports quantity

2

Ethernet LAN (RJ-45) ports

1

VGA (D-Sub) ports quantity

0

HDMI ports quantity

1

DVI-D ports quantity

0

Microphone in

Kyllä

S/PDIF out port

Kyllä

Network

Ethernet LAN

Kyllä

Ethernet interface type

5 Gigabit Ethernet

Wi-Fi

Kyllä

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Wi-Fi standards

Wi-Fi 7 (802.11be)

WLAN controller model

MediaTek MT7925

Bluetooth

Kyllä

Bluetooth version

5.4

Features

Component for

PC

Motherboard form factor

ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD X870E

Audio output channels

7.1 channels

Product colour

Multicolour

Windows operating systems supported

Windows 11

Expansion slots

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

4

1st M.2 largest key size

2280

BIOS

BIOS type

UEFI AMI

BIOS memory size

64 Mbit

Clear CMOS button

Kyllä

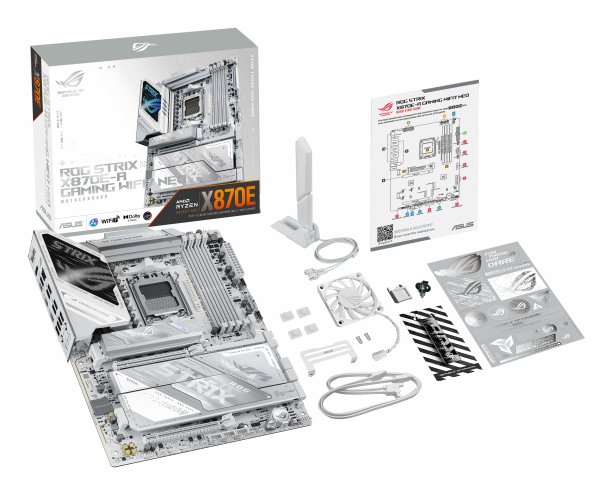

Packaging data

Package width

353 mm

Package depth

273 mm

Package height

68 mm

Package weight

2698 g

Weight & dimensions

Width

305 mm

Depth

244 mm

Height

50 mm

Other features

Weight

1898 g
