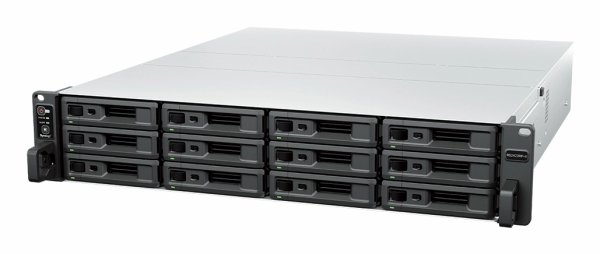

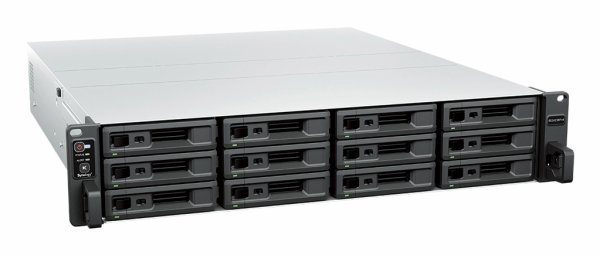

Synology RackStation RS2423RP+II

Tuote

Valmistaja

Synology

Tuoteperhe / -sarja

RackStation

Tuotenimi

RackStation RS2423RP+II

Valmistajan linkki

https://www.synology.com/en-in/products/RS2423RP%2BII

Tuotekoodit

Valmistajan tuotekoodit

• RS2423RP+II

GTIN- / EAN-koodit

• 4711174726752

Tuotekuvat

Storage

Storage drives installed

Ei

Total installed storage capacity

0 TB

Number of storage drives installed

0

Number of storage drives supported

12

Installed storage drive type

Ei

Supported storage drive types

HDD & SSD

Storage drive capacity

0 GB

Storage drive interface

Serial ATA, Serial ATA II, Serial ATA III

Storage drive sizes supported

2.5,3.5 "

RAID support

Kyllä

RAID levels

JBOD, 0, 1, 5, 6, 10

Hot-swap drive bays

Kyllä

Supported file systems

BTRFS, ext4, ext3, FAT32, NTFS, HFS+, exFAT

Maximum number of drives (with expansion)

24

Processor

Processor manufacturer

AMD

Processor family

AMD Ryzen

Processor generation

AMD Ryzen 1000 Series

Processor model

V1780B

Processor frequency

3.35 GHz

Processor boost frequency

3.6 GHz

Processor cores

4

Processor threads

8

L3 cache

4 MB

Number of processors installed

1

Thermal Design Power (TDP)

54 W

Memory

Internal memory

8 GB

Internal memory type

DDR4

Maximum RAM supported

32 GB

Memory slots

2

Memory form factor

UDIMM

ECC

Kyllä

Network

Ethernet LAN

Kyllä

Ethernet LAN data rates

10,100,1000,10000 Mbit/s

Ethernet LAN data rate supported (max)

10000 Mbit/s

Wake-on-LAN ready

Kyllä

Wake-on-WAN ready

Kyllä

Supported network protocols

SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

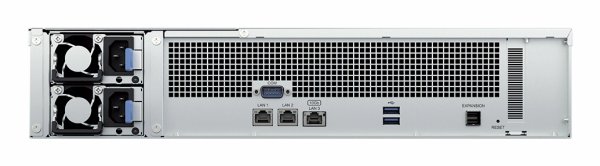

Ports & interfaces

Ethernet LAN (RJ-45) ports

3

USB port

Kyllä

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Expansion ports quantity

1

PCI Express x8 (Gen 3.x) slots

1

Design

Chassis type

Rack (2U)

Cooling type

Active

Product colour

Black

Number of fans

3 fan(s)

Fan diameter

60 mm

Fan diameter 2

60 mm

LED indicators

Power, Status, Alarm

Built-in display

Ei

Performance

Type

NAS

Device class

Small & Medium Business

Backup function

Kyllä

Noise level

56.2 dB

Snapshot

Kyllä

Security algorithms

SSL/TLS, SSH, HTTPS

Reset button

Kyllä

On/off switch

Kyllä

Software

Operating system installed

DiskStation Manager

Power

Power supply unit (PSU) capacity

550 W

Redundant power supply (RPS) support

Kyllä

Power consumption (typical)

114.86 W

Power consumption (HDD standby)

42.33 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Number of phases

1

Weight & dimensions

Width

482 mm

Depth

578 mm

Height

88 mm

Weight

11900 g

Packaging content

Cables included

Power

Power cables quantity

2

Quick installation guide

Kyllä

Features

Product languages

Multi

Operational conditions

Operating temperature (T-T)

0 - 35 °C

Operating relative humidity (H-H)

8 - 80 %

Storage temperature (T-T)

-20 - 60 °C

Storage relative humidity (H-H)

5 - 95 %

Operating altitude

0 - 5000 m

Other features

Size (imperial)

19 "

Supported protocols

SMB, AFP, NFS, FTP, WebDAV, Rsync

Doesn't contain

Lead, Mercury, Cadmium

Warranty period

3 year(s)

Compliance certificates

Federal Communications Commission (FCC), CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, BIS, UL, RoHS

Expansion description

Mini-SAS HD
