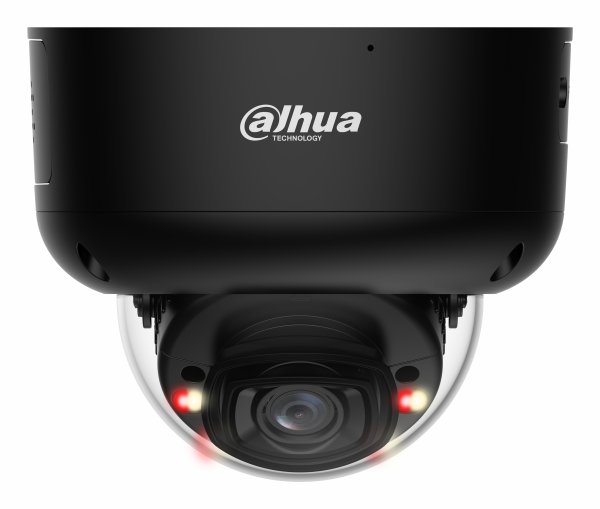

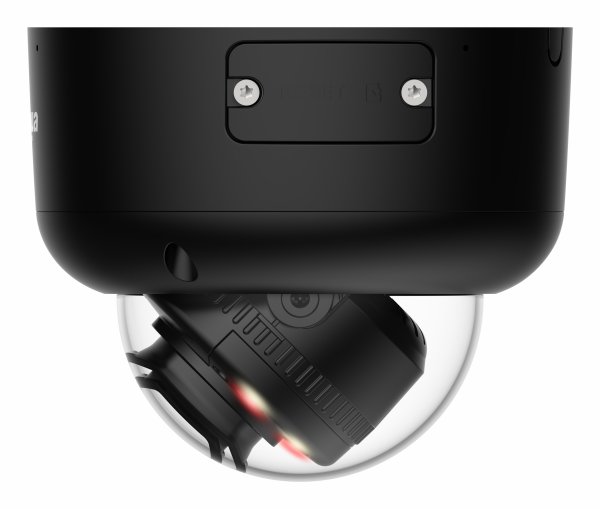

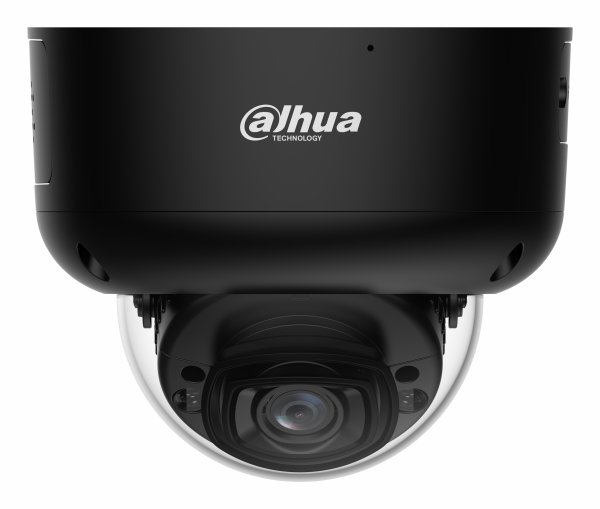

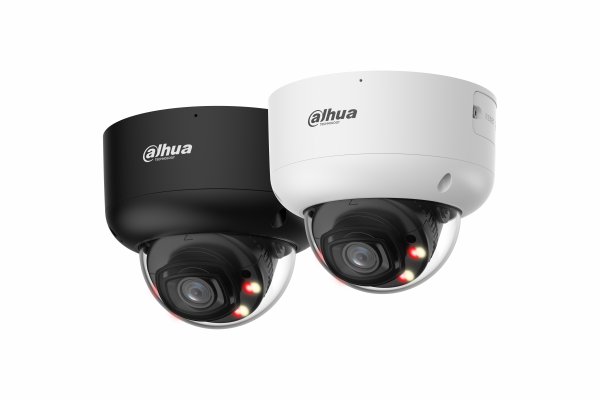

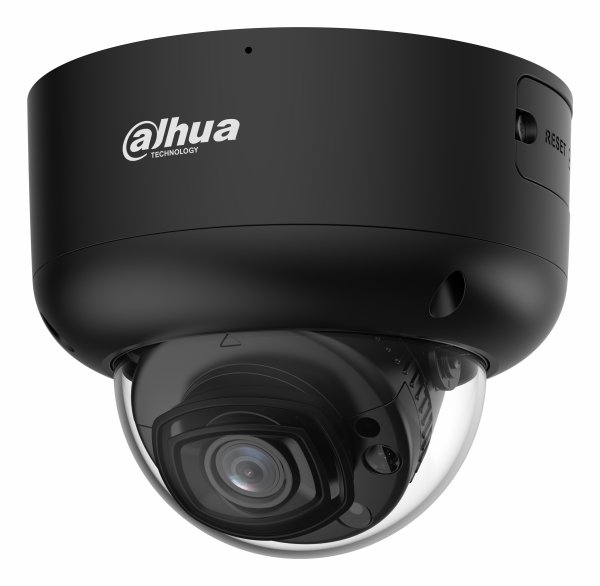

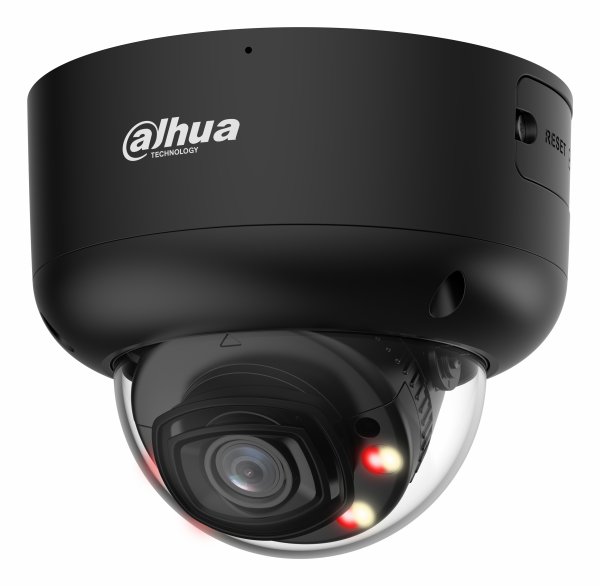

Dahua Technology WizMind IPC-HDBW5659R1-ASE-PV-PRO

Tuote

Valmistaja

Dahua Technology

Tuoteperhe / -sarja

WizMind

Tuotenimi

IPC-HDBW5659R1-ASE-PV-PRO

Valmistajan linkki

https://www.dahuasecurity.com/ceen/products/All-Products/Netwo..

Tuotekoodit

Valmistajan tuotekoodit

• IPC-HDBW5659R1-ASE-PV-0280B-PRO-BLACK

Tuotekuvat

Performance

Type

IP security camera

Placement supported

Indoor & outdoor

Connectivity technology

Wired

PTZ control

Kyllä

Auto-tracking

Kyllä

Auto pan mode

Kyllä

People counting function

Kyllä

Day/night mode

Kyllä

Infrared (IR) cut-off filter

Kyllä

Alarm input/output

Kyllä

Built-in light

Kyllä

Certification

CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

Design

Form factor

Spherical

Mounting type

Ceiling

Product colour

Black

Housing material

Metal

Protection features

Corrosion resistant, Waterproof

International Protection (IP) code

IP67

IK code

IK10

Camera

Camera pan control

Kyllä

Camera tilt control

Kyllä

Minimum illumination

0 lx

Angle of rotation

360 °

Lens viewing angle, horizontal

93 °

Lens viewing angle, vertical

50 °

Lens viewing angle, diagonal

111 °

Tilt angle range

0 - 75 °

Pan range

0 - 355 °

White balance

Auto

Camera shutter type

Electronic

Camera shutter speed

1/3 - 1/100000 s

Image sensor

Sensor type

CMOS

Optical sensor size

1/1.8 "

Progressive scan

Kyllä

Lens system

Detect distance

85.6 m

Observe distance

34.3 m

Recognize distance

17.1 m

Fixed focus

Kyllä

Maximum aperture number

1

Identify distance

86 m

Fixed focal length

3.6 mm

Closest focusing distance

3.2 m

Night vision

Night vision

Kyllä

Night vision distance

40 m

LED type

IR/White

Number of illumination LEDs

4

Video

Maximum resolution

3072 x 2048 pixels

Total megapixels

4 MP

Video compression formats

M-JPEG, H.265, H.264, H.264H, H.264B

Supported graphics resolutions

1920 x 1080 (HD 1080), 2688 x 1520, 2560 x 1440, 2304 x 1296, 2048 x 1536 (QXGA), 1280 x 960, 1280 x 720 (HD 720), 704 x 576, 704 x 480, 640 x 480 (VGA), 352 x 288, 352 x 240, 3072 x 2048

Supported video modes

1080p, 720p

Frame rate

30 fps

Noise reduction

Kyllä

Noise reduction technology

3D noise reduction

Gain control type

Auto

Image quality adjustment

Mirror, Gain

Back Light Compensation (BLC)

Kyllä

Highlight Compensation (HLC)

Kyllä

Digital Wide Dynamic Range (DWDR)

Kyllä

Smart IR

Kyllä

Audio

Built-in speaker(s)

Kyllä

Signal-to-Noise Ratio (SNR)

56 dB

Built-in microphone

Kyllä

Number of microphones

1

Audio detection

Kyllä

Network

Ethernet LAN

Kyllä

Wi-Fi

Ei

Bluetooth

Ei

Supported network protocols

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Storage

Built-in HDD

Kyllä

Built-in SSD

Kyllä

ROM capacity

4000 MB

RAM capacity

2000 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Security

Detection distance

124 m

Motion sensor

Kyllä

Mirror

Kyllä

Power

Power source type

DC

Power consumption (max)

21.7 W

Power consumption (Power over Ethernet (PoE))

23.9 W

DC output voltage

12

Operational conditions

Operating temperature (T-T)

-40 - 60 °C

Storage temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

0 - 95 %

Storage relative humidity (H-H)

0 - 95 %

Weight & dimensions

Width

126 mm

Depth

126 mm

Height

105 mm

Weight

730 g

Packaging data

Package weight

940 g

Sustainability

Compliance certificates

Low Voltage Directive (LVD), Electromagnetic Compatibility (EMC), CE

Packaging content

Number of cameras

2

Memory card included

MicroSD

Technical details

Lens mount interface

M16
