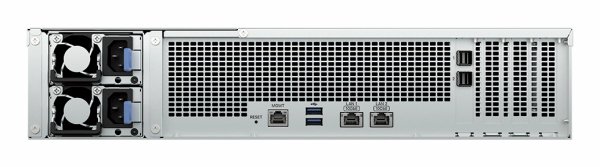

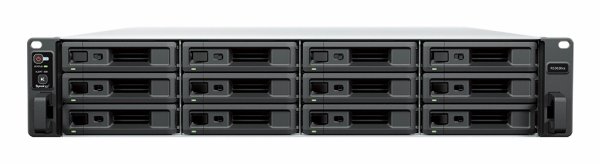

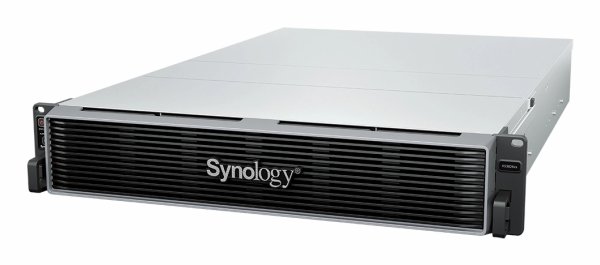

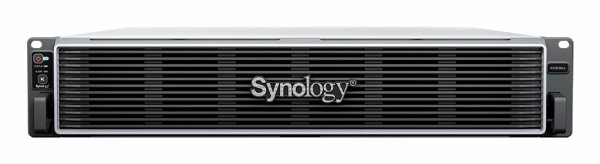

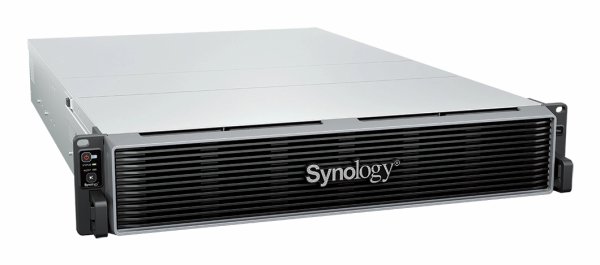

Synology RackStation RS3626xs

Tuote

Valmistaja

Synology

Tuoteperhe / -sarja

RackStation

Tuotenimi

RS3626xs

Valmistajan linkki

https://www.synology.com/en-in/products/RS3626xs

Tuotekoodit

Valmistajan tuotekoodit

• RS3626XS

GTIN- / EAN-koodit

• 4711174726073

Tuotekuvat

Storage

Storage drives installed

Ei

Total installed storage capacity

0 TB

Number of storage drives installed

0

Number of storage drives supported

12

Installed storage drive type

Ei

Supported storage drive types

HDD & SSD

Storage drive capacity

0 GB

Storage drive interface

Serial ATA, Serial ATA II, Serial ATA III

Storage drive sizes supported

2.5,3.5 "

RAID support

Kyllä

RAID levels

F1, JBOD, 0, 1, 5, 10

Hot-swap drive bays

Kyllä

Supported file systems

BTRFS, ext4, ext3, FAT32, NTFS, HFS+, exFAT

Maximum number of drives (with expansion)

36

Processor

Processor manufacturer

Intel

Processor family

Intel® Xeon® D

Processor model

D-1726

Processor frequency

2.9 GHz

Processor boost frequency

3.5 GHz

Processor cores

6

Processor threads

12

Processor cache

10 MB

Number of processors installed

1

Thermal Design Power (TDP)

70 W

Memory

Internal memory

8 GB

Internal memory type

DDR4

Maximum RAM supported

48 GB

Memory slots

6

Memory form factor

UDIMM

ECC

Kyllä

Network

Ethernet LAN

Kyllä

Ethernet LAN data rates

10,100,1000,10000 Mbit/s

Ethernet LAN data rate supported (max)

10000 Mbit/s

Wake-on-LAN ready

Kyllä

Wake-on-WAN ready

Kyllä

Ports & interfaces

Ethernet LAN (RJ-45) ports

2

USB port

Kyllä

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Expansion ports quantity

2

PCI Express x8 (Gen 4.x) slots

2

Design

Chassis type

Rack (2U)

Cooling type

Active

Product colour

Black

Number of fans

4 fan(s)

Fan diameter

80 mm

Fan diameter 2

80 mm

LED indicators

Power, Status, Alarm

Performance

Type

NAS

Device class

Small & Medium Business

Backup function

Kyllä

Number of users

3300 user(s)

Noise level

38.8 dB

Snapshot

Kyllä

Access Control List (ACL)

Kyllä

Reset button

Kyllä

On/off switch

Kyllä

Browser supported

Chrome Firefox Edge Safari

Software

Operating system installed

DiskStation Manager

Power

Power supply unit (PSU) capacity

550 W

Redundant power supply (RPS) support

Kyllä

Power consumption (typical)

147.79 W

Power consumption (HDD standby)

75.73 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Number of phases

1

Weight & dimensions

Width

482 mm

Depth

724 mm

Height

88 mm

Weight

14500 g

Packaging content

Cables included

AC

Operational conditions

Operating temperature (T-T)

0 - 35 °C

Operating relative humidity (H-H)

8 - 80 %

Storage temperature (T-T)

-20 - 60 °C

Storage relative humidity (H-H)

5 - 95 %

Operating altitude

0 - 5000 m

Other features

Size (imperial)

19 "

Supported protocols

SMB AFP NFS FTP WebDAV Rsync

Doesn't contain

Lead, Mercury, Cadmium

Warranty period

5 year(s)

Compliance certificates

Federal Communications Commission (FCC), CE, BSMI, VCCI, UKCA, EAC, CCC, KC, BIS, UL, RoHS

Expansion type

Mini-SAS HD
