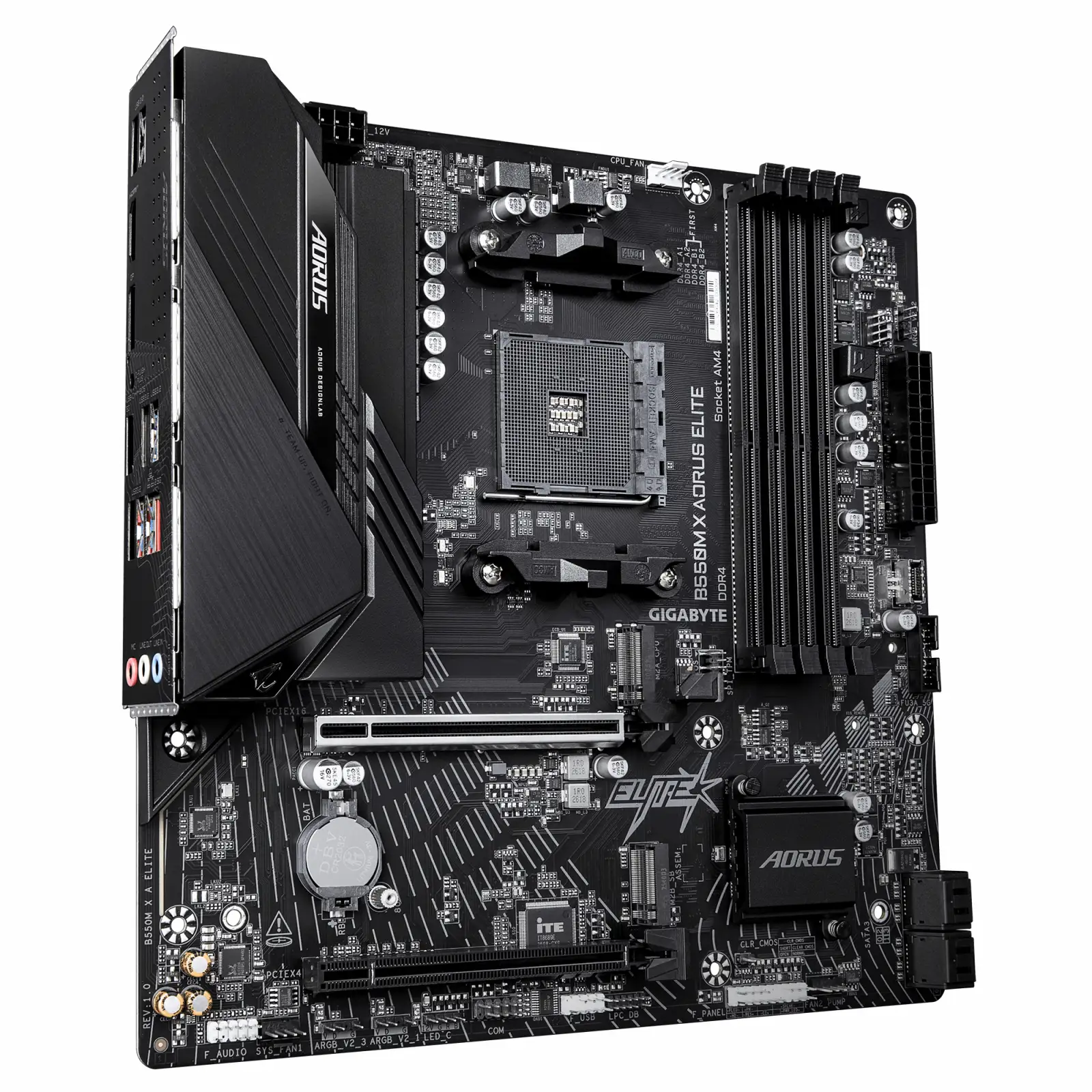

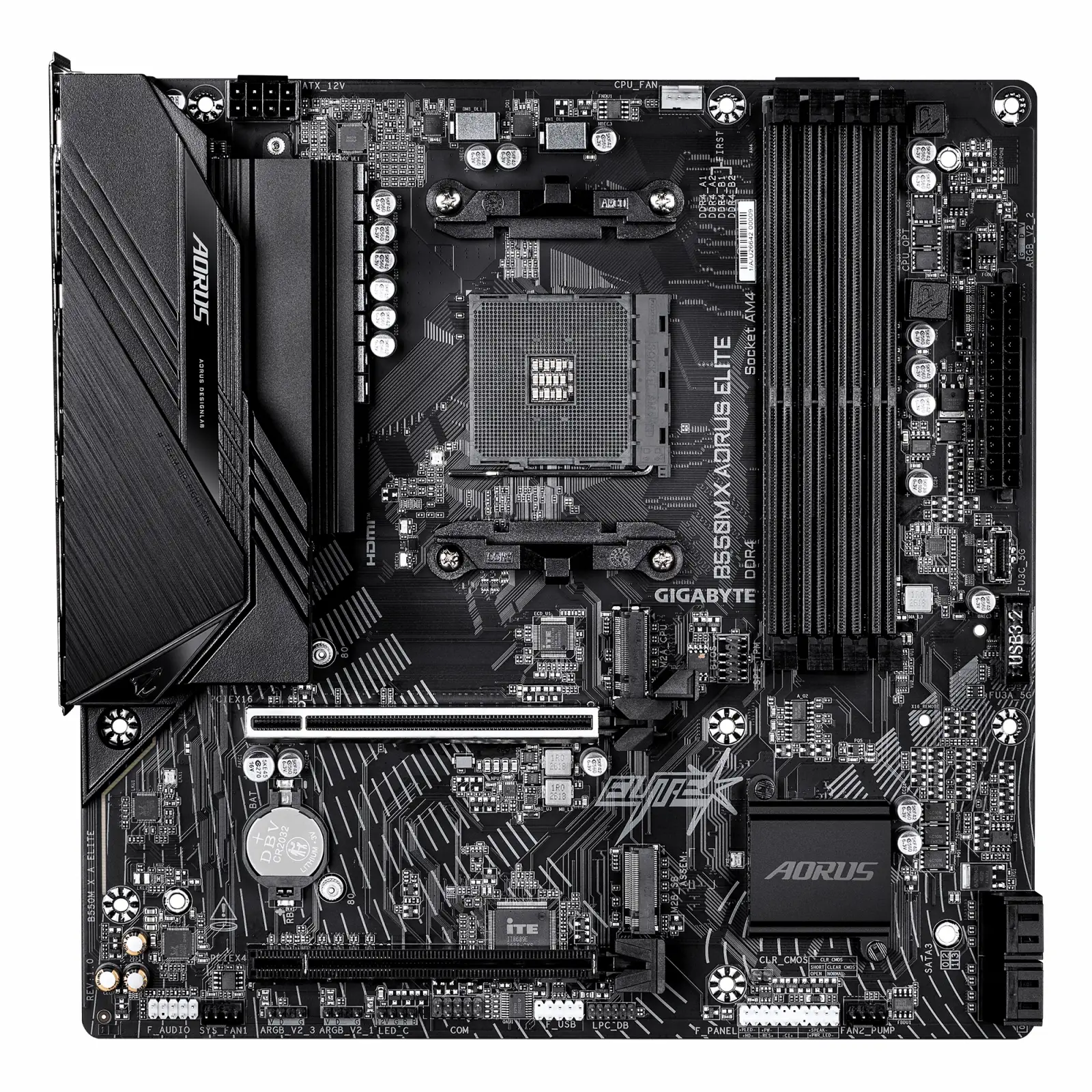

Gigabyte B550M X AORUS ELITE

Tuote

Valmistaja

Gigabyte

Tuotenimi

B550M X AORUS ELITE

Valmistajan linkki

https://www.gigabyte.com/

Tuotekoodit

Valmistajan tuotekoodit

• B550M X A ELITE

GTIN- / EAN-koodit

• 4719331883416

Tuotekuvat

Processor

Processor manufacturer

AMD

Processor socket

Socket AM4

Compatible processor series

AMD Ryzen 5000 Series, AMD Ryzen 4000 Series, AMD Ryzen 3000 Series

Supported processor sockets

Socket AM4

Memory

Supported memory types

DDR4-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

ECC сompatibility

ECC & Non-ECC

Supported memory clock speed (max)

3200 MHz

Maximum internal memory

128 GB

Unbuffered memory

Kyllä

Maximum internal memory per slot

32 GB

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, PCI Express 4.0, PCI Express 3.0, SATA III

Number of HDDs supported

4

Number of storage drives supported

6

RAID support

Kyllä

RAID levels

0, 1, 10

Graphics

Parallel processing technology support

Not supported

DirectX version

12.0

Internal I/O

USB 2.0 connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Kyllä

Front panel connector

Kyllä

ATX Power connector (24-pin)

Kyllä

CPU fan connector

Kyllä

TPM connector

Kyllä

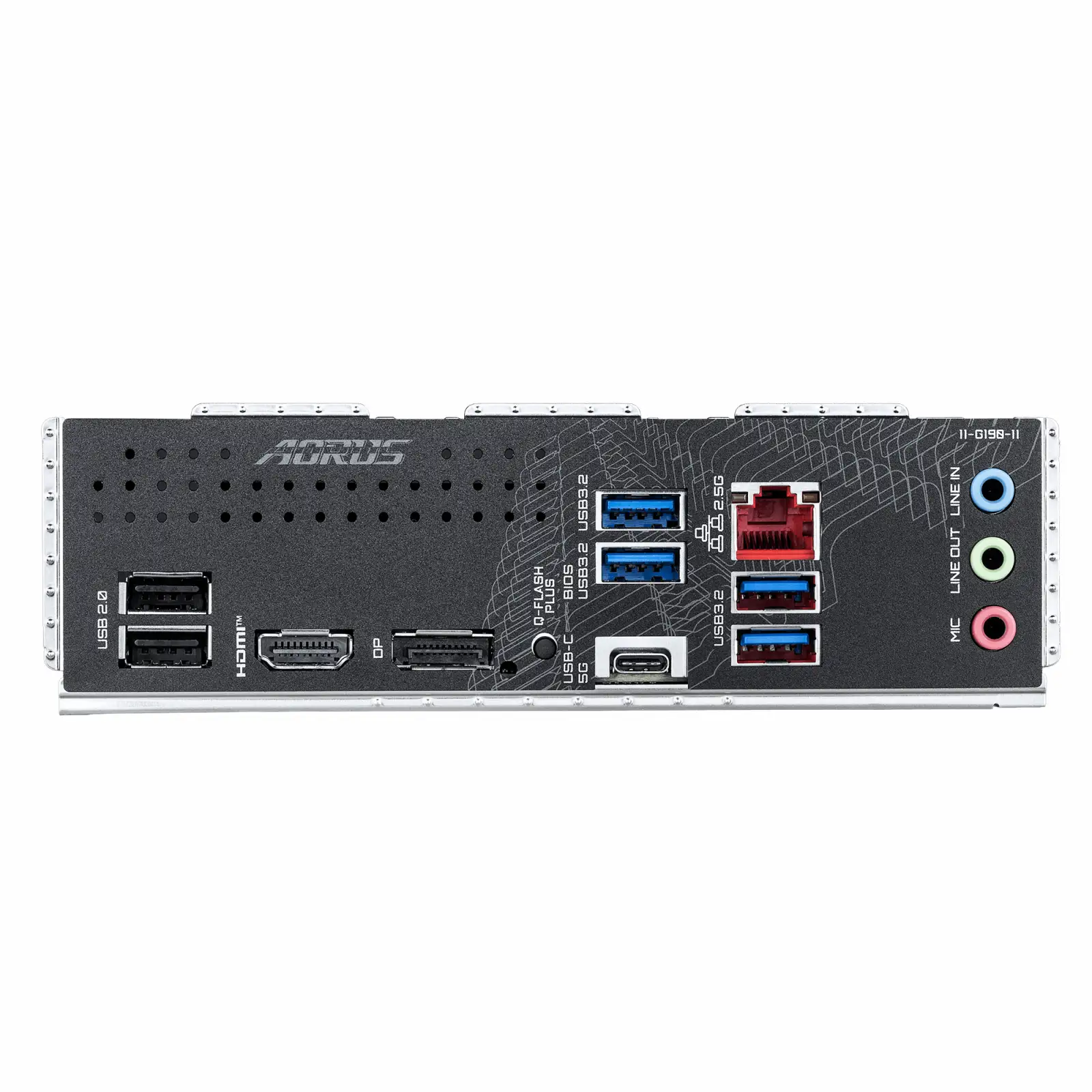

Rear panel I/O ports

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

Ethernet LAN (RJ-45) ports

1

VGA (D-Sub) ports quantity

0

HDMI ports quantity

1

DVI-D ports quantity

0

DisplayPorts quantity

1

Headphone outputs

1

Line-in

Kyllä

Microphone in

Kyllä

Network

Ethernet LAN

Kyllä

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125

Wi-Fi

Ei

Features

Component for

PC

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD B550

Audio chip

Realtek ALC1220-VB

Audio output channels

7.1 channels

Product colour

Black

Cooling type

Passive

Power source type

ATX

Expansion slots

PCI Express x4 slots

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2280

2nd M.2 highest PCI Express generation

3.0

BIOS

BIOS type

UEFI AMI

Logistics data

Country of origin

China

Products per shipping (inner) case

1 pc(s)

Battery

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery capacity

220 mAh

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Packaging data

Package width

270 mm

Package depth

268 mm

Package height

68 mm

Package weight

2264 g

Weight & dimensions

Width

244 mm

Depth

244 mm

Height

35 mm

Packaging content

Batteries included

Kyllä

Screws included

Kyllä

Other features

Weight

1040 g

Technical details

Warranty period

3 year(s)
